Product Description
|

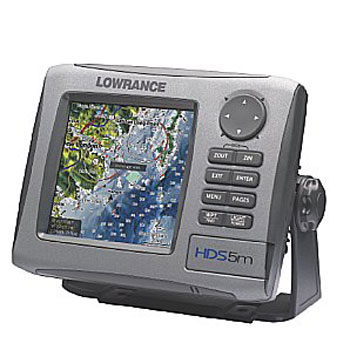

This excellent space-saving choice in the new HDS line of performance multifunction chartplotters is the ideal choice for installation on smaller boats.
|

|
|
Further Details
|
- Display Size : 5 in \ 127 mm
- Display Resolution : 480 x 480 (H x W)
- Display Type : 16-bit color SolarMAX™ PLUS TFT
- Backlighting : Screen/Keypad
- Backlighting Type : Flourescent (CCFL) backlit screen, LED keypad backlight
- Resize Display Window : Yes
- Sonar And GPS Overlay Data : Yes
- Split Screen Presentation : Yes
- Multilanguage Display : Yes
- Languages Supported : 23
- GPS Antenna Type : Internal, high-sensitivity GPS+WAAS (Americas) or GPS+EGNOS+MSAS (non-Americas)
- GPS Receiver Channels : 16 channels
- Background Map : Expanded U.S. BaseMap or Lake Insight™ or Nautic Insight™ (Americas) or Worldwide background map (non-Americas)
- Custom Mapping : Optional Navionics® Platinum+ and Platinum chartcards with TurboView™ for worldwide coverage - as well as Navionics® HotMaps™ Platinum, Lowrance Hot Spots® PRO and LakeMaster® ProMaps (Americas)
- Waypoint Storage : 5000
- Routes : 200
- Plot Trails : Up to 10 trails - up to 12,000 points/trail
- Man Overboard Feature : Yes
- GPS Alarms : Yes
- Antenna Type Radar : Optional Lowrance radar choices available
- NETWORKING / CONNECTORS
- NMEA 0183 Input : Yes
- NMEA 0183 Interface : up to 38,400 baud
- NMEA 2000 Pending Certification : Yes
- NMEA Output : 0183/2000
- Connectors : NMEA 2000®, NMEA 0183 and Ethernet
- TECHNICAL / ENVIRONMENTAL
- Built-in Backup Memory : Yes
- Casing : Sealed and waterproof
- Waterproof Standard : IPX6 and IPX7 with memory card door closed
- Width : 7.2 in \ 184 mm
- Height : 5.7 in \ 146 mm
- Depth : 4 in \ 102 mm
- Power Supply : 10 - 18 vDC
- Power Supply: Input Current : 0.7A at 13VDC with backlight on, 0.4A with backlight off
|
|
|
|
|
|
|
