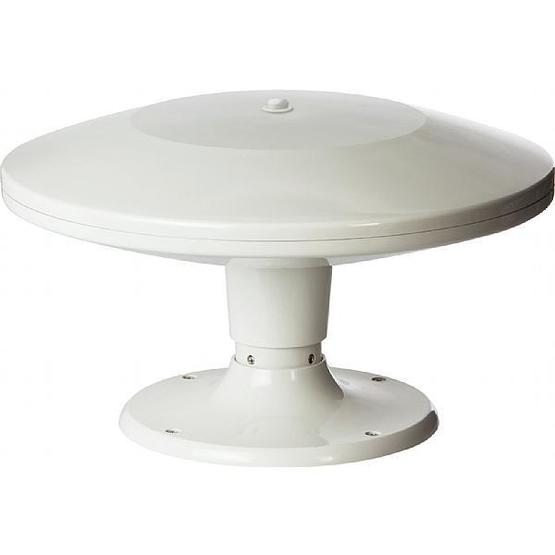

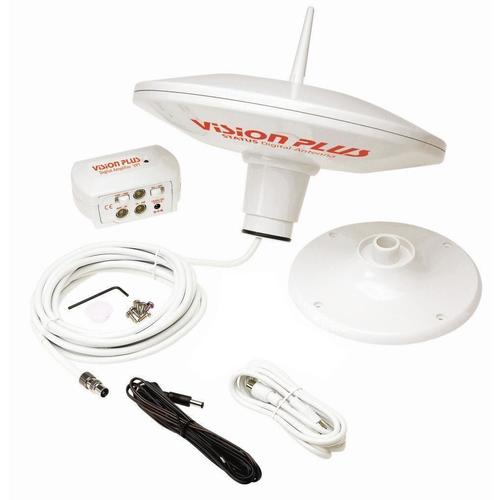

Designed for mobile use, the Vision Plus STATUS 330 satisfies a number of important criteria, whilst overcoming some of the compromises associated with this design of antenna.
In the UK and a number of overseas countries TV signals are transmitted horizontally and vertically. Vertical reception requires a vertical receiver. The S330 achieves this with the Central Pinnacle. A clever solution which creates a distinctive profile setting it apart from the rest.
TV reception can be greatly affected by the orientation of the antenna and it is crucial that all antennas are mounted level. Therefore the S330 has the ability to be finely adjusted to remain level on gradients up to 22 degrees – a unique feature only offered by STATUS.
The Omni-Directional Status 330 receives TV signals through 360 degrees using an electronic amplifier to boost signals.

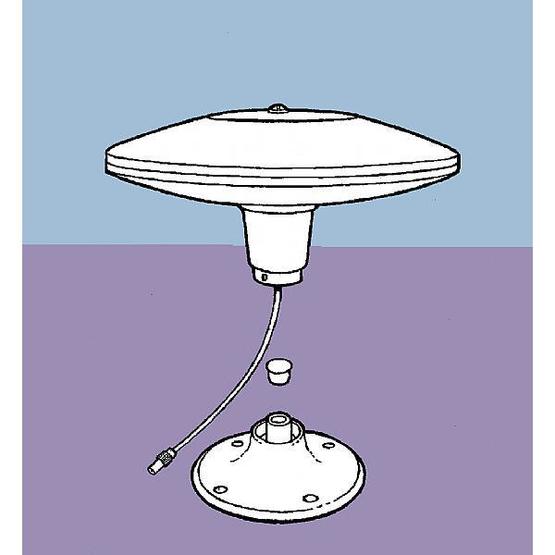

For ease of use the Pinnacle can be simply unscrewed in those instances where storage height is a problem. Furthermore, the antenna itself can be removed leaving in place the Mounting Foot, which can be sealed with a blanking cap.
And finally – Operation – it couldn't be simpler. Simply switch on your television and tune in.
Frequency Range : TV UHF 470-860 Mhz
- : TV VHF 40-230 Mhz
- : Radio FM 88-108 Mhz
Amplifier Gain : 18db
Gain Adjustment : 15 db
Flatness : +2 db
Noise Figure : 3 db
Output Impedance : 75 ohms
Output : 98dbuv
Power Supply : 12-24 v DC
Power Consumption : 35 ma
TV Lead : 2 metres
Power Pack : 1520 x 80 x 36 mm
Diameter : Antenna Dome 315 mm
Diameter : Mounting Foot 185 mm
Height : Overall 280 mm
Height : No Pinnacle 180 mm
Height : No Antenna Dome 50 mm
Q: Can I reduce the height of my antenna for winter storage etc? : A: Yes, the Pinnacle or the complete antenna dome, including cable, can be removed.
Q: Can I run a TV and Radio from the Status Power Pack? : A: Yes, the Power Pack is designed to supply either 2 televisions or 1 television and a radio. The Status 315 is suitable for receiving FM radio channels.
Q: Can I use another type of Power Pack or Signal Booster with my Status antenna? : A: No, only the Status Power Pack is compatible with the Status antenna.

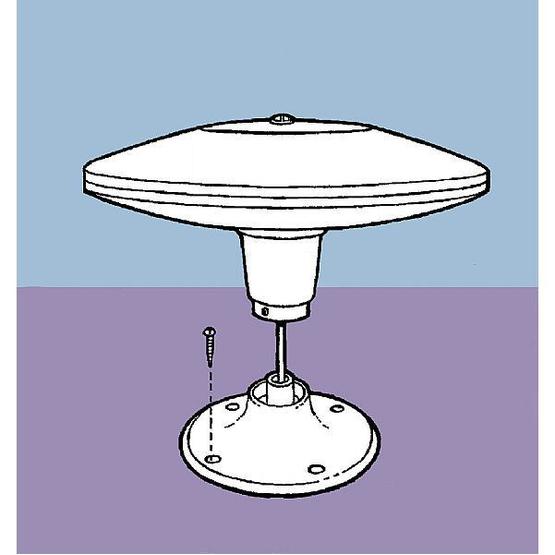

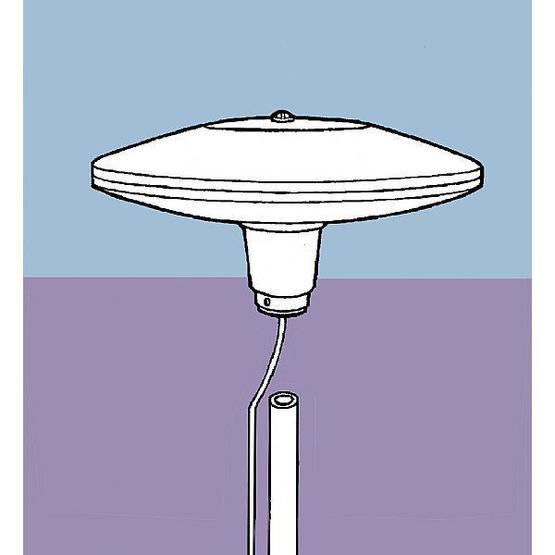

Q: Do I have to permanently install the Status 315? : A: No, the 315 can be mounted using the sucker feet provided or mounted onto a Vision Plus mast.
Q: If I remove the antenna dome, how do I stop water getting into the van through the cable hole in the foot of the antenna? : A: A plastic plug or blanking cap is supplied with each unit when purchased.
Q: Is the 315 adjustable if my van roof is not flat? : A: Yes, the adapter on the antenna allows angle adjustability up to 22 degrees.
Q: Is the antenna supplied with fitting instructions? : A: Complete installation instructions are supplied with each unit.
Q: Is the coaxial cable detachable from the antenna dome? : A: No, the coaxial cable is internally connected and the antenna dome is sealed.
Q: Is the Pinnacle necessary? : A: Yes, the Pinnacle is essential for optimum performance, especially in vertical signal areas.
Q: Is the Status 315 antenna digital terrestrial compatible? : A: Yes, the 315 is a wide band antenna.
Q: Should I remove a non-permanently installed antenna when travelling? : A: Yes, the sucker feet fixings and masts are not designed for use when on the move.
Q: Where should I site the antenna? : A: The 315 should be positioned away from obstructions and at the highest point where possible
1 Customer Review on Vision Plus Status 330 Omni-Directional Antenna with 5m coxial cable
Vision Plus Status 330
by Mrs Moore (13 Oct 2017)
Bought this to replace the one I damaged. Very pleased with the purchase.
