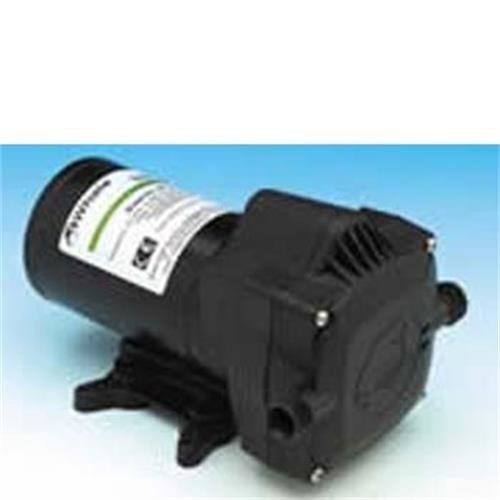

Whale pump with integral pressure switch. Pump starts automatically when water pressure drops on opening a tap. Delivers 12 ltrs per minute at 1 bar pressure (15psi) Suitable for 3 or 4 outlets. Water connections are for 12mm semi rigid piping.
Recommended No. of Outlets: : 3 to 4
Flow Rate: : 12 ltrs/min (3.2 US gals/min)
Voltage: : 12V DC
Cut out pressure: : 1 bar / 15 psi
Recommended Fuse Size: : 5 amp automotive
Weight: : 2.4 kg
Inlet/Outlet Size: : ½” male thread
Hose Connections: : For 1/2” flexible hose use WX1584 (supplied with retail pump). For 3/8” flexible hose use WU1215 + WU1280. (not supplied with pump)
Semi-rigid Pipework Systems : For Whale Quick Connect 15 mm NO ADAPTOR REQUIRED. For Whale Quick Connect 12 mm use WU1215 (not supplied with pump)
Additional Fittings: : 1/2” BSP male adaptors WX1587 x 2 (supplied with pump) 1/2” flexible hose adaptors WX1584 x 2 (supplied with pump)
Materials in Contact with Liquid: : Glass filled polypropylene, Monoprene, Nitrile, stainless steel
Service Kits: : Microswitch AK1317/ Replacement Head Kit AK1316. Strainer Replacement AK1319
Minimum Wire Size: : 2.5 mm2 12AWG
Maximum Head: : 10 m (33 ft)
imum Lift: : 3 m (10 ft)
