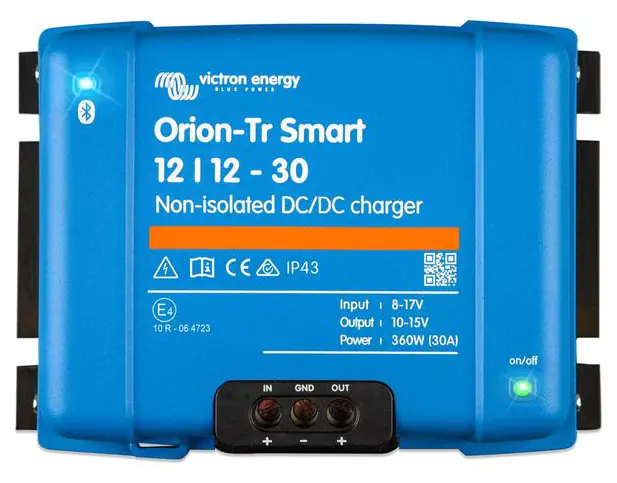

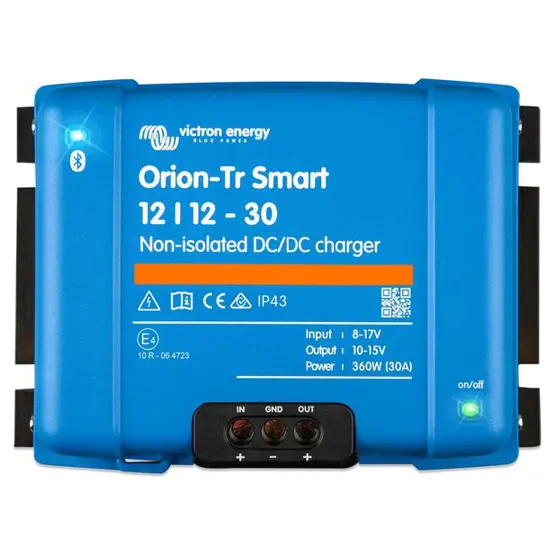

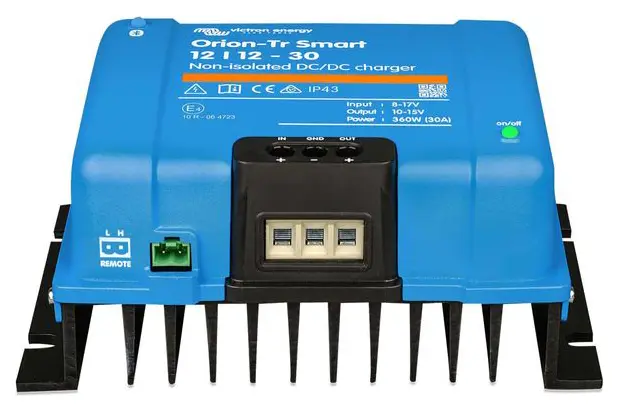

Victron Orion-Tr Smart Non-Isolated DC-DC Charger (12V - 12V / 30A / 360W) image 1 Victron Orion-Tr Smart Non-Isolated DC-DC Charger (12V - 12V / 30A / 360W) image 2

Victron Orion-Tr Smart Non-Isolated DC-DC Charger (12V - 12V / 30A / 360W)

£168.99(inc VAT) £295.99
View delivery optionsView product description
  Product Description
The Victron Orion-Tr Smart 12V to 12V 30A non-isolated DC-DC charger solves the widespread problem of modern vehicles failing to properly charge auxiliary batteries, particularly in motorhomes, campervans, and boats where Euro 5 and Euro 6 smart alternators won't maintain the voltage levels needed for complete battery charging. This professional unit delivers 360W of charging power through a shared negative connection system that suits 99% of vehicle applications where starter and leisure batteries connect to common earth points. The built-in Bluetooth connectivity means you control everything through your smartphone using the VictronConnect app, eliminating the need to access the unit once installed.

What sets this charger apart from basic split-charge relays is its intelligent 3-stage charging algorithm that adapts absorption time based on how deeply you've discharged your batteries - shallow discharges get shorter absorption periods to prevent overcharging, whilst deeper discharges receive the full treatment your batteries need. The software-based engine detection removes the installation complexity found with other DC-DC chargers that need additional sensing wires connected to ignition circuits or alternator outputs. You simply configure the voltage thresholds through the app, and the unit automatically starts charging when it detects your engine running and stops when the engine switches off.

At 30A output, this charger handles most single auxiliary battery setups effectively, maintaining full power up to 40°C and continuing operation with thermal protection up to 55°C in engine bay installations. The programmable charging profiles work with any battery chemistry from traditional lead-acid through to lithium, matching manufacturer specifications exactly rather than using generic charge curves. The main limitation is output current - larger battery banks or systems requiring faster charging will need multiple units connected in parallel, which increases cost and complexity compared to higher-output alternatives, though the modular approach does allow system expansion as power needs grow.

Victron Orion-Tr Smart DC-DC Charger (12V - 12V / 30A / 360W) Features


  • Bluetooth Smart enabled
  • Fully programmable
  • Adaptive 3-stage charge algorithm: bulk - absorption - float
  • Suitable for use with a smart alternator
  • Remote on/off
  • Short circuit proof
  • Parallel to increase output current
  • High temperature protected
  • IP43 protection
  • Screw terminals
  • Input fuse
  • 'Smart alternator' compatible (Euro 5, 6, 6+)
  • Built-in Bluetooth and fully configurable via smartphone app
  • Adaptive 3-stage charge algorithm
  • Fully programmable battery charging profile
  • Suitable for all battery types (including lithium)
  • Can operate as a fixed voltage DC-DC converter
  • 'Engine-On' software detection for simplified wiring
  • Short-circuit proof
  • Remote on/off facility
  • High temperature protection
  • Units can be wired in parallel to increase output

Specifications
  • Input voltage range: 10-17 V
  • Under-voltage shut down: 7V
  • Under-voltage re-start: 7.5V
  • Nominal output voltage: 12.2V
  • Output voltage range: 10-15V
  • Output voltage tolerance: +/-0.2V
  • Continuous output current: 30A (up to 40ºC)
  • Maximum output current (for 10s): 40A
  • Short circuit output current: 60A
  • Continuous output power at 25ºC: 430W
  • Continuous output power at 40ºC: 360W
  • Ingress Protection rating: IP43 (screw terminals facing downwards)
  • Efficiency: 87%
  • No load input current: <80mA
  • Standby current: <1mA
  • Operating temperature range: -20 to +55ºC
  • Cable connections: Screw terminals
  • Max. cable cross-section: 16mm2 (6 AWG)
  • Dimensions: 130 (H) x 185 (W) x 80 (D) mm
EAN-13 : 8719076048954
