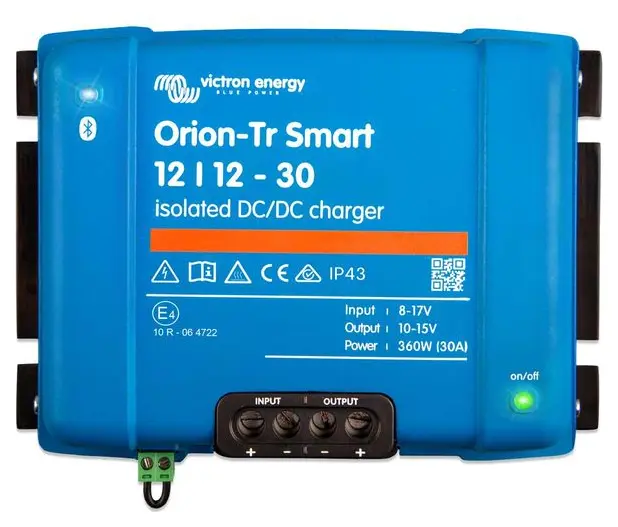

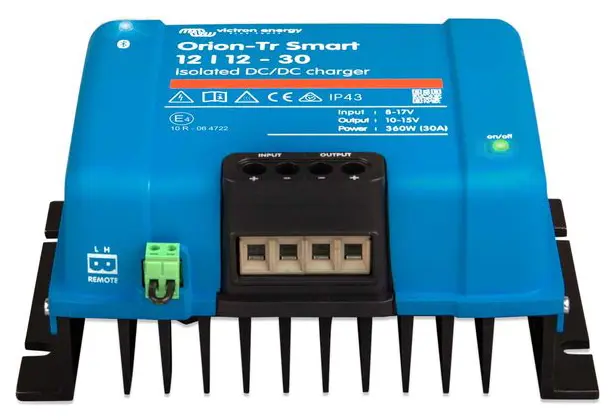

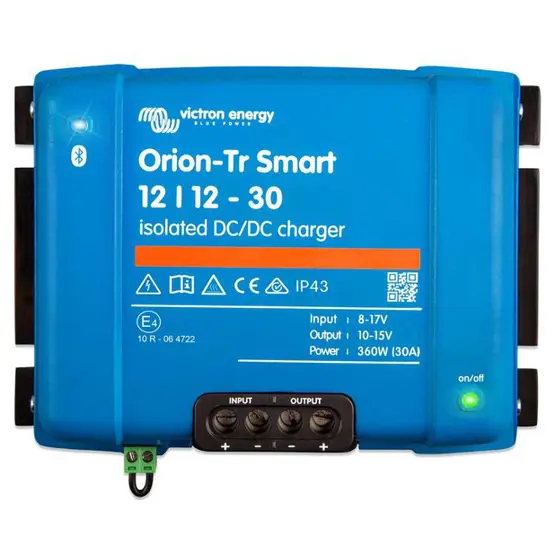

Victron Orion-Tr Smart Isolated DC-DC Charger (12V - 12V / 30A / 360W)

£199.99(inc VAT) £345.00
View delivery optionsView product description
  Product Description
The Victron Orion-Tr Smart 12V to 12V 30A isolated DC-DC charger addresses the growing challenge of charging auxiliary batteries from modern Euro 5 and Euro 6 vehicles with smart alternators that won't properly charge secondary battery systems. This professional-grade unit delivers 360W of charging power whilst maintaining complete electrical isolation between your starter battery and leisure battery negative connections - something needed in specific installations where batteries don't share common negative points or where isolation provides system benefits. Most motorhome and marine applications use the standard non-isolated version, but commercial vehicles, certain boat configurations, and installations with mixed battery technologies often require this isolated approach.

The built-in Bluetooth connectivity transforms how you manage auxiliary battery charging because you can monitor performance, adjust charging profiles, and configure engine detection settings directly through the VictronConnect smartphone app without crawling into awkward installation spaces. The adaptive 3-stage charging algorithm automatically adjusts absorption time based on discharge depth, preventing the overcharging that shortens battery life whilst ensuring complete charging cycles. Unlike cheaper DC-DC chargers that need additional wiring to detect when your engine runs, this unit uses intelligent voltage sensing that you configure through the app, eliminating extra connections and potential failure points.

At 30A output, this charger handles most single-battery auxiliary systems comfortably, maintaining full power up to 40°C ambient temperature and continuing to operate safely up to 55°C with thermal protection. The unit works with all battery types from traditional lead-acid through to lithium chemistries, with fully programmable charging profiles that match manufacturer specifications exactly. The main consideration is cost - you're paying extra for isolation you might not need, and the 30A output won't suit larger battery banks that require faster charging rates, though multiple units connect in parallel for increased capacity when needed.

Victron Orion-Tr Smart DC-DC Charger Isolated (12V - 12V / 30A / 360W) Features


  • Bluetooth Smart enabled
  • Fully programmable
  • Adaptive 3-stage charge algorithm: bulk - absorption - float
  • Suitable for use with a smart alternator
  • Remote on/off
  • Short circuit proof
  • Parallel to increase output current
  • High temperature protected
  • IP43 protection
  • Screw terminals
  • Input fuse
  • Electrically-isolated negative connections
  • 'Smart alternator' compatible (Euro 5, 6, 6+)
  • Built-in Bluetooth and fully configurable via smartphone app
  • Adaptive 3-stage charge algorithm
  • Fully programmable battery charging profile
  • Suitable for all battery types (including lithium)
  • Can operate as a fixed voltage DC-DC converter
  • 'Engine-On' software detection for simplified wiring
  • Short-circuit proof
  • Remote on/off facility
  • High temperature protection
  • Units can be wired in parallel to increase output

Specifications
  • Input voltage range: 10-17 V
  • Under-voltage shut down: 7V
  • Under-voltage re-start: 7.5V
  • Nominal output voltage: 12.2V
  • Output voltage range: 10-15V
  • Output voltage tolerance: +/-0.2V
  • Continuous output current: 30A (up to 40ºC)
  • Maximum output current (for 10s): 40A
  • Short circuit output current: 60A
  • Continuous output power at 25ºC: 430W
  • Continuous output power at 40ºC: 360W
  • Ingress Protection rating: IP43 (screw terminals facing downwards)
  • Efficiency: 87%
  • No load input current: <80mA
  • Standby current: <1mA
  • Galvanic isolation: 200V DC between input, output and case
  • Operating temperature range: -20 to +55ºC
  • Cable connections: Screw terminals
  • Max. cable cross-section: 16mm2 (6 AWG)
  • Dimensions: 130 (H) x 186 (W) x 80 (D) mm
EAN-13 : 8719076047698
