Victron Quattro Inverter Charger (24V / 5000VA / 120A) image 1

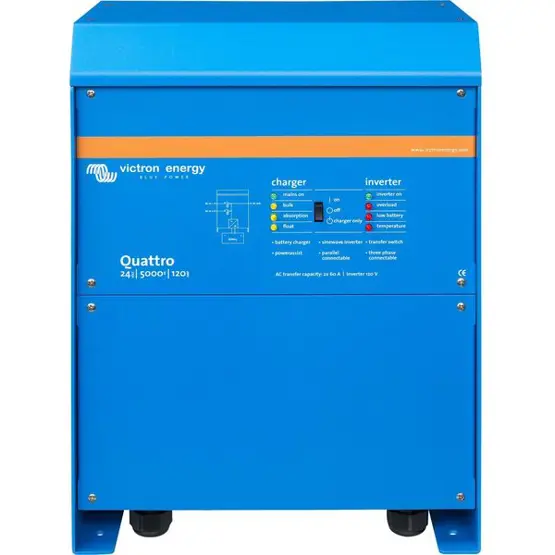

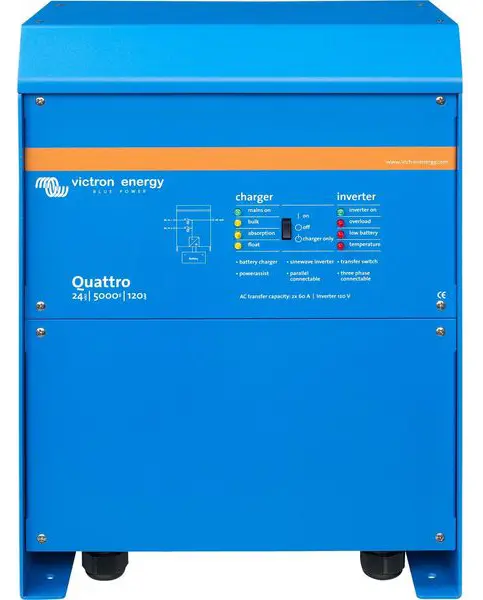

Victron Quattro Inverter Charger (24V / 5000VA / 120A)

£2906.99(inc VAT) £3778.99
View delivery optionsView product description
  Product Description
You're looking at the Victron Quattro Inverter Charger - a master of the camping, caravan and motorhome sector. This is a pure sine wave output, with a peak power hitting 10,000 Watts and a continuous of 4,250 Watts/5,000 VA. The built-in 120 Amp battery charger, and 2 x 30 Amp power transfer switches offer plenty of power, ready for use. It's also flexible, able to be used in parallel systems for unlimited power or in 3 Phase systems.

Versatile and practical, it boasts PowerAssist, PowerControl, ESS: Energy Storage Systems, and uninterrupted AC power (UPS) amongst its features. Remote Monitoring & Control, along with MultiPlus & MultiGrid Functions, means you're always in control. The Victron Quattro Inverter Charger is ideally suited for those using a lot of power in a camping, caravan or motorhome environment.

With the charger input working at 45-65Hz and the inverter output at 50Hz ± 1% you are sure of reliable operation. The Quattro Inverter ensures high-quality, crisp power delivery so that all your devices work properly. It's built to last, with the casing made from robust steel (blue RAL 5012) promising strength and durability.

Finally, you have the comfort of knowing that this product has the highest of approvals: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC - an assurance of quality. The Victron Quattro Inverter Charger really is the perfect solution for those who need dependable power during their outdoor excursions.

Specifications
  • Connection [AC] : Hard wired, M6 bolts
  • Charger Short Circuit Protection : Yes
  • Frequency Description : Charger Input: 45-65Hz, Inverter Output: 50Hz ± 1%
  • Output Frequency [Hz] : 50
  • Output Power [W] Continuous : 5000
  • Output Power [W] Peak : 10000
  • Waveform : True Sine Wave
  • Connection [DC] : 8mm stud
  • Type : 24V Inverter / Chargers
  • Voltage Description : Charger Input: 187-265V AC, InVerter Input: 19-33V DC, InVerter Output: 230V AC ±2%
  • Maximum Output Current [A] : 120
  • Number of Outputs : 1 + 4A float
  • Optional Remote Panel : Yes, see data sheet
  • Additonal Float Charge Output : 4A
  • Cables Included : No
  • Charge Characteristic : Automatic, adaptive
  • Rating : IP21
  • Efficiency : 94%
  • Height Description : 444mm
  • Width : 328mm
  • Depth : 240mm
  • Weight : 30kg
  • Material : Aluminium (blue RAL 5012)
  • Wattage : Output: 4000W @ 25°C, 3700W @ 40°C, 3000W @ 65°C
  • Approvals : EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC
  • Application : FLA, SLA, AGM, GEL, LiFePO4 Batteries
  • Operating Temperature : -40°C to +65°C
  • Capacity Description : Recommended Battery Capacity: 600 - 1200 Ah
  • External Temperature Sensor : Yes
  • Style : Combined Inverters & Battery Chargers
