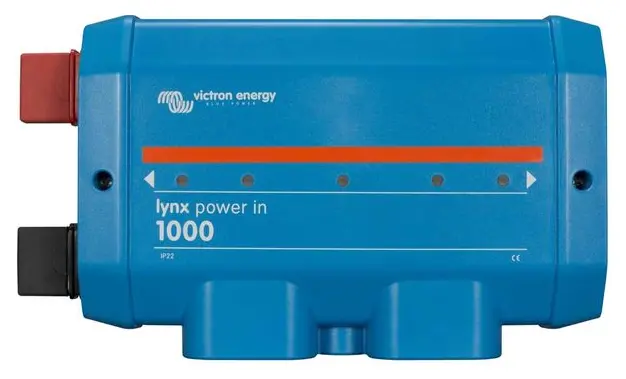

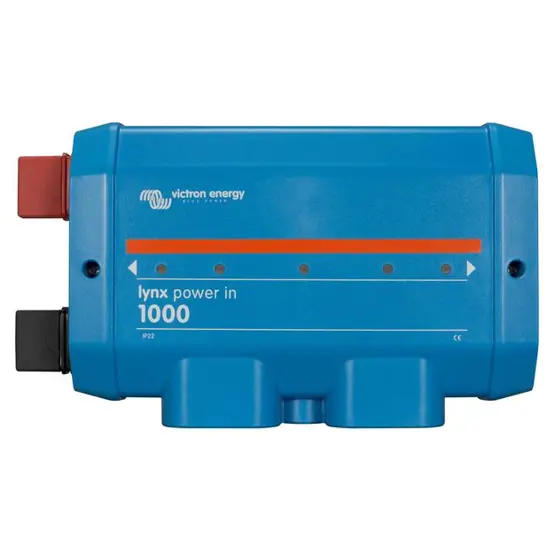

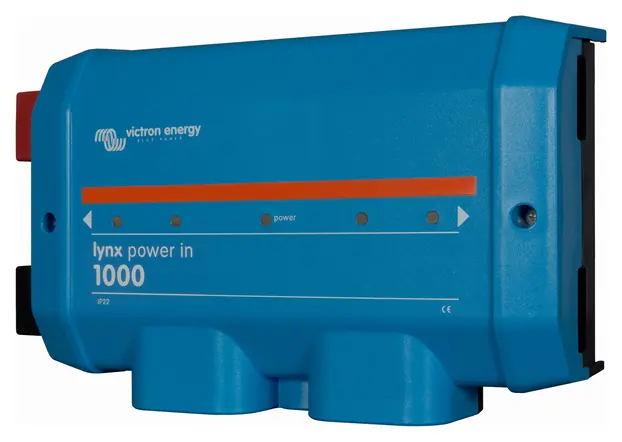

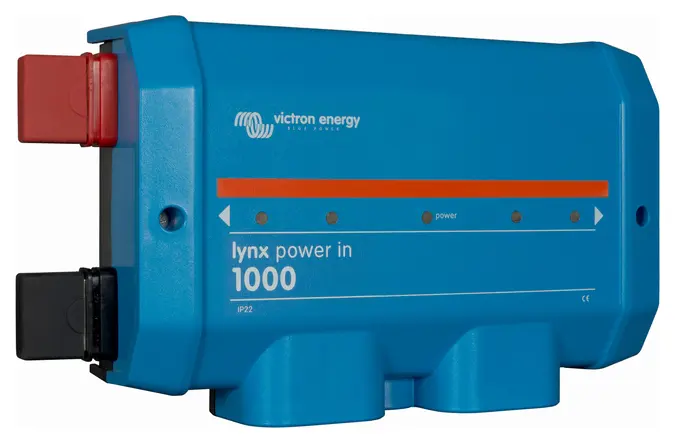

Victron Lynx Power In DC Busbar (M8)

£116.99(inc VAT) £227.99
View delivery optionsView product description
  Product Description

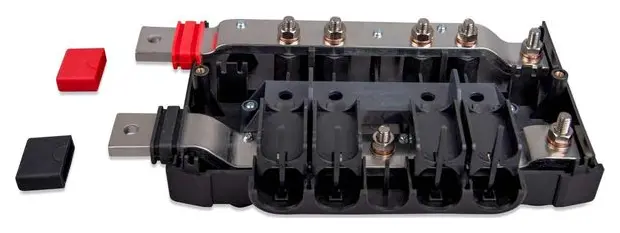

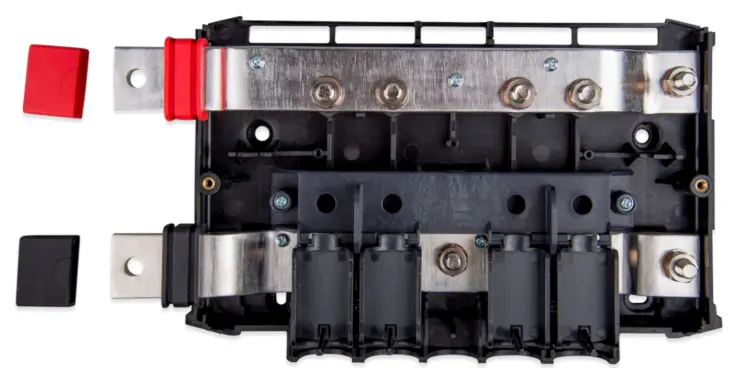

The Victron Energy Lynx Power In (M8) serves as the foundation component for DC electrical distribution in boats, motorhomes, and off-grid installations where multiple batteries need connecting to charging sources and loads. This modular busbar system handles the heavy-duty connections that traditional terminal blocks simply can't manage, with a 1000A current rating suitable for 12V, 24V, or 48V battery banks. Inside the compact housing, you'll find positive and negative busbars with four M8 connection points each, plus a dedicated earth connection that ensures proper system grounding.

The modular design means you can start simple and expand as your electrical system grows - use it standalone for basic battery interconnection, add a Lynx Distributor module for protected circuit distribution, or include the Lynx Shunt VE.Can module for comprehensive battery monitoring through your VictronConnect app. Multiple Power In modules connect together seamlessly, creating longer busbars when you need additional connection points for larger battery banks or more complex installations. Marine electricians and motorhome converters particularly value this scalability because it eliminates the need to redesign electrical layouts when upgrading systems.

The absence of internal fusing keeps costs down but means you'll need external fusing on all connections - this isn't a limitation but rather standard practice for professional installations where fuse ratings match specific cable and load requirements. Each connection point uses robust M8 studs that accommodate heavy-gauge cables typically found in high-current applications, whilst the modular bars ensure solid mechanical and electrical connections between units. For anyone building or upgrading a serious 12V, 24V, or 48V electrical system, this component provides the professional-grade foundation that cheaper alternatives simply can't match in terms of current handling and long-term reliability.

Specifications
  • Voltage rating: 9-60V DC
  • Current rating: 1000A
  • Busbar connections: M8
  • Module interconnection studs: M8
  • Enclosure material: ABS
  • Busbar material: Tinned copper
  • Overall dims: 290 (L) x 170 (W) x 80 (H) mm
  • Operating temperature: -40 to +60°C
  • Ingress protection rating: IP22
EAN-13 : 8719076022589
