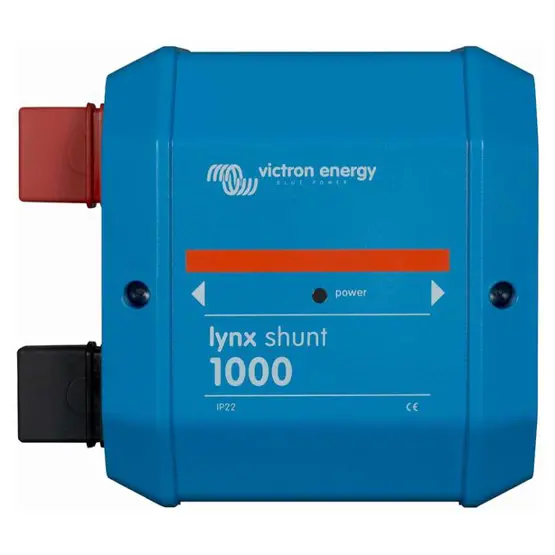

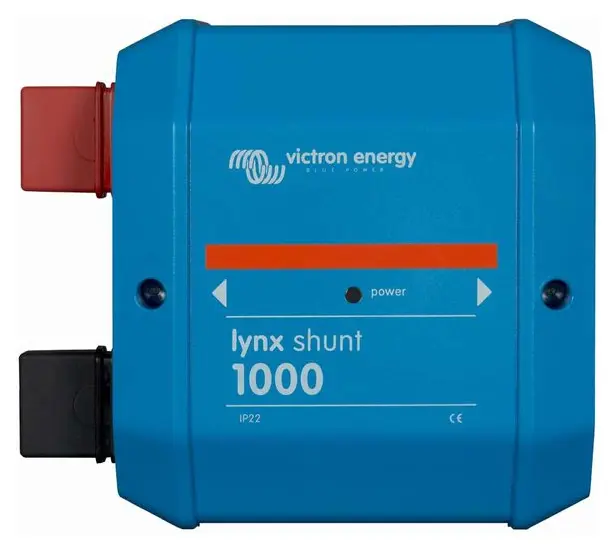

Victron Lynx Shunt VE.Can (M8 / 1000A) image 1 Victron Lynx Shunt VE.Can (M8 / 1000A) image 2

Victron Lynx Shunt VE.Can (M8 / 1000A)

£385.86(inc VAT) £541.99
?
View delivery optionsView product description
  Product Description
Are you in the camping, caravan and motorhome scene in the UK? Then you're no stranger to the qualities of Victron products. One such to consider is the intelligent Victron Lynx Shunt VE.Can, a 1000A shunt complete with a dedicated space for your CNN/ANL fuse (do remember to buy this separately). This essential kit is engineered to keep a careful eye on your battery state of charge, so it's ideal if you're keen on monitoring your power usage.

This becomes even handier when you connect it to a GX device, such as the Cerbo GX (again, it's a separate purchase). Using the two RJ45 VE.Can terminators, which come with the Lynx Shunt VE.Can, you can gain insight into your power management directly from your device. It's the perfect item for meticulous power users, eager to manage their energy usage and keep their system in optimum conditions.

What's more, this shunt is all part of Victron's modular Lynx distribution system, renowned for its reliability. The robustness extends to its performance capabilities, valid for a 12V, 24V, or 48V DC (ranging from 9V to 70V DC). It's a lightweight solution, weighing only 1.4kg, and crafted from durable ABS material, capable of enduring extreme temperature conditions. So, for anyone who values efficient power management on the move and reliable hardware, the Victron Lynx Shunt VE.Can stands as the go-to choice.

Specifications
  • Conductor Specifications : Tinned Copper
  • Dimensions : Busbar: 8mm x 30mm, Distance Between Mounting Hole Centres: 40mm x 56mm & 84mm x 85.5mm
  • Voltage Description : 12V, 24V or 48V DC (9V - 70V DC)
  • Height Description : Overall: 166.6mm
  • Width : Overall: 186mm, Excluding Connections: 152mm
  • Depth : 80.5mm
  • Weight : 1.4kg
  • Material : ABS
  • Approvals : CE
  • Operating Temperature : -40°C to +60°C
  • Amps Description : 1000A Continuous, Consumption 60mA at 12V, 33mA at 24V, 20mA at 48V
  • Country of Origin : Netherlands
