Are you a camping enthusiast in need of a reliable and flexible power system for your caravan or motorhome? Then let Sargent's 7'' Touchscreen Modular System with MC100, MC200 & Harnesses be the solution for your power requirements. This compact system doesn't compromise on functionality, offering power, control, and monitoring for your essential 12-volt accessories like heating, lighting, and water systems. Thanks to its modular design, it can fit effortlessly in spaces where room is limited.

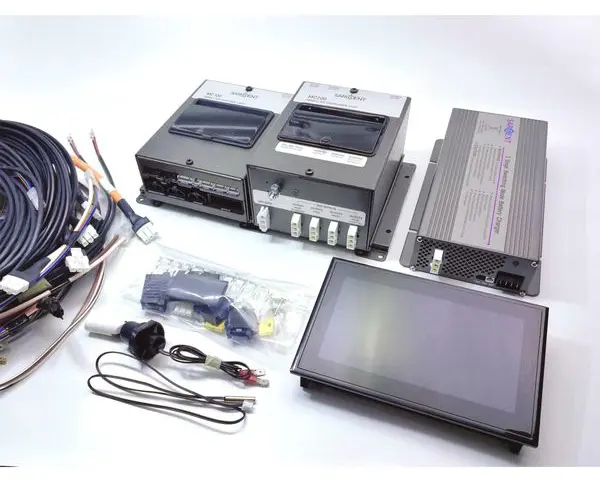

The system includes an MC100 Control Unit, which serves as the power hub. It comes packed with features such as leisure and vehicle inputs, charger input, multiple outputs, and facilities for engine run and multiple vehicle connections. It can monitor fresh and waste levels, act upon momentary inputs and includes data channels for expansion possibilities with intelligent CANBus accessories.

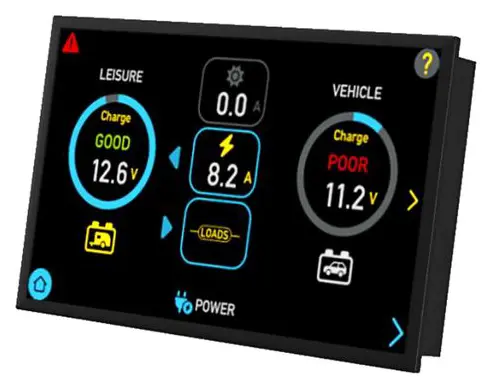

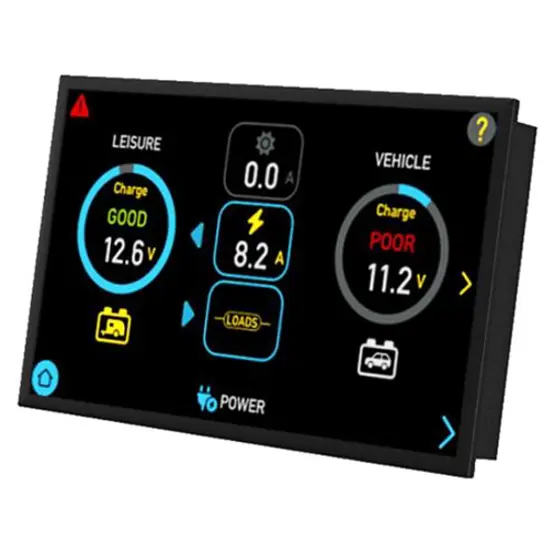

A second key component is the MC200 Consumer Unit, which offers Residual Current Device (RCD) and Miniature Circuit Breaker (MCB) protection for your 230-volt mains circuits. The package also includes a 7'' Colour Touchscreen Display, providing you with an intuitive interface through which you can control your lighting, power, water, and environmental sensors. The modular system opens up the option to add Webasto thermo top integration, which becomes available on the 7'' display with the addition of a Sargent Webasto circuit board.
The Sargent 7'' Touchscreen Modular System's robust specifications and features make it a must-have for all campers, caravanners, and motorhome users. Its modular power supply units provide all-round protection and control for your AC and DC circuits, and the multi-stage battery charger ensures your leisure or vehicle battery is always primed for use. The system even includes fresh and waste tank sensors, keeping you alerted about your water supply, along with sensors to monitor the internal and external environment. The plug and play connections enable easy and convenient installation, while the protection features fortify your setup against any electrical glitches, making your travels worry-free.
Sargent 7'' Touchscreen Modular System with MC100, MC200 & Harnesses Features
Modular power supply units provide protection and control for all AC and DC circuits
Touchscreen control panel with intuitive interface for control and monitoring of equipment
Multi-stage battery charger offering up to 20Amps for charging leisure or vehicle battery
Fresh and waste tank sensors providing tank monitoring and control panel alerts
Environmental sensors monitor internal temperature, humidity and external temperature
Plug and Play connections enable flexible installation using pre-made harnesses and connector kit
Fully protected with built-in RCD, MCB and 12V fused protection
