NDS Solenergy Rigid Solar Panel (120W / 1520mm x 530mm)

£352.99 (inc VAT) £423.99
?
View delivery optionsView product description
  Product Description
Solenergy solar motorhome panel PSM120WP.2 combines modern photovoltaic construction technology with a simple installation. The mounting brackets built into the frame of these photovoltaic panels for motorhomes, ensures adequate distance from the anchoring surface, ensuring the necessary ventilation of the cells and adequate aerodynamics thanks to the rounded corners. Constant ventilation of the cells avoids any loss of performance even at high operating temperatures.

This monocrystalline panel is made from high purity silicon cells coated with a Tedlar foil and textured tempered glass all enclosed in two sheets of EVA (Ethylene Vinyl Acetate).

The components used to coat the cells are designed to achieve maximum transmittance and transparency, plus the low iron content and anti-reflective coating increase efficiency to 18.05%.

Special by-pass diodes protect the cells from over-voltages and allow the solar panel to continue working even in the event of shading and accidental breakage of the photovoltaic cells.

The Solenergy PSM 120WP 12v solar panels meet the most stringent quality and safety standards, IEC61215, IEC61730 and ISO9001/ISO14000 certification, and withstand the harshest environmental and pollution conditions.

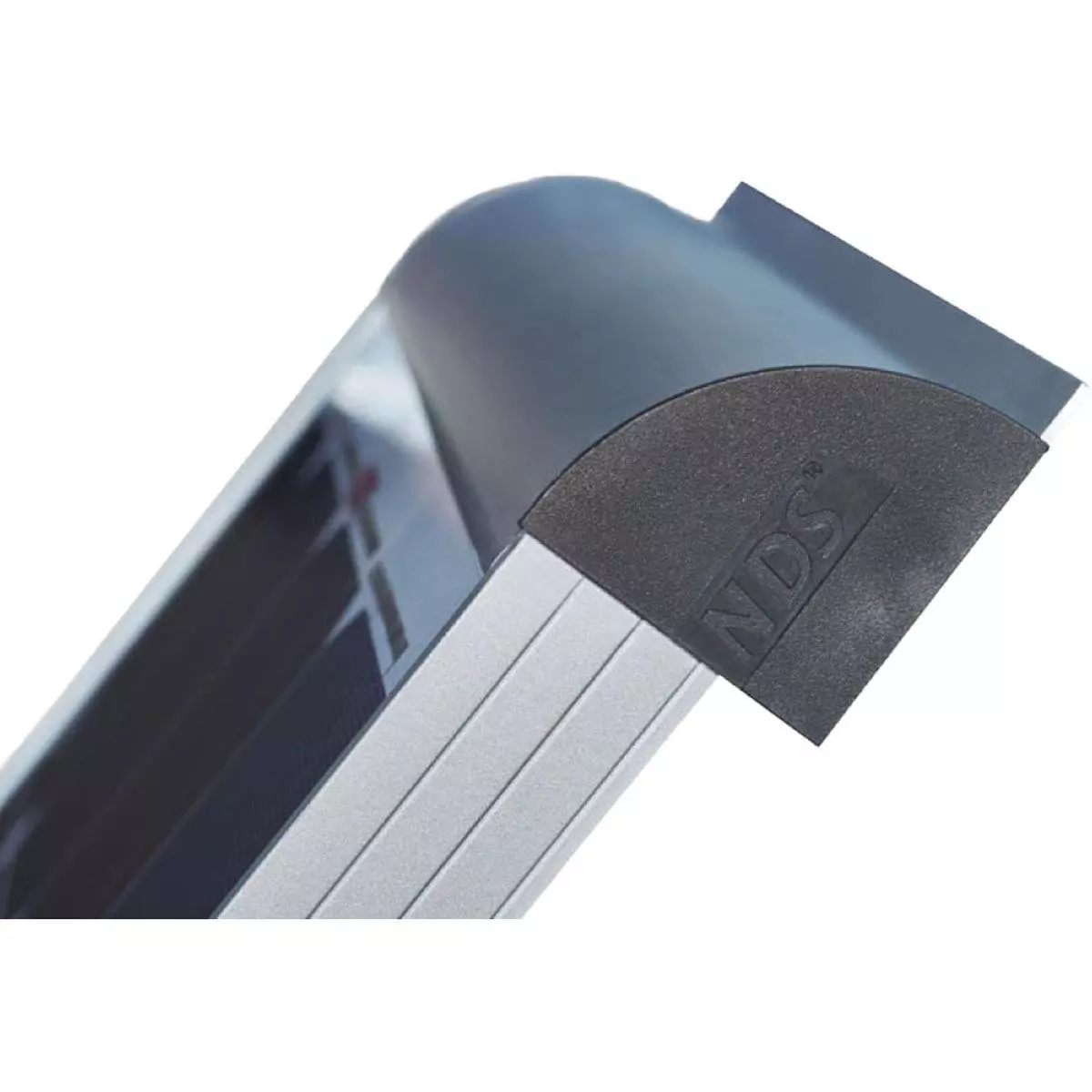

Built-In Bracket - The special aluminium brackets integrated in the panel, with aerodynamic plastic side covers make the robust panel safe, easy and quick to install.

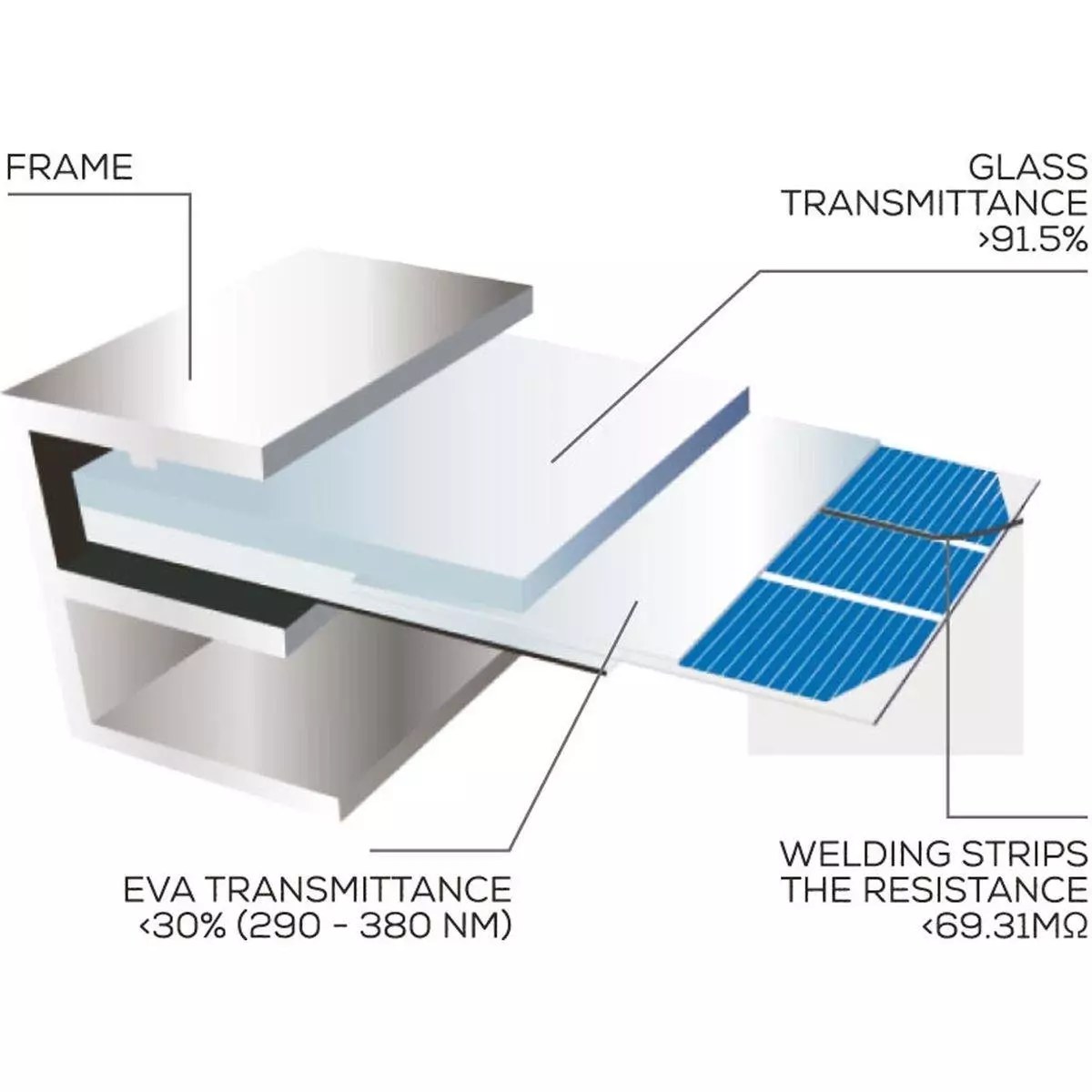

Architecture - Aluminium frame, High transmittance glass: 91.5%, Low-resistance connection strip: <69.31MO, Eva transmittance: <30% (290-380MN).

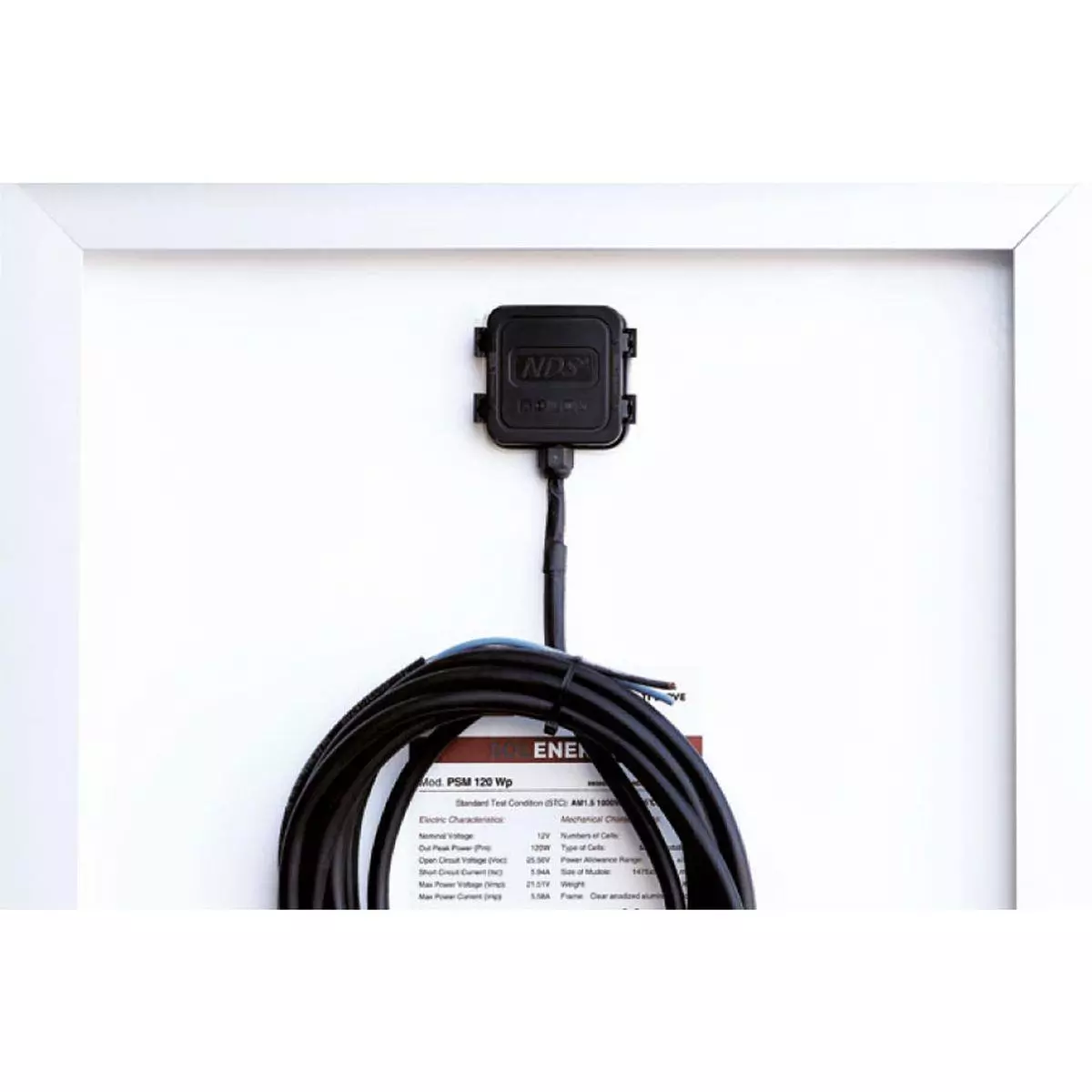

6m Cable - Each panel is equipped with a 6-metre bipolar connection cable with an all-weather protective outer sheath.

Number of cells: 36

Please Note: NDS Solar Panels come with a 24 month warranty from the date of purchase. Proof of purchase will be required for all warranty claims.

NDS Solenergy Rigid Solar Panel (120W / 1520mm x 530mm) Features


  • Built-In Bracket
  • Monoscrystalline Cells
  • Easy Installation
  • Aluminium Frame
  • 6m Cable

Specifications
  • Voltage [Filter] 12V DC
  • Brand NDS
  • Voltage Nominal: 12V, Open Circuit: 23.75V, At Max Power: 19.62V
  • Height 1520mm
  • Width 530mm
  • Depth 60mm
  • Weight 10.5kg
  • Wattage 120W ±3% maximum
  • Length Cable 6m (2 x 2.5mm²)
  • Approvals IEC61215, IEC61730 & ISO9001 / ISO14000 Certification
  • Application Campervans, Motorhomes & Boats
  • Amps Short Circuit: 6.54A, At Max Power: 6.12A
