Status 570 Directional Digital TV & FM DAB Radio Antenna System

£149.95(inc VAT) £204.99
View delivery optionsView product description
For more than 10 years the Status TV Antennas have lead the way and the Status 570 is no different. It is the best selling caravan aerial in the market for a number of reasons. At the heart of this new antenna system is the Vision Plus VP5 Digital TV Amplifier with unique integral Signal Finder. With its neat, slim-line design, the VP5 offers the latest in TV / Radio reception technology. It has a distinctive and compact design and offers Digital TV, DAB and FM Radio reception. It also has a dedicated TV transmitter locator built in which will also allow you to tune in your TV in seconds.

This Status 570 is based on a LTE Protect dipole array with improved performance and efficiencies. It is manufactured in corrosion resistant materials, with high quality ABS plastics designed for external use.

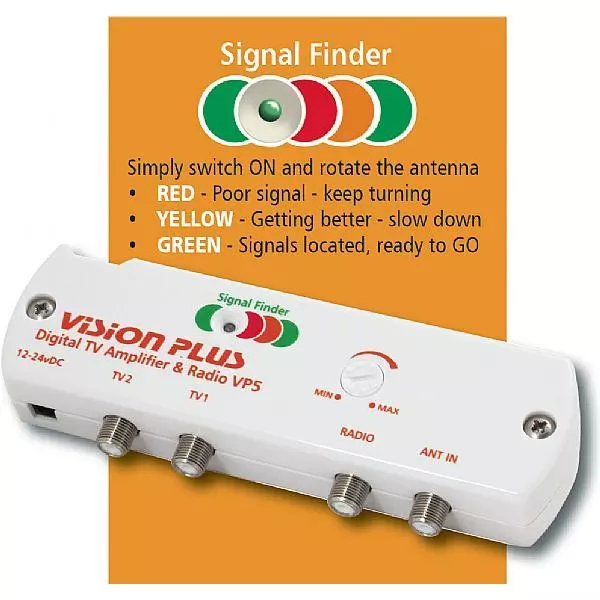

Tuning your caravan TV literally takes seconds to complete, thanks to the TV Signal Finder that is integrated into the Variable Signal Gain Amplifier. The LED light either shows red, yellow or green dependant on signal strength.

Status 570 Directional TV / Radio Antenna System Features
  • Unique integrated TV Signal Finder

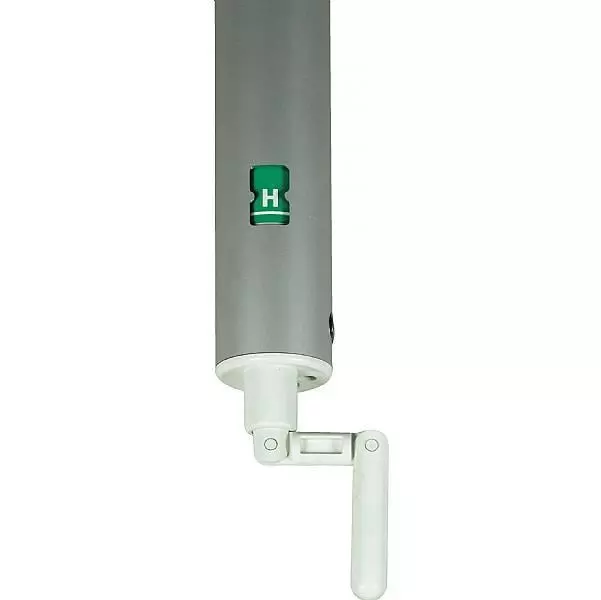

  • Horizontal & Vertical Polarisation Indicator
  • Low Profile Roof Assembly
  • Slim-line compact design
  • Digital TV, DAB and FM Radio reception
  • Dedicated TV Transmitter locator – Signal Finder
  • LED light power indicator with red, yellow and green colours to indicate signal strength
  • Variable Gain Control for strong and weak signal areas
  • 3 TV Connections and 1 dedicated Radio connection (VP5 Digital TV & Radio Amplifier)
  • The Status 570 comes with a 12V red and black power cable that has a 3.5mm jack plug on one end for fitting to the amplifier, and is unterminated at the other end for the customer to fit whatever 12V plug they require, but the system does not come with any mains adapters.( If you wish to purchase a suitable mains adapter,you would just need to look for a regulated mains supply with a 230V AC – 50Hz, 11W input and a 12V ~ 300mA output
  • Antenna IN connection
  • On / Off Power switch
  • 3 year guarantee

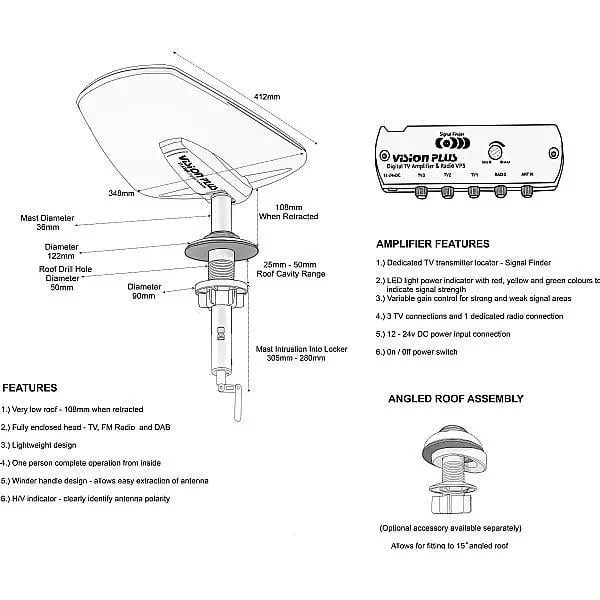

Dimensions
  • Mast Length 330mm
  • Mast intrusion into locker 305-280mm
  • Antenna dome Installed - Length 412mm - Width 348mm - Height 108mm
  • Mounting Foot & Gaiter - Diameter 122mm - Height 35mm - Roof cavity range 25-50mm

Please note that the roof mounting assembly kit that is supplied with this product is not suitable for sloping roofs. You will need to purchase the Angle Adjustable Mounting Foot shown below.

Associated Products
Quick View     Vision Plus VP5 Digital TV & Radio Amplifier with Signal Finder

Quick View     Status 530/540/570/580 Angle Adjustable Mounting Foot

Quick View     Vision Plus Antenna Blanking Plate

EAN-13 : 5029833430704

97 Customer Reviews on Status 570 Directional Digital TV & FM DAB Radio Antenna System

Upgraded TV Antenna

by Shaun (27 Aug 2025)
5 star review(5/5)
PRODUCT ... Excellent item in comparison with our old antenna which was 15 years old. Recieves a more stable picture along with the TV booster.

INSTALLATION ... Installed myself and all the required instruction was included, they are also on the web if required. Simple install, however, if like me you are doing an upgrade, you will need a blanking plate to cover over the holes from previous antenna. Install was over 2 days (waiting for adhesive on blanking plate to dry which i used Silkaflex 522) after dried it took about 15 minutes to install. Total install time approx 30 minutes.

COMPANY ... Order was placed online without any issue and it was delivered within the timescale stated. Delivered to the correct address and intact.

WOULD I ORDER FROM THIS COMPANY AGAIN ... yes, definately.

Vision Plus 570

by Mr Carter (08 Jun 2025)
5 star review(5/5)
Fitted quickly and easily... instructions are clear... I like the new booster contol with the visual signal strength led. Very pleased...thankyou *

Tv Radio Antenna System

by Cyril howes (30 May 2025)
5 star review(5/5)
Excellent product easy to fit super service

Vision Plus Caravan Antenna

by Mr Ted Westley (29 May 2025)
5 star review(5/5)
I ordered a replacement Vision Plus antenna last Friday and received it the following day. It was easy to assemble and install.
The ease of purchase and the prompt service from Leisure Shop was first class. I have used their "on line" ordering system in the past and continue to be extremely satisfied with the service given.

Good Service

by KJB (27 May 2025)
5 star review(5/5)
Bought this product from Leisure Shop Direct, because it was needed quickly and was offered on a short delivery time, also competitively priced. Arrived on time, well packed and in good condition. Easy self installation so up and running very quickly.

Status 570 Directional Aerial

by Houston (31 Aug 2024)
5 star review(5/5)
Bought to replace an omni directional caravan aerial. Easy to fit. Quick to set up once on site. Built in signal finder a bonus. Lots more channels now. Best price from leisureshopdirect. Fast delivery. Would recommend.

Ordered and was dispatched the same…

by Alan (18 Jun 2024)
5 star review(5/5)
Ordered and was dispatched the same day. arrived the next day and I fitted the aerial very easily. Tried it on the TV and all was well.

Replacement Unit

by David Bowyer (28 Apr 2024)
4 star review(4/5)
This replaced an earlier version which had leaked water through the antenna.
Very easy to fit as everything the same size. Amplifier change no problem. Looking forward to its first use.

Quality And Easy To Fit

by Steve S (07 Apr 2024)
5 star review(5/5)
Good value and Fast delivery, great item easy to fit and set up. Replaced telco teleolus ariel with gasket issue..

Excellent

by Jay Rush (11 Jun 2023)
5 star review(5/5)
Very quick professional service …
Tracked all the way..

Fantastic

by Jim B (04 Jun 2023)
5 star review(5/5)
Absolutely excellent. Vast improvement on " Twig " original from Coachman. Satelite required far less, almost redundant. Nothing to dislike at all, should have been fitted as original equpment. Status 570 Directional Digital TV & FM DAB Radio Antenna System. Thanks a lot Leisureshop.

Status 570

by Mr Motorhome Limited (15 May 2023)
5 star review(5/5)
Good company to deal with. Dispatched on time. First time used on inter trade business and will use again.

Placed order for new aerial system late…

by RICHARD ANDERTON (01 Mar 2023)
5 star review(5/5)
Placed order for new aerial system late on a Friday night and delivered on Sunday, Great service and very competitive price.

Status 570

by Ian Wolfe (01 Mar 2023)
5 star review(5/5)
Received order next day, unit replaced existing unit needed adaptors to fit existing co- axial cable to the F type satelite connections, tuning was so simple with the coloured indicator. Would definitely recommend upgrading from the previous Status units.

Status 570 Antenna

by M Hodgson (01 Dec 2022)
5 star review(5/5)
Easy fit and works well.

Great product

by Malcolm Fox (26 Nov 2022)
5 star review(5/5)
Great product, excellent reception and easy to install.

New aerial…

by Mr Harvey Smith (21 Nov 2022)
5 star review(5/5)
Prompt delivery of my new aerial solving all my reception problems.

Vision Plus 570 Caravan Ariel

by M R (13 Nov 2022)
5 star review(5/5)
excellent product
quick delivery

Does The Job!

by Harris (26 Jul 2022)
4 star review(4/5)
I bought this to replace a Teleplus X2 where the rubber gaiter had failed. Apart from having to slightly enlarge the hole (a drill for cutting keyholes was used for this) and removing the vast amounts of silicone sealant that was present installation was straight-forward.
The signal strength LED on the distribution amplifier is a bit of a gimmick though, where multiple transmitters can be received the LED does not differentiate between them - best way is to point the aerial in the general direction of a transmitter and use the signal strength function in the TV to find the optimum position.
On the plus side, the Status does have a sense of direction, the Teleplus picked up signals from behind nearly as well as those from the front!

What A Reception

by Nigel (14 Jul 2022)
5 star review(5/5)
Had a Status 530 when we got the motorhome, signal wasn't good even bought an amplifier, read up a bit and found out since the UK gone full digital the 530 was a tad out of date, the 570 with built in amp really picks up the signal well, fitting was a doddle being almost like for like
