Whale Aquasource Mains Water Connection Kit image 1

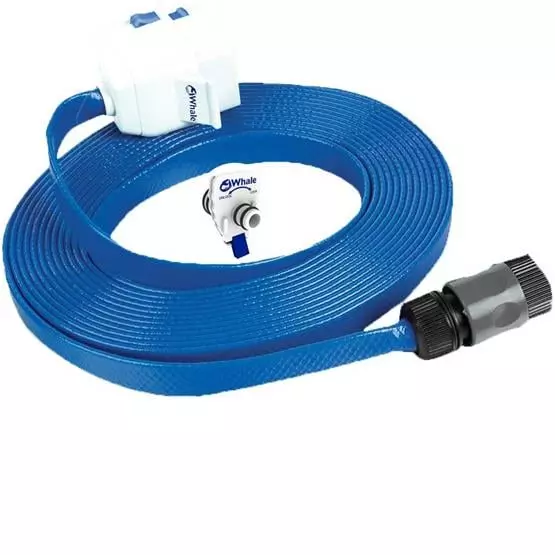

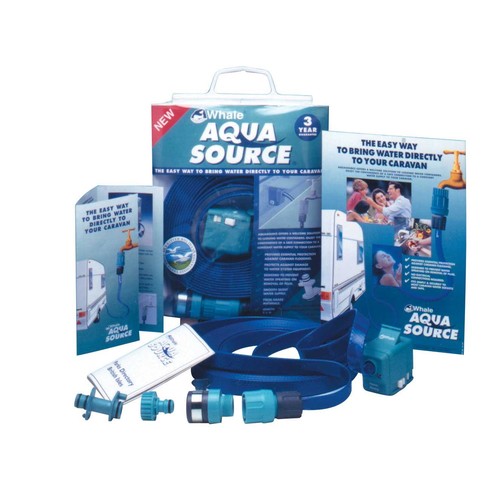

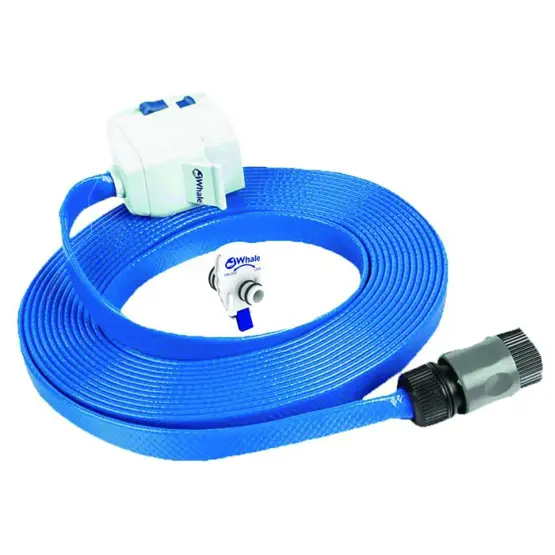

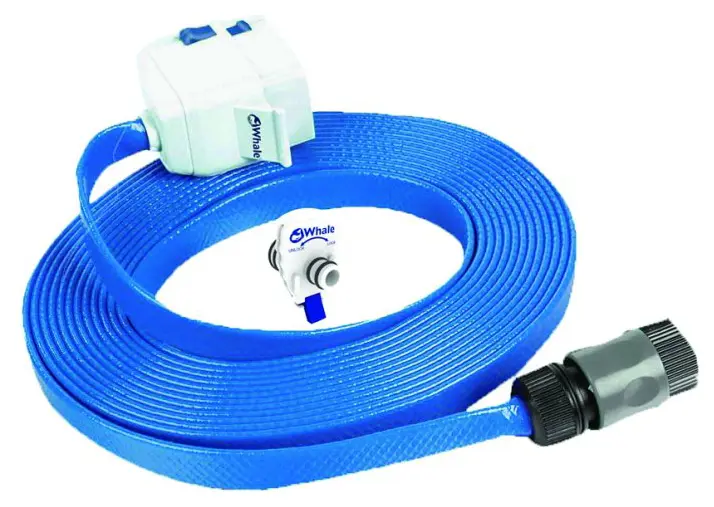

Whale Aquasource Mains Water Connection Kit

Product Ref: 227867

£55.14 (inc VAT) £76.28NewCondition
(Be the first to review)

    Loading... Loading stock details...

SHARE

The Whale Aquasource, the easy way to draw water from the mains supply into the caravan. No electrical connections required. Fits both Whale and Carver/Truma MK 2 water inlet sockets. Provides protection against flooding , an automatic valve will stop water spraying when plug is removed.

Fits Whale Watermaster and Carver/Truma Crystal Mk 2 water inlet sockets.
Does not fit the Truma Ultraflow system. For the assembly to suit the Ultraflow system see part 229440.


  • heavy duty flat hose
  • adapter for Carver & Crystal sockets.

4 Technical Questions on the Whale Aquasource Mains Water Connection Kit

Question

Hi Tom, i have a 2010 elddis crusader tornado with a built in water tank. I normally use an aquaroll and drop the filter/pipe into it and the pump will either fill the on board tank or supply taps. Can i use a direct mains water hook up instead of using the aquaroll. thanks james
 on

Answer

Yes you can providing the supply from the mains is fitted with a reducing valve such as the Whale Aquasource. You would make sure that you by-pass the inboard tank.

Question

Hi, can I connect mains water direct to my caravan? Do I need a pressure reducer? or can I connect direct?
 on

Answer

You cannot connect mains water directly to your caravan as the internal piping is unsuitable. You will need a pressure reducer giving a maximum output of 30 psi (2 bar). Truma supply the Waterlines - part 129440 for the Ultraflow inlet and 130483 for the Crystal Mk 2 inlet. Whale also do the Aquasource for the Whale Watermaster inlet and this is our ref. 127867. We also supply the reducing valve as a separate part, our ref. 137879.

Question

Hi Tom. Can you tell me if I can run my water direct to my caravan instead of using and aqua roll and whale water pump and will it increase the water pressure?
 on

Answer

The Whale Aquasource is designed for this application and it includes a pressure reducing valve to prevent 'mains water pressure' entering the caravan. Our reference number for this item is 127867.

Question

Hi Tom. I have a 2007 Swift Challenger 490. Can I plug a mains water supply straight into my van?. Thanks, Andy.
 on

Answer

Yes, you can do this using Aquasource Water supply unit, our part 127867. You may wish to bypass your water pump to avoid any restriction when hooked up to the mains supply but you will need two stop cocks and extra piping to do this. However the system should work fine by passing the water through the water pump which of course should be isolated electrically through the 'pump' switch
