Whale Watermaster Socket - ES1001

Name: Whale Watermaster Socket - ES1001
Brand: Whale
SKU: 227861
Price: 41.99 GBP
Availability: InStock
Rating: 4.86 (7 reviews)

Product Ref: 227861
Whale Code : ES1001

£41.99(inc VAT) £52.99Product Ref: 227861
Whale Code : ES1001

(4.86/5) Read Reviews - Click Here (7 reviews)

View delivery optionsView product description

Delivery from £5.49
Loading stock details...

Product Description

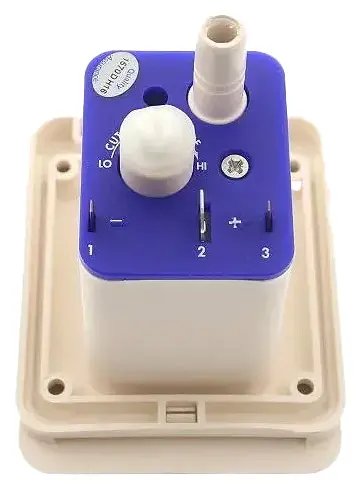

The Spare Whale Watermaster inlet socket with pressure switch has three male spade connectors for the connecting cables. Ideal for use on pressurised systems where there are no microswitches in the water taps. The plug and socket contain both the water and electric connections and is designed to pump fresh water into your caravan or motorhome and is also able to supply water to a water heater.
Features

Colour: IVORY
Whale Watermaster Inlet Socket
Integrated Pressure Switch
Easy installation

EAN-13 : 766478942098

3 FAQs on the Whale Watermaster Socket - ES1001

I have bought a 2001 Burstner Ventana 480TK and while it has sinks and taps and plumbing for a water tank, the plumbing and pump is too short to fit in my water rolling-style fresh water tank. The existing pump/plumbing sits in a hatch on the side of the caravan I presume normally has a portable water inside. Would you have information on such things (it looks like the tank may have been an accessory on this model when new) or a product that would suit our needs? Thanks in advance.

This arrangement was generally unsatisfactory as the water supply was very limited. It may be best to remove the tank that fits into the hatch and fit a Whale Watermaster socket, ref. 127861 , into the side of the caravan and use a submersible pump ref. 127854 that will drop into your water carrier.

Hi Tom having problems with my Whale water pressure switch nothing serious but I intend to change it anyway but the only information I have is its a " supersub 881 " but I have been informed that there are two types the ES5001 and the ES1001 . will either one work for me

The normal one fitted into caravans is the ES1001, our ref 227861. This is the water inlet fitted into the side wall of the caravan with combined pressure switch. If you wish to fit an in-line pressure switch then this is our part 205500.

Hi Tom I have a whale 881 supersub pump when I plug it into the Caravan the pump runs but I can hear a clicking noise when I turn the taps off the pump carries on running could you please advise me on the problem

This is a problem with the pressure switch that controls the pump. If you have a Whale Watermaster inlet then the screw to adjust the pressure switch is on the back of the inlet fitting. If you have a Truma crystal inlet then the pressure switch, probably our part 105500, will be in the pipework, normally fairly close to the inlet. To adjust the pressure switch you should first undo the adjusting screw as far as possible without removing it from the threaded hole. Then open one of your cold taps. If the pump starts then there is a problem with the pressure switch and you may need to replace it or dismantle and fit a service kit. When you open the tap the pump should not start, and then you gradually screw the adjuster clockwise until the pump starts. Close the tap and the pump should stop. If the pump does not stop then a quarter to half turn anticlockwise should be sufficient. Operate a tap again a few times to ensure that the pump operates correctly and some minor adjustment may be required at the adjusting screw to prevent the pressure switch 'clicking'. I hope that this helps.

Reviews

7 Customer Reviews on Whale Watermaster Socket - ES1001

Water Master Socket

by Gordon Charlesworth (28 Jul 2025)

(5/5)

Original part replacement for old socket. Well made and perfect match to original.

REPLACEMENT WATER SOCKET

by Mr Callanan (05 Oct 2022)

(5/5)

WELL PROVEN QUALITY ITEM, AN OPTION OFFERING OF SHORTER RETAINING SCREW WOULD HAVE BEEN A HELP,AND A DESCRIPRTION OF THE CONNECTION SIZES ALSO,FITTED IN MINUTES TO AN EXISTING OPENING AND WHEN CONNECTIONS WERE MADE A SLIGHT EASY ADJUSMENT OF THE WATER PRESSURE WAS ALL THAT WAS NEEDED

Whalemaster Water Inlet Socket

by s campbell (13 May 2013)

(5/5)

excellent quality with the added bonus of a built in non-return valve and pressure switch...highly recommended

Whale Watermaster Socket - ES1001

by Mr Forward (06 Aug 2012)

(5/5)

Very easy to remove existing socket noting colours of cables to refit with clipped water pipe to new Whale Watermaster Socket - ES1001. Arrived quickly and enabled me to solve problem of smashed cover and hinge with new socket to match magnolia/ivory colour of caravan and existing socket.

Whale Watermaster Socket

by Mr O'Byrne (08 Jul 2012)

(5/5)

The Whale water socket was easy to fit and solved my problem. Delivery was very fast and your price was very competitive.

Whale Watermaster Socket

by Mr Goodwin (08 Jul 2011)

(5/5)

The Whale master water socket was just what I wanted. Fast delivery Good Price. Pleasure to deal with you. It sorted out the problem I had and was easy to fit

Whale Watermaster Socket

by Pride of the road (12 May 2011)

(4/5)

Received item in very good time. Price was very good. Geuine product but was ivory and not white as in the picture my fault for not checking . Purchased as the original had developed problems due to the cold winter, also the flap had come off . Still to be fitted but good service.
