CBE PC 100 Complete System

£319.99(inc VAT) £450.00
View delivery optionsView product description
  Product Description

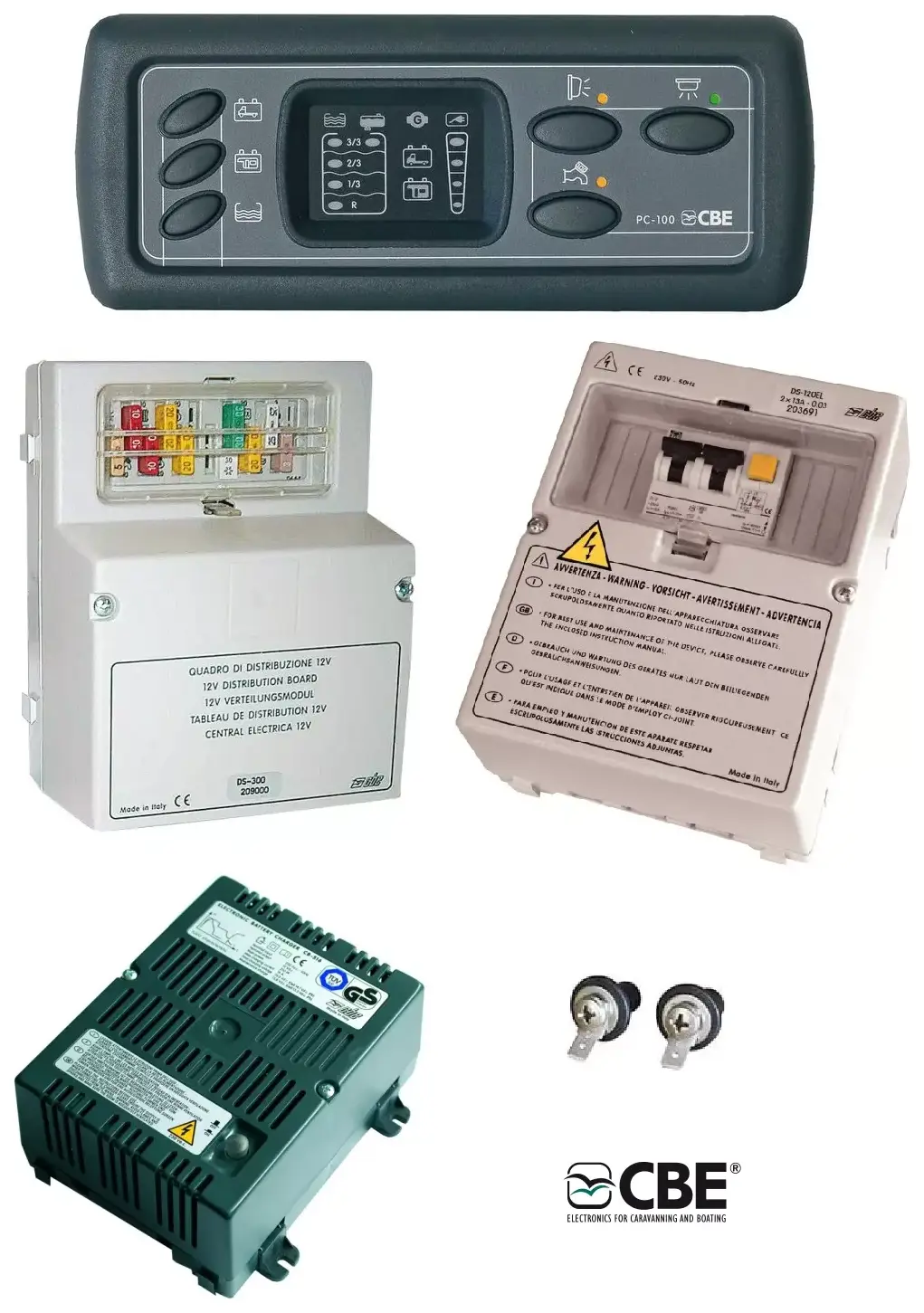

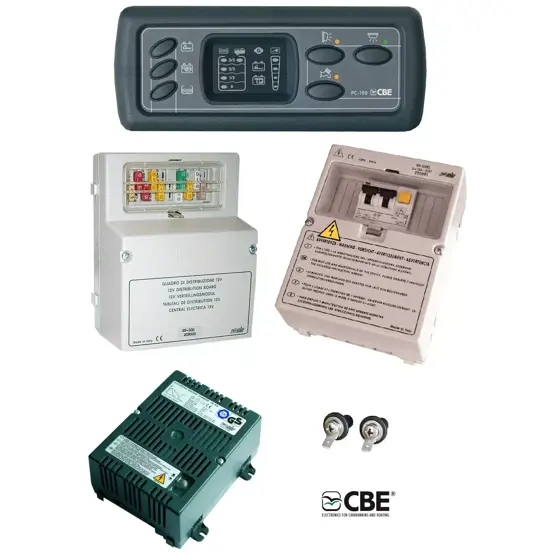

The CBE PC100 Electrical Control System serves as the central management hub for your caravan, motorhome, or campervan's entire 12v electrical setup. This microprocessor-controlled unit monitors and controls everything from battery levels and water tanks to lighting circuits and fridge operation through its LED display panel. The complete kit brings together all the components you need for a professional electrical installation, including the PC100 control panel (measuring 170 x 80mm), CB-516 switch mode battery charger rated at 16 amps, and the DS300 12v distribution box with integrated protection fuses.

What sets this system apart is the integrated electronic battery separator that automatically manages charging between your vehicle battery and leisure battery. The panel displays voltage levels for both batteries using a four-segment LED voltmeter, letting you spot potential issues before they become problems. You can monitor your fresh water tank level across four stages and get an immediate alert when your grey water tank needs emptying. The system handles trivalent refrigerator management and includes 10 user-accessible 12v protection fuses within the distribution box.

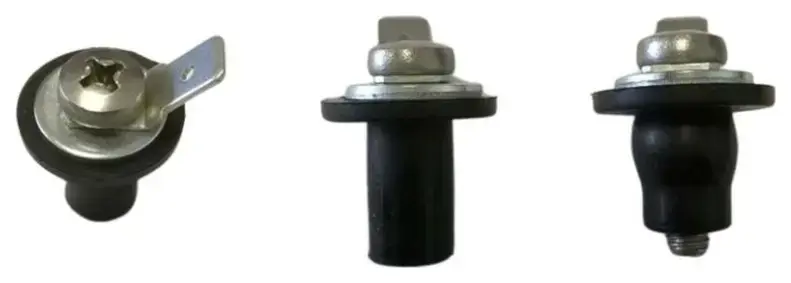

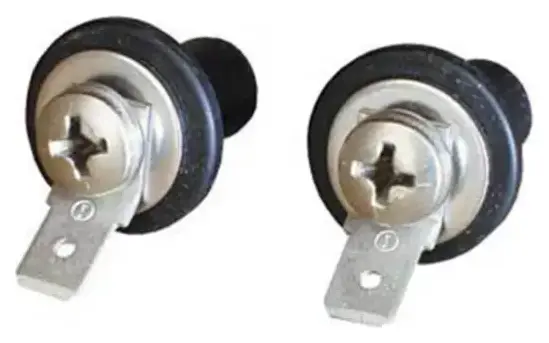

Installation requires connecting the waste water tank screw probes (included), routing the control panel cables, and mounting the various components using the supplied connections and pins. The kit includes a circuit breaker with 25 amp RCD and two 13 amp MCBs for comprehensive circuit protection. Fresh water tank probes are sold separately, which you'll need to purchase if you want the full tank monitoring functionality. The CB-516 charger works with lead acid, gel, and AGM batteries, featuring automatic charging cycles, overheat protection, and safeguards against short circuits and polarity reversal.

CBE PC 100 Complete System Features


  • LED control panel monitors batteries, water tanks and temperature
  • CB-516 16A switch mode charger with overheating protection
  • Electronic battery separator manages dual battery charging
  • DS300 distribution box with 10 protected 12v circuits
  • Controls water pump, lighting, fridge and external accessories

Specifications
  • Control panel dimensions : 170 x 80mm mounting size
  • Battery charger output : 16 amp maximum current at 12v DC
  • Distribution box : 10 user fuses plus 25A RCD and 2x13A MCBs
  • Water monitoring : 4-level fresh tank, grey tank alarm system
  • Voltage display : LED voltmeter for vehicle and leisure batteries


CBE PC 100 Complete System Kit contents

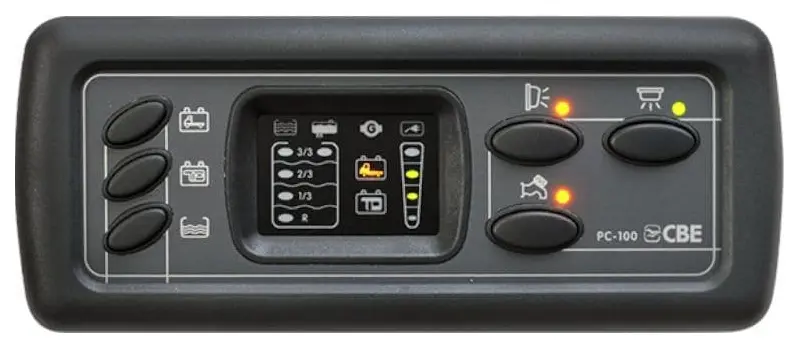

  • LED Display Panel (size 192 x 78mm)

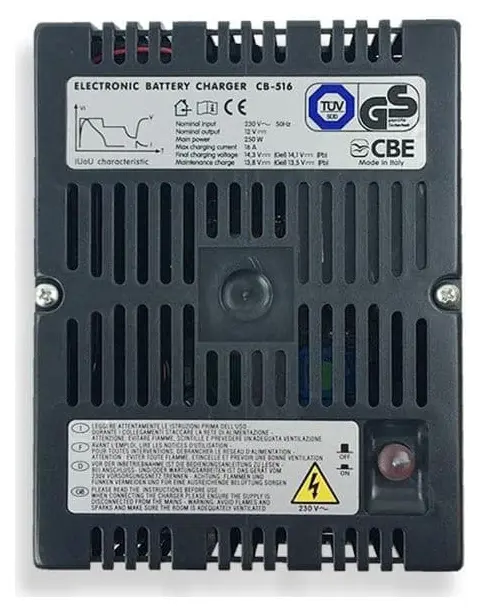

  • CB-516 Switch Mode Battery Charger 16 amp
  • DS300 12v Distribution Box (and fuses)

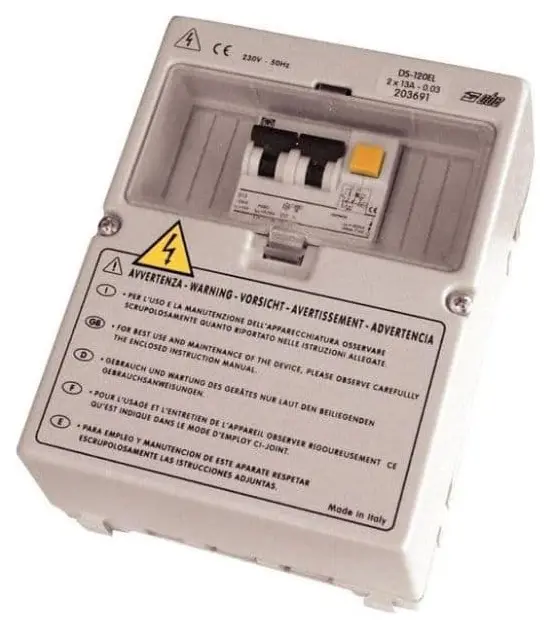

  • Circuit Breaker 25 amp RCD, 2 x 13 amp MCB
  • Couple of fixing Screws, Connections and Pins
  • Cable for Control Cable


LED Display Panel :
Quick View     CBE PC 100 Analogue Control LCD Display

Switch Mode Battery Charger 16 amp :
Quick View     CBE 12V/16A Switch Mode Battery Charger CB516-3

12v Distribution Box (and fuses):
Quick View     CBE DS305-UK Distribution Box CBE

Circuit breaker 25 amp RCD, 2 x 13 amp MCB:
Quick View     CBE DS123-UK 230Volt Distibution Box


Frequently Asked Questions

What's included in the CBE PC100 Complete System kit?
The complete kit includes the PC100 LED display panel measuring 192 x 78mm, CB-516 switch mode battery charger with 16 amp output, DS300 12v distribution box with protection fuses, waste water tank screw probes, all necessary cables for the control panel connection, battery fuse with fuseholder, screws and connection pins, and a 25 amp RCD circuit breaker with two 13 amp MCBs. The fresh water tank probe is the only component sold separately.
What functions does the CBE PC100 control panel monitor and control?
The PC100 microprocessor system monitors your vehicle battery status, leisure battery status, drinking water tank levels, waste water tank levels, external temperature, and internal temperature. It controls interior lighting circuits, water pump operation, external lights, fridge power supply, and manages the battery parallel relay. The system also handles vehicle battery recharge control, minimum voltage device protection, and includes circuit protection through integrated fuses.
Can I install the CBE PC100 system myself?
Installation requires competent electrical knowledge as you're working with 12v systems, battery chargers, distribution boxes, and RCD protection. You'll need to integrate the system with your existing motorhome or caravan electrical setup, mount the control panel, wire the battery charger to both vehicle and leisure batteries, install tank probes, and connect all circuits through the distribution box. If you're not confident working with 12v automotive electrical systems and circuit protection, professional installation by a qualified motorhome electrician is recommended to ensure safe operation and proper integration.
Will the CBE PC100 work with my existing motorhome electrical system?
The PC100 system works with standard 12v motorhome and caravan electrical setups. The CB-516 battery charger provides 16 amp charging capacity suitable for most leisure battery banks, and the DS300 distribution box handles typical 12v circuit loads for lights, pumps, and appliances. You'll need to verify your existing battery capacity matches the charger output, ensure the 25 amp RCD and 13 amp MCBs suit your circuit requirements, and confirm the control panel mounting dimensions of 192 x 78mm fit your intended location. The system replaces basic switch panels and outdated control units in most applications.
Why do I need to buy the fresh water tank probe separately?
Fresh water tanks vary significantly in size, shape, and construction across different motorhome and caravan models. CBE supplies the waste water probe in the complete kit because waste systems are more standardized, but fresh water tanks need specific probe lengths and mounting configurations. Selling the fresh water probe separately allows you to select the correct CBE probe model that matches your specific tank depth and installation requirements, ensuring accurate level readings on the PC100 display panel.
What's the difference between the PC100 and basic motorhome control panels?
The PC100 uses microprocessor control with LED displays rather than simple mechanical switches and basic indicator lights. This provides accurate battery voltage monitoring for both vehicle and leisure batteries, digital temperature readings instead of analog gauges, precise water level indication through electronic probes, and intelligent control of your water pump and appliances. Basic panels just switch circuits on and off without monitoring system status, while the PC100 actively manages your electrical system, protects against low voltage conditions, controls battery charging, and displays real-time information about every monitored parameter.
