CBE PC 110 Complete System

£365.76(inc VAT) £433.99
View delivery optionsView product description
  Product Description
The CBE PC 110 Complete System is a microprocessor-controlled power management solution designed specifically for motorhomes and caravans. This comprehensive system monitors both your vehicle and leisure batteries, tracks fresh and waste water tank levels, and manages your 3-way fridge operation through a single 170 x 80mm LED control panel. The built-in electronic battery separator ensures your vehicle battery stays charged whilst protecting your leisure battery from over-discharge, which is particularly useful during extended off-grid stays.

What sets this system apart is the inclusion of everything needed for a professional installation. You get a 12V distribution box with protection fuses, a 12V 22A switching battery charger, drinking water tank probe, screw-mounted waste water probes, and all necessary cabling with 6-metre lengths for both the control panel and sensor connections. The waste water tank alarm gives you advance warning before your grey water tank reaches capacity, whilst the fresh water level indicator helps you plan refills during longer trips. The charger automatically manages battery charging when connected to mains hookup, switching between batteries as needed.

The system suits motorhome and caravan owners who want reliable monitoring without constant manual checks. The LCD panel displays battery voltages for both vehicle and leisure batteries (B1 and B2 configurations), letting you spot charging issues before they become problems. Installation requires basic electrical knowledge and access to your vehicle's battery compartment and tank positions. The 6-metre cable runs should reach most standard motorhome layouts, though larger A-class vehicles might need cable extensions. This is a complete replacement system rather than an add-on, so you'll need to remove any existing basic panels before fitting.

CBE PC 110 Complete System Features


  • Digital control panel with capacitive touch and multi colour LED display
  • 10-way fused distribution with battery protection at 10V cut-off
  • 16A four-stage automatic charger for 40-150Ah lead-acid batteries
  • Integrated split charging relay rated at 70A for leisure battery
  • Waste water sensors and temperature probes included in the kit

Specifications
  • PC110 panel dimensions : 170mm W x 80mm H recessed mount
  • DS300 distribution : 11 fuse locations, 3-30A rating range
  • CB-516 charger output : 13.5-14.3V DC at 16A maximum
  • RCD protection : 25A with 30mA sensitivity on 230V circuit
  • Battery compatibility : Wet, sealed, gel, AGM (not lithium)

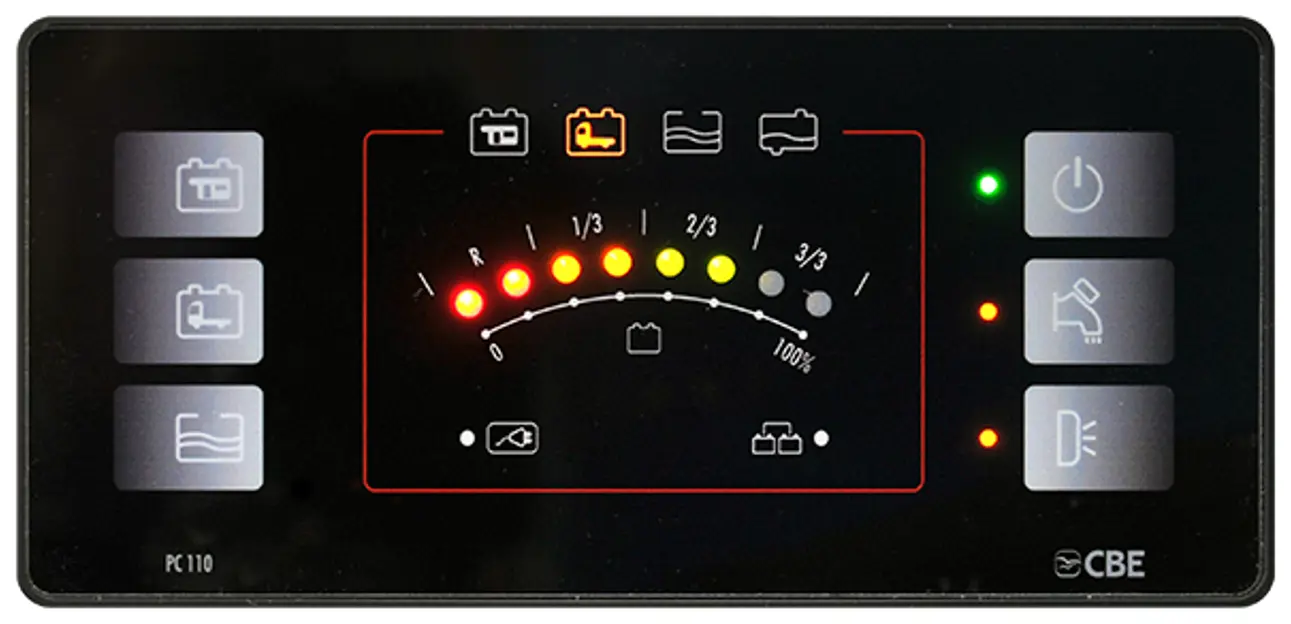

PC110 Digital Control Panel Specifications
  • Voltage rating : 12V DC
  • Panel colour : Black
  • Display type : Multi colour LED
  • Dimensions : 170mm (W) x 80mm (H)
  • Cutout size : Recessed panel mount
  • Control type : Capacitive touch switches
  • Microprocessor controlled : Yes
  • Display functions : 13 monitoring and control functions
  • Battery voltage display : Starter and leisure battery
  • Tank monitoring : Fresh water level, waste water full/low indicators
  • Audible alarms : Starter and leisure battery over-discharge warnings
  • Control switches : Water pump, awning light, main 12V power
  • Mains indicator : 240V AC connection status display
  • Split charging indicator : Visual confirmation of charging status

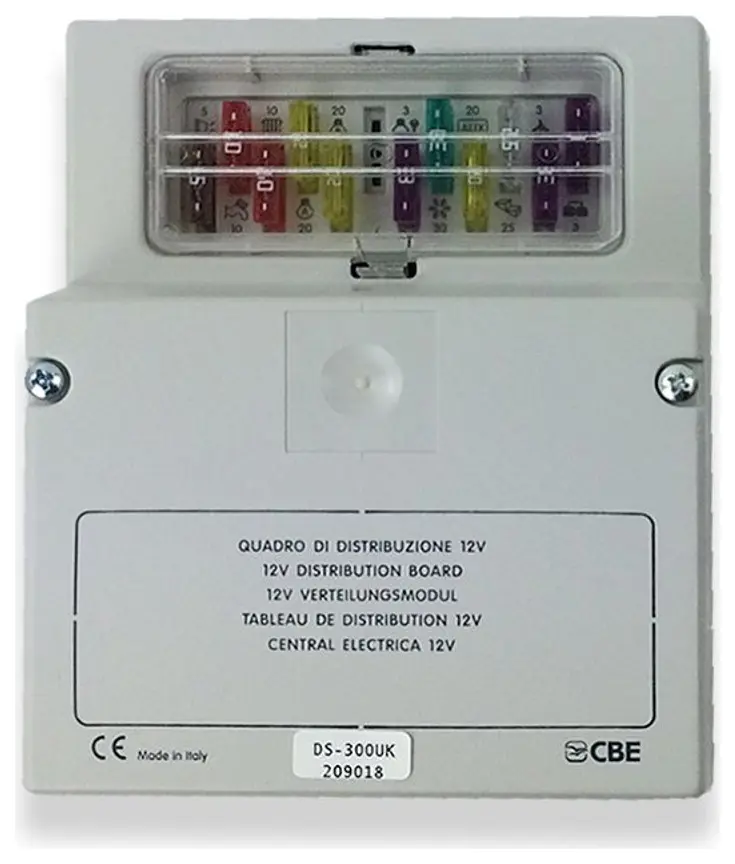

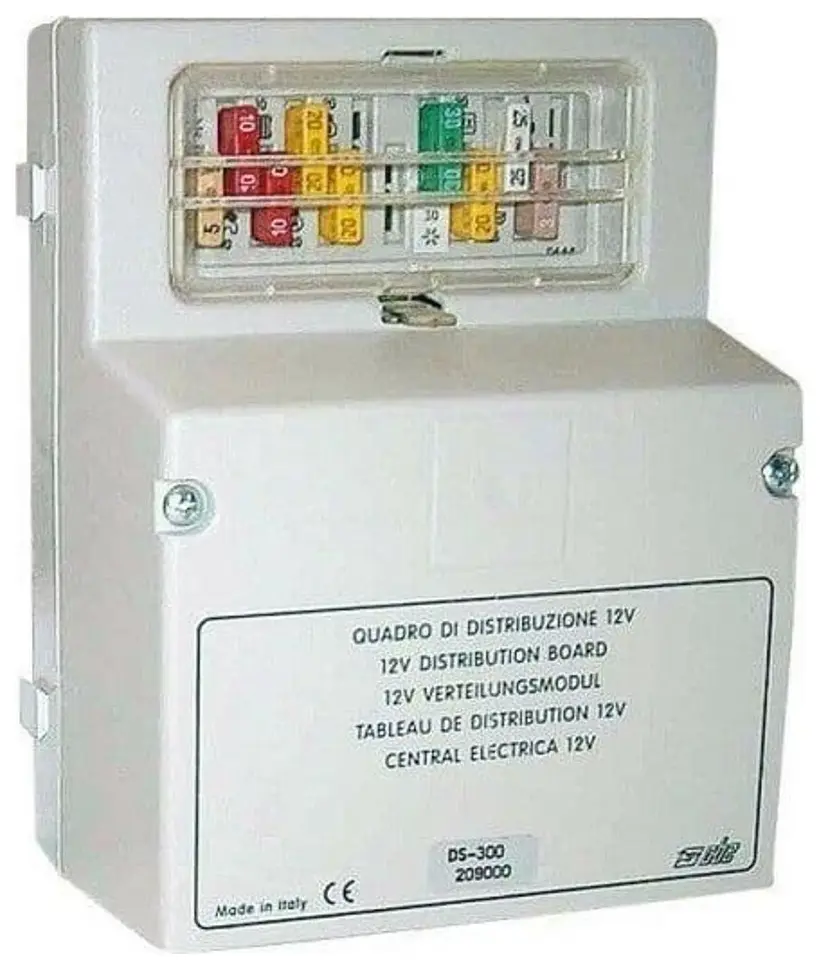

DS300 12V Distribution Box Specifications
  • Voltage rating : 12V DC
  • Number of fuse locations : 11 (10 distribution circuits plus input)
  • Fuse rating range : 3A to 30A (circuit dependent)
  • Split charge relay rating : 70A continuous
  • Battery low voltage cut-out : 10V DC
  • Battery re-engage voltage : 12V DC (following cut-out)
  • Starter battery trickle charge current : 2A maximum bypass
  • Battery terminal size : M6 stud
  • Ground terminal size : M6 stud
  • Solar controller connection point : Included (controller not supplied)
  • Automatic fridge control : 3-way fridge switching included
  • Electric step control : Automatic operation included
  • Overall dimensions : 140mm (W) x 180mm (H) x 85mm (D)
  • Fixing type : Surface mount with supplied mounting feet
  • Housing material : Nylon with glass fibre (flame retardant)
  • Modular compatibility : Horizontal or vertical mounting with other units

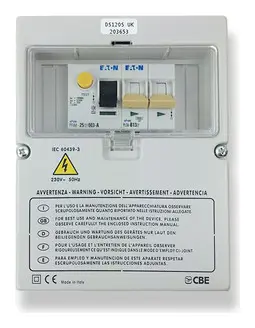

DS120S 230V AC Mini Consumer Unit Specifications
  • Voltage rating : 230V AC, 50Hz
  • RCD rating : 25A, 30mA sensitivity
  • RCD type : Double pole main switch
  • Miniature circuit breaker : 1 x 13A double pole MCB
  • Protection type : Overload and earth leakage protection
  • Overall dimensions : 140mm (W) x 180mm (H) x 85mm (D)
  • Alternative dimension reference : 138mm (W) x 180mm (H) x 85mm (D)
  • Fixing type : Surface mount with supplied mounting feet
  • Housing material : Nylon with glass fibre (flame retardant)
  • Modular compatibility : Horizontal or vertical mounting with other units
  • Included accessories : Mounting brackets, strain relief clips, RCD labels
  • Protection degree : IP30

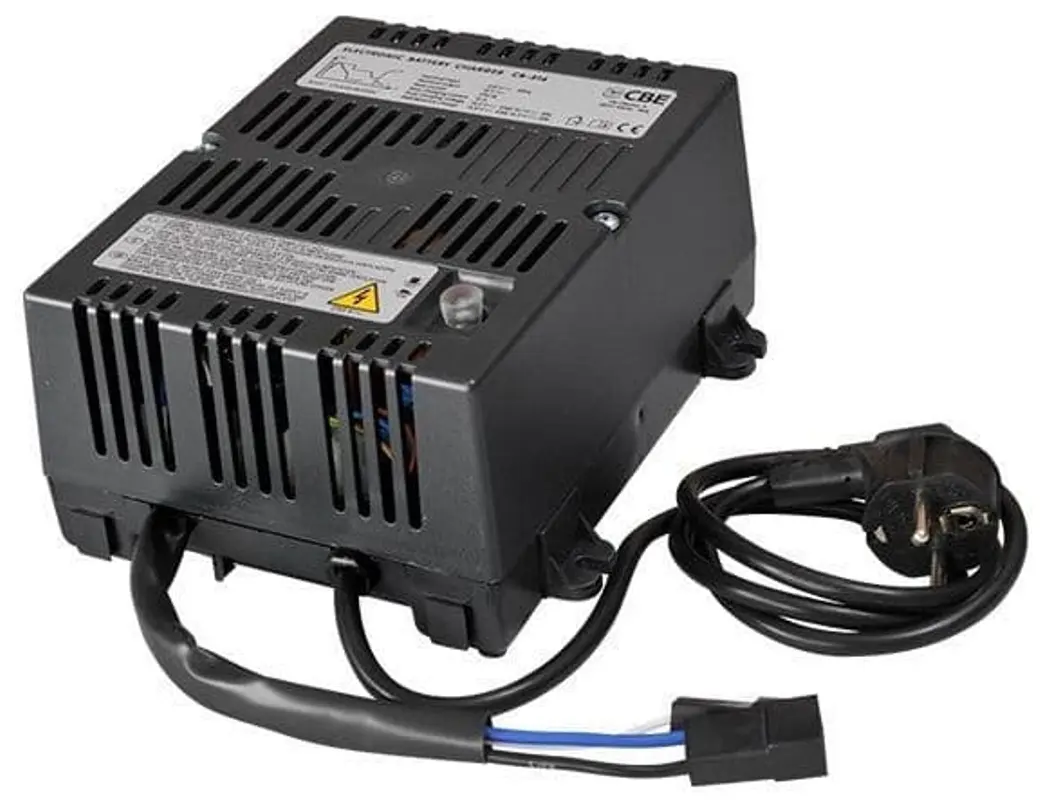

CB-516 16A Switch Mode Battery Charger Specifications
  • Input voltage : 230V AC nominal (±10% tolerance)
  • Input frequency : 50Hz + 60Hz
  • Maximum power consumption : 250W
  • Protection fuse : 3.15A (glass 5 x 20mm)
  • On/off safety switch : 230V rated
  • Charging type : 4-stage automatic (desulphation, bulk, absorption, float, standby, refresh)
  • Output voltage (bulk) : 14.1V DC (Position A), 14.4V DC (Position B), 14.7V DC (Position C)
  • Output voltage (float) : 13.5V DC (Position A), 13.8V DC (Position B), 13.8V DC (Position C)
  • Maximum output current : 16A
  • Charging line type : IUoU intelligent charging
  • Battery type selector : 3-position switch (A-B-C)
  • Battery compatibility : Wet lead-acid, sealed lead-acid, gel, AGM
  • Lithium battery compatibility : No
  • Recommended battery capacity : 40Ah to 150Ah
  • Short-circuit protection : 25A blade fuse
  • Polarity inversion protection : 25A blade fuse
  • Thermal overload protection : Yes (automatic shutdown)
  • Maximum working temperature : 50°C
  • Ventilation : Forced cooling with automatic variable regulation
  • Efficiency : 86%
  • Operating temperature range : 0°C to 50°C
  • Mains connection : Schuko plug
  • Battery connection : Faston 6.3mm terminals
  • AC power supply signal output : 12V, 50mA (S terminal)
  • Overall dimensions : 140mm (W) x 180mm (H) x 85mm (D)
  • Fixing type : Surface mount with supplied mounting feet
  • Housing material : Nylon with glass fibre (flame retardant)
  • Modular compatibility : Horizontal or vertical mounting with other units
  • Weight : Approximately 1kg
  • Colour : Graphite black
  • Protection degree : IP30

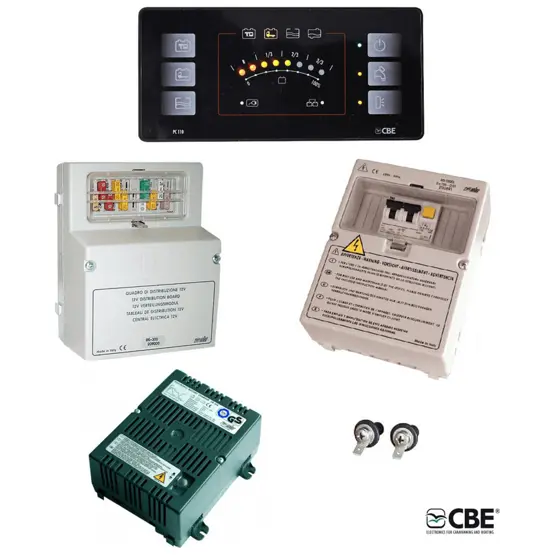

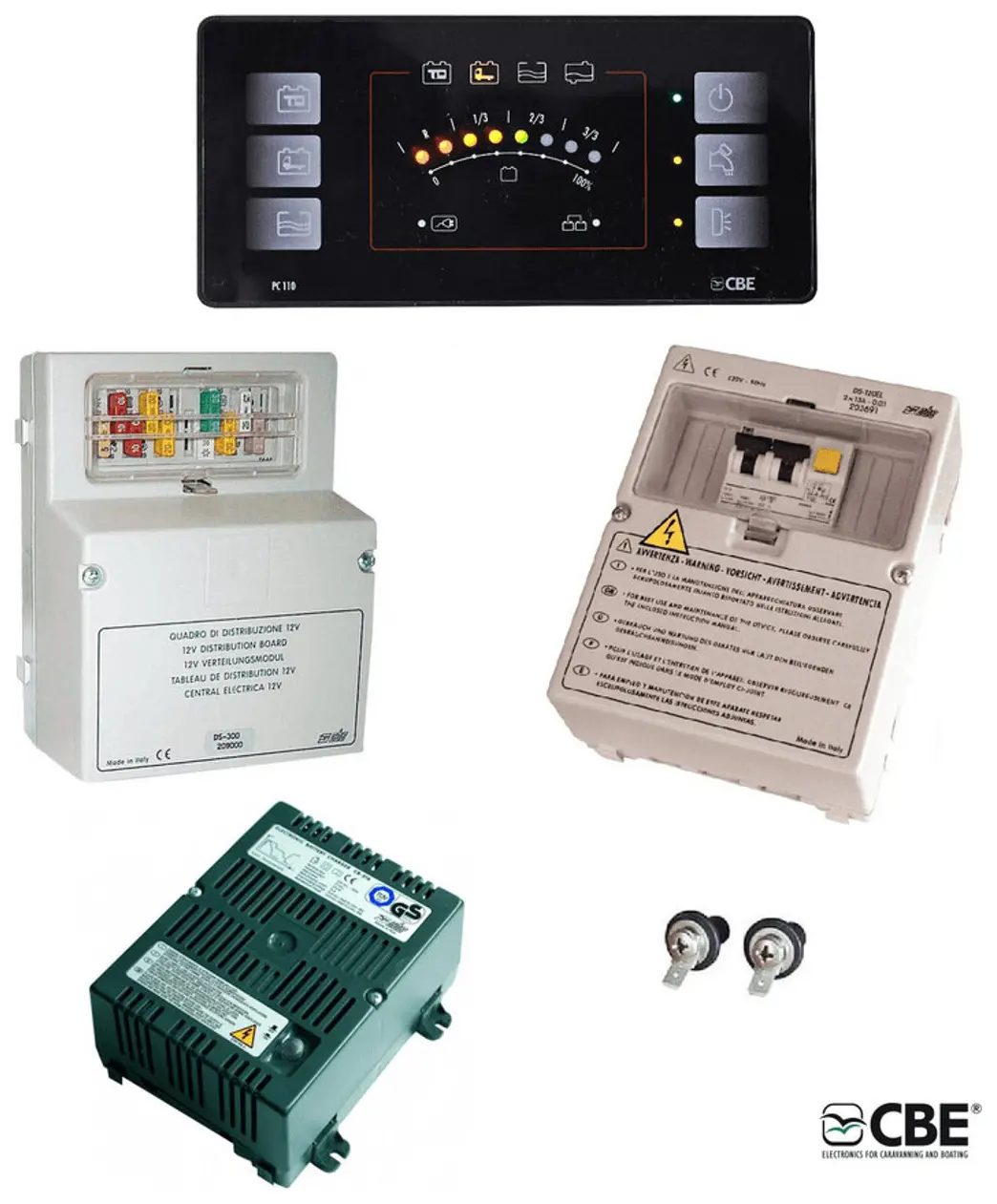

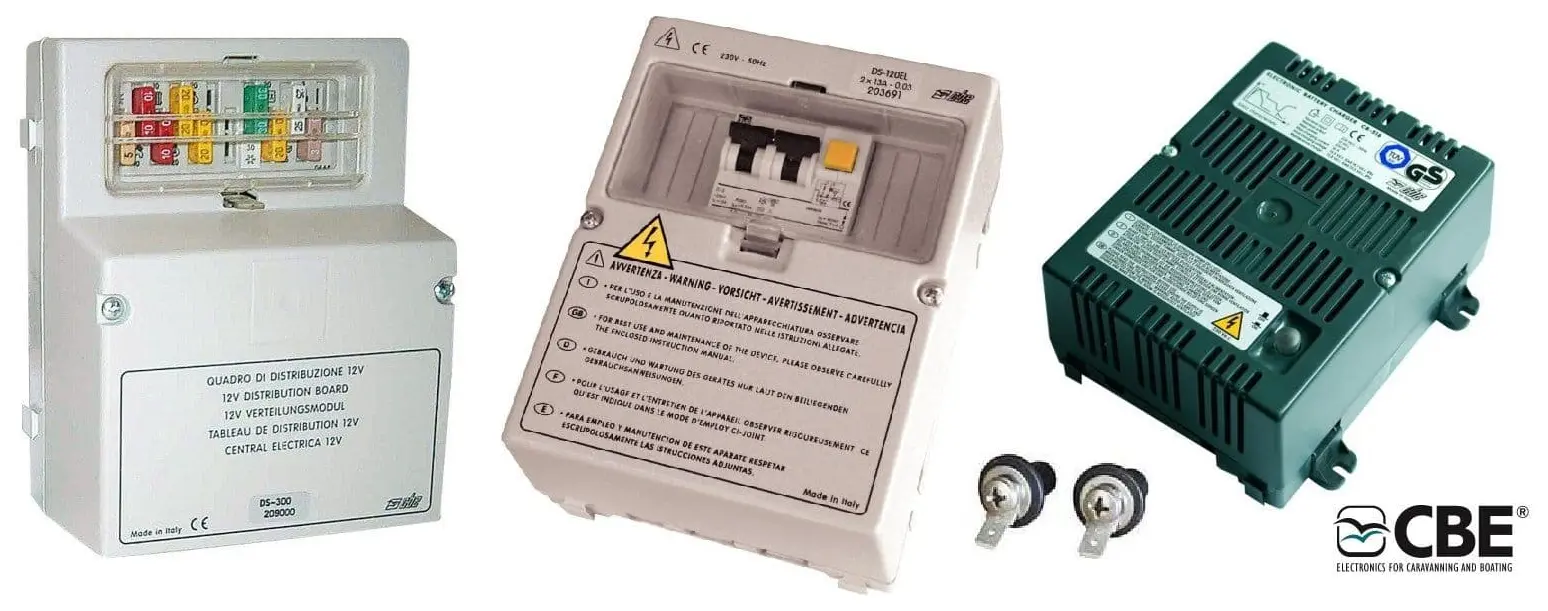

The system includes:
  • LCD Control Panel
  • 12V Distribution Box - Protection Fuses
  • 12V 22A Switching Battery Charger

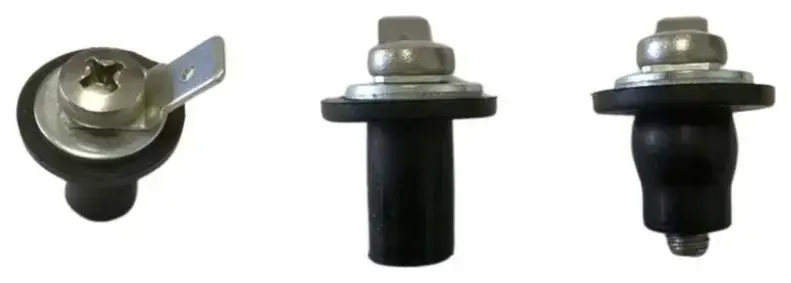

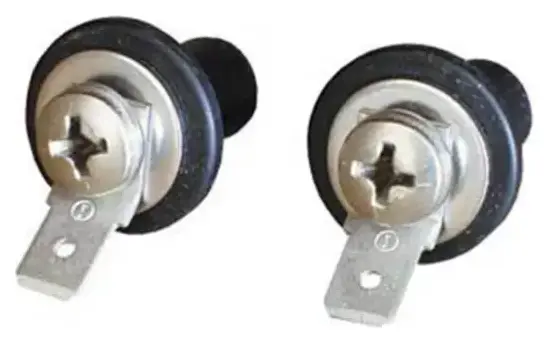

  • Screw Probes for Waste Water Tank
  • Cables Kit for Probes L=6m
  • Cables for Control Panel L=6m
  • 50 Fuse + Fuseholder for Batteries (Car and Service)


Associated Products
Switch Mode Battery Charger 16 amp :
Quick View     CBE 12V/16A Switch Mode Battery Charger CB516-3

12v Distribution Box (and fuses) :
Quick View     CBE DS305-UK Distribution Box CBE

Circuit breaker 25 amp RCD, 2 x 13 amp MCB :
Quick View     CBE DS123-UK 230Volt Distibution Box


Frequently Asked Questions

What does the CBE PC 110 Complete System monitor and control?
The CBE PC 110 monitors vehicle battery and up to two leisure batteries, displays fresh water tank levels, provides waste water tank overflow alerts, controls 3-way fridge operation, and manages battery charging when connected to mains hookup. The electronic battery separator automatically protects your vehicle battery from discharge whilst allowing the alternator to charge leisure batteries during driving.
Does the CBE PC 110 system include all cables and sensors needed for installation?
The complete system includes a drinking water tank probe, screw-mounted waste water probes, 6-metre cable runs for both the control panel and tank sensors, 50 amp fuses with holders for vehicle and leisure batteries, a 12V distribution box with protection fuses, and the 12V 22A switching battery charger. The 6-metre cable lengths suit most standard motorhome and caravan layouts.
What is the battery charger output of the CBE PC 110 system?
The CBE PC 110 includes a 12V 22A switching battery charger. This microprocessor-controlled charger automatically manages charging for leisure batteries when connected to 230V mains hookup, switching between batteries as needed and protecting against overcharging. The charger suits most standard leisure battery types used in motorhomes and caravans.
Can the CBE PC 110 control panel display multiple battery voltages?
The LCD control panel displays voltage levels for the vehicle battery and up to two leisure batteries designated as B1 and B2. This dual leisure battery monitoring capability suits larger motorhomes running multiple battery banks or owners who have upgraded their electrical system with additional leisure battery capacity.
What are the dimensions of the CBE PC 110 control panel?
The CBE PC 110 control panel measures 170 x 80mm and requires a rectangular cutout for flush mounting. This compact size fits most standard motorhome and caravan panel locations, typically mounted near the entrance door or kitchen area for easy access. The panel depth requires checking your wall cavity space before installation.
How does the electronic battery separator work in the CBE PC 110 system?
The electronic battery separator automatically connects leisure batteries to the vehicle alternator during driving to charge them, then disconnects when the engine stops to prevent draining the vehicle battery. This microprocessor-controlled function eliminates the need for manual switching and protects against flat vehicle batteries after extended periods of using leisure battery power for lights and appliances.
Does the CBE PC 110 replace existing motorhome electrical panels?
The CBE PC 110 Complete System replaces basic electrical panels and consolidates multiple monitoring functions into one microprocessor-controlled unit. Existing simple battery monitors, separate water level gauges, and basic fridge controllers can be removed when installing this integrated system. The installation requires competent electrical knowledge and understanding of 12V motorhome electrical systems.
