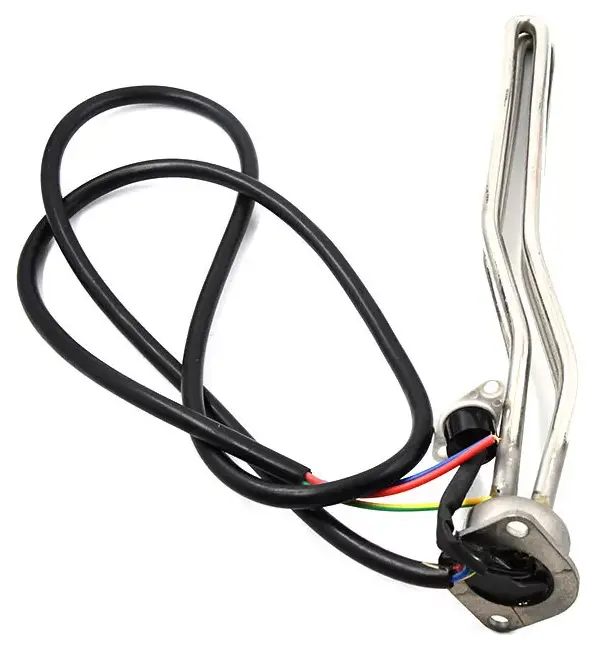

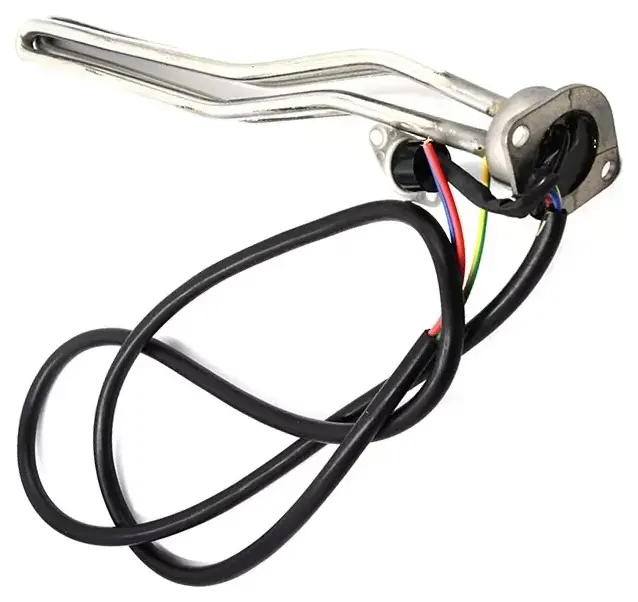

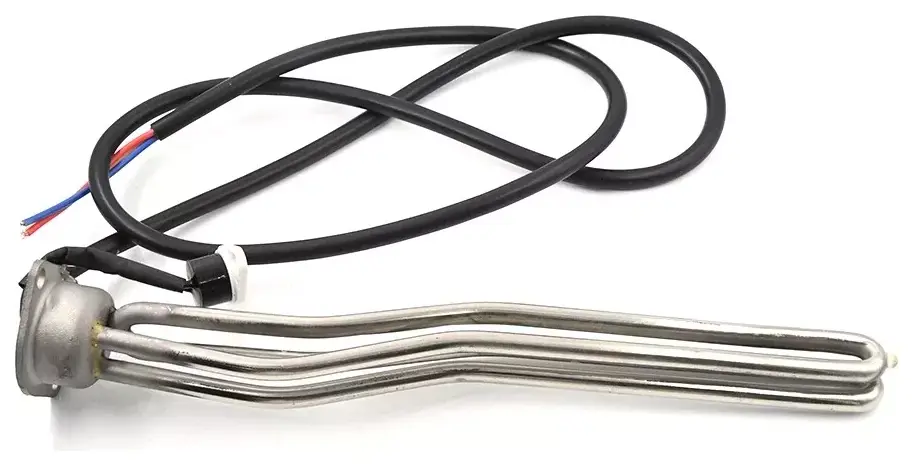

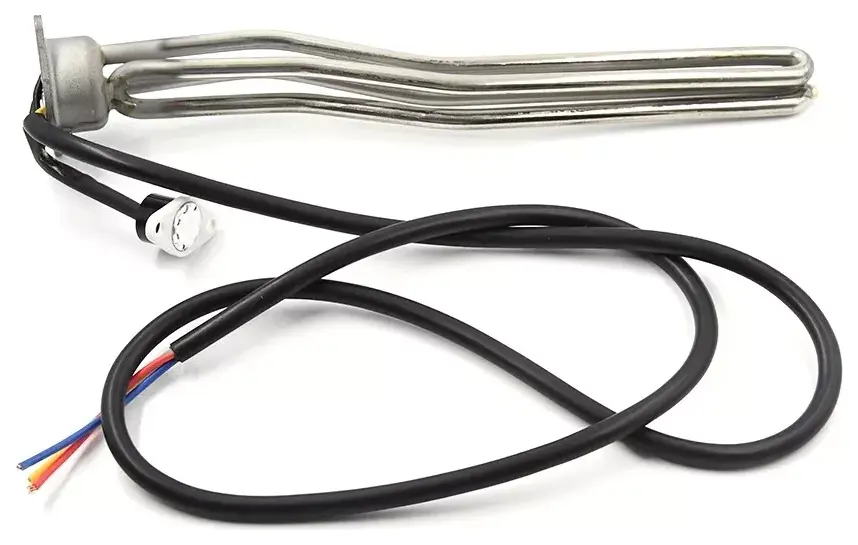

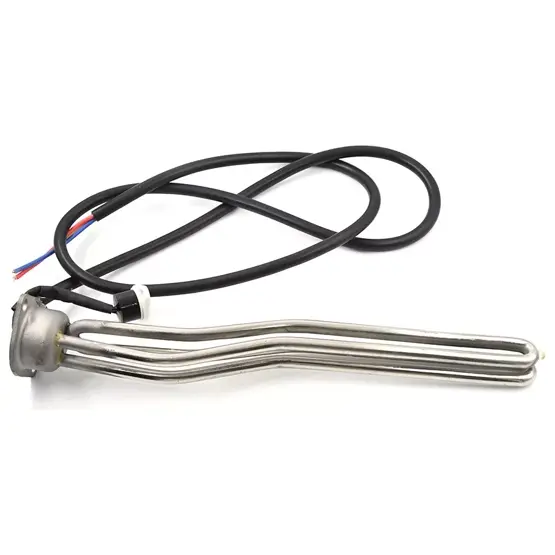

Truma Ultrastore Water Heater Element 850watt

£139.99(inc VAT) £165.00
View delivery optionsView product description
Ultrastore Heating Element 850watt. Used on newer series 3 Ultrastore water heaters from 07/03 Plus for the Truma boat boiler from 09/03

EAN-13 : 4052816036090

5 FAQs on the Truma Ultrastore Water Heater Element 850watt

Can you confirm the correct replacement element for my Truma Ultrastore Ser No. 29316164? And do I need heat transfer paste to install correctly?
The heating element is our ref. 226570. You should not need any extra paste.
Why would trip switch on consumer unit and site hook up trip when I switch on the Ultrastore
The electric heater in the Ultrastore has a 'short circuit' and needs replacing. this will be part 126570
Has anyone got any instructions on how to replace the element in a Truma 10L water heater. The only number I can find on the heater is US103-1723007. I have a 2008Swift Charisma 540 caravan. Will any element for a 10L Truma water heater fit in mine as I need to order a replacement element. Hope someone can help.
The heating element that you require is our ref. 126570. If you peel back the card board housing you will see that the heater and thermostat are secured with four small nuts in total. You will need a suitable box spanner to undo these. Some blue-tack in the socket may prevent you dropping the nuts as they reach the end of the thread.
Detach the mains cable at the in-line connector. The new element does not come with a connector on the cable so you will need to install a new terminal box. Get this checked by an electrician.
I have a 2004 Caravan fitted with a Truma Ultrastore rapid Gas/Electric Storage Heater Serial No US 103-14167241, The fault with It keep blowing the fuse out .I have disconnected from the power, And the power in the Caravan is OK then, Question do I need a replacement water element ? Its a 850 watts if so can you supply one a what is the cost? Kind Regards Ron Robinson
It is most likely that you need a new heater element. This is our ref. 126570 at £70.34.
the truma water heater produces excessively hot water. Cannot put hands into so hot. Would it be the overheat stat. Only does on electric gas work ok.
If you are referring to the Truma Ultrastore water heater then the overheat stat is part of the immersion heater assembly, part 126570 or 119026 for older heaters.

29 Customer Reviews on Truma Ultrastore Water Heater Element 850watt

Truma Ultraheat Repair

by paul tennant (09 Apr 2024)
5 star review(5/5)
Arrived very quickly & was very well packaged. Very expensive but being an original Truma part you know it will fit perfectly. Our heater is a Truma Ultraheat Rapid model in a 2004 Swift Challenger. Usual symptoms:- electrics trip when heater is switched on. Usually caused when the water heater is switched on before filling or is drained before turning off. I think we may have inadvertently knocked the drain valve while reaching under the front bench seats for something so I have now fashioned a guard over the valve !!. Its a shame the drain valve doesn't have an electrical interlock that disconnects the heater when draining. Fitting tip:- Unless you have clear access it is often easier to remove the heater from the van. This allows the fiddly casing to be removed to gain easier access. There are fold out sections on the casing but it would be very fiddly & depends on access around the heater. The two heating tubes on ours must have spread apart over time making removal very difficult. Even though there probably was room, removing the heater from the van made the job a lot easier. I had to squeeze the legs together as it was drawn out of the hole. Thankfully the new part went in without any issues. You will need some very small spanners or sockets to remove, I think there is are 5mm & 6mm nuts to remove. The part comes without an electrical connector so I had to chop the end off the old cable. I used Wago connectors to connect the three wires together. Now fixed !!

Replacement Element

by John Brown (29 Mar 2021)
5 star review(5/5)
Product arrived perfect condition good service ,would use again and would recommend.

Water Heater Element

by Mr Marshall (21 Oct 2020)
4 star review(4/5)
Does as required. Expensive for such a small item, considering a normal domestic one is a lot cheaper.

Good Quality

by Martin Burkinshaw (01 Oct 2020)
5 star review(5/5)
Truma ultrastore water heater element, 850 watt. Original part so good quality. Straight forward to fit and a good price.

Excellent Company

by Chris Lockyer (22 Apr 2020)
5 star review(5/5)
If you want to buy from an honest, genuine and kind hearted company, then you have found the here. Brilliant communication and so helpful. Thanks

Correct Element And Great Delivery And Service

by Mr R. (23 Sep 2019)
5 star review(5/5)
Replacement for a failed element

Great Service

by Mr siv (05 Jul 2019)
5 star review(5/5)
Ordered and it was delivered quickly found problem to be a fuse lesuireshopdirect accepted return no fuss trustworthy company

Element For Truma Boiler

by John (13 Jun 2019)
5 star review(5/5)
As usual the part arrived in good time, fitted and worked. Very expensive for what it is, but it's the same or more elsewhere.

Water Heater Element Replacement

by Pegasus owner. (08 Oct 2018)
5 star review(5/5)
Bought to replace defunct water heater, The replacement Truma water heating element arrived promptly and well packaged.Once the outer grey heater cover was cut in way of the inlet/outlet pipes the element was simple to replace. Take care with small nuts on sensor.

Truma Ultrastore 850 Watt Element

by Mr Sparks (04 Aug 2018)
5 star review(5/5)
Easy to install. Heats up in minutes

Just The Job

by Mr Storey (20 Jul 2018)
5 star review(5/5)
Great speed of delivery part right fit perfect no hassle well wrapped and secure works when fitted.bourght this product for my caravan 2009 model Bailey pagent series 7 burgundy.hat wise found expensive for what it does.the Truma ultrastore water heater element 850 watt I hope this last about same time

Does The Job

by Anthony Graham (17 Mar 2018)
5 star review(5/5)
Great product

Truma Ultrastore Heater Element 850watt

by Tony in New Zealand (29 Nov 2016)
5 star review(5/5)
Awesome like for like replacement elements, a bit fiddly to fit and very expensive with postage to New Zealand!! But so glad to get the right part and super fast delivery to the other side of the world :-)

Truma Ultrastore Heating Element 850 Watt

by Mr Everitt (28 Sep 2016)
4 star review(4/5)
The Truma Ultrastore Heating Element 850 Watt is easy to fit. Replacing the original (12 seasons caravanning before failure) A well made part Rather expensive for a glorified kettle element

Ultrastore 850W Heating Element - Fitting

by Alan (25 Sep 2015)
5 star review(5/5)
Delivered promptly. Fitting instructions good. Easily fitted but purchasers should note that required electrical connections in the heater system may require removal and re-use of the terminal junction. Joins made should be soldered and properly insulated. Works OK.

Heating Element - Review

by Jimbo (13 Jul 2015)
5 star review(5/5)
Excellent price. 1st. class service. Need to follow instructions on fitting which do not come with the product. So use technical Toms, do not drop nuts just in case have a magnet handy on a piece of string. Use 20 amp choc block connector to reconnect wiring as product is not fitted with a push fit connector. Ring spanners don't work so you need 5.5 mm and 7 mm sockets for access. Easy enough job but don't rush it. I have been unable to test the system as I fitted this whilst the caravan was in storage.

Ultrastore Heating Element

by Caravaner (05 May 2015)
5 star review(5/5)
Clearly the old element had failed when compared with the new one. This was delivered quickly and I was able to track delivery on the day. Good service which I would recommend to anyone.

Ultra Store Heating Element

by Roki (08 Aug 2014)
5 star review(5/5)
easy to fit, bit fiddly ,needed to buy a small 5.5mm socket to fit it

Truma Ultrastore 850 W Heating Element Review

by Mr Burt (09 Jun 2014)
5 star review(5/5)
Had to buy this to replace the one in our van that stopped working last year for some reason. That one in turn had only lasted for a year but that could have been down to it having been poorly fitted at an approved caravan maintenance centre (beyond the scope of this review) It was a straightforward job to replace and comes with a new O-ring seal and 2 replacement nuts for the element. I have 2 gripes - 1 minor and 1 major. Minor gripe - new nuts for the thermostat aren't supplied which is a shame as they are very small and easy to lose. Major gripe - its exorbitant, rip-off price! You can get 3 domestic heating elements for your hot water tank at home for the price of one of these (4 if you go to some sites who charge over £100 for one)

Replacement Ultrastore Heating Element 850w

by Bamber (06 May 2014)
5 star review(5/5)
Good product, tricky to replace due to very small nuts on the overheat sensor, once fitted no problems, hot water again.

850 Watt Heating Element

by Mr Hill (01 Apr 2014)
5 star review(5/5)
Great product at a very good price excellent customer service

Ultrastore Heating Element 850watt

by Mr Gradon (02 Jan 2014)
5 star review(5/5)
thank you for fast delivery and great price.

Ultrastore Heating Element

by TC (23 Oct 2013)
5 star review(5/5)
Very prompt and impressive service. The element is very fiddly to fit. It would help if appropriate size sockets were available as an optional extra.

Truma Ultrastore Heater Element

by Meninspex (20 Jul 2013)
5 star review(5/5)
Good product, easy to fit but a b****r to find the exact location of (new nuts provided for the element but not for the thermostat so don't bin the old ones - element nuts 7mm; thermostat nuts 5.5mm). None of the published data shows the location of the electric heater element. It's between the water connections btw and I had to take a Stanley knife to the casing to find it! I needed a new one because the thermostat had failed even though the element and the overheat trip were still working but it would only reset once the whole heater had gone cold.

Mr Ken Craven

by Mr Craven (23 Aug 2012)
5 star review(5/5)
Part recieved two days after ordering, fitted and heater back in working order. Thanks for a fast and efficient service

Mr Chris Greenham

by Mr Greenham (16 Jul 2012)
5 star review(5/5)
The immersion element in my Truma Ultrastore water heater developed an earth leakage fault which blew the tripswitch in my motorhome. I found a genuine Truma relacement at Leisureshopdirect, ordering was quite straightforward and delivery prompt. I replaced the part and it worked perfectly............Thanks very much, excellent service.

Ultrastore Heating Element 850watts

by Mr. Lawson (24 Jun 2011)
5 star review(5/5)
Really good fast supply of spare part. Thanks. very impressed.

Mr Rhodes

by Mr Rhodes (13 Apr 2011)
5 star review(5/5)
Order received within a couple of days, installed and problem fixed, great service.

Ultrastore Heating Element 850watt

by Mr Robinson (21 Sep 2009)
5 star review(5/5)
Genuine part supplied quickly and it fixed the problem, Very Pleased Many Thanks.
