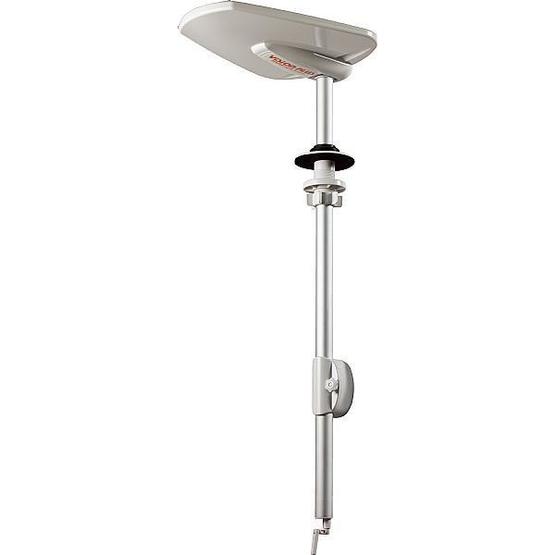

Status 580 Directional Antenna (Long Mast) - Digital and Analogue reception.
We have designed an efficient, wide-band, log periodic dipole array with an integral electronic booster. With the addition of specially designed telescopic antennas, the 580 produces exceptional performance across all UHF, VHF and FM signals.

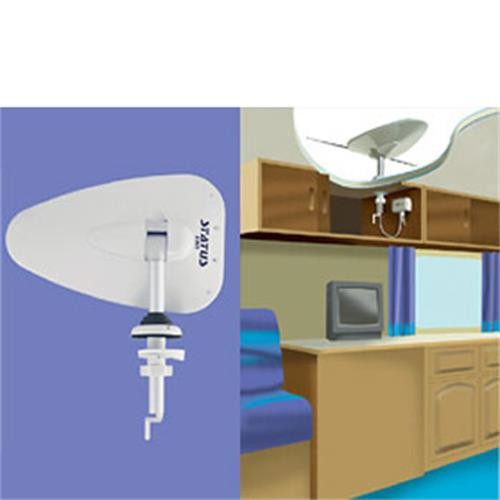

One of the most significant features of the Status 580 is the setting up and positioning of your antenna when you arrive on site.
Firstly we had to overcome the problem of receiving horizontal and vertical signals with an antenna fixed to a mast mounted through the roof. Our solution is to incorporate an integral gearbox into the antenna dome, operated by a winder handle, which cants the antenna through 90 degrees. A clever and unique feature only offered by STATUS.
The greatest benefit of our design was to simplify locating a TV transmitter whenever you arrived at a new destination. Firstly, raising and lowering the antenna dome and adjusting its direction can all be performed in the warmth and comfort of indoors. Then simply turning the folding winder changes the antennas' polarity from horizontal to vertical.
Featuring Digital TV, DAB and FM radio reception, fixed FM radio antennas and a variable gain control with which to adjust transmission for strong and weak signal areas, the Status 580 Caravan TV Aerial is exceptional at finding and receiving signal easily and quickly and with the LED light power indicator, signal strength can furthermore be monitored with ease.

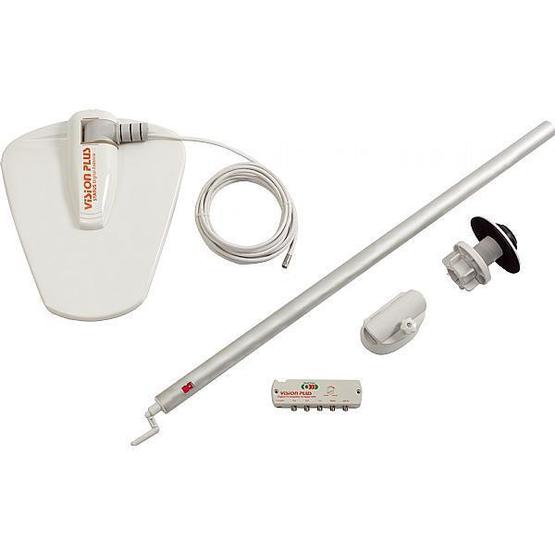

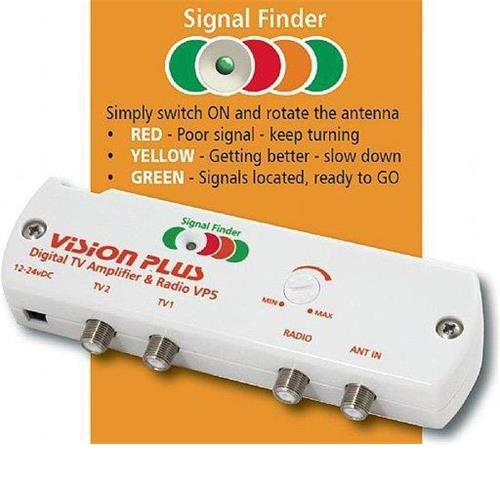

Includes signal finder and amplifier.
THIS SUPERCEDES THE STATUS 560.
Features at a glance
Horizontal & Vertical Polarisation Indicator
2 TV Connections and 1 dedicated Radio connection
12 – 24V DC Power Input connection
Antenna IN connection
On / Off Power switch
2 year guarantee
Mast Length 920mm

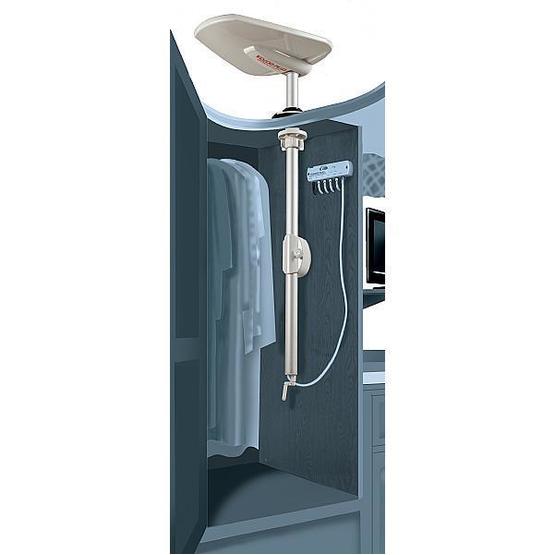

Mast intrusion into locker 865mm inc winding handle (Roof cavity being 3cm approx)
6 Customer Reviews on Status 580 Directional Antenna (Long Mast) - Digital and Analogue reception
by Roy Tudge (27 Oct 2017)
Bought one last year to replace 530 on my Bessacarr E410 and it was great, easy to tune, great reception. Sold me E410 for E560 and the the same problem the 530 just not good enough. New 580 fitted before I went touring.
Also bought Status TV to go with the 580.
Status 580 Aerial
by Mr Cleverley. (18 Sep 2017)
Easy to install & operate ,but not near 240v at the moment to be able to try it out ,recon there should be no problems as most caravan's have the short version fitted as standard these days .
An Old Mans Dream
by Dave Pearc (17 May 2017)
I have not tried it yet but installing was simple and quick.The status 580 will make setting up so much than having to climb on the roof.
Status 560 (long Mast)
by Techno (26 Mar 2015)
Excellent reception indicator for direction-finding. Long mast is excellent, and necessary when the nearby obstructions or caravans are a little higher than yours, shorter mast would not work well in these situations. We use full extension more than 50% of the time.
Set up is in 20-30 seconds, from inside the van. Good installation instructions, need to fit in a wardrobe or similar, and plan aerial route to TV!
Never had a problem with Leisure Shop delivery.
by yorkie (29 Jan 2014)
excellent product, price and delivery, will buy from this company again, first class.
by Goldenwolf (27 Apr 2013)
Much better results than previous Status 530 since digital switchover.
Good Value from Leisureshop Direct.Speedy Delivery.
