Sargent EC155 /EC50 complete electrical kit

£369.99(inc VAT)
View delivery optionsView product description
  Product Description
Sargent's EC155 PSU Kit with 12V and 230V Harnesses is a great solution for your van conversions. Consisting of an EC155 power supply unit, EC50 Control Panel, and wiring harnesses, this kit offers a thorough pack for your electrical needs. The kit also includes a five-metre connecting lead, simplifying the process of connecting the PSU and control panel. The EC155 power supply unit in this kit contains a built-in 200W charger, along with fuses and breakers for both 12V and 230V elements.

Crafted with user-friendly design in mind, the power supply unit is surface mounted for easy installation. All connectors are located on the bottom of the unit for convenience and the DIY harness comes with all the required connectors, ready to plug straight into the power unit. Extra 12V feeds come with insulated blade terminals, so they can be extended if necessary.

Optimised for use with different types of batteries including Gel, Lead Acid, AGM, LiFePO4 & Lithium Ion, this PSU kit also indicates charging status, is quiet in operation, and comes equipped with in-built overload, short circuit, and over-temperature protection. Suitable for Fiat Ducato and Volkswagen T6, this product is a brilliant choice for someone seeking to enhance their van conversion experience.

The K155A kit, is perfect for van conversions with an easy designed fit. The EC155 power supply unit has a built in 200 watt charger, 12v fuses and 230v breakers. As the unit is surfaced mounted it can provide easy installation with all connectors situated at the bottom of the unit.

The EC155 / EC50 Complete Electrical Kit is specifically designed for customers that are building their own motorhome or caravan conversion. If you have a one off build or are a small to medium manufacturer then this would be the perfect choice for your requirements.

The kit contains a compact EC155 power supply unit and an easy to use EC50 control panel that is connected via a 2 metre length control lead. The DIY harness simply plugs into the EC155 unit and provides all of the available 230V and 12V inputs and outputs for you to terminate into.

The DIY harness is terminated with all the connectors ready to plug straight into the power supply unit. All 12v feeds are left with insulated blade terminals, designed to be extended if needed. The feeds include [li]Fuses leisure battery feed[/li] [li]Vehicle battery feed[/li] [li]2 lighting circuits[/li] [li]Pump and Toilet Pump[/li] [li]Permanent Feed for Required Circuits[/li]

Sargent EC155 /EC50 complete electrical kit Features


  • EC155 Power Supply Unit with 200W charger, 12V fuses, and 230V breakers
  • EC50 Control Panel for power management
  • 5m connecting lead between PSU and control panel
  • DIY wiring harness with pre-terminated connectors for quick installation
  • Leisure battery feed, vehicle battery feed, and lighting circuits
  • Pump and toilet pump feeds
  • Permanent feed for required circuits
  • Includes user instructions and DIY installation guide

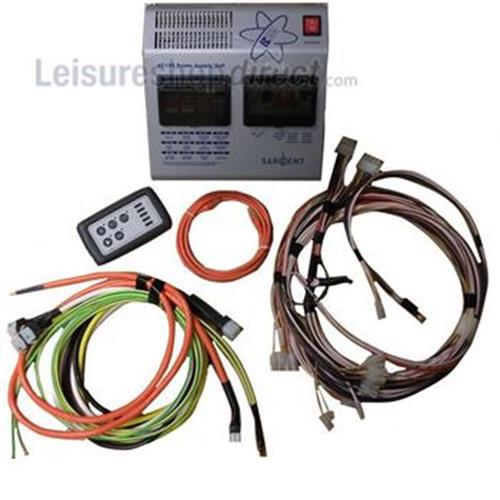

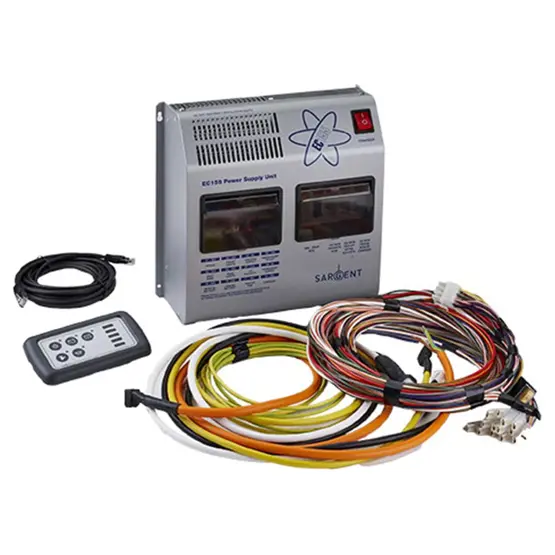

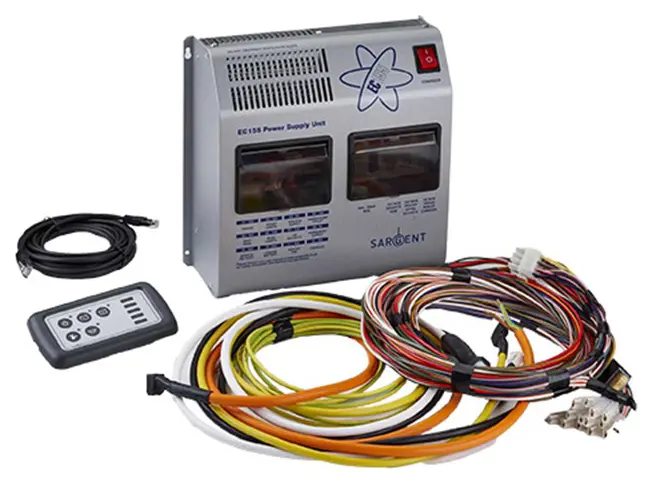

Kit Contents:

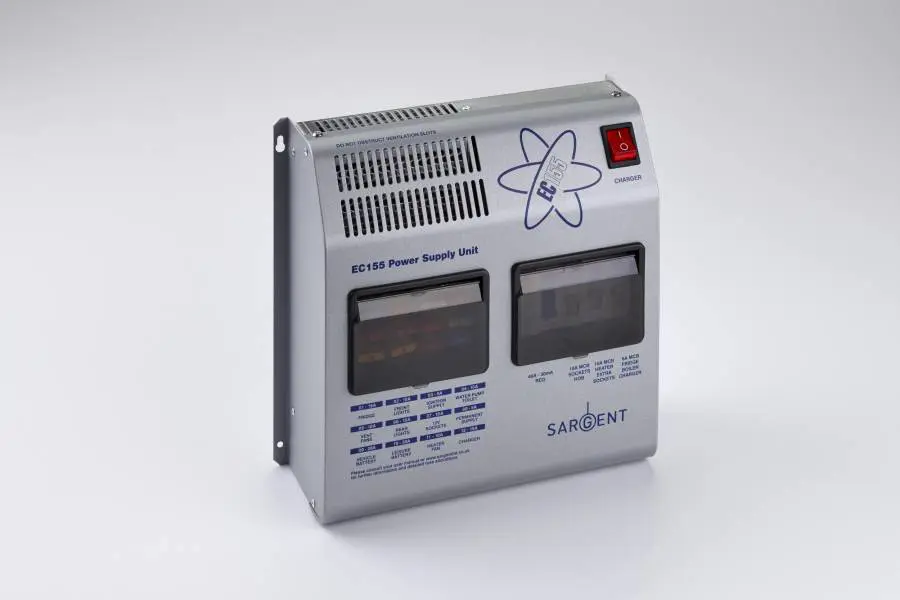

  • EC155 Power Supply Unit

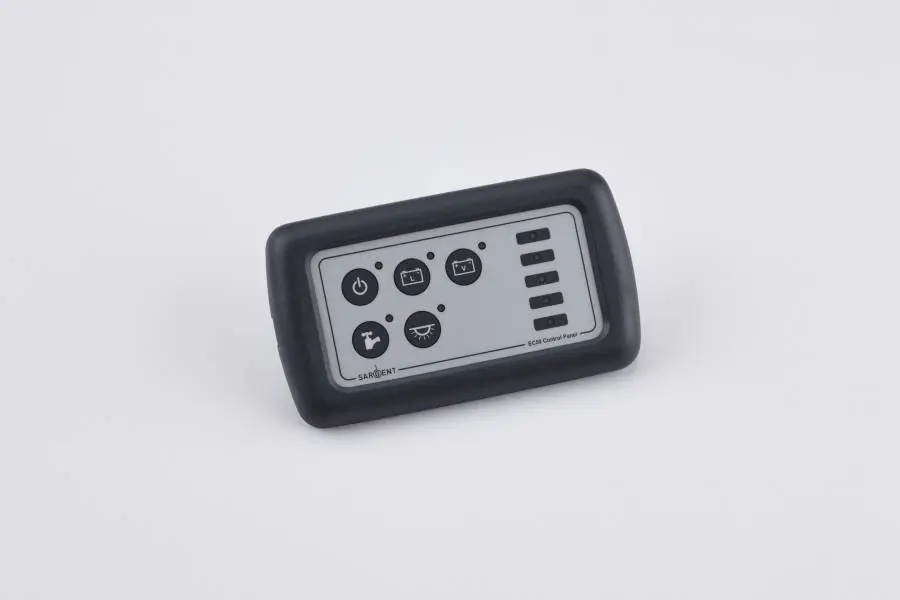

  • EC50 Control Panel

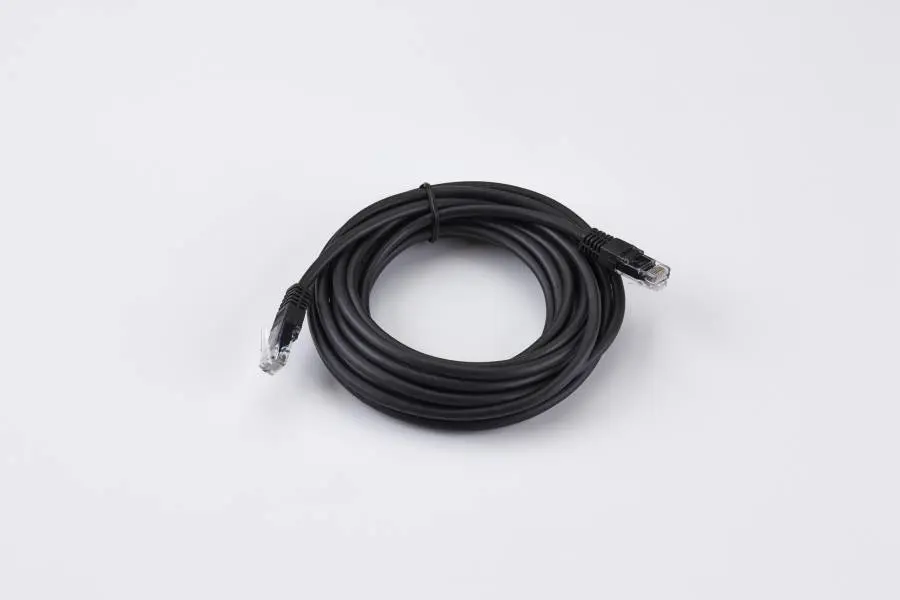

  • 5 metre length Control Lead
  • EC155 DIY 230V & 12V Harness
