Fiamma Carry-Bike Caravan XL A Pro 200

£278.45(inc VAT) £333.99
?
View delivery optionsView product description
  Product Description

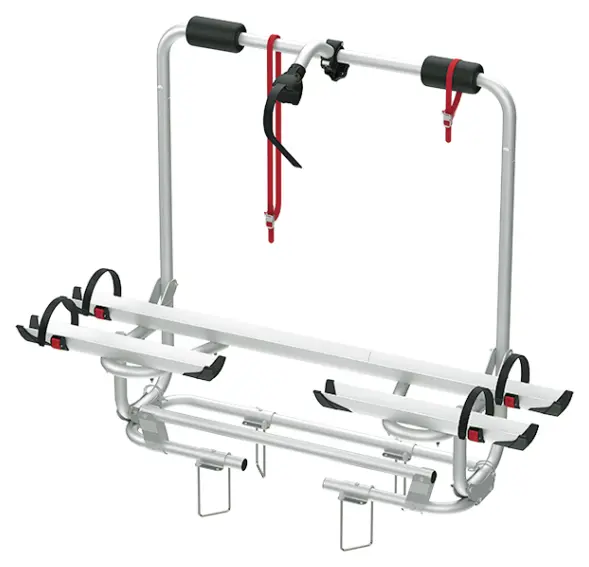

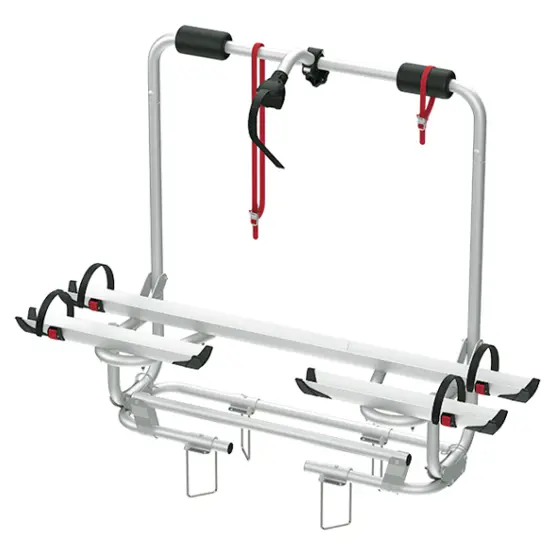

The Fiamma Carry-Bike Caravan XL A Pro 200 is an A-frame mounted bike carrier designed to transport two bikes on the front of your caravan. This rack installs on standard A-frames without drilling holes, fitting caravans with A-frame dimensions from 34.2cm upwards. The aluminium construction weighs 9.4kg and handles loads up to 50kg, making it suitable for standard bikes and e-bikes.

How does the Fiamma XL A Pro 200 provide access to your gas locker with bikes mounted?


The XL A Pro 200 features a forward-tilting upper structure that pivots towards the front of your caravan, allowing access to the storage compartment and gas bottle locker even when bikes are mounted. This design uses Rail Plus bike rails spaced 20cm apart with Bike-Block Pro 2 fixing blocks to secure your bikes whilst maintaining locker accessibility.

The external rail comes in two pieces, offering flexibility during installation and adjustment to accommodate different A-frame configurations. This bike carrier measures 128 x 38 x 100cm when set up and comes supplied with two security strips, Bike-Block Pro 2 fixing blocks, two Rail Plus bike rails, and all necessary brackets for installation. The rack fits Hobby caravans with extended frames and new Alko frame designs, providing versatility across different caravan types.

The XL A Pro 200 addresses noseweight concerns through its 9.4kg frame weight. When loaded, you'll need to account for this weight plus your bikes within your vehicle's noseweight limits. The 20cm rail spacing provides adequate separation between bikes to prevent contact during travel, whilst the Bike-Block Pro 2 system secures frames without scratching paintwork.

Fiamma Carry-Bike Caravan XL A Pro 200 Features


Rail Plus: New design for increased torsion and flexural strength

Two-piece rail: Does not interfere with the caravan’s parking systems

Protective bumpers: To protect your bikes from scratches and impacts

Bike-Block: To securely lock the bike

Installation: On the A frame

Frequently Asked Questions

Do I need to drill holes in my caravan A-frame to fit the Fiamma XL A Pro 200?
No drilling is required. The Fiamma Carry-Bike Caravan XL A Pro 200 installs directly onto standard A-frames using the supplied brackets and fixing system. The rack fits A-frames with minimum dimensions of 34.2cm and works with standard caravans, Hobby caravans with extended frames, and new Alko frame designs.
Will the Fiamma XL A Pro 200 affect my caravan noseweight?
Yes, A-frame mounted bike carriers add to your caravan's noseweight. The rack itself weighs 9.4kg, and you need to add the weight of your bikes to calculate the total additional noseweight. Check your towcar manufacturer's maximum noseweight limit and your caravan's recommended noseweight before loading. Most manufacturers specify noseweight limits between 75kg and 150kg depending on the vehicle.
What is the Rail Plus system on the Fiamma XL A Pro 200?
Rail Plus is Fiamma's bike rail system that comes in two separate pieces for flexible installation. The rails are spaced 20cm apart and work with the Bike-Block Pro 2 fixing system to secure bikes by their frames. This two-piece design grants greater installation possibilities on different A-frame configurations compared to single-piece rails.
Can I access my gas locker when bikes are mounted on the XL A Pro 200?
Yes, the upper structure of the XL A Pro 200 pivots forward, allowing you to access the caravan storage compartment and gas bottle locker even when bikes are mounted. This tilting mechanism is a key feature of this model, providing convenient access without needing to remove your bikes.
Is the Fiamma XL A Pro 200 suitable for carrying e-bikes?
Yes, the carrier is rated for e-bikes with a maximum load capacity of 50kg across both bikes. E-bikes typically weigh between 20kg and 30kg each, so you need to check your specific e-bike weights before loading. The Bike-Block Pro 2 system secures heavier e-bike frames effectively whilst the 20cm rail spacing prevents bikes from touching during travel.
What comes included with the Fiamma Carry-Bike XL A Pro 200?
The carrier is supplied with two security strips for theft deterrence, two Bike-Block Pro 2 fixing blocks that clamp onto bike frames, two Rail Plus bike rails for mounting bikes, and all necessary brackets for A-frame installation. You receive everything needed to install and secure two bikes on your caravan A-frame.

  • Supplied with : quick rails and Bike Block 1 and 2.
  • Maximum load : 35kg
  • Carries as standard : 2 bikes

EAN-13 : 8004815438296
