Fiamma Carry-Bike DJ

£293.82(inc VAT) £352.99
?
View delivery optionsView product description
  Product Description

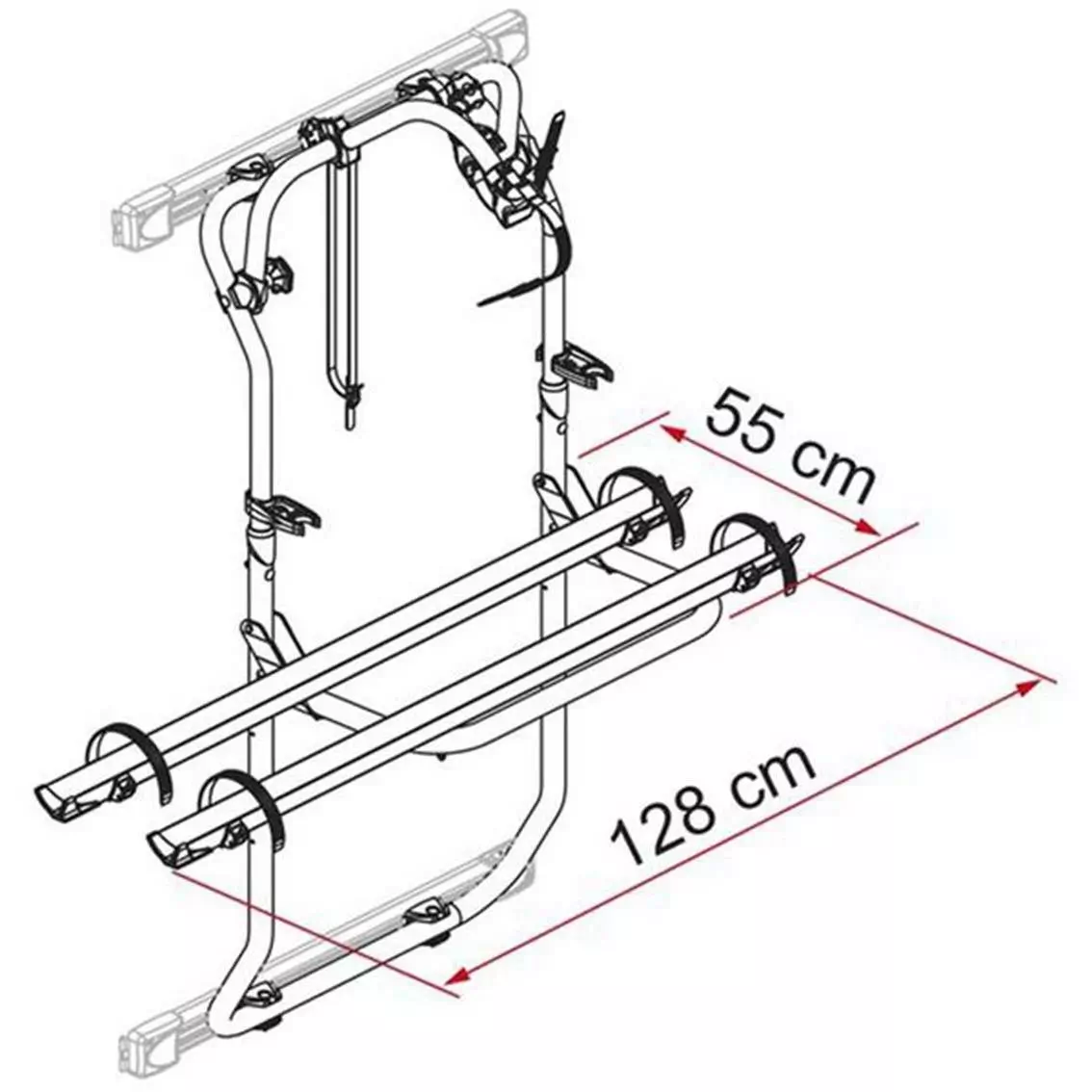

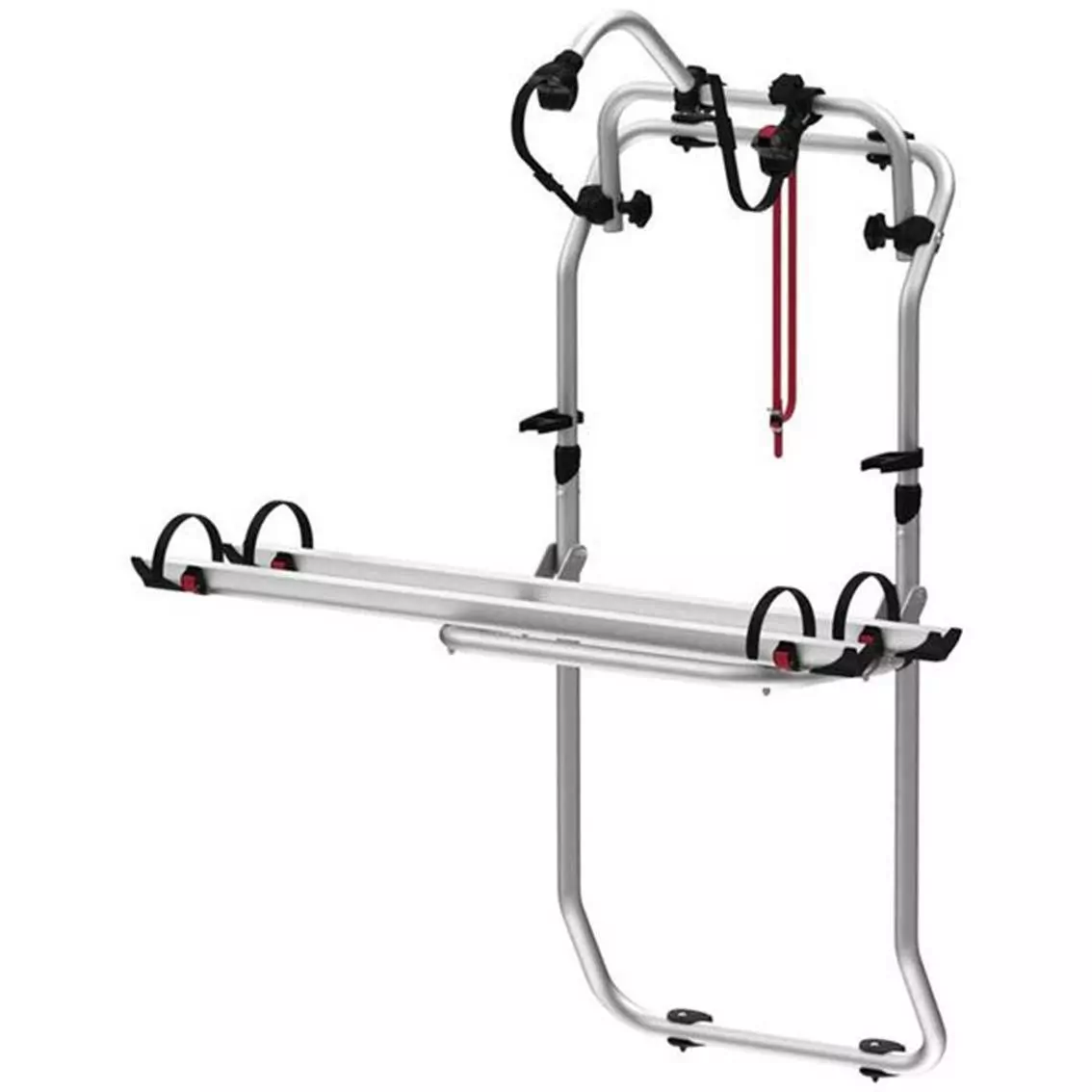

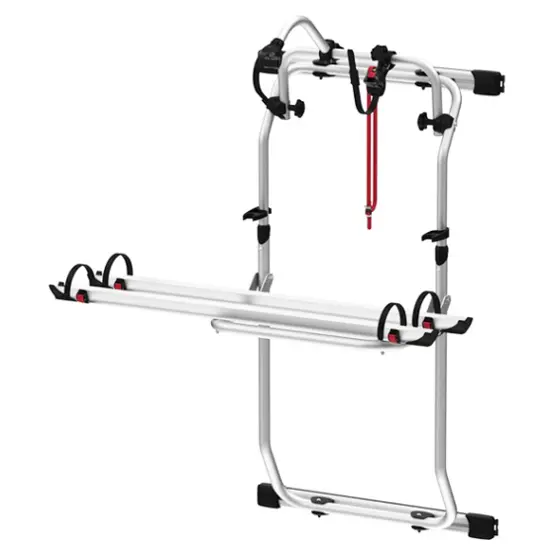

The Fiamma Carry-Bike DJ is a rear-mounted bike carrier designed for van conversions with double rear doors. This rack transports 2 standard bikes with a maximum load capacity of 40kg and weighs 8.1kg. It features an aluminium 6060 rail support base with reinforcement blocks for extra strength and stability, and the rail support offers three mounting positions (high, midway, or low) to make loading bikes easier. Vehicle-specific fixing bars are required and sold separately for Ducato, Transit, Sprinter, and Crafter models.

Which van conversions does the Fiamma Carry-Bike DJ fit?


The Fiamma Carry-Bike DJ fits van conversions with rear double doors including Fiat Ducato (2006 onwards), Ford Transit (2014 onwards), Mercedes Sprinter (2006 onwards), and VW Crafter models (both pre-2017 and post-2017 versions). Each vehicle needs its own specific Kit Bars DJ set, available in either aluminium or deep black finish to match the carrier. The fixing bars attach to the right-hand door using the vehicle's existing mounting points.

The system comes complete with 2 x Rail Quick Pro for wheel mounting and Bike-Block Pro S 1 locking mechanism with a security strip. The 23cm distance between rails provides stable bike separation during travel. A licence plate carrier is available as an optional extra if your bikes obstruct the rear number plate. The carrier allows both rear doors to open without removing the bikes, and a Fiamma Deluxe ladder fits on the left-hand door without interference.

Fiamma Carry-Bike DJ Features


Rail Quick Pro: For quick and secure locking of the wheel to the rail

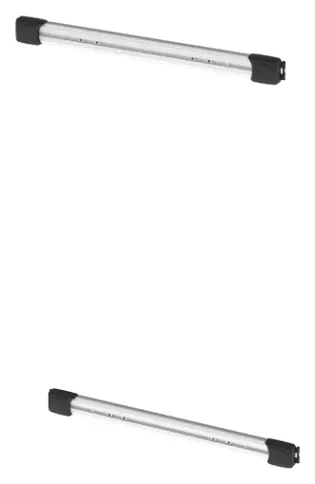

Fixing Bar: For fast and safe mounting

Bike-Block Support: Adjustable, for easy attachment to bicycles

Bike-Block: To securely lock the bike

Installation: Installed on the double rear door.

Frequently Asked Questions

Do I need to buy fixing bars separately for the Fiamma Carry-Bike DJ?
Yes, the Fiamma Carry-Bike DJ requires vehicle-specific fixing bars sold separately. Different Kit Bars DJ are available for Fiat Ducato (2006+), Ford Transit (2014+), Mercedes Sprinter (2006+), and VW Crafter models. Each kit is tailored to your van's door structure and comes in aluminium or deep black finish to match your carrier. The fixing bars attach the carrier securely to your right-hand rear door.
Does the Fiamma Carry-Bike DJ work with e-bikes?
The Fiamma Carry-Bike DJ is designed for standard bikes only and is not suitable for e-bikes. The carrier has a maximum load capacity of 40kg across 2 bikes, which accommodates most traditional bicycles. E-bikes typically weigh between 20-30kg each, exceeding the weight limits and structural design of this rear door carrier system.
Which door does the Fiamma Carry-Bike DJ mount to?
The Fiamma Carry-Bike DJ mounts to the right-hand rear door of your van conversion. This positioning allows both doors to open without removing the bikes, giving you access to your van's rear storage area. The left-hand door remains free, so you can fit a Fiamma Deluxe ladder there if needed without any interference between the two accessories.
What are the three mounting positions on the Fiamma Carry-Bike DJ?
The Fiamma Carry-Bike DJ offers three rail support positions: high, midway, and low. These adjustable positions let you set the carrier height based on your preference for loading bikes. The lower positions reduce the lifting height needed to load heavier bikes onto the carrier. When using midway or low positions, you'll need a licence plate carrier to maintain visibility of your registration plate and rear lights.
Does installation of the Fiamma Carry-Bike DJ require drilling?
Yes, installing the Fiamma Carry-Bike DJ requires drilling into your van's rear door for the security screws that hold the vehicle-specific fixing bars. The drilling is limited to four mounting points per door, and proper sealing is required after drilling to maintain weatherproofing. The vehicle-specific Kit Bars DJ come with detailed templates and instructions for accurate positioning before drilling begins.
EAN-13 : 8004815437466
