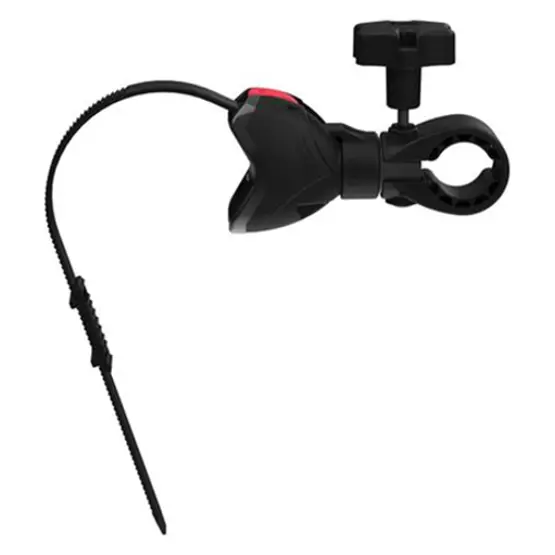

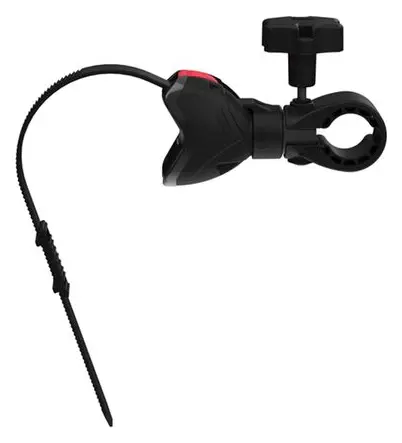

The Fiamma Bike Block Pro 1 provides a secure mounting solution for attaching bicycles to Fiamma Carry-Bike racks on caravans and motorhomes. This redesigned 2023 model features 360-degree rotating clamps that accommodate both round and oval bike frame tubes ranging from 25mm to 100mm in diameter. The Italian-manufactured unit weighs just 0.2kg and carries TÜV approval, confirming it meets European safety standards for vehicle-mounted cycle carriers. The curved design allows easier bike attachment compared to straight clamps, whilst the rotating mechanism lets you position the bike at the optimal angle without fighting against fixed mounting points.
Compatibility extends across all Carry-Bike models, making this a universal solution for Fiamma rack owners. The fixing knob secures the Bike Block directly to your Carry-Bike's mounting rails (suitable for 28-35mm diameter pipes), whilst the non-scratch protective base prevents damage to bike frame paintwork during transit. The locking clamp mechanism keeps your bicycle firmly in place even on rough roads, and the Deep Black finish matches modern Fiamma rack aesthetics. Each Bike Block Pro 1 unit supports a single bicycle, so you'll need to purchase additional units if you're carrying multiple bikes on a multi-bike Carry-Bike rack.
Installation requires no tools for the bike attachment itself, though you'll use the integrated fixing knob to secure the block to your Carry-Bike rail. The rotating heads eliminate the frustration of trying to align frames with fixed clamps, particularly useful when loading bikes with non-standard frame geometries like step-through designs or mountain bikes with sloping top tubes. The 100mm maximum diameter capacity handles most adult bicycle frames including those with oversized tubing, though some fat-tyre bikes with exceptionally large diameter tubes may exceed this specification.
Fiamma Bike-Block Pro 1 Deep Black (04133H01A) Features
Restyled 2023 model
Bike support base for round or oval tubes with 25 to 100mm diameter
The clamp and bicycle locking system can rotate 360°
Curved to make it easier to attach the bike
Fixing knob to lock the Bike-Block to the Carry-Bike
Locking clamp for 28 to 35mm diameter pipes
Non-scratch base
Suitable for all Carry-Bike models
Specifications
Weight : 0.2kg
Colour : Black
Approvals : TÜV
Application : All Carry-Bike models
Country of Origin : Italy
Frequently Asked Questions
Which Fiamma Carry-Bike racks work with the Bike Block Pro 1?
The Bike Block Pro 1 fits all Fiamma Carry-Bike models including the Carry-Bike Caravan XL A Pro, Carry-Bike VW T5 and T6, Carry-Bike Lift 77, Carry-Bike Caravan Plus, and Carry-Bike UL models. The fixing clamp accommodates the standard 28-35mm diameter mounting rails used across the entire Carry-Bike range, making it a universal accessory for any Fiamma bike rack system regardless of when it was manufactured.
How many Bike Block Pro 1 units do I need for my Carry-Bike rack?
Each Bike Block Pro 1 secures one bicycle to your Carry-Bike rack. A two-bike Carry-Bike requires two Bike Block Pro 1 units, whilst a four-bike rack needs four units. Most cyclists fit one block per bike directly to the rack's horizontal rail, positioned to grip the bike's down tube or top tube depending on frame design. The blocks slide along the rail for spacing adjustment before you tighten the fixing knob.
Will the Bike Block Pro 1 fit my carbon fibre bike frame?
The Bike Block Pro 1 includes a non-scratch protective base specifically designed to prevent damage to delicate frame finishes including carbon fibre. The clamp distributes pressure evenly across the tube surface rather than creating point loads. Provided your carbon frame's tube diameter falls within the 25-100mm range and the manufacturer hasn't specified restrictions on clamping that particular section of the frame, the Bike Block Pro 1 provides a safe transport solution.
What does the 360-degree rotation feature do on the Bike Block Pro 1?
The rotating clamp heads let you angle the bike grips to match your frame geometry without repositioning the entire Bike Block on the rail. When you place your bike against the rack, the rotation feature allows the clamps to pivot and align naturally with your frame tubes, particularly useful for bikes with sloping top tubes or unusual frame angles. This eliminates the need to twist your bike into an awkward position just to engage the clamps.
Can the Bike Block Pro 1 hold electric bikes or heavy mountain bikes?
The Bike Block Pro 1 provides the clamping mechanism but your Carry-Bike rack's weight rating determines what you can safely transport. The block itself secures bikes with frame tubes between 25-100mm diameter regardless of total bike weight. Check your specific Carry-Bike model's maximum load capacity before mounting heavy electric bikes, as most standard Carry-Bike racks support 30-35kg per bike position whilst some heavy-duty models accommodate up to 60kg per bike.
Does the Deep Black colour match older Fiamma Carry-Bike racks?
Fiamma introduced the Deep Black finish across their accessory range from 2023 onwards to create visual consistency with modern Carry-Bike rack designs. Older Carry-Bike models typically featured grey or silver frames, so the Deep Black Bike Block Pro 1 creates a colour contrast rather than an exact match. The blocks remain fully functional with any Carry-Bike rack regardless of age or colour, though some owners prefer mixing the black blocks with their existing grey racks whilst others purchase complete sets of matching accessories.
What improvements does the 2023 restyled Bike Block Pro 1 have over previous versions?
The 2023 redesign added the curved profile that makes initial bike placement easier by guiding the frame into position as you lower the bike onto the rack. The enhanced non-scratch base material provides better protection for modern frame finishes compared to earlier versions. The fixing knob mechanism received updates for smoother operation and more secure attachment to the Carry-Bike rail. These refinements maintain the core functionality whilst addressing user feedback about ease of use during loading and unloading.
