Fiamma Above Floor Base for Table Legs - Conic Connection

Name: Fiamma Above Floor Base for Table Legs - Conic Connection
Brand: Fiamma
SKU: 234295
Price: 11.69 GBP
Availability: InStock
Rating: 5 (4 reviews)

Product Ref: 234295
Fiamma Code : C5063-01-

£11.69(inc VAT) £15.99Product Ref: 234295
Fiamma Code : C5063-01-

(4.75/5) Read Reviews - Click Here (4 reviews)

View delivery optionsView product description

Delivery from £5.49
Loading stock details...

Only £84.68
Save £4.45

+Add Bundle

Discount Bundles Available

Product Description

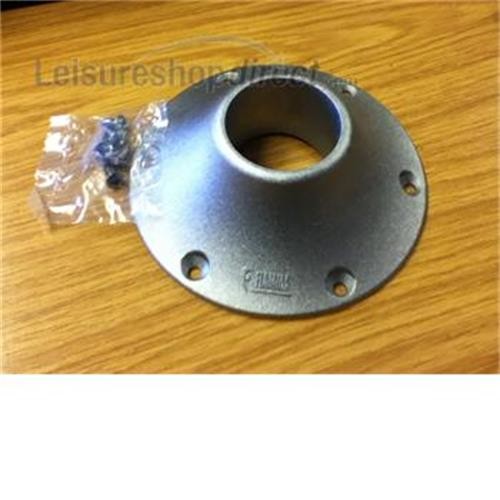

The Fiamma Above Floor Base (Conic Connection) is an aluminium table leg mount designed for motorhome, caravan, and campervan installations where you don't want to cut a hole in the floor. This surface-mounted fitting sits on top of the floor rather than being recessed into it, making it suitable for areas over fuel tanks, underfloor heating, or where cutting isn't practical. The base accepts standard 57mm diameter table legs, including the Fiamma Tube Pro range and compatible aftermarket island legs.

What's the difference between a conic connection and a recessed floor base?

The conic connection mounts above the floor surface with a 50mm protruding profile, whilst a recessed base sits flush within a cut-out hole. Conic fittings work where floor cutting isn't possible, add minimal height clearance requirements (165mm diameter footprint), and install with just six self-tapping screws without specialist tools.

This above-floor fitting provides a robust alternative to recessed installations. The 165mm diameter spread distributes weight across a larger area than traditional clip-based wall mounts, creating a stable platform for dining tables that need to stay put whilst travelling. Constructed from lightweight anodised aluminium, the base resists corrosion in damp conditions and won't add significant weight to your payload. The polished finish complements both modern and traditional leisure vehicle interiors.

Fiamma supplies the base with self-tapping screws for installation. You'll need to position it on a solid section of floor where screws can bite securely into timber or ply subflooring. The conic design accepts the tapered end of compatible table legs, holding them firmly in place whilst still allowing easy removal when you need to convert the dinette area into a bed or create floor space for other activities.

Fiamma Above Floor Base for Table Legs - Conic Connection Features

Aluminium table socket for Tube Pro leg.
Overall diameter: 165mm.
Fits legs of 57mm.
Can be screwed under a table top or to the floor.
Supplied with self-tapping screws.

Diameter of top hole - 5.5cm

Associated Products

Quick View

Fiamma Adaptor for Tube Pro 70 (98655-605)

Quick View

Fiamma Table Tripod Pro Base (Base only)

Quick View

Fiamma Tube Pro Table Leg 70cm

Quick View

Fiamma Recessed Base Plug for Tables

Quick View

Fiamma Recessed Floor Base for Table Leg

Frequently Asked Questions

What diameter table leg does the Fiamma conic connection accept?

The conic connection base accepts table legs with a 57mm outer diameter. This is the industry standard size used by Fiamma Tube Pro legs and most modern island table leg systems in caravans and motorhomes. The conic taper design grips the leg securely whilst allowing easy removal when needed.

Can I use a conic connection base instead of cutting a hole for a recessed base?

Yes, the conic connection is specifically designed as an above-floor alternative to recessed bases. It mounts directly onto the floor surface without requiring any cutting, making it perfect for installations over fuel tanks, underfloor heating systems, or where floor structure makes cutting impractical. The base sits 50mm proud of the floor and uses six self-tapping screws to secure it to solid timber or ply subflooring.

What overall diameter does the Fiamma conic connection base measure?

The base has an overall diameter of 165mm, which provides a wide footprint for distributing the table weight across the floor surface. This larger diameter creates better stability than narrower mounts, particularly important for above-floor installations where the base cannot rely on a cut-out hole for lateral support.

Is the Fiamma conic connection compatible with non-Fiamma table legs?

The conic connection works with any table leg that has a 57mm diameter and tapered end design. Whilst designed for Fiamma Tube Pro legs, many aftermarket manufacturers produce compatible island table legs to the same 57mm industry standard specification. Always verify the leg diameter before purchasing to confirm compatibility.

Can the conic connection base be fitted to a table top as well as the floor?

Yes, you can mount the conic connection to the underside of a table top to create the upper fixing point for a free-standing table leg arrangement. This works particularly well with the Fiamma Tripod Pro base system, where one conic connection mounts under the table and the leg slots into a tripod base on the floor for outdoor dining setups.

What screws are supplied with the Fiamma above floor base?

The conic connection comes with six self-tapping screws suitable for fixing into timber or ply subflooring. These screws are designed to bite directly into wood without pre-drilling, though you should check the floor thickness to confirm the screw length won't penetrate through to any underfloor components or wiring looms beneath the mounting position.

Why choose an above-floor conic base instead of a recessed floor fitting?

Above-floor conic bases suit installations where floor cutting isn't feasible or desirable. This includes positions over fuel tanks where penetration creates safety risks, areas with underfloor heating or insulation that shouldn't be disturbed, or thin floor construction that won't support a recessed fitting. The surface-mount approach also allows easier repositioning if you want to adjust the table location during the vehicle's lifetime.

Does the Fiamma conic connection work with adjustable height table legs?

The conic connection accepts any 57mm diameter leg, including adjustable or telescopic designs, provided they have the correct tapered end to fit the base socket. The base itself doesn't provide height adjustment, so you'll need a leg with built-in telescopic sections if you want variable table height. The Fiamma Tube Pro 70cm leg can be cut to a shorter fixed length if needed.

EAN-13 : 8004815191856

Seen this product cheaper? We will do our best to match it!

Click Here

Seen this product cheaper? We will do our best to match it!

Click Here

Reviews

4 Customer Reviews on Fiamma Above Floor Base for Table Legs - Conic Connection

Caravan Products

by malcolm (26 Mar 2013)

(5/5)

this product was very good quick service would use this shop again

Table Base

by Mr Winter (21 Apr 2011)

(5/5)

Totally satisfactory when used with the Fiamma tripod.

Fiamma Above Floor Table Base

by David (08 Dec 2010)

(4/5)

We needed a Fiamma above floor base to screw to the underside of a 'coffee table' to hold the top of the single leg. It makes a firm support which is not easily dislodged by accident. Fiamma products rarely disappoint and this is no exception.

Table Gets Support

by Pete (11 Mar 2010)

(5/5)

I purchased a couple of these to go with the Fiamma table leg and as you'd expect, they fit together perfectly, making a really strong and solid support for my campervan table. And they look great - I just want to keep polishing them!
