Fiamma Deluxe 5D Ladder

£234.99(inc VAT) £312.99
?
View delivery optionsView product description
  Product Description

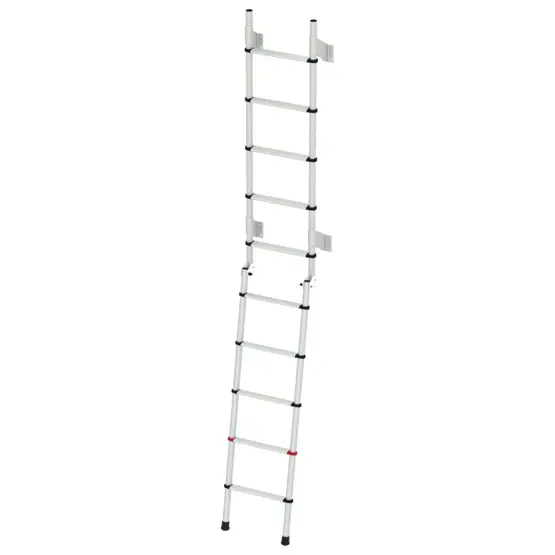

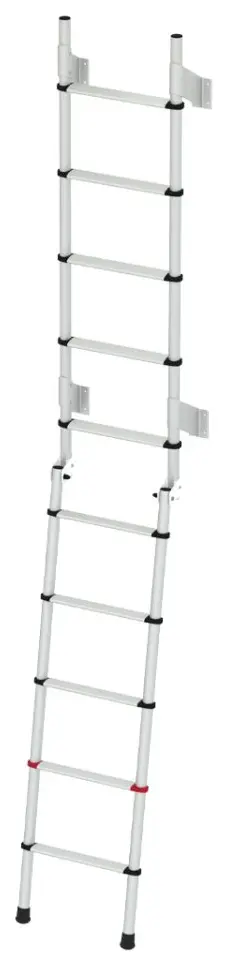

The Fiamma Deluxe 5D is a folding aluminium ladder built for rear wall mounting on motorhomes. With 10 non-skid steps and anodised aluminium construction, it delivers safe access to your vehicle's roof while folding neatly out of the way during travel. Measuring 2450mm when open and compacting to 190mm when folded, this Italian-made ladder combines practicality with robust engineering.

Why choose the Fiamma Deluxe 5D for motorhome roof access?


The Deluxe 5D provides 10 full-width steps with 28cm inner width and non-skid finish, mounted on 30mm diameter rails with 2mm wall thickness. At 4.9kg, it's light enough for easy operation whilst maintaining the strength needed for regular use. The anodised aluminium finish resists corrosion and the fold-up design means it won't obstruct rear doors or bike racks whilst driving.

This ladder meets European standard UNI EN 131 for step dimensions, giving you confidence in both safety and compliance. The 35cm total width fits most motorhome rear walls without requiring modifications to existing fixtures. Installation hardware secures the ladder to the rear wall, and the folding mechanism stays reliable through years of use.

Fiamma Deluxe 5D Ladder Features


  • Tubes ø 30mm and thickness 2mm
  • Non-skid finish
  • Step inner width: 28cm
  • Step total width: 35cm


Frequently Asked Questions

How do you fit the Fiamma Deluxe 5D ladder to a motorhome?
The Fiamma Deluxe 5D mounts directly to the rear wall of your motorhome using fixing brackets supplied with the ladder. Installation requires drilling into the rear wall and securing the mounting plates with appropriate fixings. It's recommended to locate wall reinforcements or use backing plates to distribute load across the wall structure. The ladder should be positioned to avoid interference with rear doors, bike racks, or other accessories when folded.
What weight capacity does the Fiamma Deluxe 5D support?
Fiamma ladders are designed to safely support an adult user when properly installed to a suitable mounting surface. The 30mm diameter rails with 2mm wall thickness in anodised aluminium provide the structural strength needed for regular climbing. The ladder complies with European standard UNI EN 131 which governs portable ladder construction and safety requirements.
Can the Fiamma Deluxe 5D stay attached whilst driving?
Yes, the Deluxe 5D is designed to remain permanently mounted to your motorhome. When folded up, it compacts to just 190mm depth against the rear wall, making it suitable for travel. The folding mechanism locks in place to prevent the ladder dropping down whilst driving. This design means you don't need to remove and store the ladder between trips.

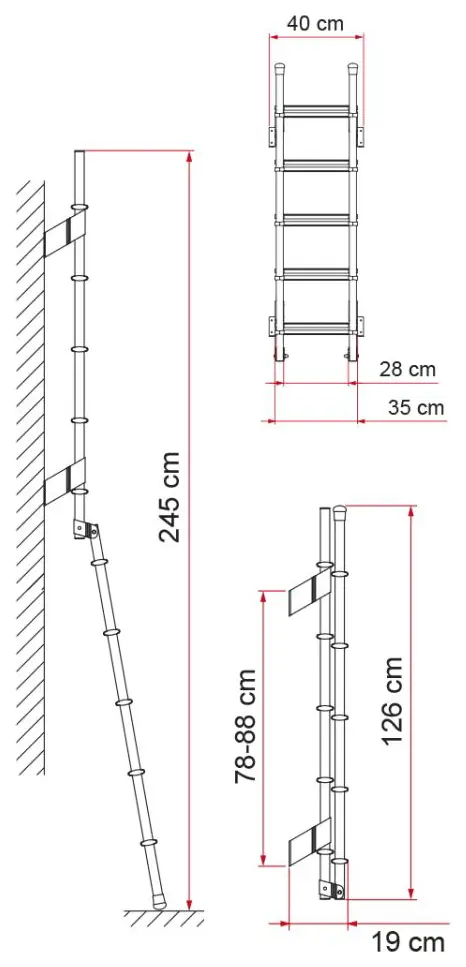

What are the step dimensions on the Fiamma Deluxe 5D?
Each of the 10 steps has an inner width of 28cm, which is the usable foot space between the ladder rails. The total width of each step including the rails is 35cm. All steps feature a non-skid finish to reduce slipping in wet conditions. These dimensions comply with UNI EN 131 European standard for ladder step width.
Does the Fiamma Deluxe 5D fit all motorhomes?
The Deluxe 5D is designed as a universal fit ladder for motorhome rear walls, but you need to check mounting space and wall construction before purchasing. The ladder requires a mounting area approximately 35cm wide and adequate wall strength to support the fixing points. Some motorhomes with twin rear doors or specific layouts may need optional accessories like the Security Grip to prevent interference with bike racks or door mechanisms.
EAN-13 : 8004815421762
