Fiamma Deluxe DJ Sprinter/Crafter - Deep Black Ladder

£343.99(inc VAT) £429.99
?
View delivery optionsView product description
  Product Description

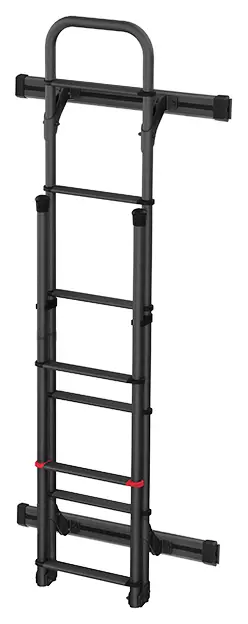

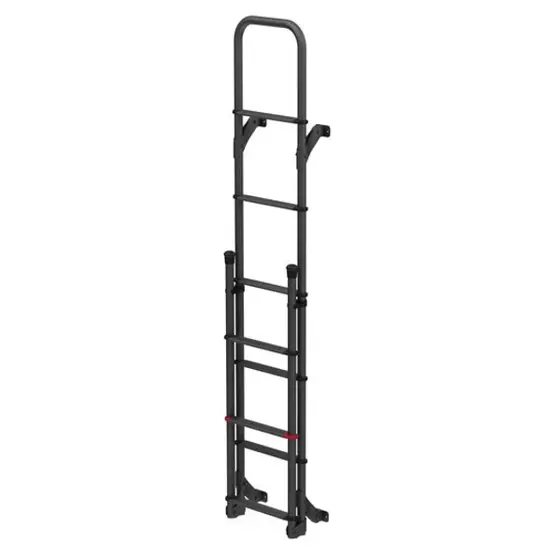

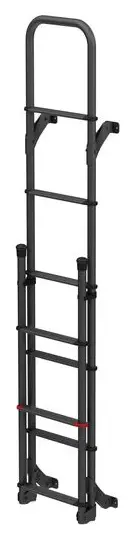

The Fiamma Deluxe DJ is an exterior aluminium ladder designed specifically for Mercedes Sprinter, Volkswagen Crafter, and Ford Transit van conversions. It mounts securely to the left side of the rear door, giving you safe access to your van's roof for maintenance, cleaning, or accessing roof-mounted equipment. The ladder features eight non-skid aluminium steps with a 28cm inner width, providing comfortable foot placement. At 5.5kg, it's light enough for straightforward installation whilst remaining robust for regular use. The 30mm diameter handrails offer a secure grip as you climb.

How do you fit the Fiamma Deluxe DJ to different van models?


The ladder requires dedicated aluminium fixing bars that vary by vehicle model to ensure proper alignment with your van's rear door structure. Three specific kits are available: Kit Bars Deluxe for Crafter 2017 onwards, Kit Bars Deluxe for Transit 2014 onwards, and Kit Bars Deluxe for Sprinter 2006 onwards or Crafter 2006-2016. These fixing kits attach the ladder securely without compromising the integrity of your van's bodywork.

The ladder's construction uses 30mm diameter tubes with 2mm wall thickness, striking a balance between strength and weight. With a total step width of 35cm, there's enough stability for confident climbing. The non-skid finish on each step provides grip in wet conditions, which matters when you're accessing your roof after rain. This ladder works alongside the Fiamma Carry-Bike 200DJ, so you don't need to choose between rear-mounted bike storage and roof access. You'll need to purchase the appropriate fixing kit separately, matched to your specific van model and year.

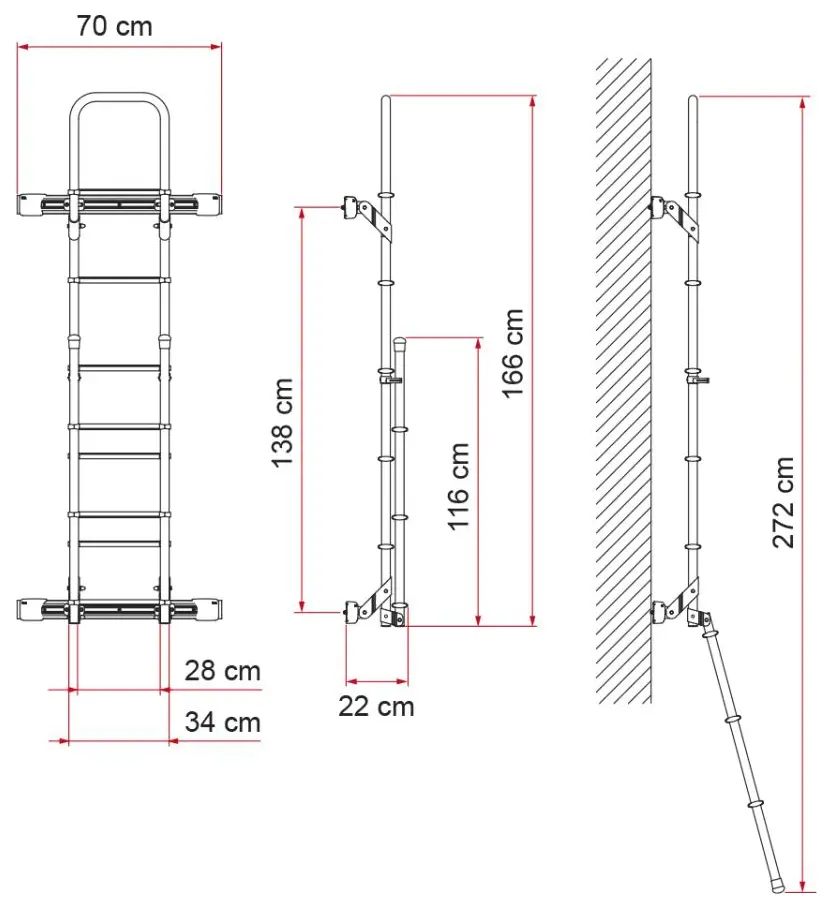

Fiamma Deluxe DJ Sprinter/Crafter Features


Tubes ø 30mm and thickness 2mm
Non-skid finish
Step inner width: 28cm
Step total width: 35cm

Crafter >17:
Quick View     Fiamma Kit Bars Deluxe for Crafter >17 - Deep Black

Sprinter >06 / Crafter >06 <16:
Quick View     Fiamma Kit Bars Deluxe for Sprinter >06 / Crafter >06 <16 - Deep Black

Transit >14:
Quick View     Fiamma Kit Bars Deluxe for Transit >14 - Deep Black


Frequently Asked Questions

Which fixing kit do I need for my van model?
The fixing kit depends on your van model and year. For Volkswagen Crafter 2017 onwards, you need the Kit Bars Deluxe for Crafter >17. Ford Transit 2014 onwards requires the Kit Bars Deluxe for Transit >14. Mercedes Sprinter 2006 onwards or Volkswagen Crafter 2006-2016 uses the Kit Bars Deluxe for Sprinter >06/Crafter >06 <16. These kits contain the specific aluminium bars needed to align the ladder with your van's rear door structure.
Does the Fiamma Deluxe DJ ladder fit on the right or left rear door?
The Fiamma Deluxe DJ mounts on the left side of the rear door as you face the back of the van. This positioning is designed to work with the door hinge structure and allows the ladder to be used alongside other rear-mounted accessories like the Fiamma Carry-Bike 200DJ bike rack system.
What weight can the Fiamma Deluxe DJ support?
The ladder is constructed from 30mm diameter aluminium tubes with 2mm wall thickness, designed to support an adult climbing to access the roof. The ladder itself weighs 5.5kg and uses dedicated fixing bars that distribute load across your van's rear door structure. When installed correctly with the appropriate fixing kit, it provides safe access for routine maintenance tasks like solar panel cleaning or roof rack loading.
Can I use the Fiamma Deluxe DJ with a bike rack fitted?
Yes, the Fiamma Deluxe DJ is compatible with the Fiamma Carry-Bike 200DJ bike rack system. Both accessories mount to the rear door and are designed to work together, so you don't need to choose between roof access and bike carrying capacity. The ladder's left-side mounting position allows clearance for the bike rack on the same door.
How wide are the steps on the Fiamma Deluxe DJ?
Each of the eight steps has an inner width of 28cm and a total width of 35cm. The non-skid aluminium finish provides grip when climbing, particularly in wet conditions. This step width offers enough space for comfortable foot placement whilst keeping the ladder compact when mounted on your van's rear door.
EAN-13 : 8004815439538
