Thule Roof rack mounting set - Fiat Ducato/Boxer H2L3

£441.89 (inc VAT) 484.99
BRAND : Thule
View delivery optionsView product description
This Thule Roof Rack system is compatible with Fiat Ducato, Peugeot Boxer and Citroen Jumper vans as from 2007, size H2L2, H2L3 or H2L4.

Depending on the vehicle size and the user needs there are various options to fit a Thule Roof Rack for Ducato H2

Vehicle size

  • H2L2: The Height of the van is 2,5m ; The Length of the van is 5,4m
  • H2L3: The Height of the van is 2,5m ; The Length of the van is 6,0m
  • H2L4: The Height of the van is 2,5m ; The Length of the van is 6,4m


What is the Awning Pack?
If you are looking to fit a Thule 6200 Awning then you will need to purchase the Awning Pack version. This comes with feet on one side but the other is ready to accept the awning + adaptor. Please see associated products below.

Retrofit system
The customer can go for the all in combination directly OR start with a Thule Roof Rack and later expand with a Thule Roof mounted awning OR start with a Thule Roof mounted awning and later expand with a Thule Roof rack. Even for older Thule Awning installations we have a solution to fit the new Thule Roof Rack system.

Flexible position

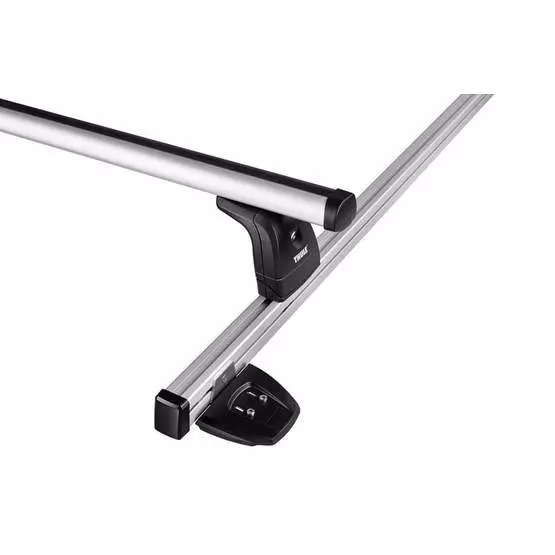

The Load bars are mounted on 2 Base rails which are glued and secured with Smart Clamps on the roof of the vehicle. The position of the Load bars can easily be adjusted along the length of the Base rails to avoid obstacles on the roof and/or to find the optimal position for the roof mounted accessories.

2 Heights available
2 or more Load bars can be mounted on the Base rails. The Load bars are available per set of 2
bars in 2 different heights. The best choice depends on the type and amount of accessories that are installed on the
roof rack as well as the presence of certain obstacles on the roof, if any (e.g. roof lights, solar panels,…). The RV Roof
rack set Low is not compatible with the Thule Hullavator Pro 898 Kayak carrier. The length of the load bars is 1m50.

Load Capacity
The maximum load capacity on the roof rack is 75kg per set of 2 load bars. The maximum total load on the roof of the vehicle depends on the vehicle size. The prescriptions as defined by the manufacturer of the specific vehicle should always be respected.

  • Ducato/Jumper/Boxer H2L2 (H:2,5m – L:5,4m) >>> max load on roof: 150kg
  • Ducato/Jumper/Boxer H2L3 (H:2,5m – L:6,0m) >>> max load on roof: 200kg
  • Ducato/Jumper/Boxer H2L4 (H:2,5m – L:6,4m) >>> max load on roof: 200kg

The weight of the Thule Roof rack system itself depends on the size and the number of load bars. The weight of the
Roof rack mounting set is 10.8kg for L2, 12.0kg for L3 and 12.6kg for L4. The weight of 2 load bars High is 8.3kg, the
weight of 2 load bars Low is 7.9kg.

Features

  • Easy installation without drilling, new glue + Smart Clamp system
  • Flexible position of load bars to avoid obstacles on the roof and for optimal fitting of accessories
  • Compatible with wide range of roof mounted Thule accessories
  • Compatible with Thule awnings, retrofit installation possible
  • Optional Thule Van Ladder provides easy access to roof rack and roof mounted accessories


General Specifications of Standard SmartClamp Roof Rack

  • Compatible with Fiat Ducato, Peugeot Boxer and Citroen Jumper vans as from 2007
  • Maximum load of 75kg per set of 2 load bars
  • Maximum total load: 150kg for H2L2, 200kg for H2L3 and H2L4
  • Load bars available in 2 different heights, 1 length 1m50
  • The Load bars are key locked to prevent theft
  • Length: 283cm

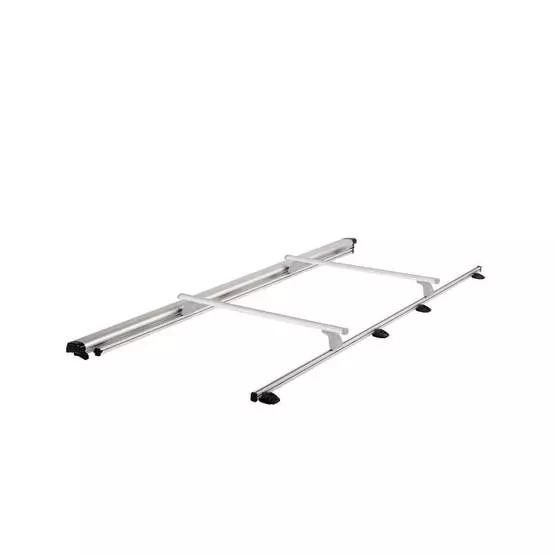

General Specifications of Awning Pack SmartClamp Roof Rack

  • Suitable for H2 Ducato, Jumper, Boxer vans from 2007 onwards
  • Mounting set when roof rack is bought in combination with the awning TO 6200 Pack 2017
  • Set of 2 base rails with smart clamps and awning connectors
  • Van roof should be clear of obstacles within 10 cm of the fix points
  • Easy installation without drilling by mounting the smart clamps to the van's existing fix points
  • Base rails are glued onto the vehicle roof and connected with the smart clamps
  • Compatible with a Thule awning mounted with the Ducato awning adapter from 2017 onwards
  • Compatible with a Thule awning mounted with an older Ducato awning adapter (2-pieces) with the transformation kit
  • Different lengths available for different vehicle models
  • Option to add two or more load bars to allow fitting of roof accessories such as roof boxes and carriers for sportsgear
