Dometic RCL10.4EP Compressor Fridge

£1979.99(inc VAT) £2388.99
View delivery optionsView product description
  Product Description

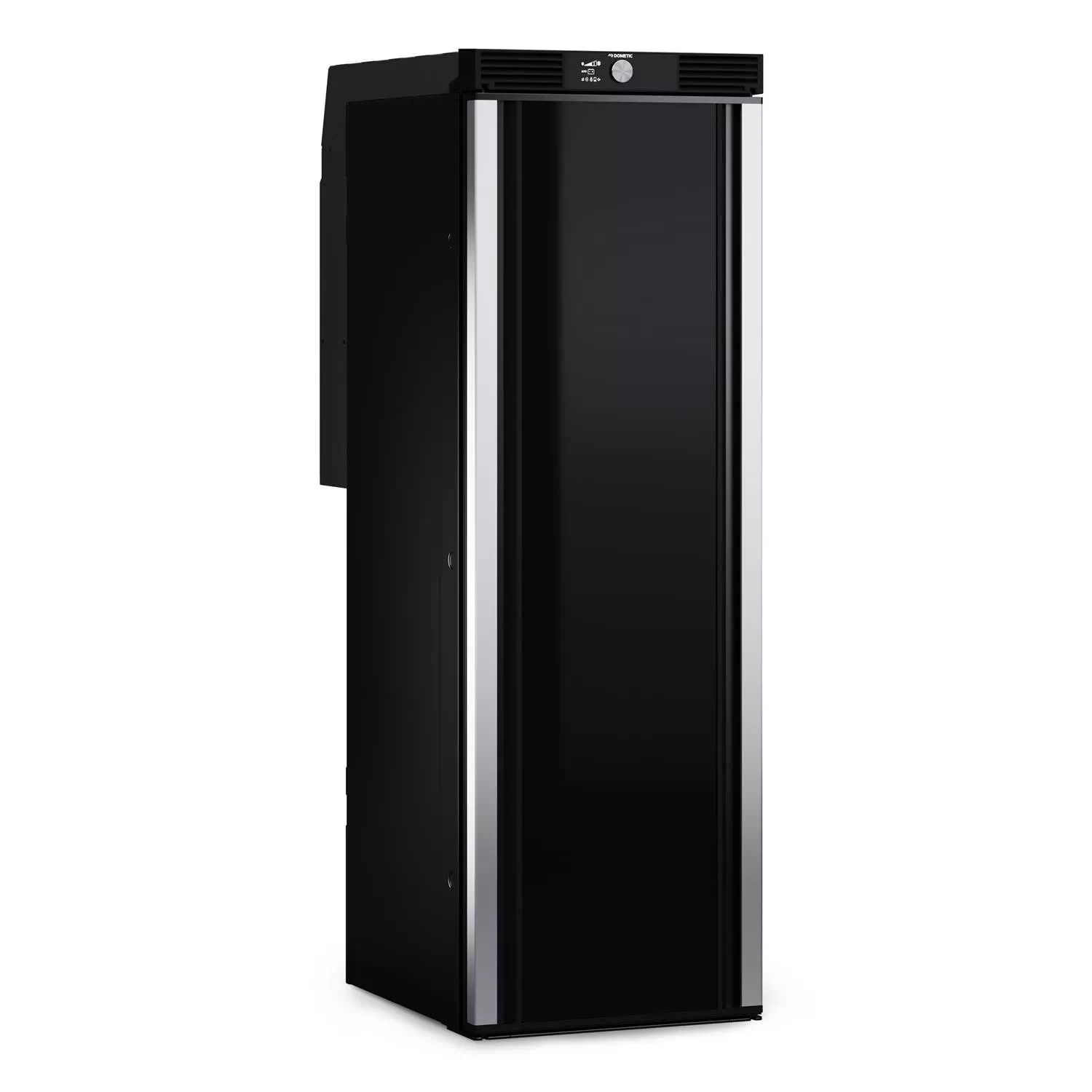

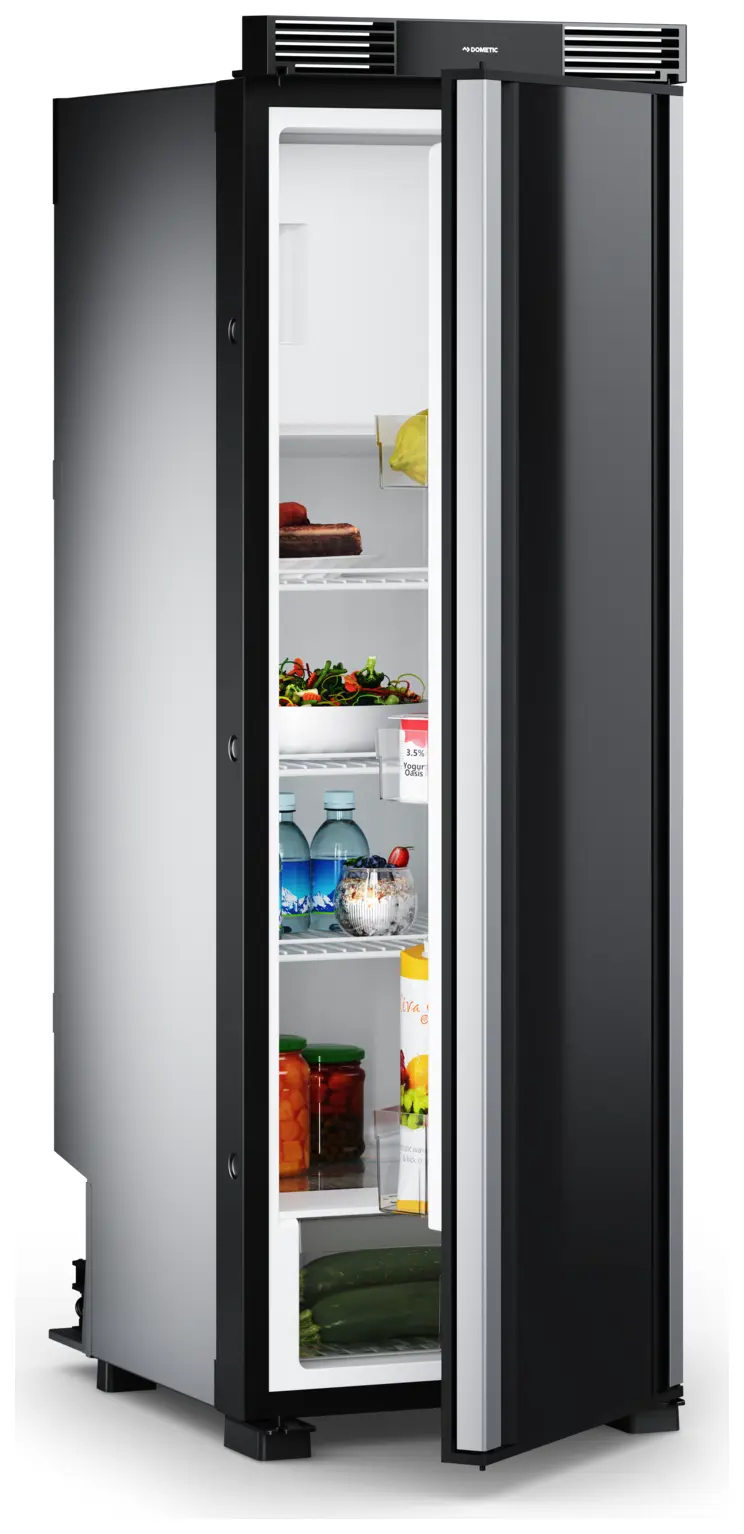

The Dometic RCL 10.4EP is a 12V compressor fridge freezer for motorhomes, caravans and campervans with a tall, narrow kitchen recess. It measures 420mm wide by 1293mm high by 595mm deep, holds 157 litres and weighs 32kg. The single door is double-hinged, so it opens to the left or the right with no parts to swap over, and there's a full-height aluminium handle down each side. Dometic finish the cabinet in anthracite black and leave the front flat, ready for a decor panel between 1.2mm and 3mm thick.

Moving from absorption to compressor cooling changes the day to day routine. There's no gas line to connect and no need to sit level before the fridge pulls the temperature down, so it keeps working on a sloping pitch and on the road. Power comes from a 12V DC feed off the habitation battery, which suits solar and lithium installations well. The internal ventilation system draws air through the front of the cabinet, so a new installation needs no ventilation grilles cut into the outside wall.

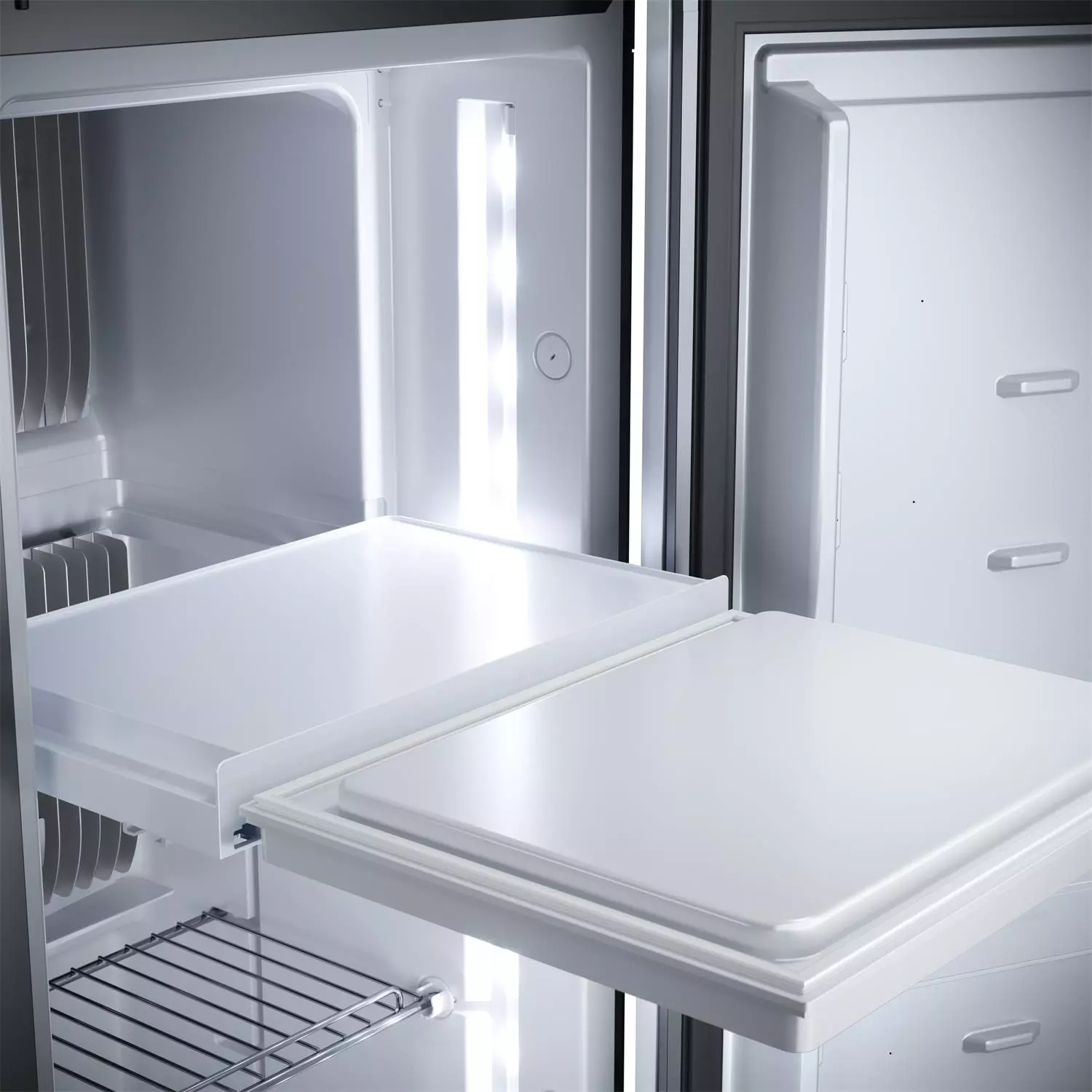

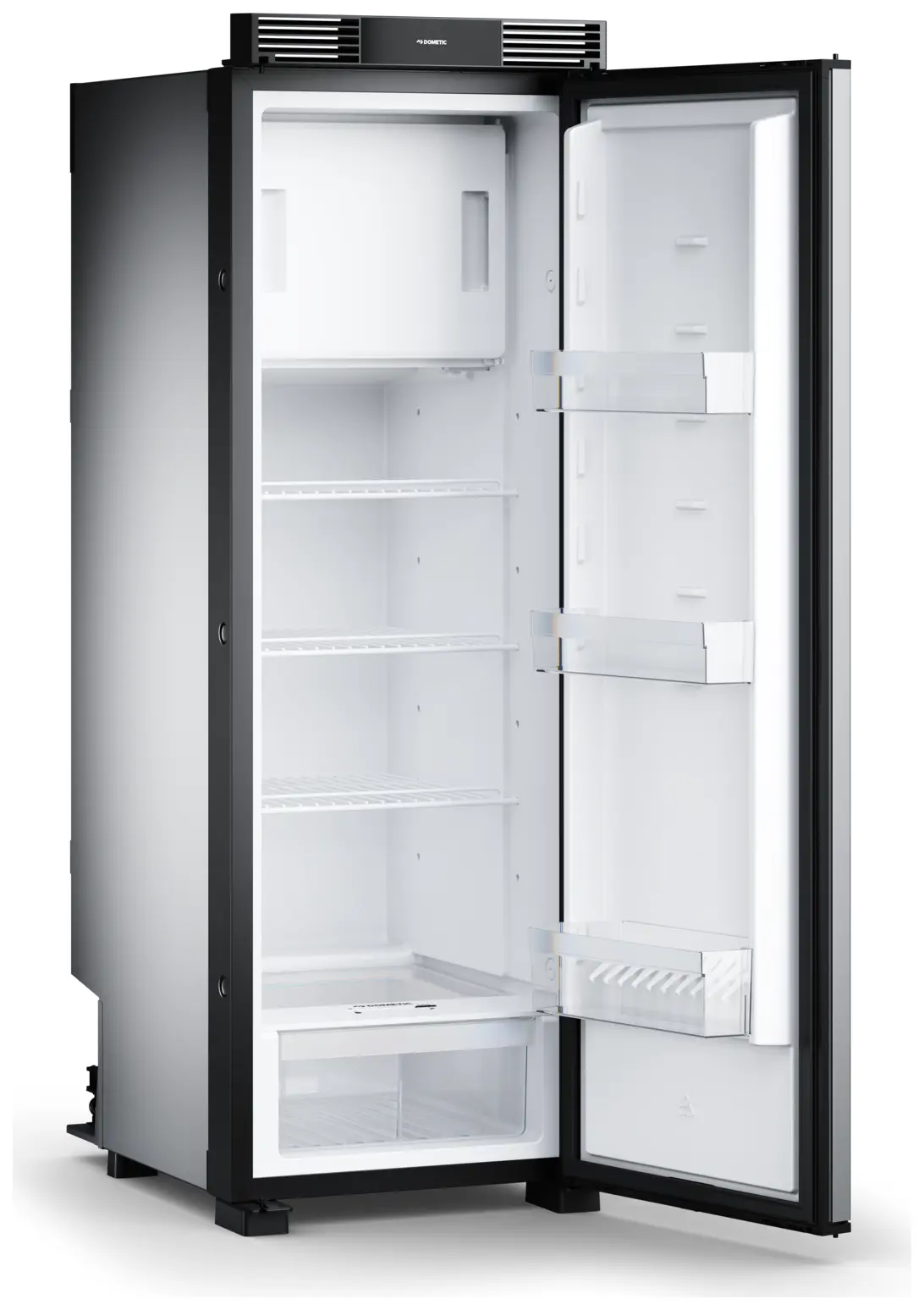

The freezer compartment lifts out when you want the full cabinet height for chilled food, and its own door is double-hinged in the same way as the main one. Below it sits the Veggie Fresh crisper, with adjustable humidity and a lid doubling as an extra shelf. Dometic moved the control panel inside the cabinet on this model, so the LED display and light bar stay hidden once the door shuts and nothing glows across the van at night. A two-point locking system holds the door in the closed and winter positions, and the fridge links to a CI-Bus system for operation from a central panel, sold separately.

This elegant slim-tower compressor refrigerator adds glamour to your motorhome’s kitchen. Packed with exclusive 10-series features, it gives you unprecedented convenience: a door that opens to the left and right, a versatile interior with a removable, double-hinged freezer compartment, and a Veggie Fresh crisper. The intuitive control panel, seamlessly combined with a sleek LED light bar, is located inside the cabinet – no glowing displays to disturb your sleep.

SMART CI-BUS TECHNOLOGY
Smart fridges can now be found in recreational vehicles! Thanks to Advanced CI-bus technology, the leap from the smart home to your motorhome is possible. Dometic have been part of creating the new digital industry standard, enabling camping and caravanning friends to operate all comfort devices, such as the fridge, with absolute convenience via their central control unit. This innovation is yet another example of how we are delivering on our mission to make mobile living easy.

UNIQUE BENEFIT: THE DOUBLE-HINGED DOOR
The 10-series absorption refrigerators offer a unique benefit: the double-hinged door. Thanks to this patented solution, they can be opened to the left and right as required, without the need to change the hinge. Simply use one of the two convenient and elegant aluminium handles, which extend over the full height of the fridge. The intuitive door handle extends across the entire height of the refrigerator and enables easy opening at any height. A two-point locking system keeps the door securely in place at all times. A new and elegantly designed TFT display ensures optimal readability of refrigerator settings and is easily controlled with an ergonomic knob.

BEST-IN-CLASS COOLING PERFORMANCE
The Dometic 10-series absorption refrigerators are best in their class for cooling performance. They guarantee reliable cooling and deep-freezing in low and high ambient temperatures. So you can have confidence in the quality and condition of your travel provisions, wherever the road takes you! Powered by advanced technology, the new cooling unit was tested in the extreme heat of the Australian desert and maintained its superb performance. It's a powerful and thoughtfully-designed refrigerator you can trust.

Dometic RCL10.4EP Features
  • Opens left or right, as required in the situation at hand

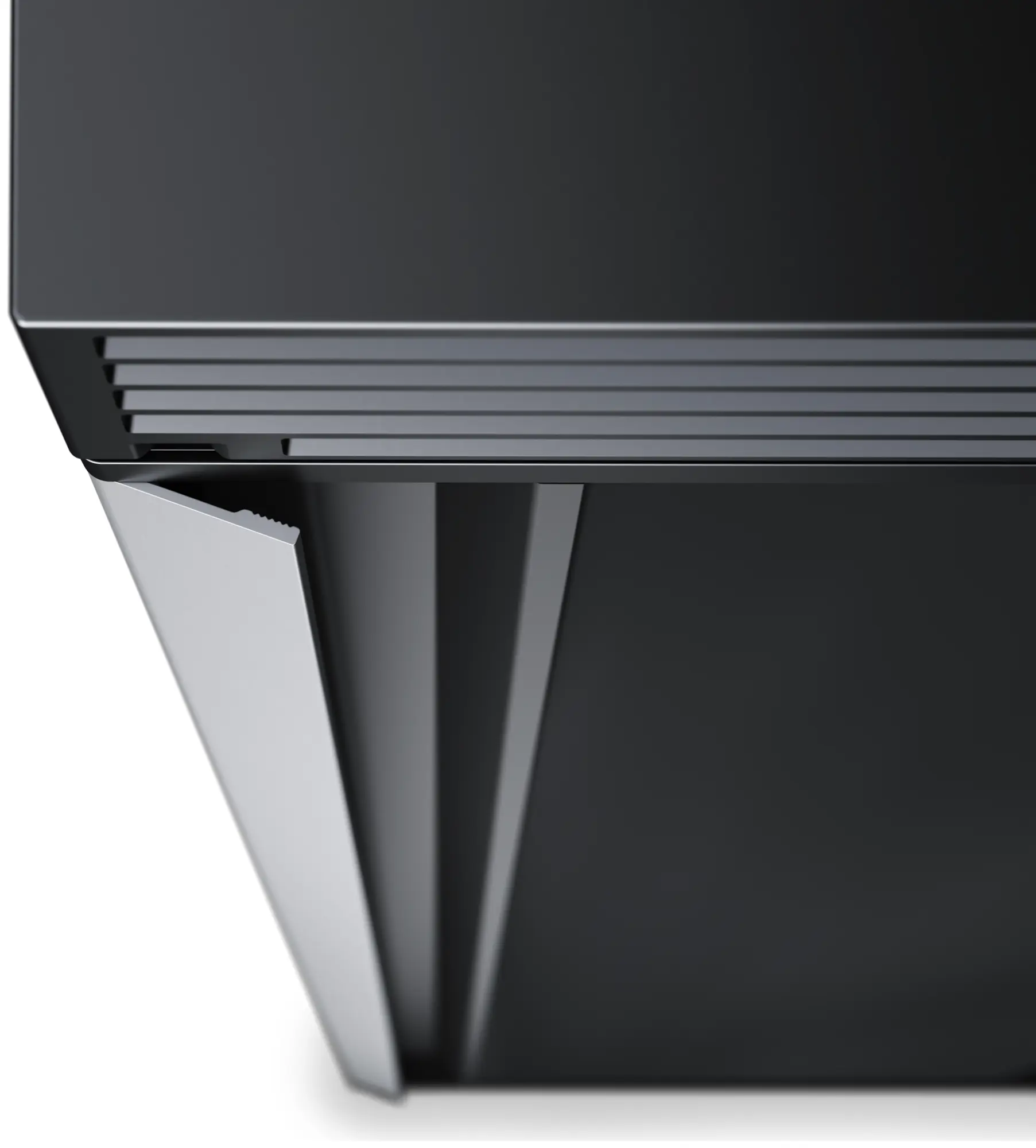

  • Elegant full-height door handles fitted on the left and right for convenient opening
  • Patented removable freezer compartment with double-hinged door, opens left or right
  • Veggie Fresh crisper with adjustable humidity keeps fruit and vegetables fresh longer
  • For utmost safety in every situation, including winter position
  • Intuitive control panel located inside the cabinet – no glowing displays to disturb your sleep
  • Reliable cooling and freezing – even at extreme ambient temperatures up to 43 °C
  • Internal ventilation system – no further ventilation grills required for installation
  • Connects to your motorhome’s CI-Bus for convenient operation via a central control panel (sold separately)

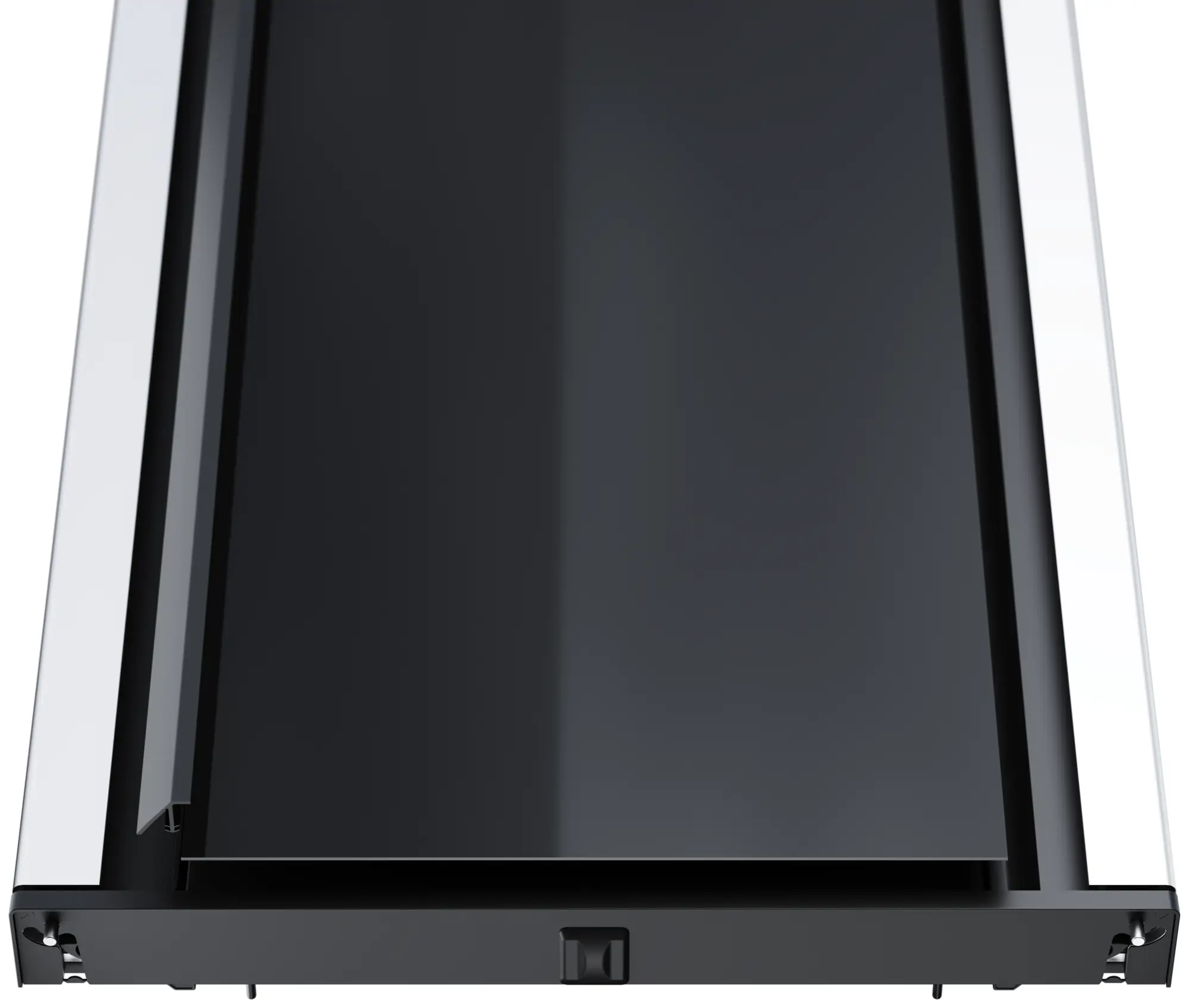

  • Flat door with customisable decor panel (variable thickness 1.2 mm – 3 mm)

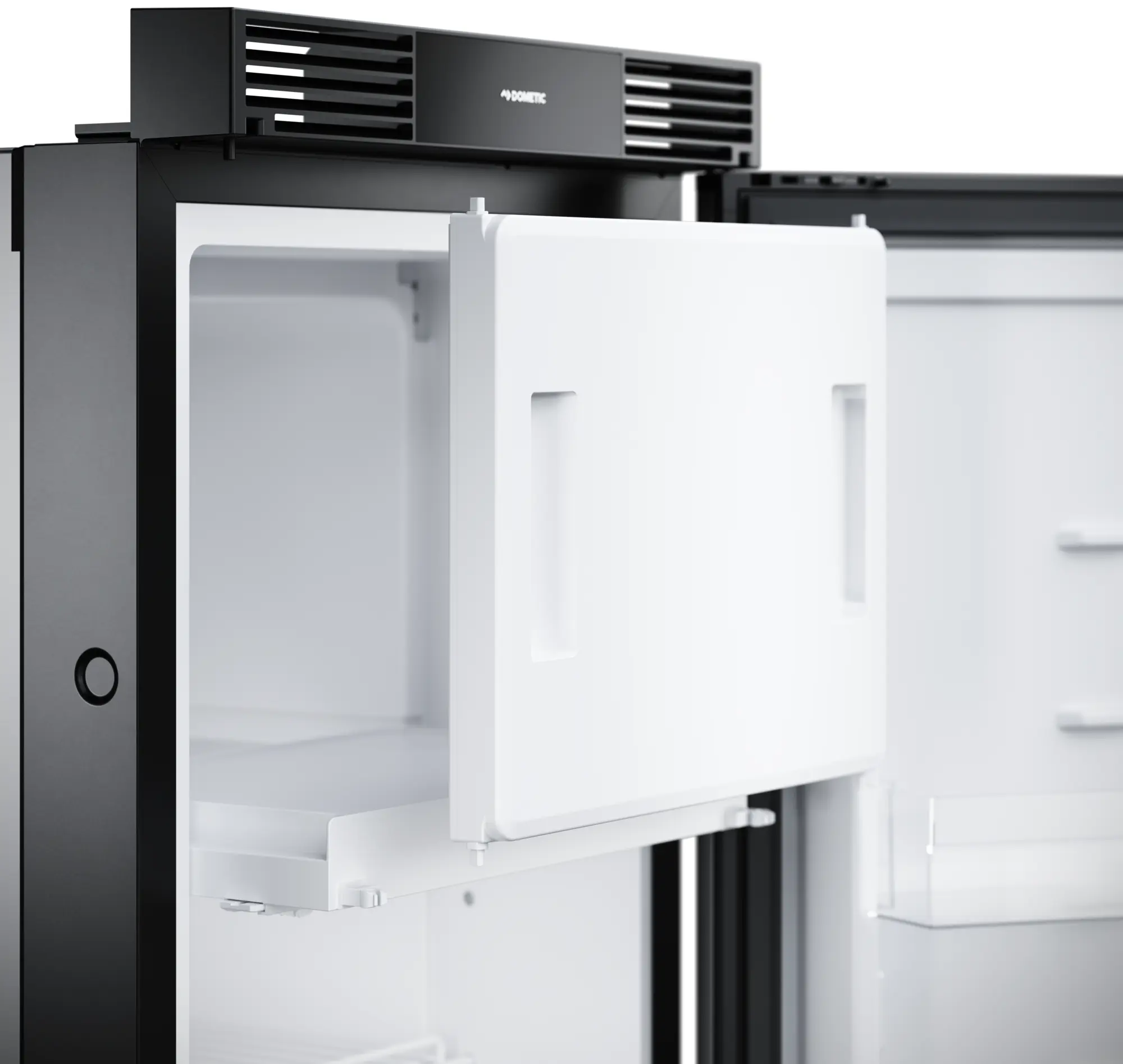

PATENTED FREEZERPATENTED FREEZER
Removable compartment, opens left or right

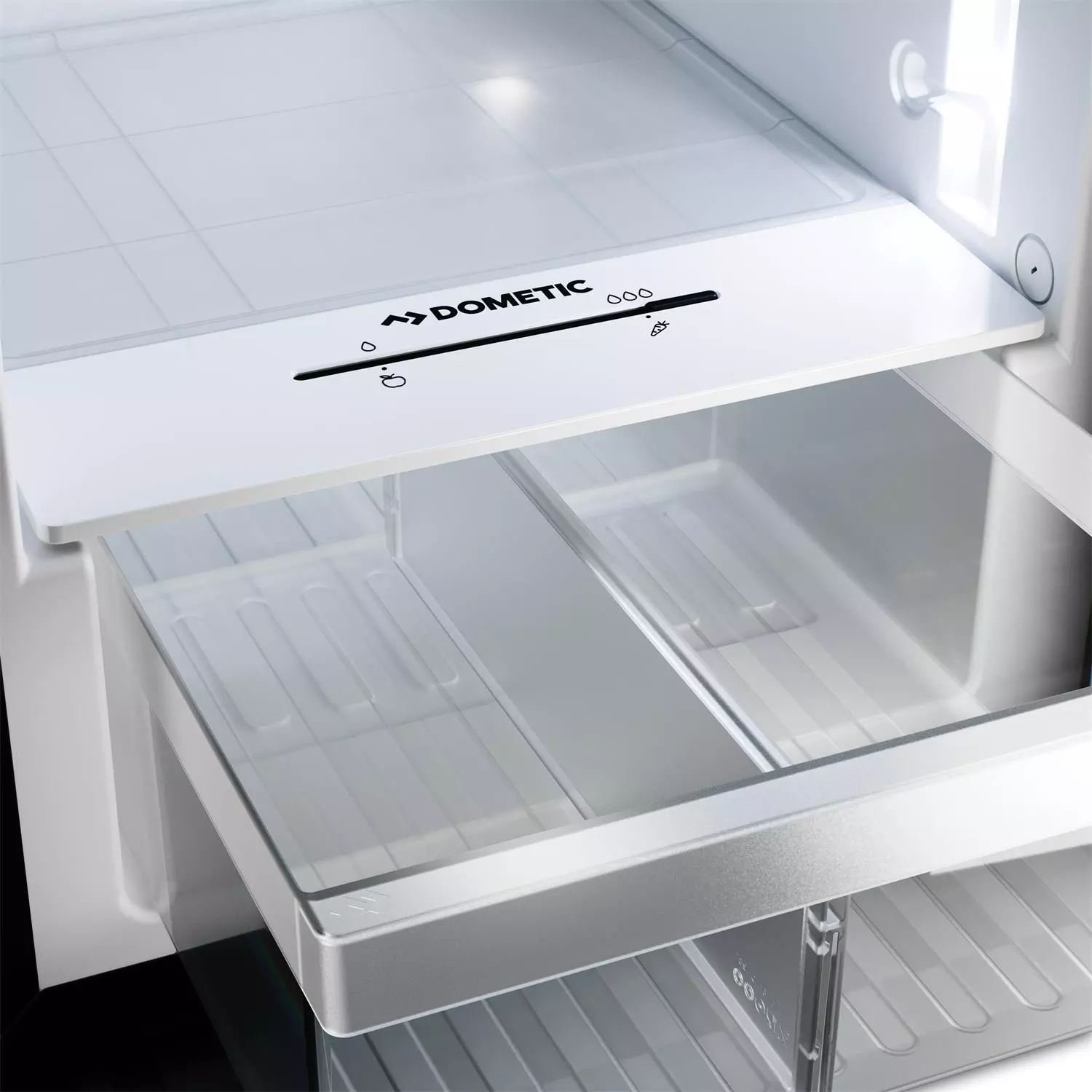

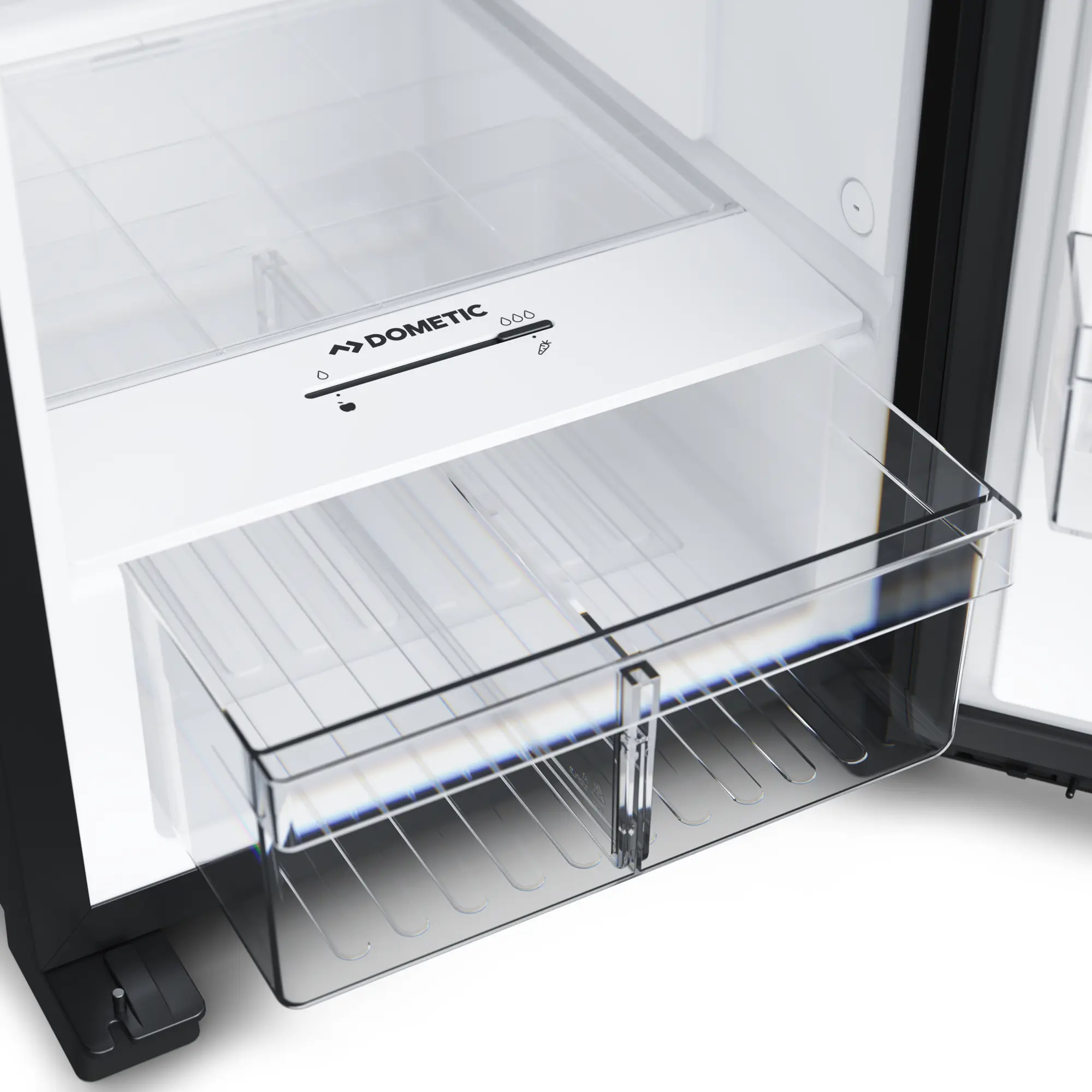

VG-FRESH CRISPER
VEGGIE-FRESH CRISPER
With adjustable partitions, variable humidity and a lid that serves as extra storage shelf

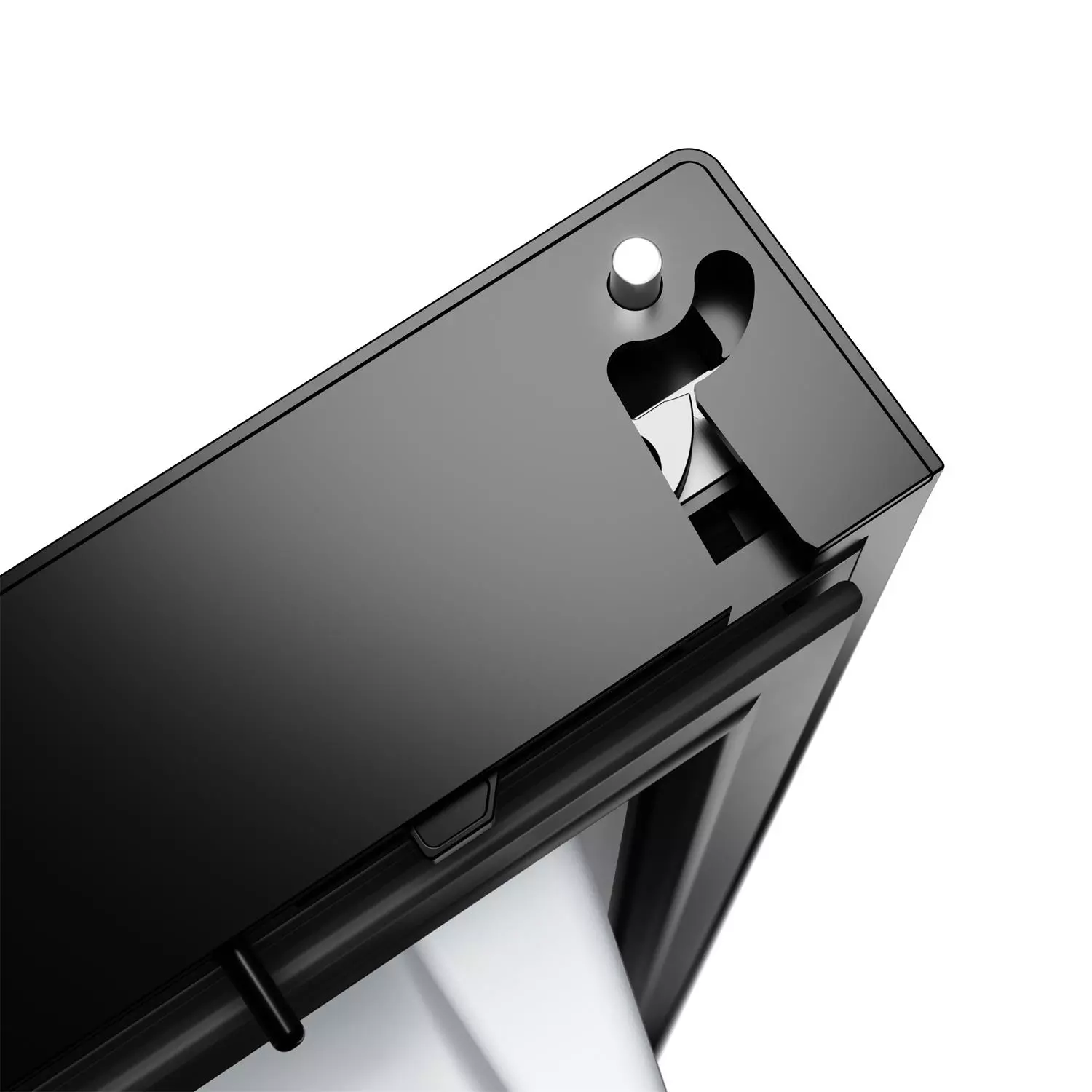

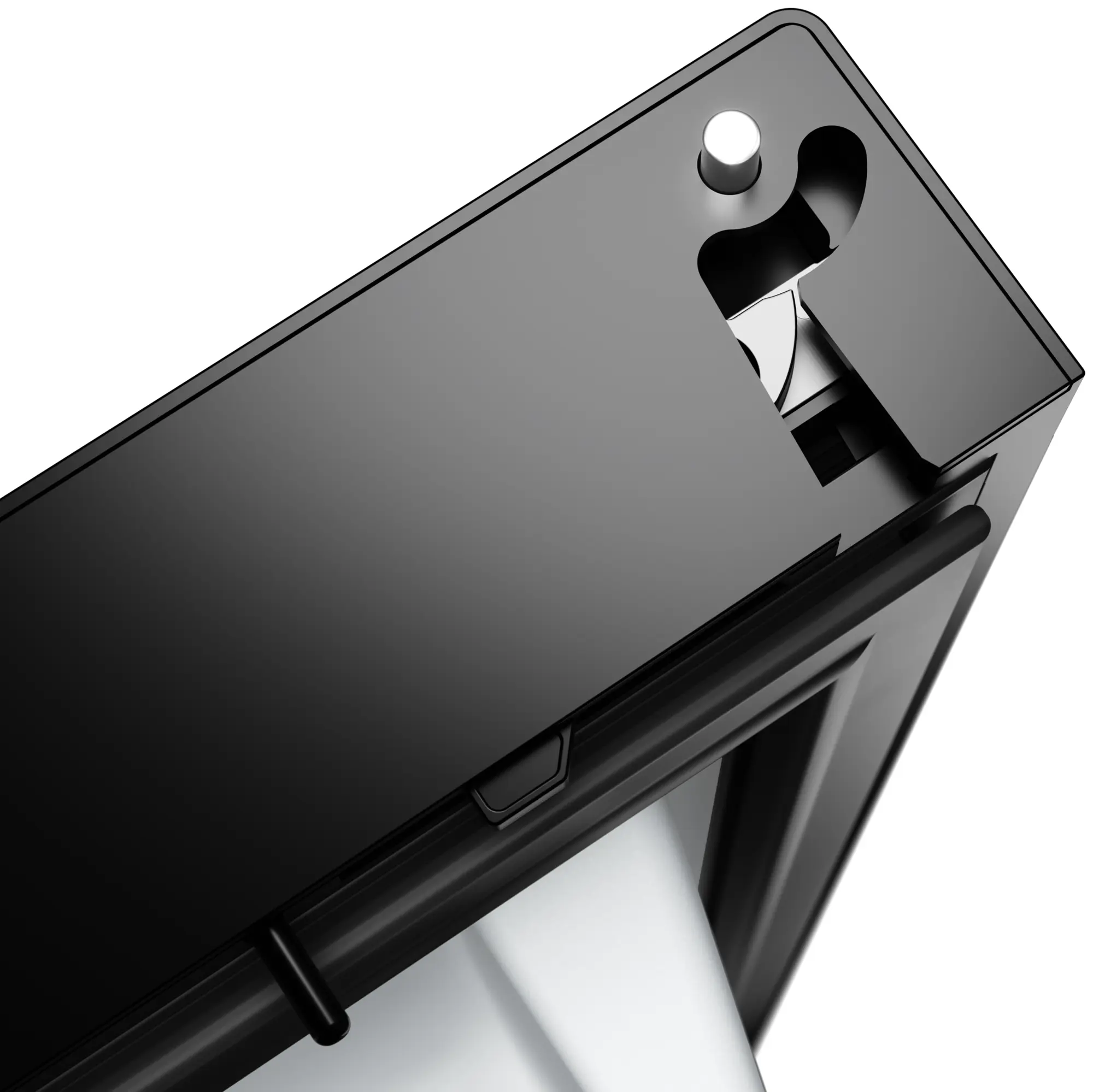

TWO-POINT LOCKING SYSTEM
TWO-POINT LOCKING SYSTEM
Fitted on each side of the fridge door for safe and secure usage, including winter position
LED LIGHT BAR

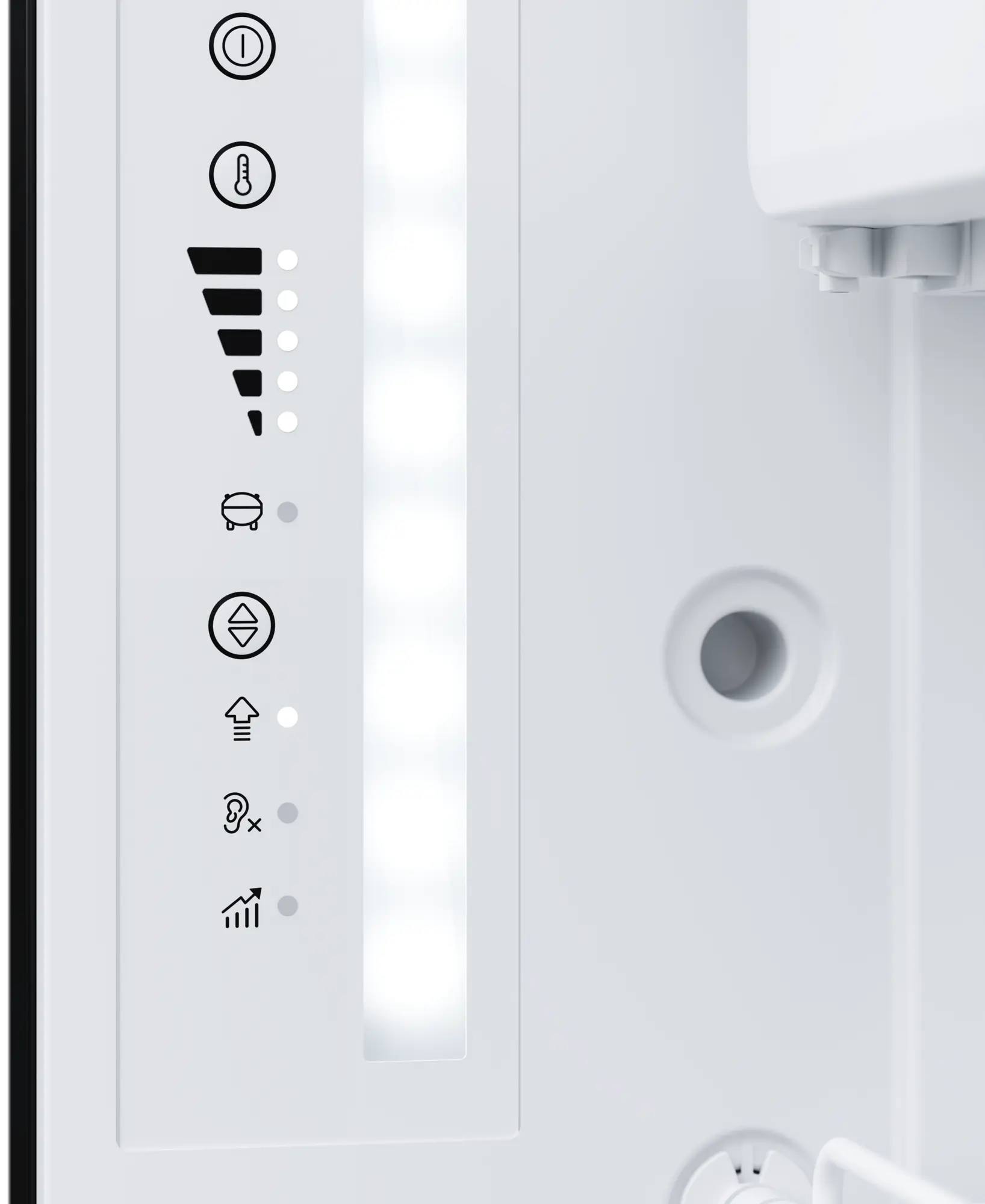

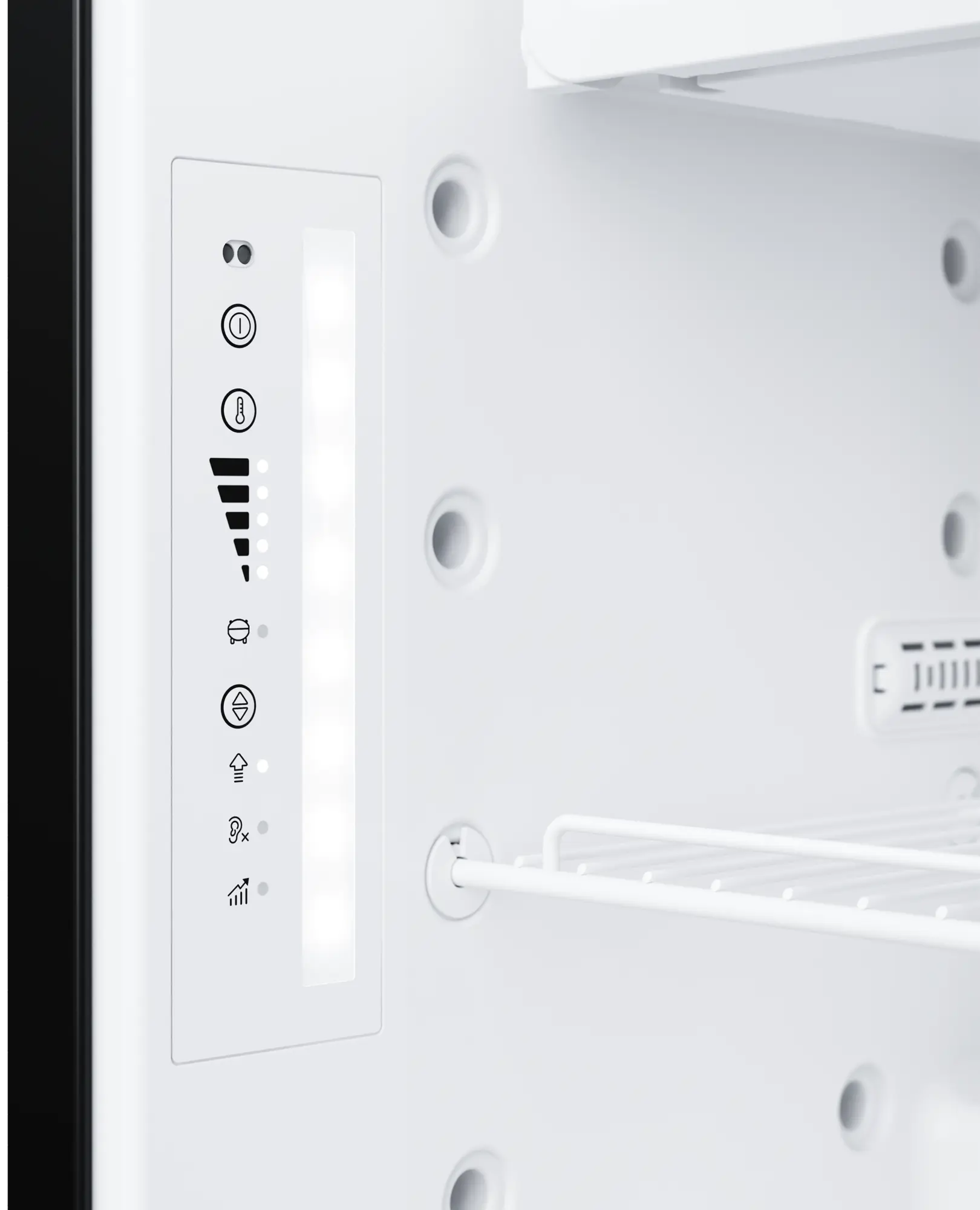

CONTROL PANEL INSIDE
Intuitive control panel located inside the cabinet – no glowing displays to disturb your sleep
CI-BUS-COMPATIBLE
CI-BUS-COMPATIBLE
Connects to your motorhome’s CI-Bus for convenient operation via a central control panel (sold separately)
CLIMATE CLASS T
CLIMATE CLASS T
Reliable cooling and freezing – even at extreme ambient temperatures up to 43 °C


What Fridge does the Dometic RCL 10.4EP Replace?
Please see the replacement chart PDF for details from Dometic below but here is a list of the most common ones. (DIMENSIONS MAY VARY SLIGHTLY)
  • Dometic: RML8330 / RML9330 / RML9331 / RML9335 / RML9430* / RML9431* / RML 9435* (* replacement kit required 9600025974)

Specifications
  • Refrigeration technology : Compressor
  • Dimensions product depth : 595 mm
  • Dimensions product height : 1293 mm
  • Dimensions product width : 420 mm
  • Net weight : 29 kg
  • Total volume (IEC 62552-3) : 157L
  • Input voltage (DC) : 12/24 V
  • Rated input current (DC) : 7A
  • Rated input power (DC) : 54 W
  • Input frequency : 50/60 Hz
  • Refrigerant, type : R600a
  • GWP : 1430
  • Refrigerant amount : 40 g
  • Hermetically Sealed : Yes
  • CO2 equivalent : 0.057 t
  • Climate class (EN62552) : T
  • Insulation Type : PU (Polyurethane)
  • Colour : Anthracite Black (P726)
  • Hinge type : Both
  • Interior light : Yes, LED

Frequently Asked Questions


Which Dometic fridges does the RCL 10.4EP replace?
Dometic's 2026 New for Old swap guide lists the RCL 10.4EP as the replacement for the RML 8330, RML 9330, RML 9331 and RML 9335. The RML 9430, RML 9431 and RML 9435 use the same fridge with adapter kit 9600025974. The RCL 10.4EP also supersedes the RCL 10.4ET, SKU 9600049608. Unit size stays 420mm wide by 1293mm high by 595mm deep, so measure your existing aperture against those figures before ordering.
What is the difference between the Dometic RCL 10.4EP and the RCL 10.4ET?

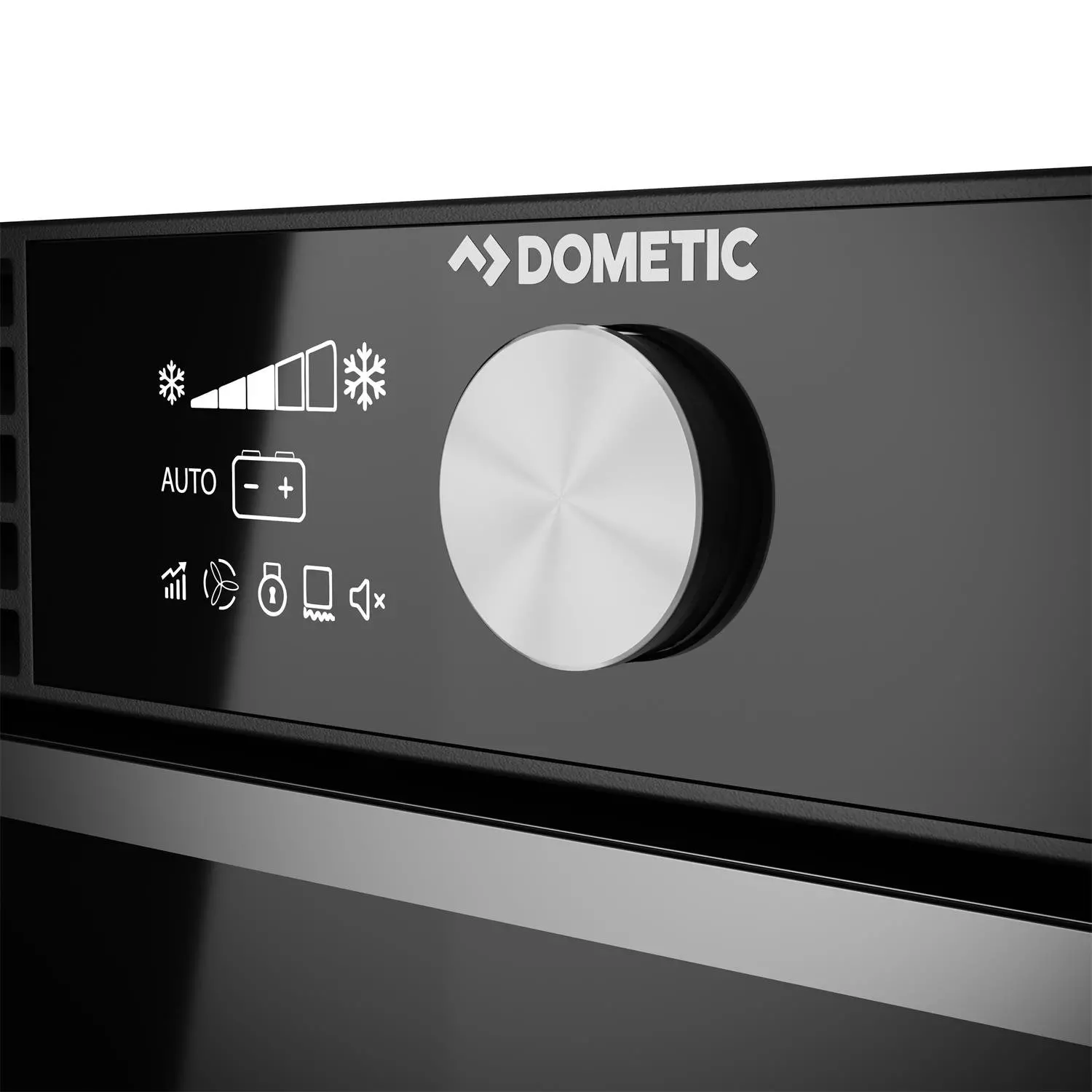

The RCL 10.4EP, SKU 9620023676, is the current model and takes over from the RCL 10.4ET, SKU 9600049608. Cabinet size stays identical at 420 x 1293 x 595mm, and the double-hinged door, removable freezer compartment and VG Fresh crisper carry across unchanged. The control panel is the visible difference. The RCL 10.4ET used a TFT screen with a turn and push knob, and the RCL 10.4EP uses an LED display mounted inside the cabinet, out of sight once the door is shut.
Does the Dometic RCL 10.4EP run on gas?
The RCL 10.4EP is a 12V compressor fridge, so it runs from a 12V DC supply off the habitation battery with no gas connection involved. It holds its set temperature while you drive, on a sloping pitch and on solar or lithium power. Use the cable size and fuse rating given in the Dometic installation manual, because a compressor draws a short current spike on start up and thin cabling designed for an absorption fridge is undersized for the job.
Do I need external vents fitted for the Dometic RCL 10.4EP?
No. The RCL 10.4EP uses an internal ventilation system drawing air through the front of the cabinet, so a new installation needs no ventilation grilles in the outside wall. Dometic still ask for 15mm to 25mm clearance between the back of the fridge and the vehicle wall, on top of the 595mm depth. Wall vents left in place from an old absorption fridge are blanked off or covered as part of the swap.
Does the Dometic RCL 10.4EP need to be level to cool properly?
Compressor refrigeration works at an angle, so the RCL 10.4EP keeps cooling on an unlevel pitch and on the move. Absorption fridges rely on gravity to circulate the coolant and need the vehicle close to level. Dometic rate the 10 series compressor range for cooling and deep freezing down to minus 12 degrees while operating on an angle, which is one of the main practical gains when swapping from a three way fridge.
What space do I need to fit the Dometic RCL 10.4EP?
The unit measures 420mm wide, 1293mm high and 595mm deep, and weighs 32kg. Add 15mm to 25mm behind the fridge for the clearance Dometic specify to the vehicle wall. Where the new fridge sits lower than the one it replaces, feet fitted to the base take up the height difference. Read the installation manual for full aperture, fixing and cable routing detail before cutting anything.
Which way does the door open on the Dometic RCL 10.4EP?

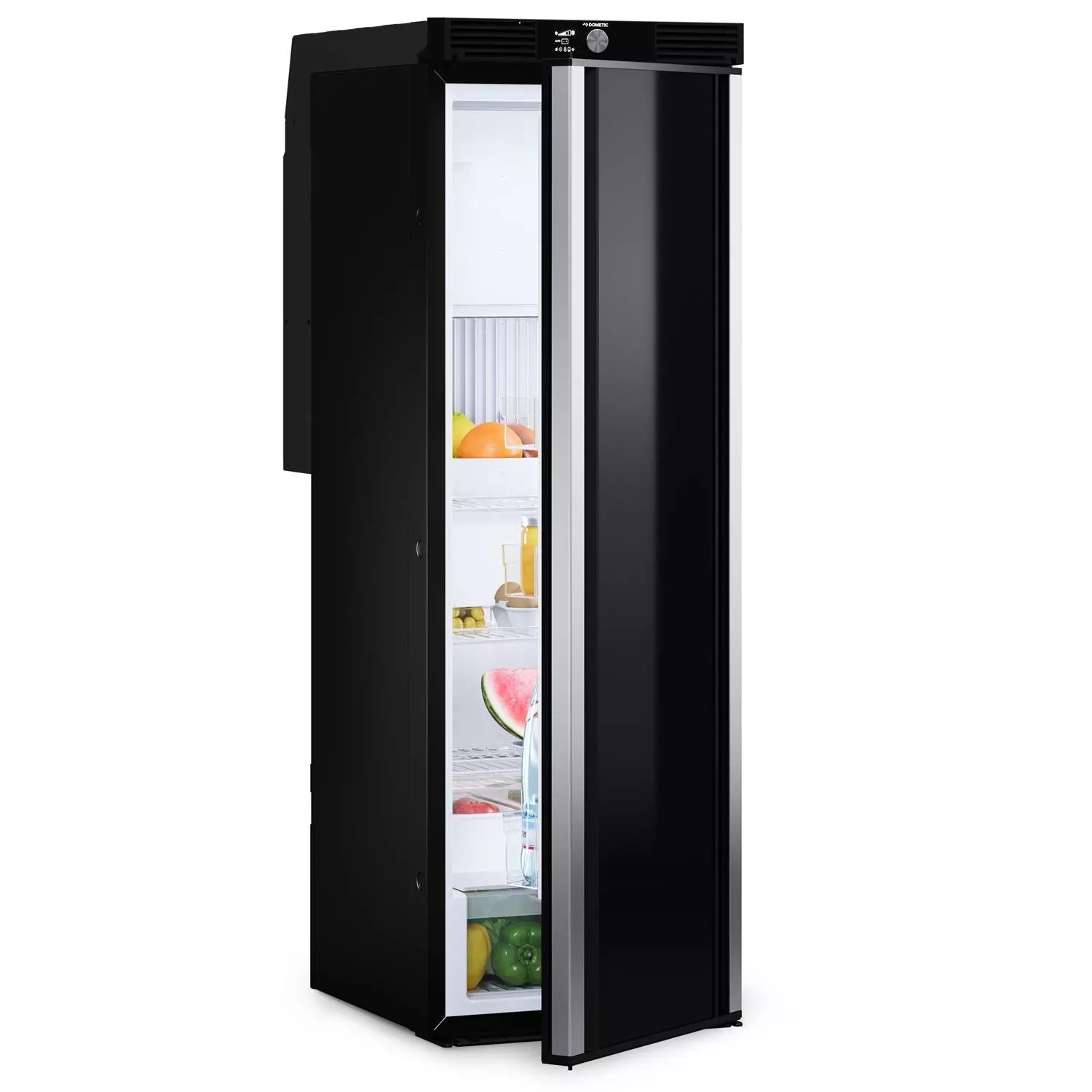

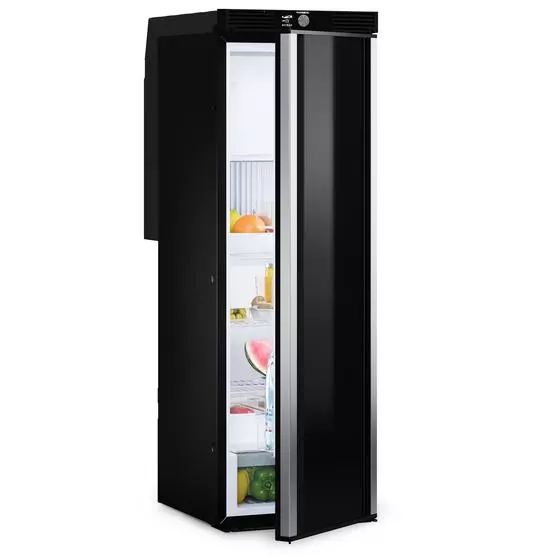

Either way. The door is double-hinged, so it opens to the left or the right with no hinge change and no parts to reverse. Full-height aluminium handles are fitted down both sides, giving a grip at any height. The removable freezer compartment uses the same double-hinged design. A two-point locking system holds the door in the closed and winter positions during transit.
Does the Dometic RCL 10.4EP work with a CI-Bus control panel?

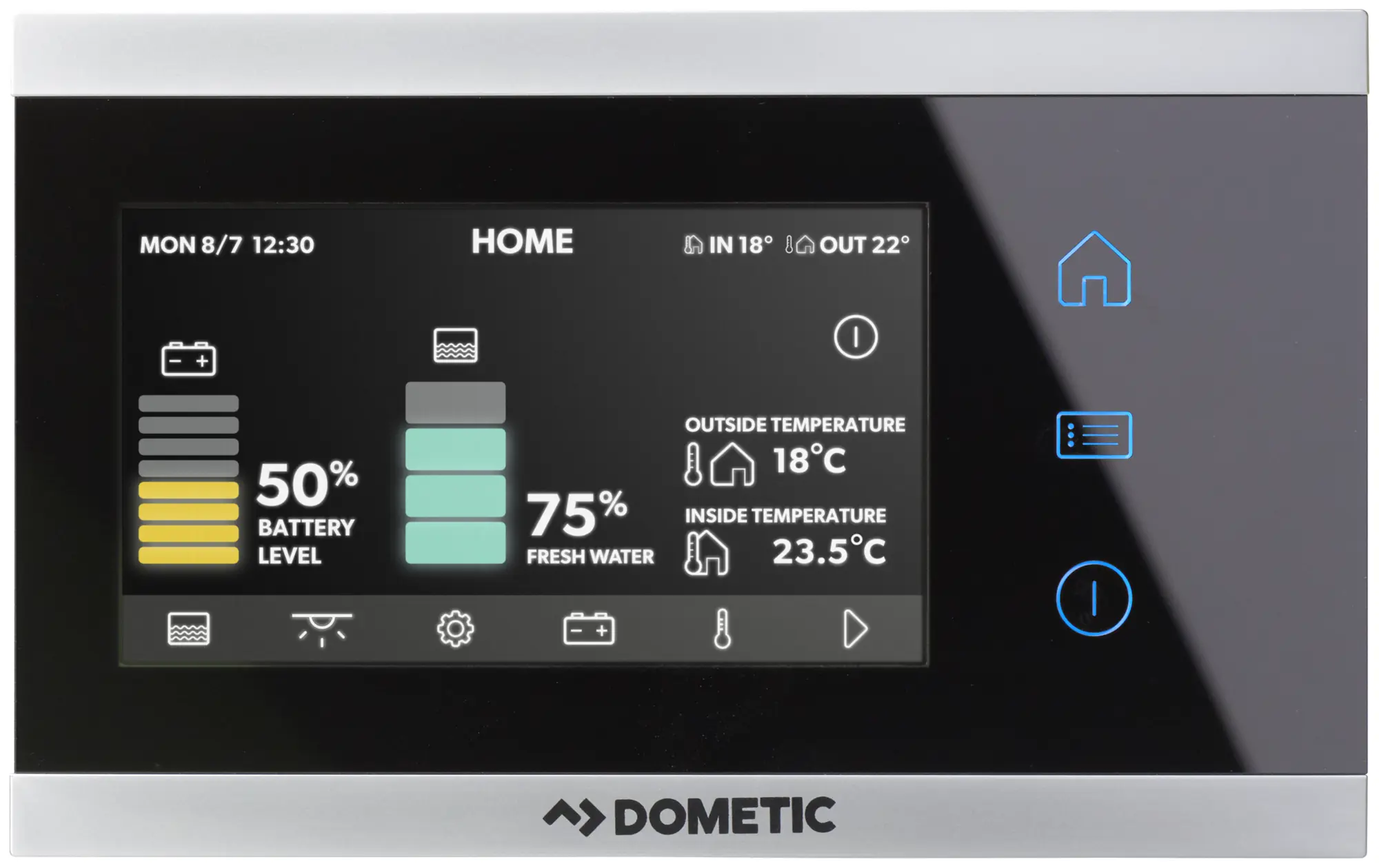

Yes. The RCL 10.4EP is CI-Bus compatible, so it links to the vehicle's central control system and operates from a single panel alongside other habitation equipment. The central control panel is sold separately and is normally specified by the vehicle manufacturer or converter. Temperature, night mode and the quick cooling setting stay adjustable from the LED panel inside the cabinet as well.
EAN-13 : 4014742232311
