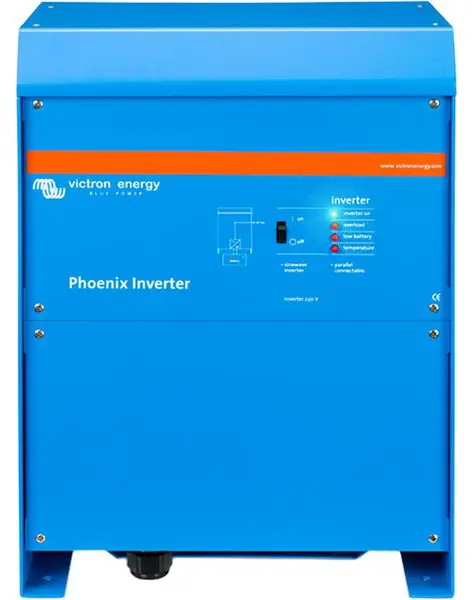

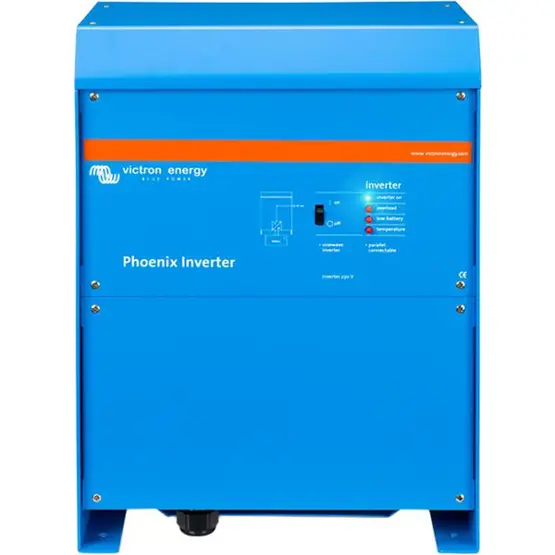

Victron Phoenix Inverter (12V / 3000VA) image 1

Victron Phoenix Inverter (12V / 3000VA)

£1259.99(inc VAT) £1637.99
View delivery optionsView product description
  Product Description
The Victron Phoenix Inverter (12V / 3000VA) stands out for its superb efficiency and top-notch performance. Its true sine wave AC power mirrors what comes out of your household sockets, allowing you to run 230V appliances from a 12-volt leisure battery. Being compact and light, it suits the automotive and marine sectors perfectly.

You'll appreciate the RS-485 communication port which links to your PC or laptop once you've installed the VE.Bus to USB interface and VEConfigure software from the Victron website. You then get to manage many parameters such as output voltage/frequency, over/under voltage limits, and relay settings. The model PIN123020000 gives a constant 3000VA at 25°C. It has a peak power of 6000W and weighs just 18kg.

Benefit from maximum safety and reliability and it operates quietly. It's also simple to install and delivers 2400W continuous power via a hard-wired AC connection. Its DC comes from a pair of M8 studs. The input is 9.5V - 17V DC, the output 230V AC plus or minus 2%, and it meets the EN 60335-1 and EN 55014-1 / EN 55014-2 standards.

The Phoenix Inverter has an efficiency of 0.93 and works at temperatures between -40°C and +65°C. It stands 362mm tall, is 258mm wide, and 218mm deep. You can attach an optional remote panel and it comes with screw terminals for the output.

Specifications
  • Connection [AC] : Hard-wired
  • Frequency Description : Output: 50Hz ± 0.1%
  • Output Frequency [Hz] : 50
  • Output Power [W] Continuous : 2400
  • Output Power [W] Peak : 6000
  • Waveform : True Sine Wave
  • Connection [DC] : M8 stud (twin)
  • Type : 12V Inverters
  • Voltage Description : Input: 9.5V - 17V DC, Output: 230V AC ± 2%
  • Model : Phoenix 12/3000
  • Optional Remote Panel : Yes
  • Cables Included : No
  • Rating : IP20
  • Efficiency : 0.93
  • Height Description : 362mm
  • Width : 258mm
  • Depth : 218mm
  • Weight : 19kg
  • Wattage : Output @ 25°C: 2400W, Output @ 40°C: 2200W, Output @ 65°C: 1700W
  • Approvals : EN 60335-1, EN 55014-1 / EN 55014-2
  • Operating Temperature : -40°C to +65°C
  • Connections Description : Battery: 2+2 M8 bolts, Output connection: Screw terminals
  • Style : Sine Wave Inverter
