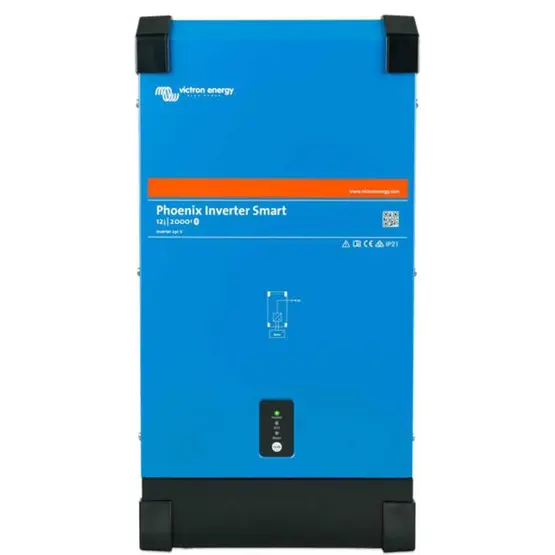

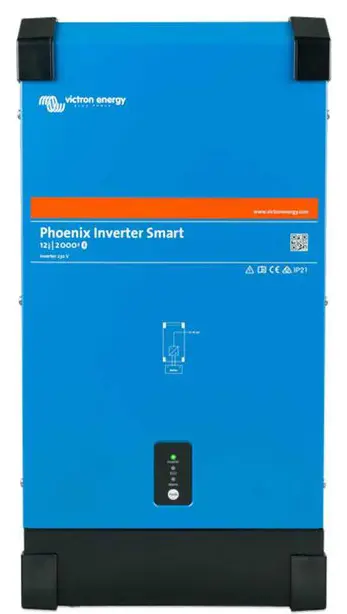

Victron Phoenix Sine Wave Inverter (12V / 2000VA)

£555.99(inc VAT) £991.99
View delivery optionsView product description
  Product Description
The Victron Phoenix 12V 2000VA Smart inverter represents the serious end of mobile power conversion, delivering 2000W of pure sine wave AC power from 12V battery systems in larger motorhomes, boats, and commercial vehicles where running multiple appliances simultaneously is normal operation. This professional unit handles demanding loads like microwave ovens, washing machines, power tools, and induction hobs thanks to its toroidal transformer design that provides 4000VA peak power for starting inductive loads that would trip lesser inverters. The pure sine wave output matches mains electricity quality exactly, eliminating compatibility issues with sensitive electronics and ensuring appliances run at full efficiency without the humming, overheating, or reduced performance associated with modified sine wave alternatives.

Built-in Bluetooth connectivity means you configure and monitor everything through the VictronConnect smartphone app, including the programmable ECO mode that automatically switches the inverter on when loads are detected and off during standby to minimise battery drain - dropping consumption to just 0.6W compared to 8W in normal standby mode. The comprehensive protection systems cover everything from short circuits and overloads to battery voltage protection and even detection of external AC sources that could damage the inverter if connected incorrectly. Fan-assisted cooling maintains full power output up to 40°C, though continuous power drops to 1450W at this temperature and further reduces as ambient temperatures climb towards the 65°C maximum operating limit.

Installation requires serious electrical work because this unit draws around 170A from your 12V system at full load, necessitating 70mm² DC cabling with 300A fusing for runs up to 6 metres, whilst the AC output needs hard-wiring to your distribution board by a qualified electrician. At 14kg and nearly half a metre long, mounting location becomes important for both access and ventilation, and your battery bank needs substantial capacity because running 1500W loads will drain 300Ah of battery storage in roughly two hours. This inverter suits installations where you need genuine mains-equivalent power rather than just basic lighting and device charging, though the high current draw means careful energy management remains essential for extended off-grid operation.

Victron Phoenix Sine Wave Inverter (12V / 2000VA) Features


  • Pure sine wave output
  • High start-up power
  • Proven reliability
  • Rugged, slimline design
  • Bluetooth built-in - fully configurable
  • LED fault diagnosis
  • ECO mode
  • Remote On/Off switching
  • Programmable relay for activation on alarm condition
  • Protected against output short circuit
  • Protected against battery voltage low/high
  • Protected against power overload
  • Protected against over-temperature
  • Protected against 230V AC detected on inverter output (e.g. from another AC source)
  • Protected against input voltage ripple too high
  • 5-year manufacturer's warranty

Specifications
  • Input voltage range: 9.3 - 17.0 VDC
  • Output voltage: 230VAC +/- 2%
  • Continuous AC power at 25ºC: 2000VA
  • Continuous power at 25ºC/40ºC/65ºC: 1600/1450/1000W
  • Peak power: 4000VA
  • Dynamic (load dependent) DC low shut down: Fully configurable
  • Max. efficiency: 92%
  • No-load power consumption: 8W
  • Default zero load power in ECO mode: 0.6W
  • Operating temperature: -40ºC to +65ºC (fan assisted cooling)
  • Stop & start power ECO-mode: Adjustable
  • DC (battery) cable connection: M8 bolts
  • 230V AC cable connection: Screw terminals
  • Ingress Protection rating: IP21
  • Weight: 14kg
  • Overall dimensions: 485 (L) x 219 (W) x 125 (H) mm
  • Country of Origin : Netherlands
EAN-13 : 8719076042655
