Campingaz Adaptor Valve with Handle

£9.41(inc VAT) £10.99
View delivery optionsView product description
  Product Description

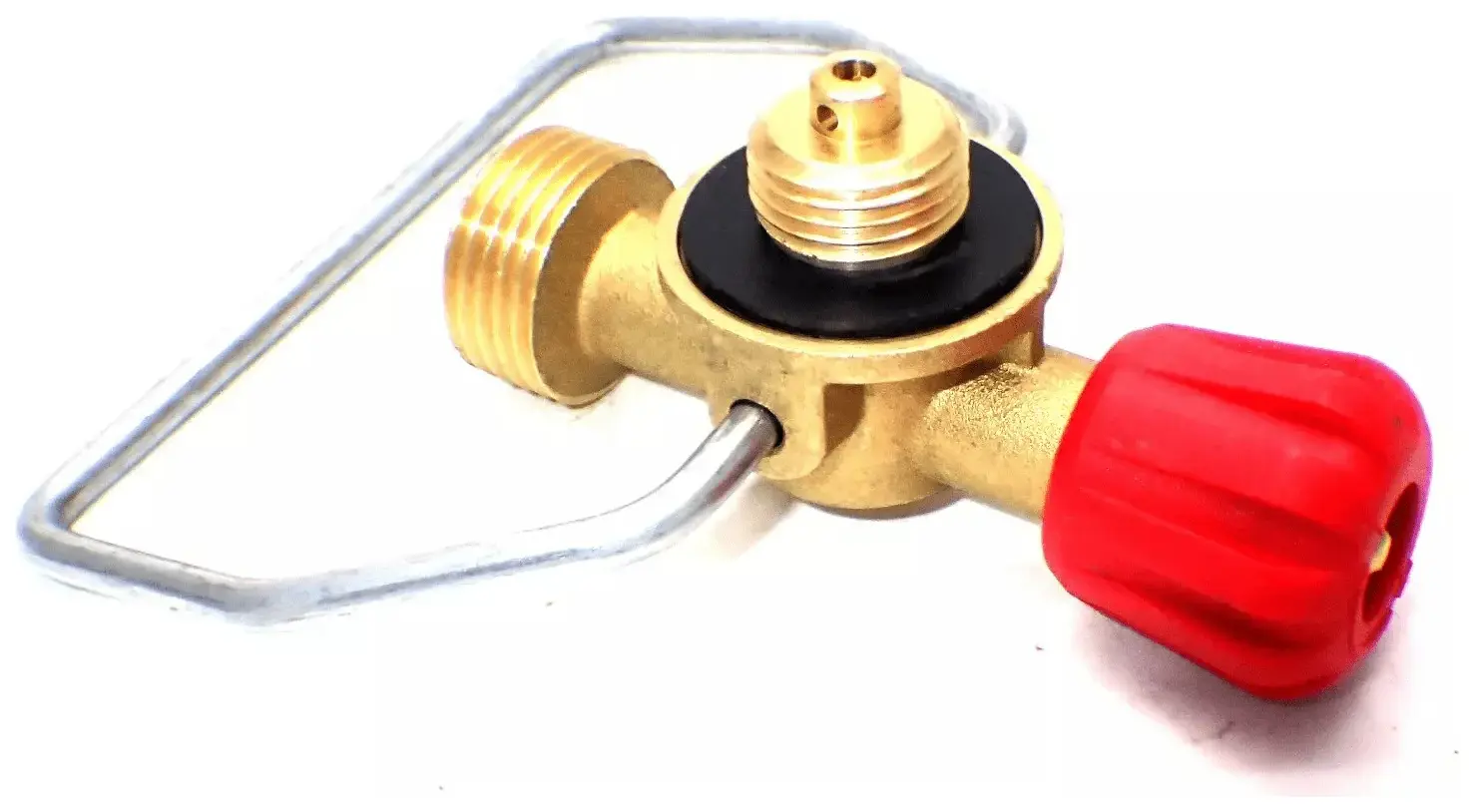

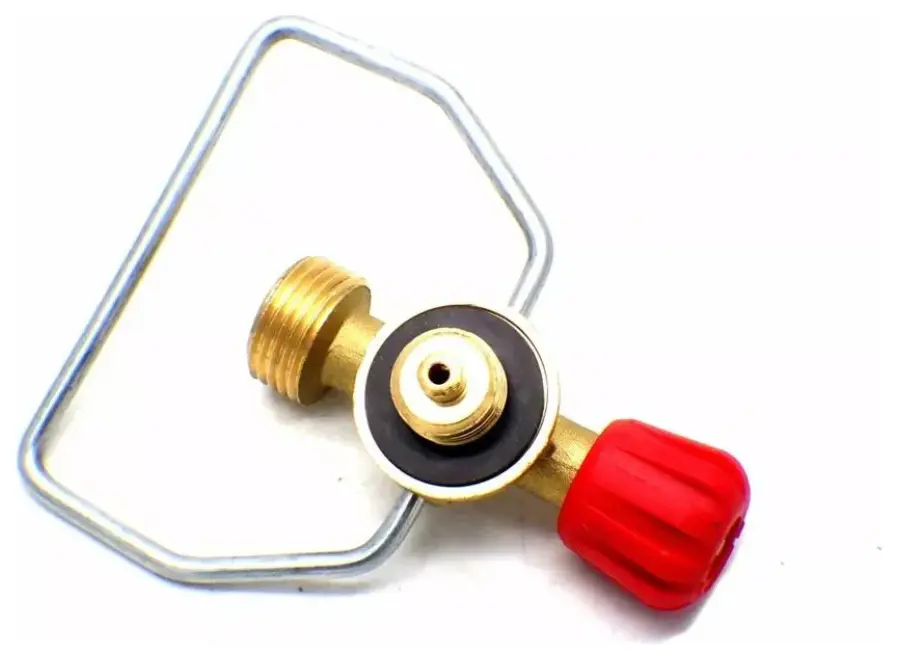

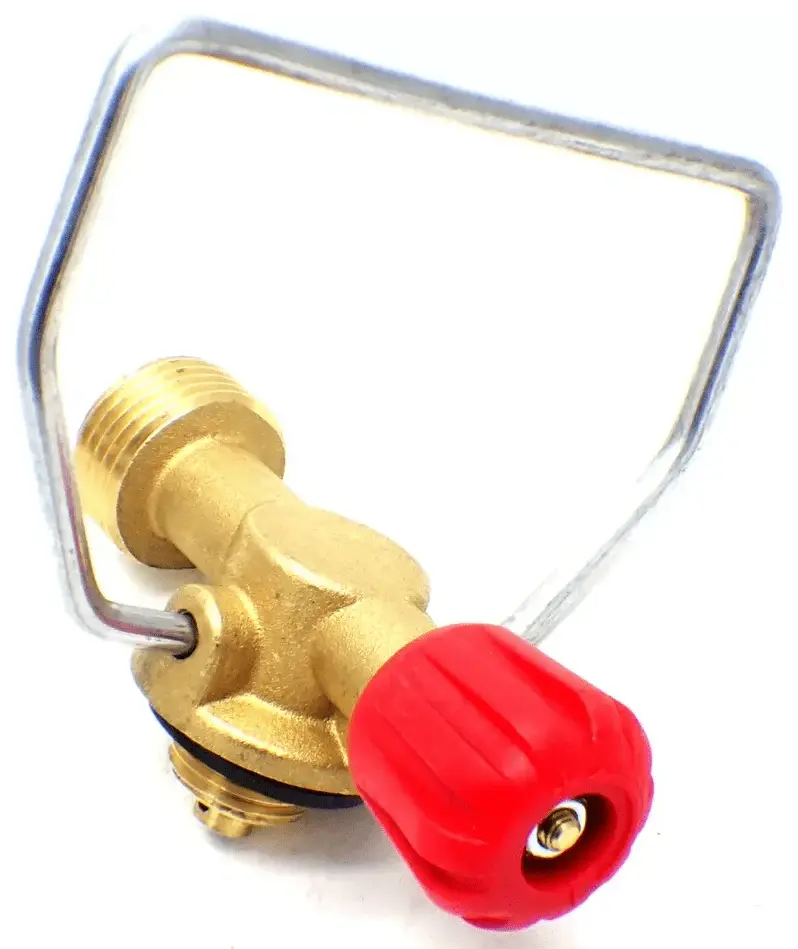

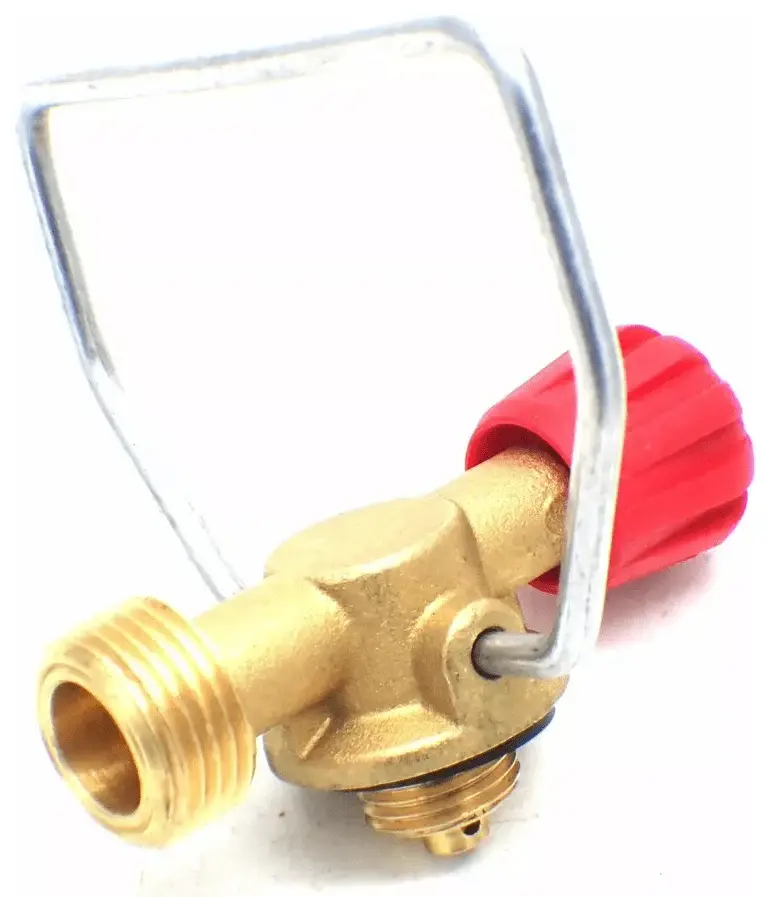

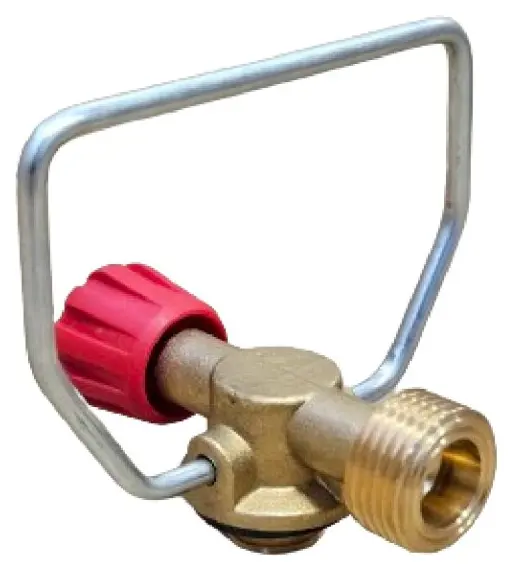

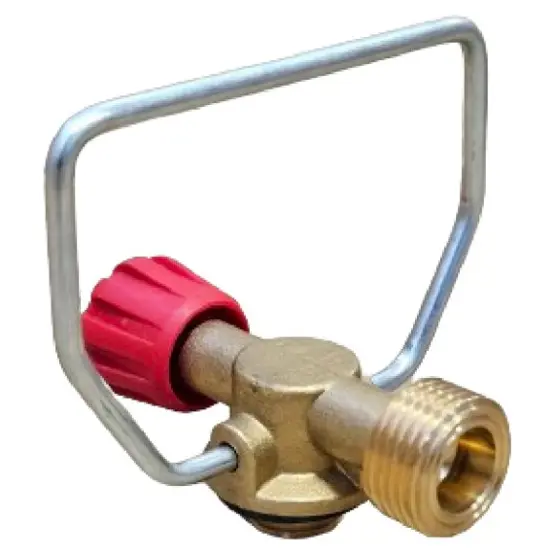

The Campingaz Adaptor Valve with Handle connects Campingaz 901, 904, and 907 cylinders to bulkhead-mounted regulators in caravans and motorhomes. This adaptor features an M16 x 1.5 male thread that screws directly onto the top of your Campingaz bottle, whilst the outlet accepts a butane nut connection (21.8LH thread) for your W20 pigtail hose assembly. The integrated carrying handle makes bottle changes considerably easier, particularly in confined gas locker spaces where manoeuvring can be awkward.?

This adaptor works exclusively with 30mbar bulkhead regulators and must never be operated without one fitted. It provides a straightforward solution for caravanners who prefer the convenience of Campingaz bottles over larger Calor cylinders, especially those who travel abroad where Campingaz availability tends to be better. The adaptor also allows you to attach a Calor Gas 4.5kg butane screw-type regulator to a Campingaz cylinder, giving you flexibility between different gas systems.?

Worth noting that this adaptor has no built-in non-return valve, so proper installation with an appropriate regulator becomes essential for safe operation. The butane nut connection requires a compatible pigtail hose (sold separately) to complete your gas system, and all connections should be checked for leaks using soapy water before use. Most caravanners find this adaptor particularly useful for weekend trips or as a backup system when their main gas supply needs refilling.

Campingaz Adaptor Valve with Handle Features


  • Fits Campingaz 901, 904 and 907 refillable cylinders
  • Integrated carrying handle for easier bottle handling

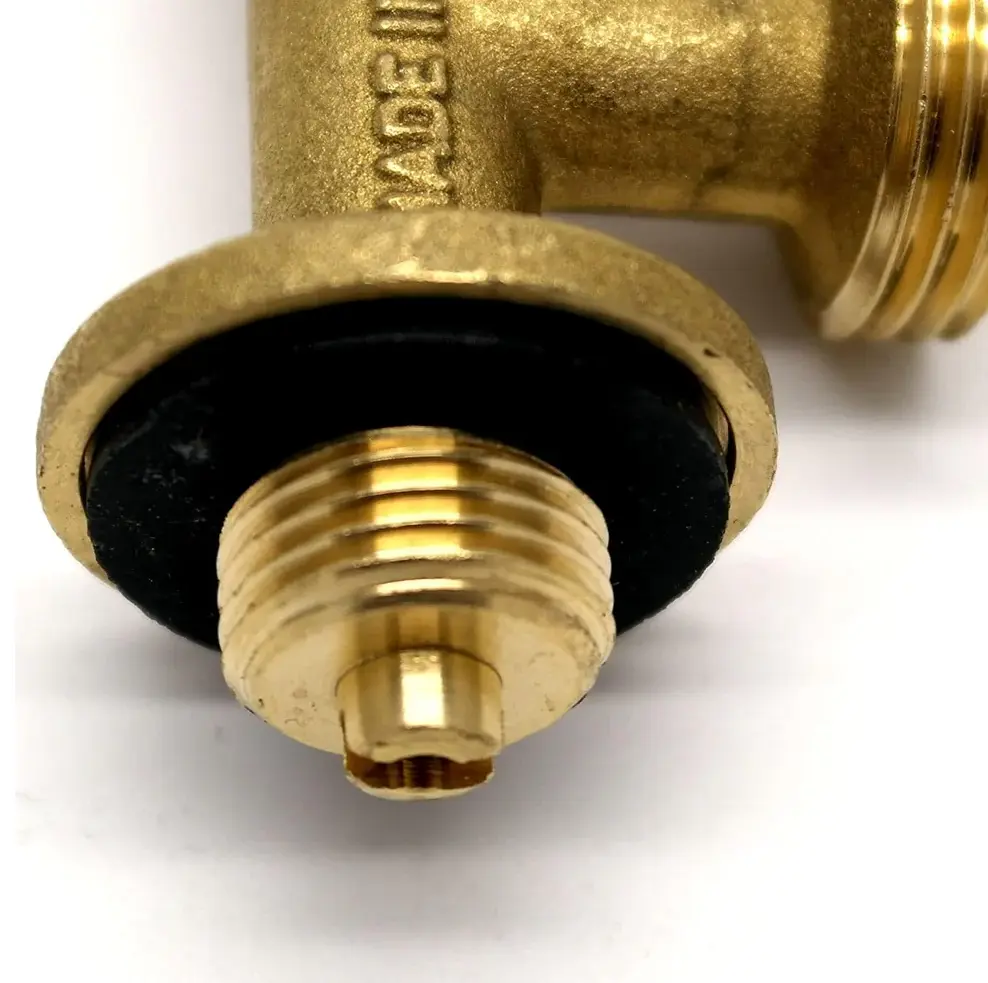

  • M16 x 1.5 male thread connection to cylinder
  • Butane nut outlet (21.8LH thread) for W20 pigtail connection
  • Works with 30mbar bulkhead-mounted caravan regulators

Specifications
  • Cylinder Thread : M16 x 1.5 male
  • Outlet Connection : Butane Nut 21.8LH Thread
  • Compatible Bottles : 901, 904, 907 Campingaz
  • Non-Return Valve : None fitted
  • Regulator Required : Yes (30mbar bulkhead type)

Frequently Asked Questions

Do I need a regulator when using this Campingaz adaptor valve?
Yes, this adaptor must always be used with a regulator. It connects your Campingaz 901, 904 or 907 cylinder to a 30mbar bulkhead-mounted regulator in your caravan or motorhome via a butane to W20 pigtail hose. The adaptor has no built-in non-return valve, making a proper regulator essential for safe gas system operation and correct pressure regulation.
Which Campingaz bottles does this adaptor fit?
This adaptor fits Campingaz 901, 904 and 907 refillable butane cylinders. These are the standard threaded Campingaz bottles with M16 x 1.5 valve connections commonly used throughout Europe. The 901 holds 0.4kg of gas, the 904 holds 1.81kg, and the 907 holds 2.72kg. The adaptor does not fit the newer Campingaz Easy Clic or CV-style cartridges, only the traditional screw-thread refillable cylinders.
What other components do I need to use this adaptor in my caravan?
You need a butane to W20 pigtail hose to connect the adaptor to your caravan's bulkhead-mounted regulator. The pigtail hose has a butane nut connection (21.8LH thread) that fits the adaptor's outlet and a W20 connection for the regulator inlet. Your caravan must have a 30mbar bulkhead regulator installed. The adaptor, pigtail and regulator work together to safely deliver gas from your Campingaz cylinder to your caravan appliances.
Can I use this adaptor with Calor Gas bottles?
No, this adaptor connects Campingaz bottles to your caravan gas system, not Calor bottles to it. However, it does work in reverse for one specific application - you can use it to attach a Calor Gas 4.5kg butane screw-type regulator to a Campingaz 901, 904 or 907 cylinder. This allows you to connect Campingaz bottles to equipment designed for Calor 4.5kg butane bottles with screw-on regulators.
Why does this adaptor have a carrying handle?
The integrated carrying handle makes it easier to lift and manoeuvre Campingaz bottles when the adaptor is fitted, particularly in confined gas locker spaces. Campingaz 901, 904 and 907 cylinders have limited grip points, and the adaptor remains attached during use, so the handle provides a secure lifting point for bottle changes. This practical design feature reduces the risk of dropping bottles whilst connecting or disconnecting your gas supply in awkward positions.
Does this adaptor have a non-return valve fitted?
No, this adaptor has no non-return valve fitted. This means you must ensure your gas system has appropriate safety features elsewhere, typically in the regulator or pigtail hose. Always check connections for leaks using soapy water before operating your gas system. The absence of a non-return valve makes it particularly important to use this adaptor only with approved regulators and to follow proper gas safety procedures when connecting and disconnecting bottles.


SAFETY NOTICE:

All products and parts must be installed by engineers who hold a valid certificate of competence. The installation must comply with the manufacturers instructions and local regulations. We cannot be held responsible if these instructions are not followed.

Please note we are a camping, caravan and motorhome company and NO gas product that we sell is suitable for mains (domestic) gas supply.
EAN-13 : 5056504803284
