Fiamma Kit for Mercedes Sprinter/Crafter UK

£129.71(inc VAT) £155.99
View delivery optionsView product description
  Product Description

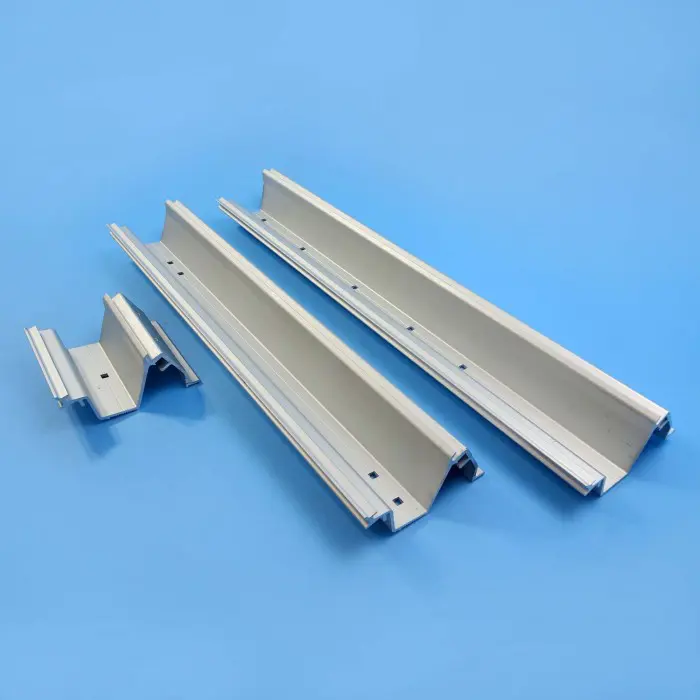

These Fiamma awning brackets are designed specifically for Mercedes Sprinter and VW Crafter high roof vans manufactured after 2006, allowing you to mount either a Fiamma F80 or F65 awning on the UK passenger side. The brackets attach using pre-drilled factory holes in the roof, eliminating the need to drill additional holes and maintaining the structural integrity of your van. This set includes three brackets measuring 12cm, 53cm and 60cm, along with complete fitting instructions to guide you through the installation process.

The awning size depends directly on your van's wheelbase measurement. For vans with a 3665mm wheelbase, you'll need either a 290cm or 320cm awning. Vans with a 4325mm wheelbase require larger awnings measuring 370cm, 400cm or 425cm to provide adequate coverage along the vehicle's length.

The brackets work seamlessly with both Mercedes Sprinter and VW Crafter models, taking advantage of the factory-drilled mounting points that come standard on these vehicles. Each bracket in the set serves a specific purpose, with the 60cm bracket typically positioned at the rear, the 53cm bracket in the middle, and the 12cm bracket at the front. This configuration distributes the weight of the awning evenly across the roof and provides a secure mounting platform for extended use.

Installation is straightforward for anyone comfortable working at height, as the pre-existing holes in the roof make positioning and mounting simple. The brackets are engineered to handle the weight and wind load of Fiamma F80 and F65 awnings, both of which are popular choices for campervan conversions. Once fitted, these brackets provide a permanent mounting solution that allows you to roll out shade and shelter whenever you need it during your travels.

Fiamma Kit for Mercedes Sprinter/Crafter UK Features


  • No drilling required - uses factory pre-drilled roof holes
  • Compatible with both Fiamma F80 and F65 awning models
  • Fits Mercedes Sprinter and VW Crafter high roof vans (2006 onwards)
  • UK passenger side configuration
  • Durable construction for long-term outdoor use
  • Even weight distribution across three mounting points
  • Complete fitting instructions included
  • Supports multiple awning sizes based on wheelbase

Specifications
  • Vehicle compatibility : Mercedes Sprinter (2006+), VW Crafter (2006+)
  • Roof type : High roof models
  • Mounting side : UK passenger side
  • Bracket lengths : 12cm, 53cm, 60cm
  • Awning compatibility : Fiamma F80 and F65
  • Wheelbase 3665mm : Supports 290cm or 320cm awnings
  • Wheelbase 4325mm : Supports 370cm, 400cm or 425cm awnings
  • Mounting method : Pre-drilled factory holes
  • Kit contents : x3 brackets plus fitting instructions

Frequently Asked Questions

Do these brackets work with both F80 and F65 Fiamma awnings?
Yes, these brackets are compatible with both Fiamma F80 and F65 awning models. The F80 is the newer model that replaced the discontinued F65, but the mounting bracket system remains compatible across both awning types, making these brackets suitable for either installation.
Will I need to drill holes in my van roof to fit these brackets?
No drilling is required. Mercedes Sprinter and VW Crafter vans manufactured after 2006 have pre-drilled factory holes in the roof covered by plastic caps. These brackets are specifically designed to align with those existing holes, so you simply remove the caps and bolt the brackets directly through the pre-drilled mounting points.
What wheelbase measurements do these brackets support?
These brackets accommodate two standard wheelbase sizes. Vans with a 3665mm wheelbase support 290cm or 320cm awnings, while vans with a 4325mm wheelbase can accommodate 370cm, 400cm or 425cm awnings. The bracket configuration adjusts to provide proper support regardless of which size awning you choose within these parameters.
Are these brackets only for the UK passenger side or can they be fitted on the driver side?
This particular bracket set is configured for UK passenger side installation. The bracket lengths and positioning are optimised for mounting on the passenger side where the pre-drilled holes are located. For driver side installation, you would need a different bracket configuration designed specifically for that side of the vehicle.
What's included in the bracket set?
The set includes three aluminium brackets measuring 12cm, 53cm and 60cm in length, along with detailed fitting instructions. The brackets are positioned at different points along the roof to distribute the awning's weight evenly. You'll need to supply your own fixings appropriate for your specific van model, though the fitting guide provides specifications for what's required.
EAN-13 : 8004815000103
