Dometic Quick Fixing Kit 25 for CFX-28/CFX3-25/CFX5-25 Coolers

£55.99(inc VAT) £64.99
View delivery optionsView product description
  Product Description
The Dometic Quick Fixing Kit 25 (CFX-QFK) is a purpose-built mounting system for securing Dometic CFX portable coolers in motorhomes, campervans and 4x4 vehicles. Designed to fit the CFX 28, CFX2 28, CFX3 25 and CFX5 25 models, this fixing kit replaces traditional tie-down straps with a compact, quick-release mechanism that lets you remove your cooler in seconds without reaching for tools. Measuring 422mm deep by 250mm wide by 30mm high and weighing 1.9kg, it maintains a low profile while providing secure four-point mounting through threaded M6 inserts on your cooler's base.

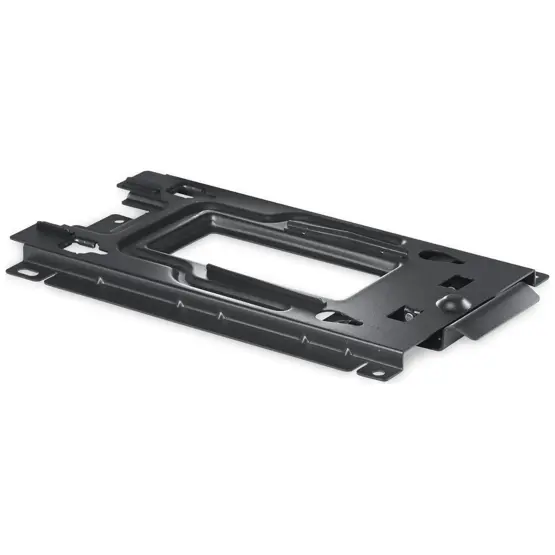

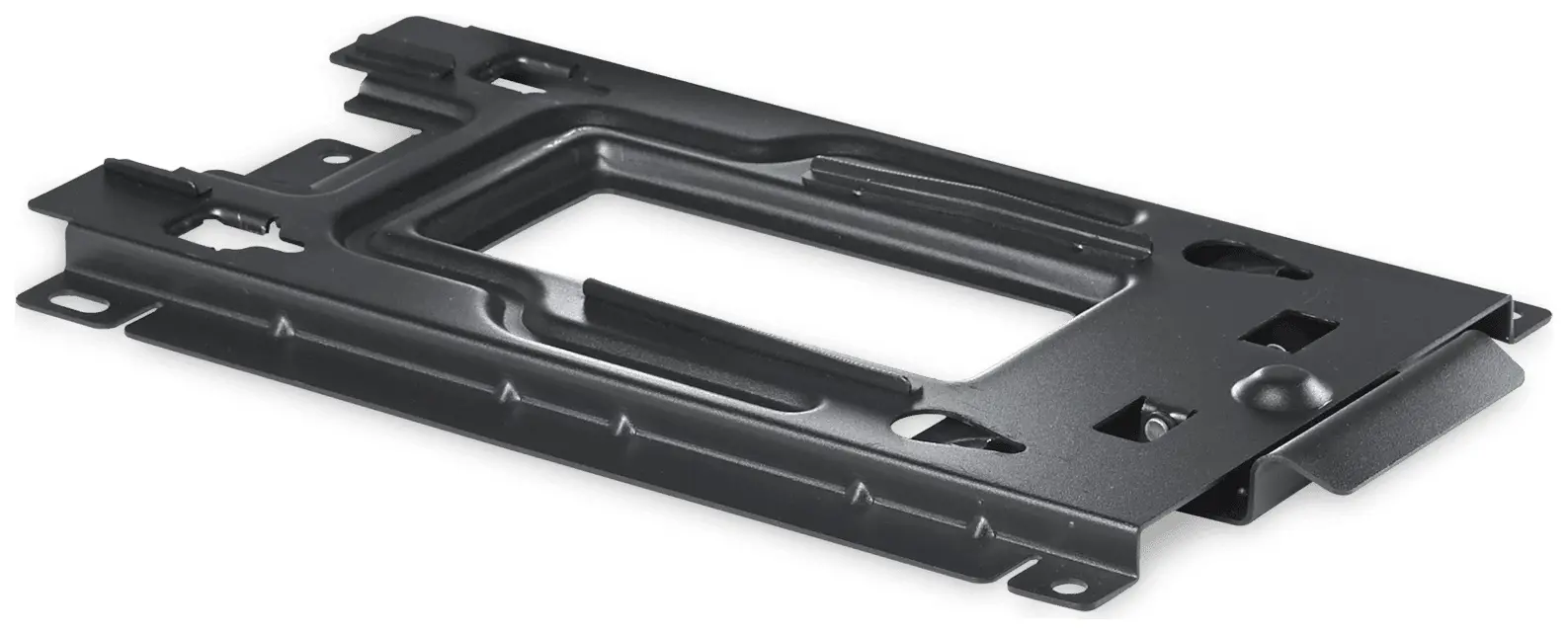

The kit uses a precision-engineered fixing unit that bolts directly to your vehicle floor or furniture, with 4 adapter feet that connect to the cooler's M6 mounting points. The quick-release mechanism locks the cooler firmly in place during transit, preventing movement on rough terrain or sharp corners, then releases with a simple action when you need to remove it. This design eliminates the hassle of threading straps or tightening buckles each time you want to access or relocate your cooler.

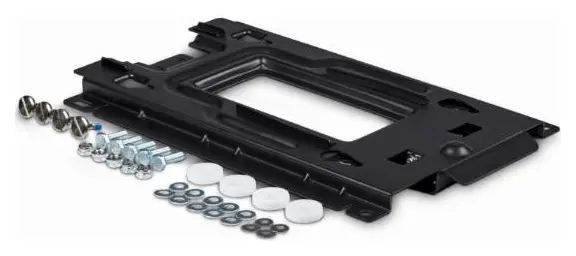

Installation takes around 20 minutes with basic tools. The kit includes everything needed: 1 fixing unit, 4x adapter feet, 4x nylon spacers for height adjustment, 4x adapter washers, 5x bolts, 5x lock nuts and 10x washers. The adapter feet accommodate slight variations in mounting surfaces while the nylon spacers help level the cooler on uneven bases. Once fitted, the system works reliably trip after trip, with the fixing unit staying permanently mounted to your vehicle while the cooler clicks in and out as required.

Motorhome owners appreciate how the fixed mounting stops coolers sliding around in lockers during motorway driving, while off-road enthusiasts rely on it to keep refrigeration stable on corrugated tracks. The compact footprint means it fits in tight spaces where bulky strap systems would interfere with adjacent storage. Compatible models span Dometic's CFX range from 25 to 28 litres, covering both the newer CFX3/CFX5 series and earlier CFX2/CFX models, giving you flexibility if you upgrade your cooler in future.

Dometic Quick Fixing Kit 25 Features


Secure Four-Point Mounting : Connects directly to your cooler's M6 inserts for rock-solid stability on any terrain
Compact Low-Profile Build : Fits neatly in tight spaces without interfering with surrounding storage areas

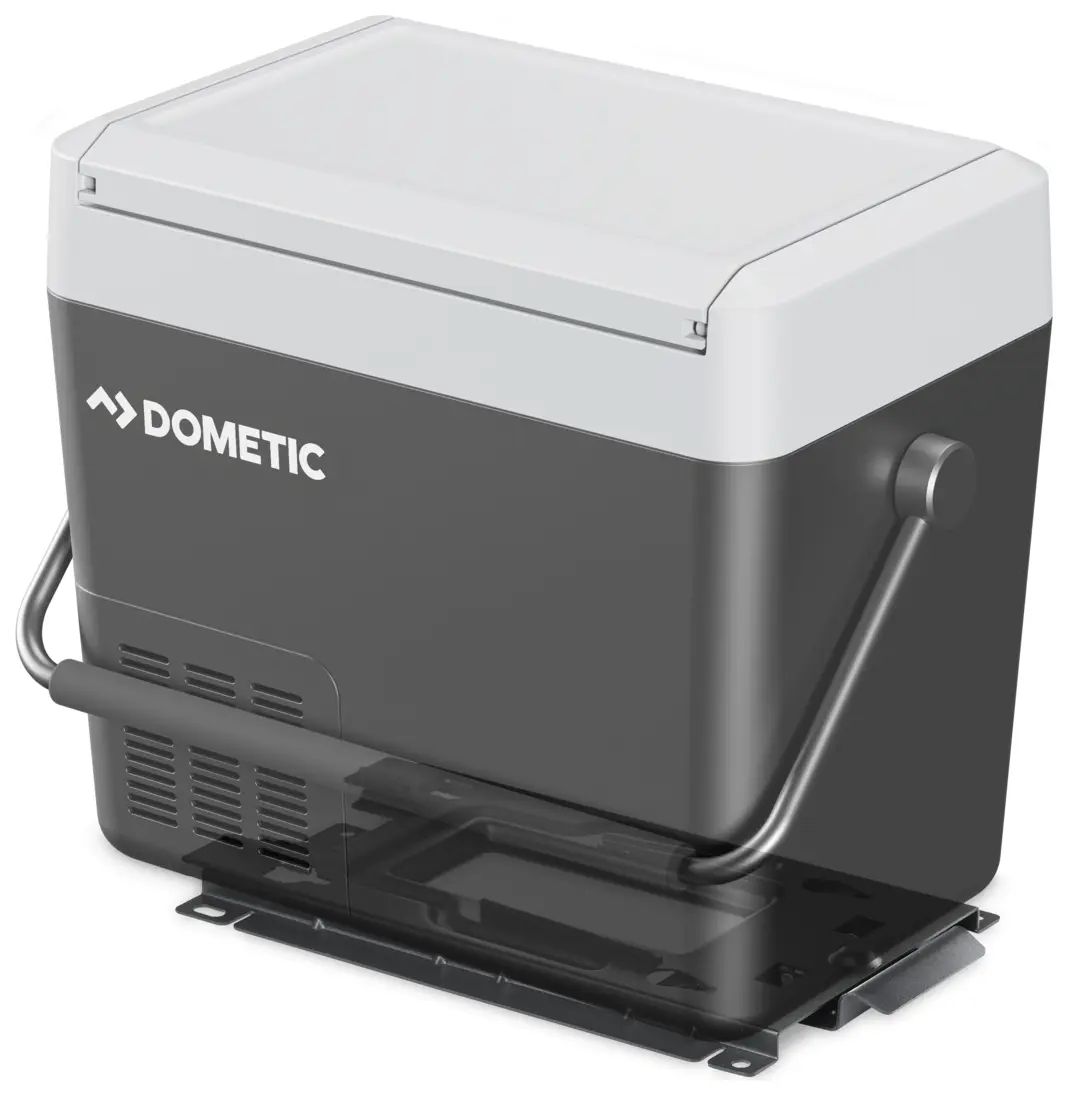

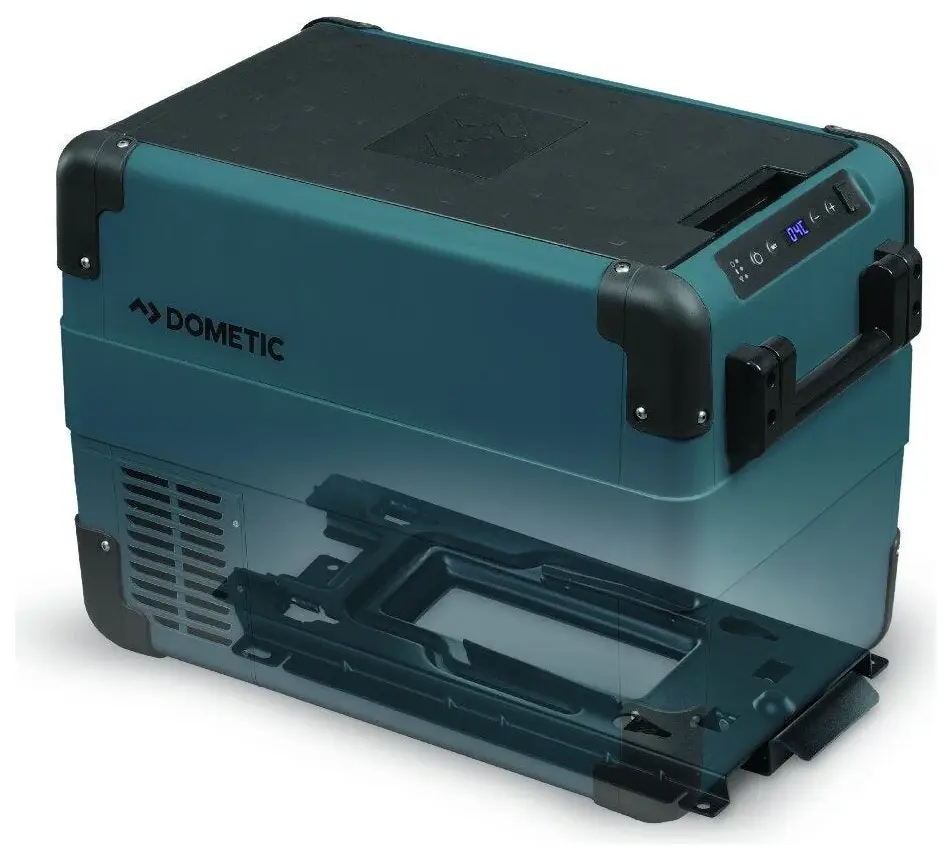

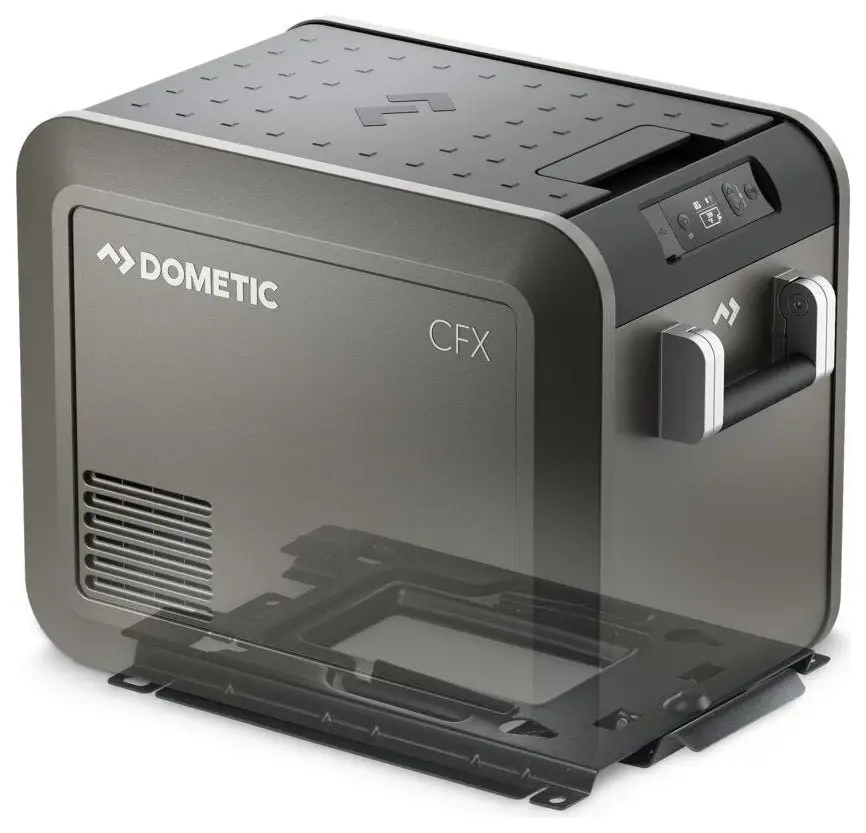

Universal CFX Compatibility : Works with CFX 28, CFX2 28, CFX3 25 and CFX5 25 portable cooler models
Permanent Vehicle Installation : Fixing unit stays mounted to your floor or furniture whilst cooler clicks in and out
Adjustable Height Spacers : Nylon spacers included to level your cooler perfectly on uneven mounting surfaces
Complete Installation Kit : Everything you need supplied in the box for straightforward 20-minute fitting
Adaptable Mounting Feet : Accommodates variations in vehicle floor and furniture surfaces for versatile installation

Specifications
  • Dimensions : 422mm (D) x 250mm (W) x 30mm (H)
  • Weight : 1.9kg
  • Mounting Points : Four-point connection system using M6 threaded inserts
  • Compatible Models : Dometic CFX 28, CFX2 28, CFX3 25, CFX5 25
  • Cooler Capacity Range : 25 to 28 litre Dometic CFX series
  • Installation Time : Approximately 20 minutes with basic tools
  • Kit Contents : 1 fixing unit, 4 adapter feet, 4 nylon spacers, 4 adapter washers, 5 bolts, 5 lock nuts, 10 washers
  • Mounting Type : Bolt-down fixing to vehicle floor or furniture
  • Material : Engineered components with nylon adjustment spacers

Frequently Asked Questions

Which Dometic cooler models are compatible with the Quick Fixing Kit 25?
The Dometic Quick Fixing Kit 25 (model CFX-QFK) works perfectly with the Dometic CFX 28, CFX2 28, CFX3 25 and CFX5 25 portable coolers. It also fits the CFF 18 model. These coolers all share the same M6 threaded mounting inserts on their base, so the adapter feet connect securely every time. If you're touring with a larger CFX model like the 35 or 45 litre versions, you'll want the Dometic Quick Fixing Kit 35/45 instead, which has a bigger footprint to match those cooler dimensions perfectly.
Do I need to drill holes to install the Dometic Quick Fixing Kit?
Yes, permanent installation means drilling mounting holes to secure the fixing unit to your vehicle floor, furniture or fridge slide. The fixing unit base has pre-drilled holes to make this straightforward. You'll mark and drill corresponding holes in your mounting surface, then bolt the unit down using the supplied 5x bolts, 5x nylon spacers and 10x washers. The kit includes bolts and washers for connecting the cooler to the fixing unit, but you'll need to source fixings suitable for your specific mounting surface. Once the base unit is installed, your cooler attaches and releases without any tools needed.
How does the quick-release mechanism work on the Dometic fixing kit?
The fixing unit stays permanently mounted in your vehicle whilst the cooler connects via four adapter feet screwed into the M6 threaded inserts on your cooler's base. To secure your cooler, you position it above the fixing unit and lower it down until the mechanism locks with a satisfying click. Your cooler is then held firmly in place during travel. To remove it, you operate the quick-release lever, which disengages the lock and lets you lift the cooler straight out. The whole process takes seconds and you won't need spanners, screwdrivers or any loosening of fixings, making it brilliantly quicker than traditional strap-based systems when you arrive at your pitch.
Will the fixing kit work on a Dometic fridge slide?
Yes, the Dometic Quick Fixing Kit 25 works brilliantly when mounted on a compatible fridge slide, provided the slide platform is large enough to accommodate the 422mm x 250mm footprint of the fixing unit. This combination gives you the best of both worlds: the slide lets you pull the whole assembly out for easy access to your cooler contents, whilst the quick-release fixing keeps the cooler secured to the slide during transit and prevents it shifting when you extend or retract the slide mechanism. Make sure your slide is rated for the combined weight of your loaded cooler plus the 1.9kg fixing kit weight. The fixing unit bolts to the slide platform using the same straightforward method as mounting directly to vehicle floors.
What are the nylon adapter spacers used for in the kit?
The four nylon adapter spacers included in the kit help you adjust the height between the fixing unit and the cooler base, which is really handy when your mounting surface isn't perfectly level or when you need to compensate for slight variations in cooler models. They fit between the adapter feet and the cooler's M6 mounting points, raising the cooler by a few millimetres if needed. This adjustment helps your cooler sit level even on angled or uneven surfaces, preventing it from rocking and reducing stress on the mounting points. The spacers also provide a buffer that absorbs vibration during travel, keeping everything stable on bumpy lanes. If your mounting surface is flat and level, you might not need all four spacers, but they're there to fine-tune the installation for a perfect fit in your vehicle.
