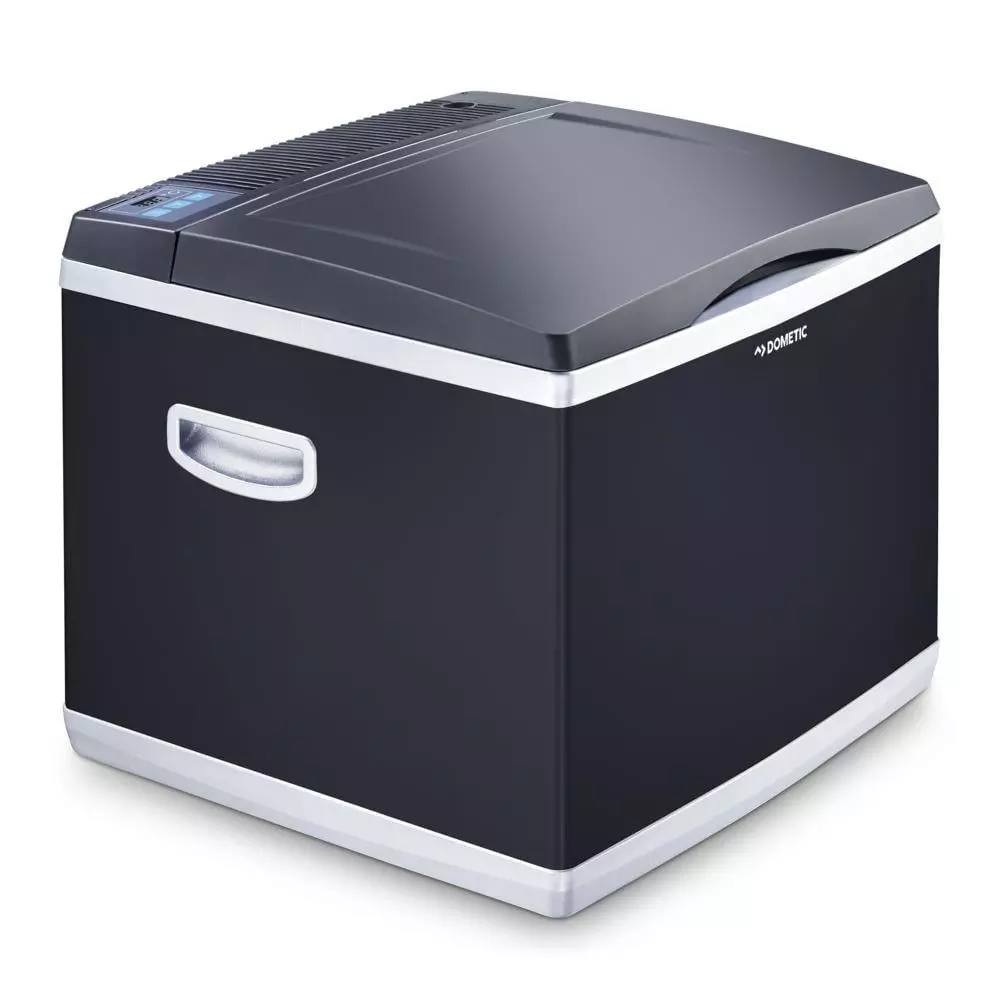

Dometic CK40D Thermoelectric / Compressor Hybrid Cooler is a multi-purpose fridge and freezer, this hybrid compressor cooler is highly efficient and provides excellent performance.. Two cooling systems in one box.
Are you looking for a highly efficient cooling appliance for the awning, the patio, or the garage workshop? Ideally, also for the car or recreational vehicle? Then the Dometic CoolFun CK 40D HYBRID is just what you need: two cooling technologies, two connection options and a generous capacity of 38 litres.
Powerful compressor cooling on the 230-volt mains, thermoelectric cooling on a 12-volt vehicle battery – this hybrid cooling box can do both. It makes a reliable freezer for perishable deep-frozen food, chills the drinks for your garden party, and it will also keep your provisions nicely fresh on the journey to your holiday destination. On top of all this, it looks stylish with its shapely black/silver housing.
This is the world's first dual cooling system. The new Dometic CK40 Hybrid (formally Dometic B40) incorporates a powerful compressor for static use, as well as a thermoelectric cooling unit for use on the move with deep-freezing up to -15°C.
An amazing low cost solution for all your needs!
A compressor cooler for stationary and mobile use can be hard on your pocket. The new B40 won’t. Designed as a typical awning cooler it incorporates a powerful compressor as well as a thermoelectric cooling unit. The latter comes in when the cooler is connected the 12-volt car battery. This ensures that the cool chain is maintained during transport from home to the campsite. An amazing and low cost technical solution for an important comfort feature. In compressor mode the B40 provides cooling and deep-freezing up to –15°C, even at high ambient temperatures. The thermoelectric system achieves 20°C below the ambient temperature. About 40 litres capacity, sturdy cabinet, recessed grips on the sides.
Features at a Glance
Compressor: Continuously Refridgeration and Deep Freezing, +10°C to –15°C
Thermoelectrics: Cooling max. 20 degrees below ambient temperature
Recessed side grips for convenient transport
230 volts AC normal/deep-freezing (compressor)
12 volts DC normal cooling (thermoelectrics)

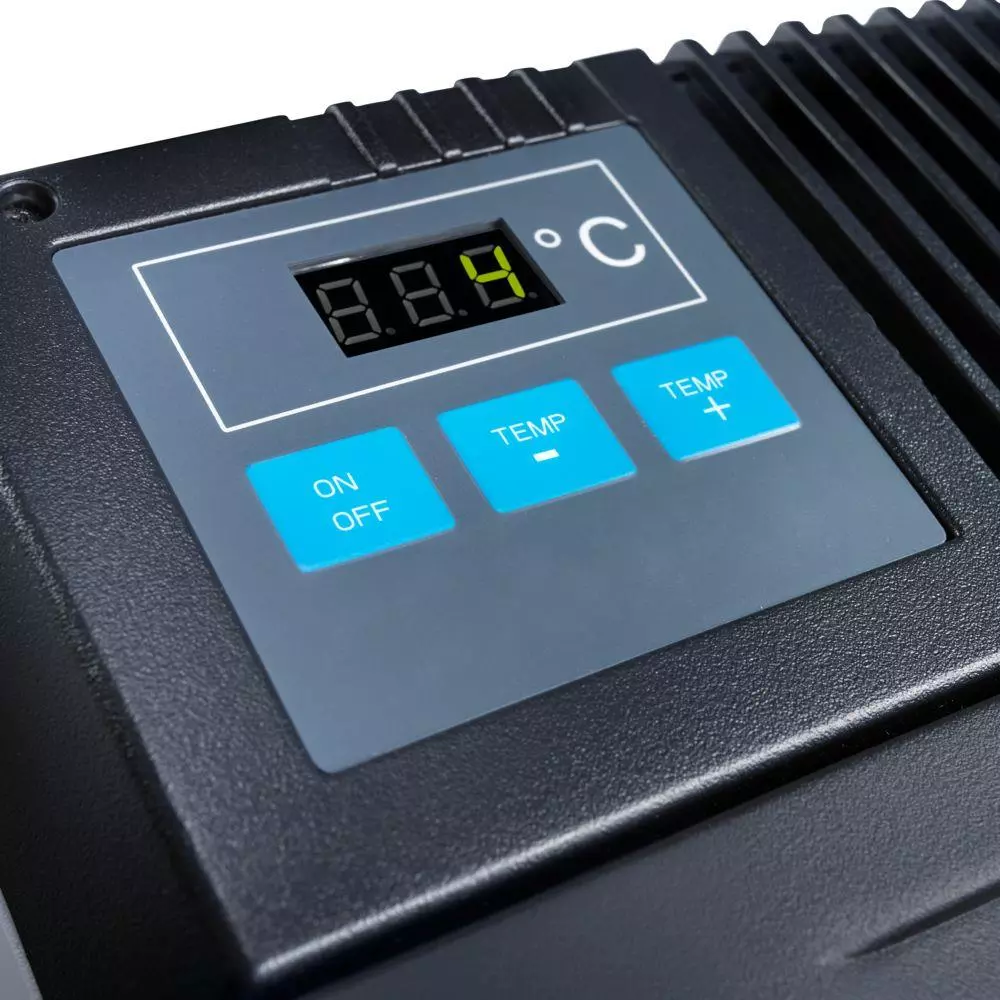

Electronic thermostat with digital display (in compressor mode)
Lid with all-round seal and magnetic lock
Especially quick cooling with extra strong insulation
Power consumption - DC 48watt, AC 65watt
THIS COOLBOX USES THERMOELECTRIC & COMPRESSOR TECHNOLOGY
What is the difference between the cooling technologies? ABSORPTION COOLING Details of distinguishing features:
Gas-powered cooling independent of electricity
Three way cooling – Gas, 12 volts DC or 230 volts AC
Cooling performance depending on the ambient temperature
The Technical Bit A concentrated ammonia solution is heated in a boiler and expelled as vapour. The pressurised ammonia gas is then liquefied in a condenser. Supplied with hydrogen, it evaporates and in the process extracts heat from the storage container. The ammonia gas then enters the absorber where it is reabsorbed in a weak solution of ammonia. Finally, the saturated solution flows back to the boiler where the whole cycle starts again.
THERMOELECTRIC TECHNOLOGY Details of distinguishing features:
12 / 24 / 230 Volt
Independent of inclination
Lightweight and low-cost
Cooling performance depending on the ambient temperature
The Technical Bit The thermoelectric principle was discovered by J. C. A. Peltier, which is why the temperature generating parts of thermoelectric systems are referred to as Peltier elements. Thermoelectrics are based on the fact that cold or heat energy (depending on the polarity) is generated when a DC current is conducted between different types of metal. The heating or cooling capacity is further enhanced by heat exchangers and air fans. Ideal for low and medium cooling volumes.
COMPRESSOR TECHNOLOGY Details of distinguishing features:
Excellent cooling performance even at extreme ambient temperatures
Refrigeration and deep-freezing
12 / 24 / 100 – 240 volts
Low power consumption – suitable for solar operation
Quiet operation with little vibration
Independent of inclination
The Technical Bit Compressor units operate using a refrigerant that changes from liquid to gaseous state in the evaporator. The evaporation extracts heat from the interior of the cooling unit – the temperature drops. The compressor draws in the refrigerant, compresses it and passes it on to the condenser. Here, the absorbed heat is released to the atmosphere. The refrigerant liquefies again and flows to the evaporator, where the cycle begins again.
10 Customer Reviews on Dometic CK40D Hybrid Coolbox
DOMETIC CK40D Hybrid Cooler.
by Mr Freeman. (20 Jul 2019)
Dometic CK40D, Hybrid cooler, Well made, robust, good looking product, performs as described, freezes well, the only drawback for me is the weight, at 22kg empty its not exactly light, it would be difficult to lift and carry loaded.
... Up For 12 Hrs All Food Was Still Frozen Great Product
by Keith Harrington (20 Jul 2017)
We had fridge at_18 it was connected to car was parked up for 12 hrs all food was still frozen great product
Forget The Rest, BUY THIS!
by Mike (22 Apr 2017)
Ordered and delivered next day, awesome service.
Out of the box, left for 30 minutes to settle, then on for 20 mins at lowest temp and there was ice inside.
Put food/drinks in it ready for glamping weekend and let it chill for the night (just to make sure) at 2 degrees (with hindsight, it was way to cold) and the next morning it was at 2 degrees Celsius.
4 hours travelling in the van with it using 12v cigarette connection and the stuff was still cold. on-site camping power it still registered at 2 degrees C (was well surprised) beer was really really cold but it nearly froze the rest of the food (butter/lettuce).
It runs really quiet, freezes really well, the handles could have a better grip as its not a light piece of equipment to carry, especially when loaded with foodstuffs. but it is amazing. running on 12v the display doesn't show the temp. but left it in the van during the day and overnight running on 12v (using leisure battery) and then moved it into the house the next day and it was still at 5 degrees.
TLDR; was dubious, ordered then delivered nextday. froze beer, ruined butter and lettuce (too cold). to lazy to get it out of van, everything still cold next day.
A Really 'cool' Coolbox!
by Nick D. (16 Sep 2016)
If you are looking for a duel fuel mobile fridge freezer then you need look no further. I am getting back into camping with my VW Transporter and have started getting my food and cooking equipment up together. I wanted something to keep food cool and fresh when mobile. I did some basic research into mobile powered coolboxes but could not really understand the large price difference from one to another. So I started off going with the lower cost end and purchased the 40 litre coolbkx from Halfords. This is a 240 v a and 12v dc thermoelectric device. It claims to hold the internal temperature at up to 18 degrees Celsius below the ambient temperature. In brief, it was rubbish! On full power it barely cooled the internal. On ECO mode it did nothing! The inside of the coolbox was the same as the room temperature. This was running on 240 v mains! I didn't bother with the 12v mode in the car as it could only get worse! So I returned the Halfords coolbox. I wentered back to the drawing board and did some more research. I came across Dometic and Waeco as a brand with good reviews. I really wanted a device that would hold temperature irrespective of the external ambient temperature. I wanted a device with a thermostat and a temperature display and adjustable temperature in 1 degree Celsius increments. The Waeco CK 40D fitted the bill. So I took the price increase hit and ordered one. It arrived promptly and I was keen to test it. I plugged it into the 240 v mains in my house to test it's cooling. I set it to 5 degrees Celsius initially. When I powered it on the temperature gauge read 20 degrees. I expected to leave the unit over night to cool to 5 degrees. So I was delighted and amazed when 30 minutes later the unit was holding 5 degrees! It is very quick to cool in 240 v ac mode running the compressor. It holds the temperature accurately and consistently too. I varied from 0 degrees to 6 degrees and it was superb. In the car I switch to 12 v dc mode which runs a thermoe
Worth the money
by Miss Baxter (26 Aug 2016)
We were concerned spending so much on a cooler but we couldn't be happier with the purchase. It has worked really well on a number of continent trips (high temps) and would recommend it. It is also really well put together.
Great service from Leisureshopdirect, received it the day after ordering it!
by Amazon Customer (26 Apr 2016)
Better then expected!
by Julie Freeman (31 Jan 2016)
Product works very well both at fridge and freezer temperatures.
by Stephanie Jane Gould (28 Aug 2015)
Excellent product... Capacity was far greater than visualised. Heavier than expected if weight limitations are your concern for touring. However it exceptional quality an excellent product!
A Serious Piece Of Kit
by Mr Jones (29 Jul 2015)
We used the Dometic B40 during a drive to the south of France and as a mains powered fridge when we arrived. It provides superb performance in AC compressor mode. In DC thermoelectric mode it keeps food cool even in very hot conditions although it seems to draw a lot of current (not measured precisely) in doing so. The standard of insulation is high, with the (acceptable) downside that it makes the cooler fairly large. It is also pretty heavy. Overall, a professional quality product.
I'd Easily Recommend This Product Every Day
by Darren Cooke (31 May 2015)
Great Product and low draw on the batteries on either th inverter or 12v system. Loads of space
Compressor coolers operate using a refrigerant that changes from liquid to gaseous state in the evaporator. The evaporation extracts heat from the interior of the cooling unit – the temperature drops. The compressor draws in the refrigerant, compresses it and passes it on to the condenser. Here, the absorbed heat is released to the atmosphere. The refrigerant liquefies again and flows to the evaporator, where the cycle begins again.
Excellent cooling performance even at extreme ambient temperatures Refrigeration and deep-freezing 12 / 24 / 100 – 240 volts Low power consumption Suitable for solar operation Integrated Battery protection
What are thermoelectric coolers?
The thermoelectric principle was discovered in 1834 by J.C.A. Peltier, which is why the temperature generating parts of thermoelectric systems are referred to as Peltier elements. Thermoelectrics are based on the fact that cold or heat energy (depending on the polarity) is generated when a DC current is conducted between different types of metal. The heating or cooling capacity is further enhanced by heat exchangers and air fans. Ideal for low and medium cooling volumes.
12 / 24 / 230 volts Impeccable operation in inclined position Lightweight and low-cost Cooling performance depending on the ambient temperature
