Fiamma F43van Awning

£594.99 - £649.99 (inc VAT)

BRAND : Fiamma

View delivery options

View description

Loading shipping details...

Add to Wishlist

Seen this product cheaper? We will do our best to match it!

Click Here

Product Description

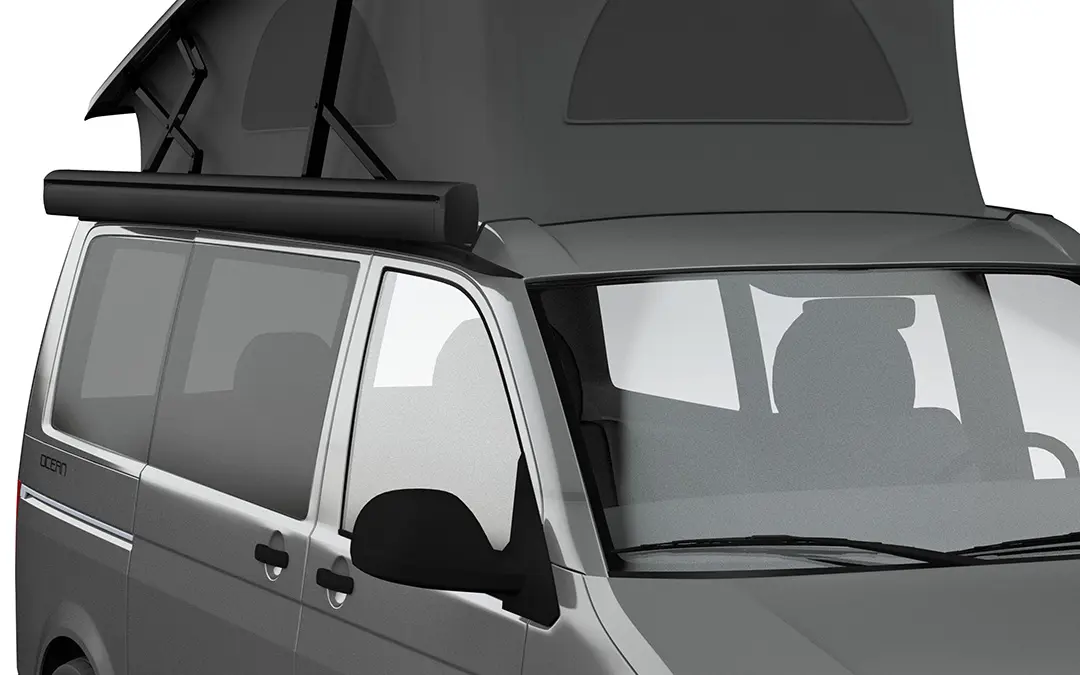

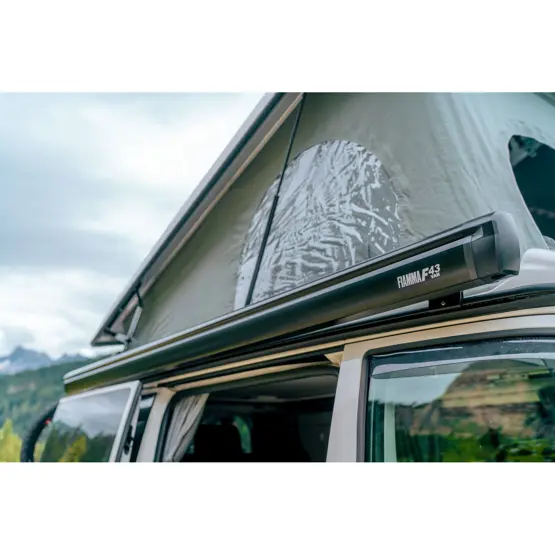

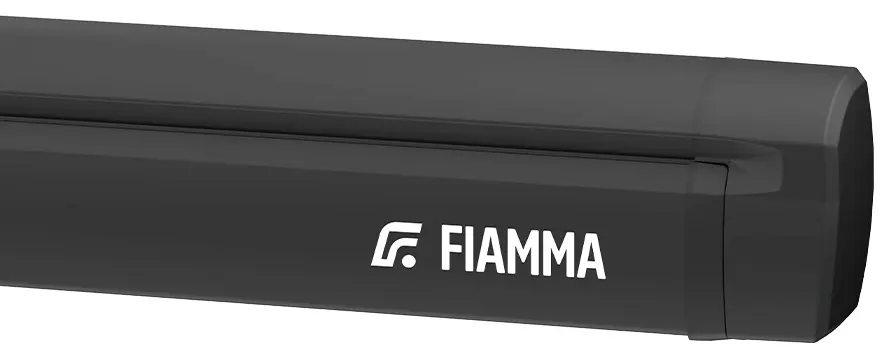

The Fiamma F43van is a wall-mounted wind-out awning designed for campervans and motorhomes with pop-up roofs. This compact awning features a Deep Black case box with Royal Grey canopy fabric made from waterproof, UV-resistant vinyl. The awning extends in an overhand motion to maintain consistent fabric tension and operates via a winding handle with a magnetic catch concealed in the cover. Standard fixing brackets are included, with optional roof-integrated brackets available for professional installation.

The F43van delivers superior space efficiency through its compact dimensions and reduced projection from lowered mounting brackets. Available in 270cm and 300cm sizes, it provides coverage areas of 6.9m² to 8.9m² whilst extending 225cm to 250cm from your vehicle. The awning opens straight with no inclination to maximise usable space at full height up to 2.20m, giving you genuine headroom underneath for comfortable outdoor living.

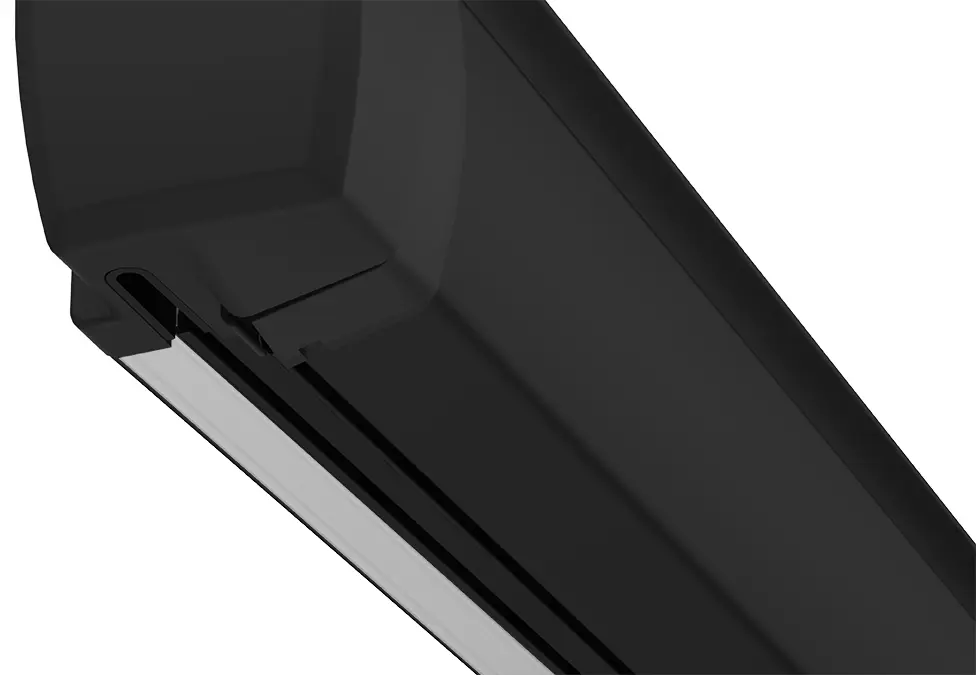

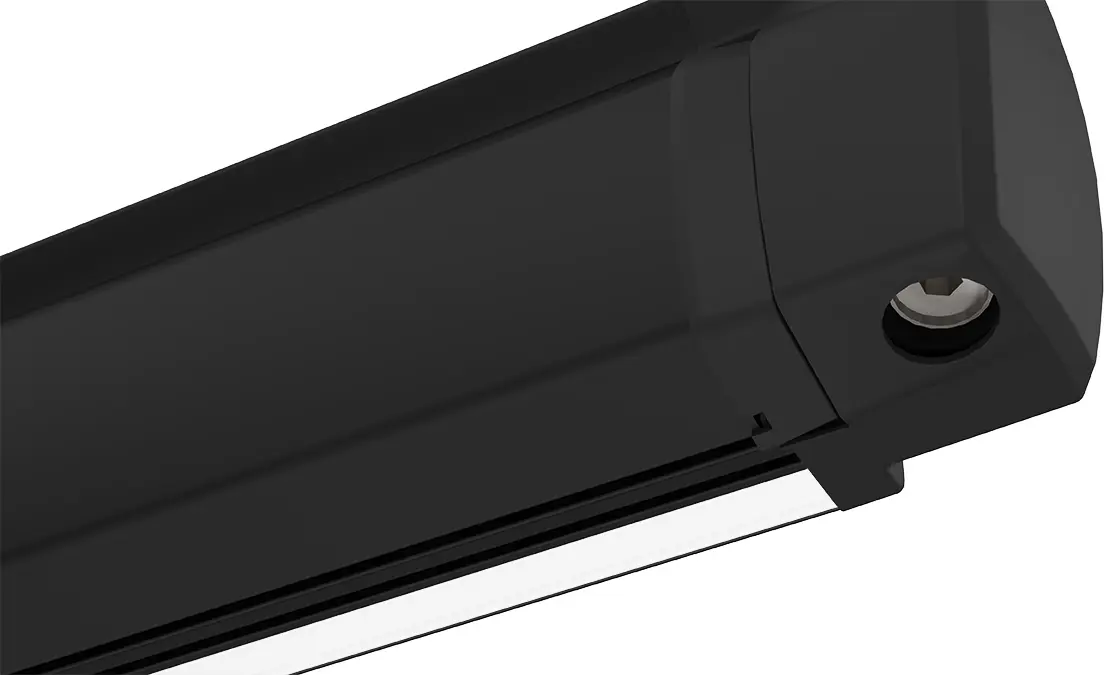

Built from Alu-Lite aluminium, the case box is both extra-strong and super-light, weighing between 19kg and 21.5kg depending on size. The awning features two concealed double guides in the front and rear case box, allowing attachment of the Fiamma Room Van Premium enclosure for additional living space. The case box includes provision for optional LED lighting installation, and the washable grey canvas fabric resists water and UV damage. Quick to install and uninstall with removable fixing brackets, the F43van delivers professional automotive-style finishing at an excellent price point for campervan owners.

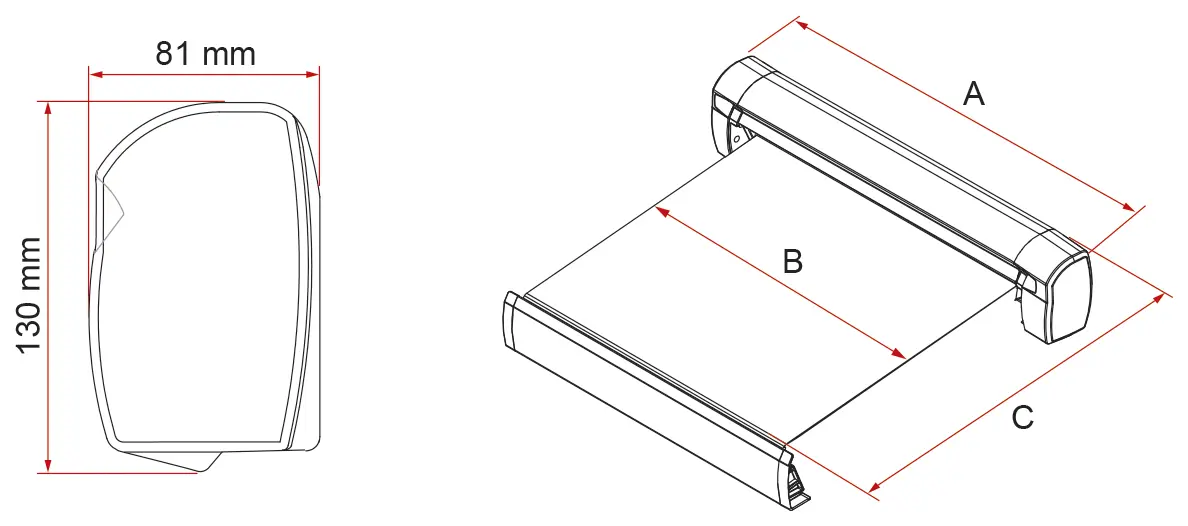

Choosing your Awning

Description	F43van 270 - Deep Black	F43van 300 - Deep Black
Length (A)	270 cm	310 cm
Length (B)	257 cm	287 cm
Extension (C)	200 cm	250 cm
Shade surface	5.8 m²	7.2 m²
Weight	19.0 kg	21.5 kg

Fiamma F43van Awning Features

Compact awning: roof mount with reduced bracket height
Deep Black case with Royal Grey waterproof UV-resistant canopy
Overhand unrolling motion maintains perfect fabric tension
Alu-Lite aluminium construction: extra-strong yet super-light
Opens at full height (max. 2.20m) with no downward inclination

Specifications

Awning Size : 270cm or 300cm case length options
Extension Reach : 225cm (270 model) or 250cm (300 model)
Coverage Area : 6.9m² (270 model) or 8.9m² (300 model)
Weight : 19kg (270 model) or 21.5kg (300 model)
Fabric Size : 257cm (270 model) or 287cm (300 model)

Frequently Asked Questions

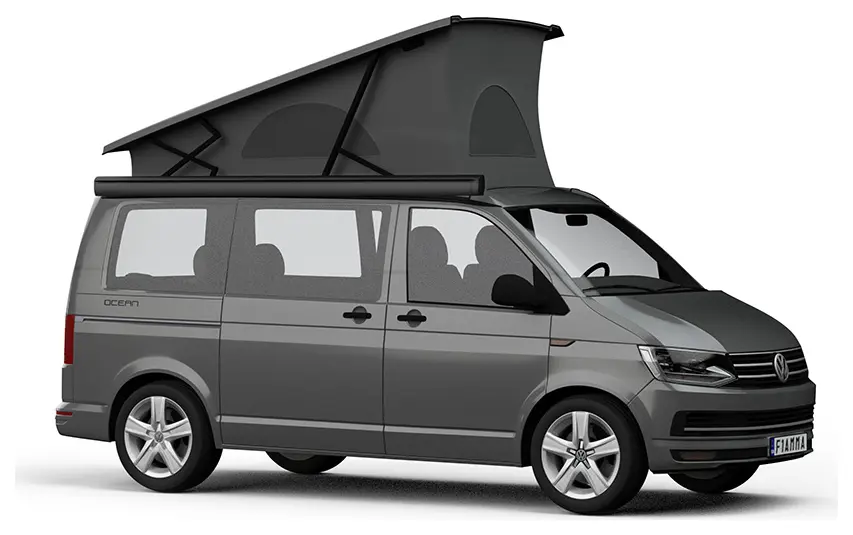

Will the Fiamma F43van fit my campervan with a pop-up roof?

Yes, the F43van is specifically designed for campervans with pop-up roofs. The awning features lowered mounting brackets with reduced projection that sit low on the campervan, minimising the height added to your vehicle. This design allows you to fit under parking restriction barriers whilst still providing full 2.20m height underneath when extended. The compact dimensions and automotive-style finishing complement the shape and aesthetics of campervan conversions.

How much coverage does the Fiamma F43van provide?

The F43van is available in two sizes providing different coverage areas. The 270cm model has a case length of 270cm, fabric length of 257cm, and extends 225cm from your vehicle, providing 6.9m² of shade coverage and weighing 19kg. The 300cm model has a case length of 310cm, fabric length of 287cm, and extends 250cm, providing 8.9m² of coverage and weighing 21.5kg. Both sizes open to a maximum height of 2.20m with no downward inclination.

How does the overhand unrolling motion work on the F43van?

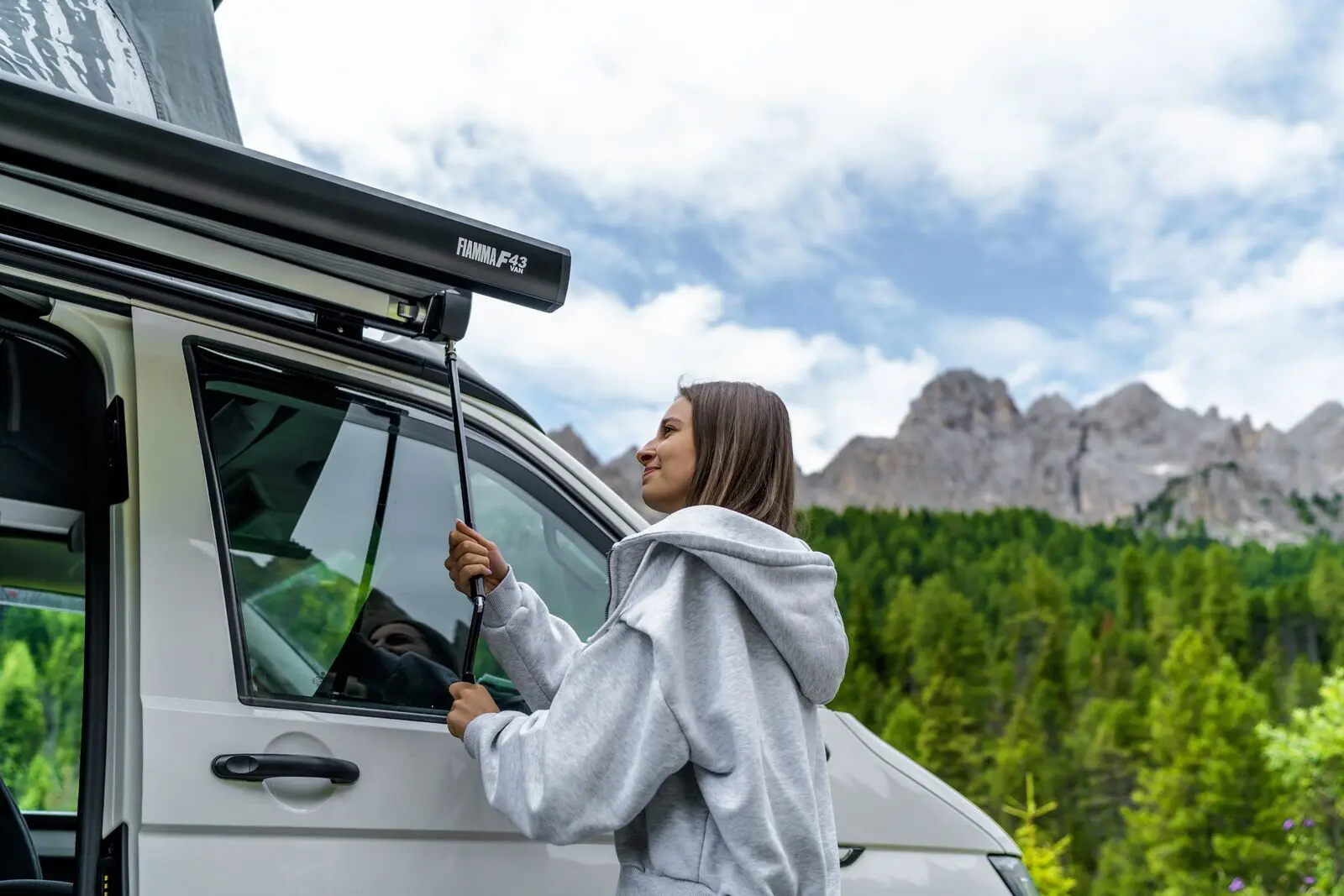

The F43van unrolls in an overhand motion, which means the fabric rolls out over the top of the case box rather than underneath. This unrolling method maintains constant tension on the fabric throughout the extension process, preventing sagging and keeping the canopy taut and secure in all positions. The awning operates via a winding handle with a magnetic catch concealed in the cover, making the opening and closing process smooth and straightforward whilst keeping the fabric perfectly tensioned.

What installation options are available for the F43van?

The F43van comes with standard fixing brackets included for wall mounting through a flat vertical surface on your campervan. For roof installation, optional roof-integrated brackets are available separately. Fiamma produces vehicle-specific fitting kits for different campervan models to ensure proper fitment. The removable fixing brackets make the awning quick to install and uninstall. Professional installation is recommended if you're uncomfortable drilling into your vehicle's bodywork, and most dealers and awning specialists offer fitting services.

Can I attach an enclosure to the Fiamma F43van?

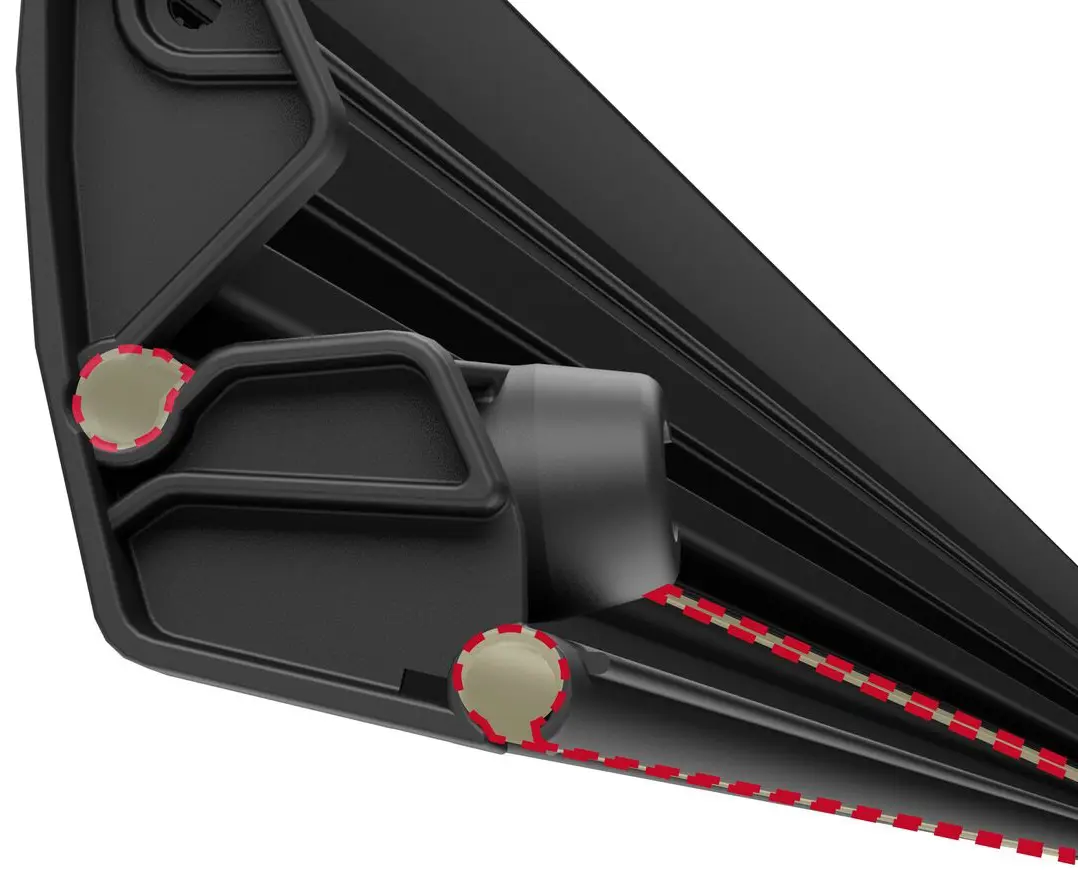

Yes, the F43van features two concealed double guides, one in the front and one in the rear case box, which allow you to attach the Fiamma Room Van Premium enclosure. This enclosure slides into these guide channels to create an enclosed living space underneath your awning. The guides are built into the awning structure, so no additional modifications are needed. The Room Van Premium enclosure is sold separately and provides weather protection and privacy when you need extra living space at your camping location.

What makes the Alu-Lite aluminium construction beneficial?

The Alu-Lite aluminium construction used in the F43van case box provides both extra strength and super-light weight. This combination is particularly important for campervan conversions where payload capacity is limited. The 270cm model weighs only 19kg whilst the 300cm model weighs 21.5kg, minimising the impact on your vehicle's available weight allowance. Despite the lightweight construction, the aluminium provides durability and structural integrity to support the extended canopy in various weather conditions without adding unnecessary weight to your vehicle.

Is the F43van canopy fabric waterproof and UV resistant?

Yes, the Royal Grey canopy fabric is made from waterproof, UV-resistant vinyl material. This multilayer fabric protects against sun damage and repels rainwater to keep you dry underneath. The fabric is also washable, making it easy to maintain and clean after use. The UV resistance prevents the fabric from deteriorating under prolonged sun exposure, whilst the waterproof coating prevents rain from seeping through. This combination of features means the awning provides reliable weather protection throughout camping trips in varying conditions.
