Fiamma Rafter LED CaravanStore - F35

£84.99(inc VAT) £109.99
View delivery optionsView product description
  Product Description

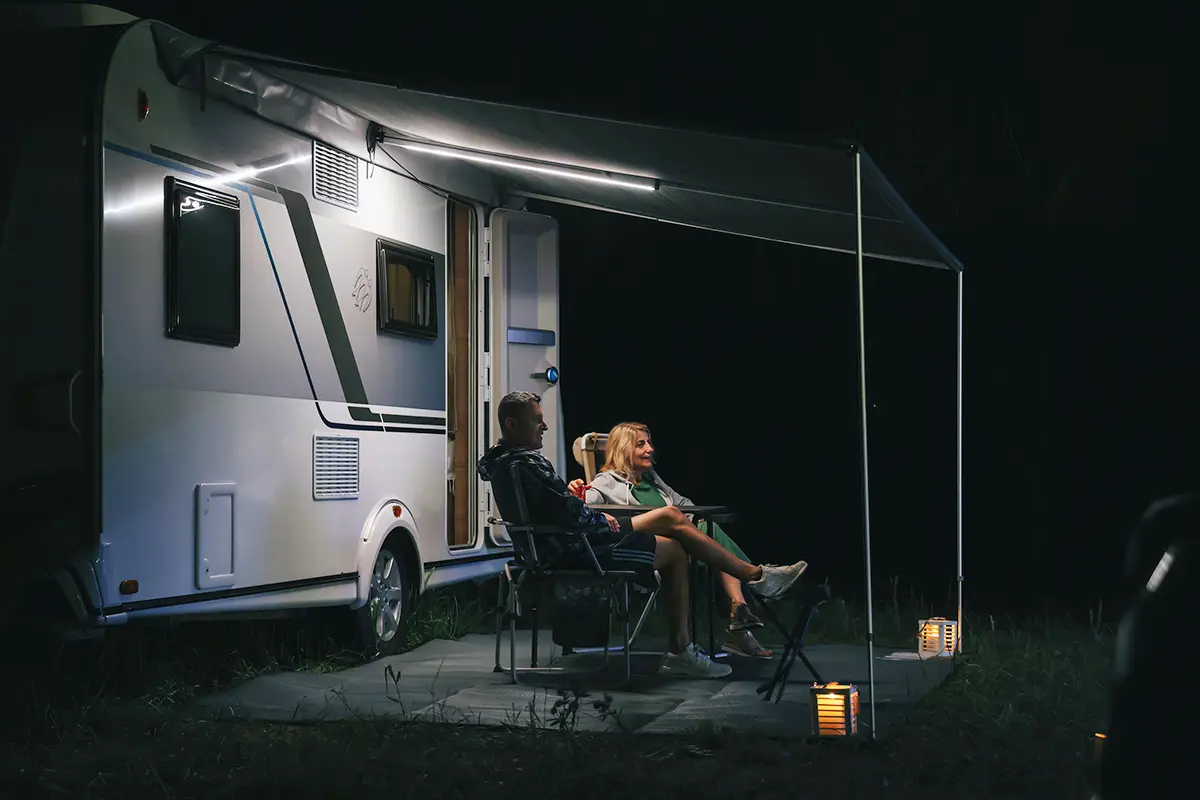

The Fiamma Rafter LED CaravanStore is a purpose-built lighting strip designed to attach directly to the rafter of your Fiamma manual roll-out awning. It features COB (Chip On Board) LED technology, which creates a consistent, homogeneous line of light across the entire 130-232cm adjustable length without any dotted effect. This provides 1228 lumens of neutral white 4000K light to illuminate the space beneath your awning, perfect for evening dining or relaxing outdoors. The strip weighs 1.4kg and comes with a 5-metre cable fitted with a jack connector and cigarette lighter plug for straightforward 12V connection.

How does the Fiamma Rafter LED connect to my caravan's power system?

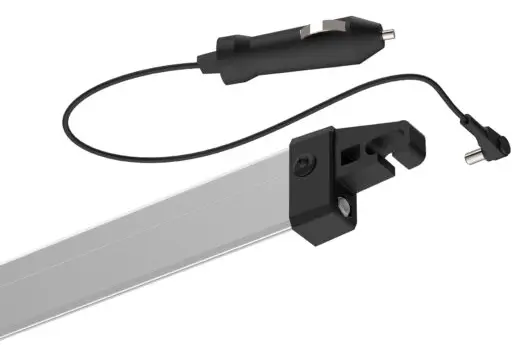

The Rafter LED plugs directly into your standard 12V cigarette lighter socket using the supplied jack connector and 5-metre cable. This means there's no complicated wiring or permanent installation required. You simply clip the LED strip to your awning's rafter, run the cable to your vehicle, and plug it in when you need light.

Installation takes minutes thanks to the clip-on attachment system designed specifically for CaravanStore, CaravanStore ZIP, CaravanStore Evo, CaravanStore ZIP Evo, and F35 Pro awnings. The 120-degree light cone angle ensures wide, even coverage across your awning area. With an IP65 rating, the unit is protected against dust and water jets, making it suitable for typical outdoor conditions. The unit draws 13W at 1.25A, so it's efficient to run from your leisure battery without draining power quickly.

Fiamma Rafter LED CaravanStore - F35 Features


LED Colour: Neutral white
Tone: 4000° k
Light Cone Angle: 120°
Lumen: 1228
N° LED: COB
Feeding tension: 12 V
Absorbed power: 13 W
Electric input: 1.25 A
IP degree of protection: IP 65
Weight: 1.4kg

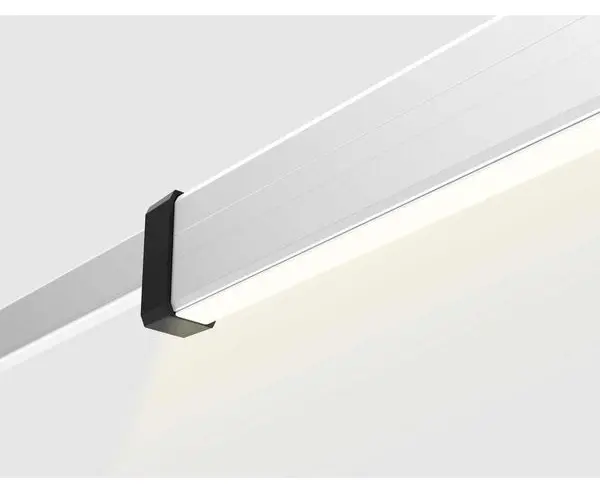

* COB = Chip On Board. COB LED strips are LED strips that create homogeneous lines of light without the classic dotted effect

Suitable for:
  • CaravanStore
  • CaravanStore ZIP
  • CaravanStore Evo
  • CaravanStore Evo ZIP
  • F35 Pro
  • F35


Frequently Asked Questions

Which Fiamma awnings is the Rafter LED CaravanStore compatible with?
The Rafter LED is designed specifically for Fiamma manual roll-out awnings including CaravanStore, CaravanStore ZIP, CaravanStore Evo, CaravanStore ZIP Evo, and F35 Pro models. It clips directly onto the awning rafter and adjusts from 130cm to 232cm to fit different awning lengths. This LED strip will not fit Fiamma F45, F65, or F80 box awnings as they have different rafter profiles and mounting systems.
What does COB LED technology mean for awning lighting?
COB stands for Chip On Board, which means multiple LED chips are packaged closely together on a single circuit board to create a continuous line of light. Unlike traditional LED strips that produce individual dots of light with visible gaps, COB technology delivers smooth, homogeneous illumination without the dotted effect. This results in more even light distribution across your awning area with better coverage and fewer shadows.
How much power does the Fiamma Rafter LED draw from my leisure battery?
The Rafter LED draws 13W at 1.25A from your 12V system. To put this in context, if you have a 100Ah leisure battery, you could run this light for approximately 80 hours before fully draining the battery. In practical terms, running it for 3-4 hours each evening uses around 4-5Ah per night, which is a modest draw that most caravan and motorhome electrical systems handle comfortably alongside other typical appliances.
Is the 5-metre cable long enough to reach from the awning to my vehicle?
The 5-metre cable is typically sufficient for most caravan and motorhome setups where the awning extends from the side of the vehicle and the cigarette lighter socket is located inside the habitation area or cab. For larger motorhomes or caravans where the socket is positioned further away, you may need to use a 12V extension cable. The cable terminates in a standard jack connector and cigarette lighter plug, making it straightforward to extend if needed using compatible 12V extension leads.
What colour temperature is 4000K and why is it used for awning lights?
4000K produces a neutral white light that sits between warm white (2700-3000K) and cool white (5000-6500K). This colour temperature is chosen for outdoor awning lighting because it provides good colour rendering for activities like reading, cooking, and dining while remaining comfortable for relaxing in the evening. It offers better visibility than warm white without the harsh, clinical feel of cool white, making it a practical middle ground for caravan and motorhome outdoor living spaces.
EAN-13 : 8004815447878
