Fiamma Rafter LED Van

Name: Fiamma Rafter LED Van
Brand: Fiamma
SKU: 296748
Price: 85.99 GBP
Availability: InStock

Product Ref: 296748
Fiamma Code : 98655A134

£85.99(inc VAT) £113.99Product Ref: 296748
Fiamma Code : 98655A134

View delivery optionsView product description

Delivery : £9.99
Loading stock details...

Seen this product cheaper? We will do our best to match it!

Click Here

Product Description

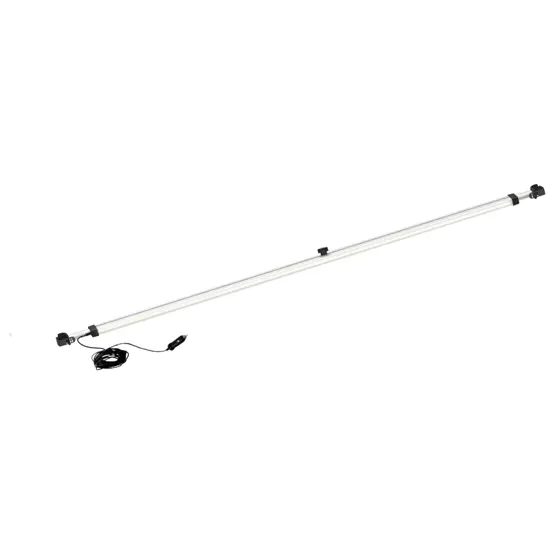

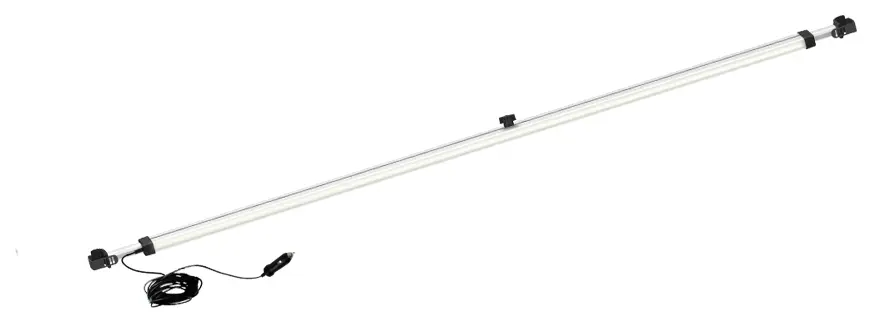

The Fiamma Rafter LED Van is an LED light strip designed for motorhome owners with Fiamma F43van 270, F40van, and F45s 260 awnings. This rafter-mounted lighting system uses COB (Chip On Board) LED technology to produce 1228 lumens of neutral white 4000K light, giving you bright, even illumination underneath your awning when you're camping. The strip extends from 130cm to 232cm, weighs 1.4kg, and operates on 12V power drawing just 13W, making it an efficient lighting solution for evening outdoor living.

How does the Fiamma Rafter LED attach to my motorhome awning?

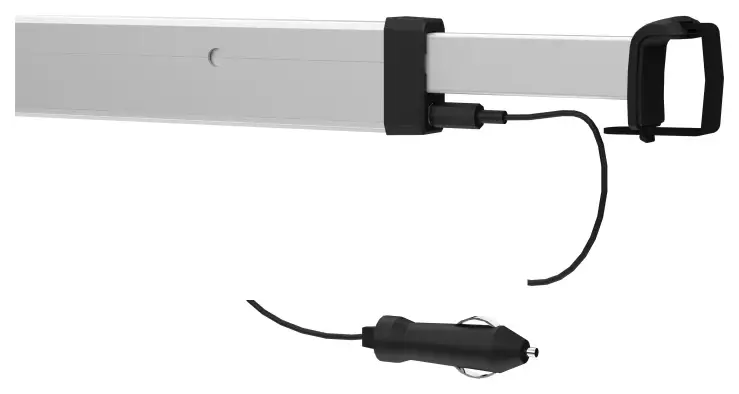

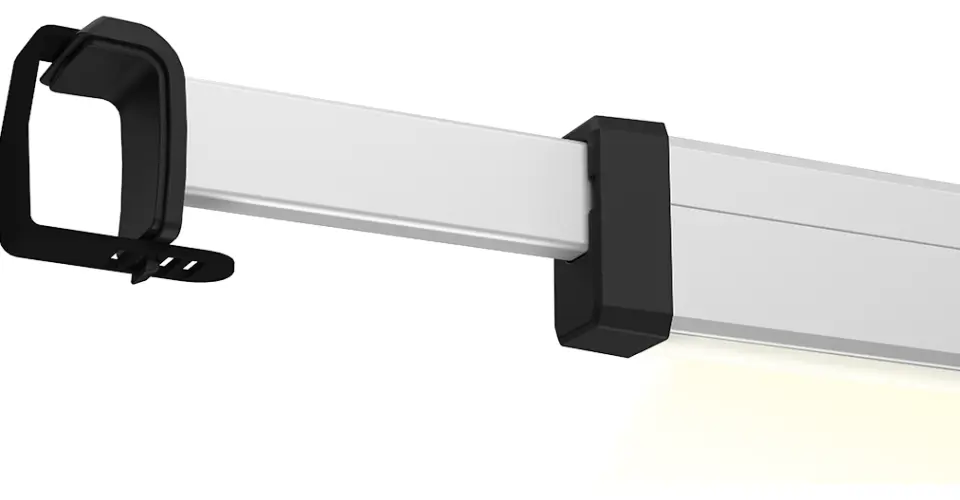

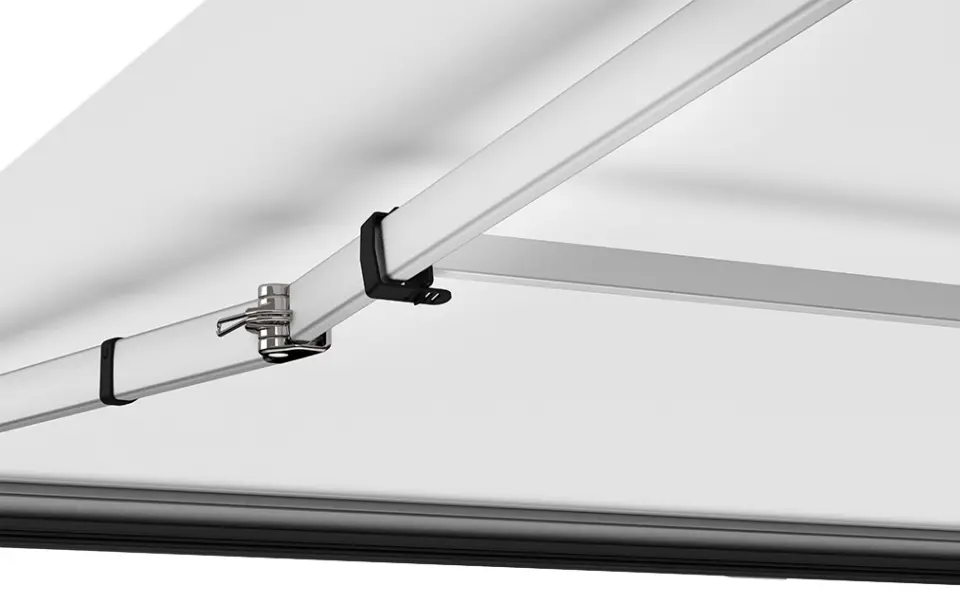

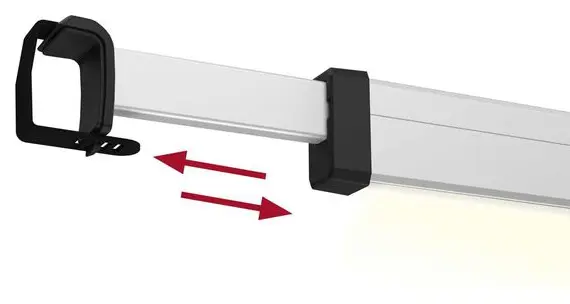

The Fiamma Rafter LED Van clips directly onto the arms (rafters) of your Fiamma awning, keeping the fabric taut and the light strip securely positioned. It comes supplied with a 5-metre cable and plug that connects to your motorhome's 12V cigarette lighter socket, so installation is straightforward without permanent wiring. The telescopic design adjusts between 130cm and 232cm to fit your awning width perfectly.

COB LED technology means this strip produces a continuous line of light rather than the dotted appearance you get with traditional LED strips. The 120-degree light cone angle spreads illumination widely across the space beneath your awning, and with IP65 protection, the unit is dustproof and protected against water jets, so it holds up well in typical British weather. The 4000K colour temperature produces a neutral white light that's comfortable for reading, cooking, and socialising outdoors. At 13W power consumption and 1.25A draw, you'll get plenty of use from your leisure battery before needing to recharge.

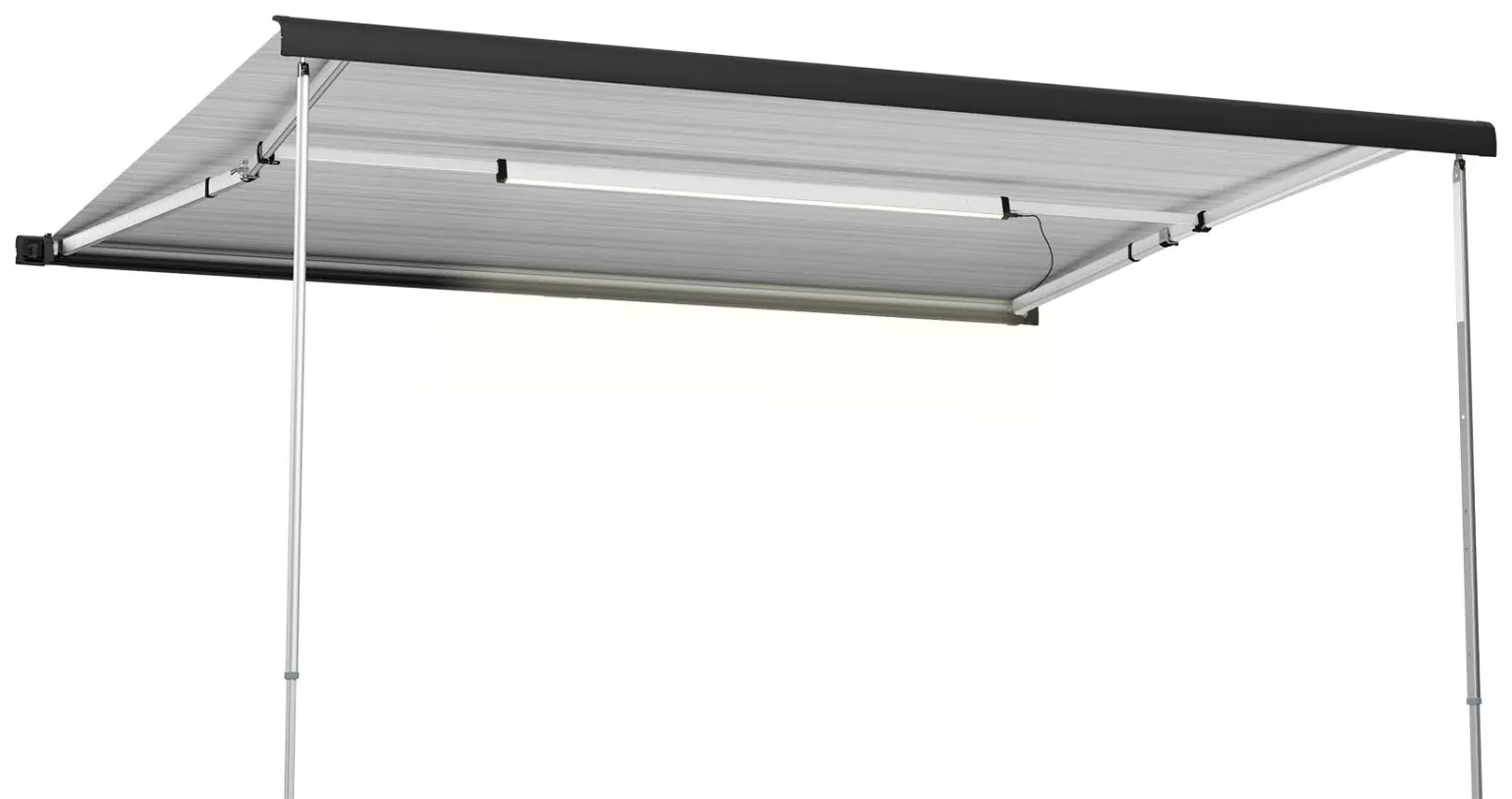

This LED strip is specifically engineered for the Fiamma F43van 270, F40van, and F45s 260 awning models. The rafter mounting system keeps the lighting integrated with your awning setup rather than having separate stands or poles cluttering your pitch. With LEDs rated for over 25,000 hours of use, this lighting system provides years of reliable service for motorhome trips, whether you're weekend camping or extended touring across the UK and Europe.

Fiamma Rafter LED Van Features

LED Colour: Neutral white
Tone: 4000° k
Light Cone Angle:120°
Lumen: 1228
N° LED: COB
Feeding tension: 12 V
Absorbed power: 13 W
Electric input: 1.25 A
IP degree of protection: IP65
Weight: 1.4kg

*Chip On Board: LED strips that create homogeneous lines of light without the classic dotted effect.

Suitable for:
F43van 270
F40van and F45s 260.

Frequently Asked Questions

Which Fiamma awning models is the Rafter LED Van compatible with?

The Fiamma Rafter LED Van (Item 98655A134) is designed specifically for three Fiamma awning models: the F43van 270, F40van, and F45s 260. These are compact awnings typically fitted to campervans and smaller motorhomes. The rafter arms on these models provide the mounting points for the LED strip, and the adjustable 130-232cm length accommodates the standard widths of these awning types. This LED strip will not fit other Fiamma awning series such as the F80s or F65L, which require different LED light kits.

What does COB LED technology mean for awning lighting?

COB stands for Chip On Board, a LED technology where multiple LED chips are packaged together on a single circuit board to create a continuous light source. For motorhome awning lighting, COB LEDs produce a smooth, homogeneous line of light without the dotted or spotty appearance of traditional LED strips where individual bulbs are visible. This creates more uniform illumination underneath your awning with fewer shadows and more pleasant lighting for outdoor living. COB LEDs also typically generate better light output per watt compared to standard LEDs.

How much power does the Fiamma Rafter LED draw from a leisure battery?

The Fiamma Rafter LED Van operates at 12V and draws 13W of power (1.25A). This means running the light for one hour uses approximately 1.08 amp-hours from your leisure battery. A typical 100Ah leisure battery at 50% discharge capacity could run this LED strip for around 46 hours continuously, though in practice you would use it for a few hours each evening. The low power consumption makes it suitable for wild camping and off-grid situations where you need to manage battery capacity carefully. Compared to older halogen awning lights that drew 35-50W, the LED technology offers significant power savings.

Is 1228 lumens bright enough for cooking and reading under an awning?

Yes, 1228 lumens spread across a 270cm awning provides adequate illumination for typical camping activities including cooking, eating, and reading. For comparison, a standard 60W incandescent bulb produces around 800 lumens in a single point, while this LED strip distributes 1228 lumens along the entire awning width with a 120-degree beam angle, creating broader, more even coverage. The 4000K neutral white colour temperature is comfortable for tasks requiring good visibility. Many motorhome owners find this brightness level sufficient for main awning lighting, though some supplement with small task lights for detailed work like food preparation.

Can the Fiamma Rafter LED be left attached when packing the awning away?

No, the Fiamma Rafter LED Van should be removed before retracting your awning. The LED strip attaches to the rafter arms that support the awning fabric, and these arms fold back into the awning cassette when you pack it away. You need to detach the LED strip and disconnect the power cable before rolling up the awning. The attachment system is designed for quick removal and reattachment, so this process takes less than a minute once you're familiar with it. Store the LED strip inside your motorhome during transit to protect it from road vibration and weather exposure.

What does IP65 rating mean for outdoor motorhome lighting?

IP65 is an Ingress Protection rating that indicates the Fiamma Rafter LED is completely dust-tight (the 6) and protected against water jets from any direction (the 5). In practical terms, this means the LED strip handles typical camping weather including rain and splashes, though it is not designed for submersion in water. The IP65 rating makes the unit suitable for outdoor use under an awning where it might encounter rain blown by wind, spray from cleaning, or moisture from d level is standard for quality outdoor motorhome lighting and provides reliable performance in UK and European weather conditions.

EAN-13 : 8004815453503
