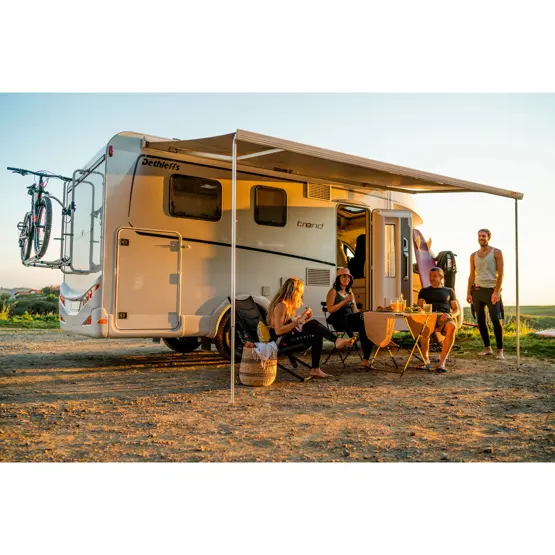

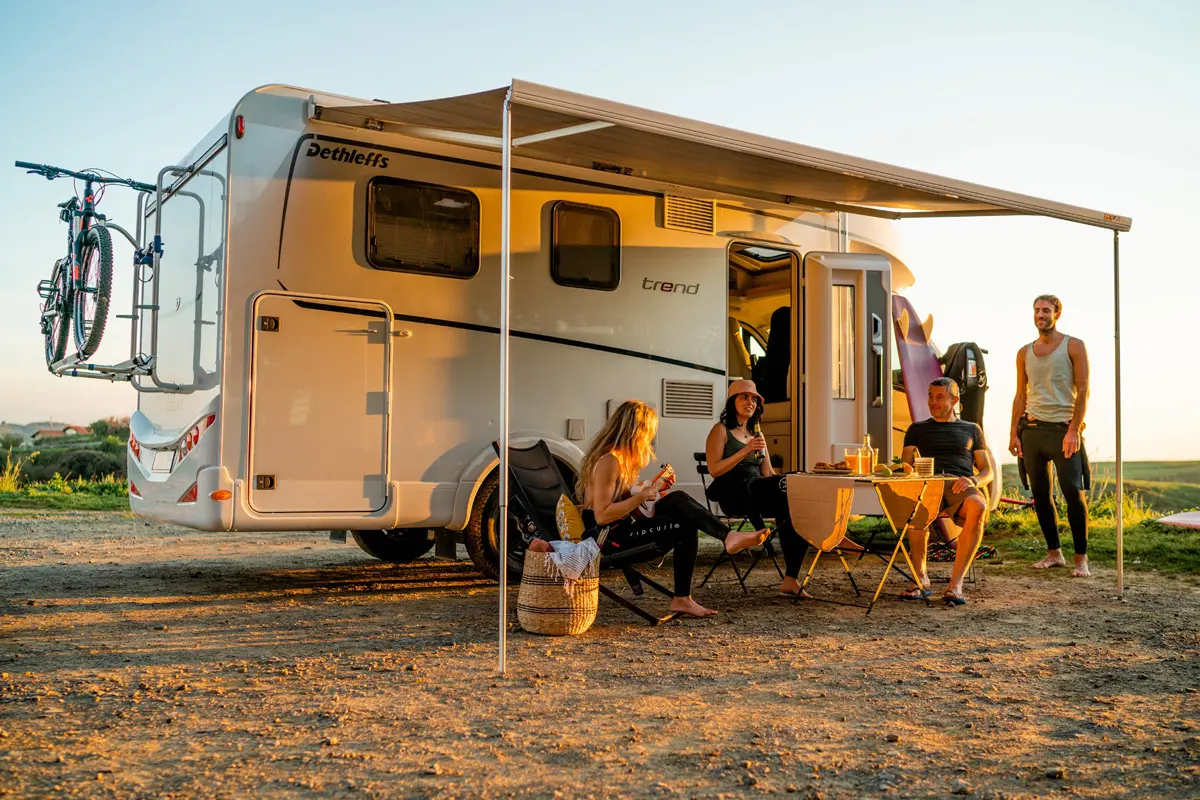

The Fiamma F45S is a wall-mounted winch awning designed for motorhomes, campervans and caravans. Operating with a simple crank handle, it extends up to 2.5 metres to create instant shade and shelter alongside your vehicle. The aluminium case houses reinforced articulated arms with dual steel cables that maintain fabric tension up to 32kg, whilst drop-down telescopic legs fold neatly inside when not in use. Available in nine sizes from 1.9 metres to 4.5 metres case length, with three case colours (Polar White, Titanium, Deep Black) and Royal Grey or Royal Blue waterproof vinyl canopy, the F45S delivers versatile protection for leisure vehicle users.
How does the Fiamma F45S compare to roof-mounted awnings for campervans?
The F45S mounts to vertical surfaces like vehicle walls or roof rack sides, making it compatible with Transit, Sprinter and Promaster vans that already have roof racks fitted. This side-mount design preserves roof space for solar panels whilst avoiding the curved rooflines that prevent roof-mounted installations on some Ford Transit models. The three-piece standard bracket system allows bolt-through-wall fitting on coach-built motorhomes, with over 90 specialist adapter kits available for Fiat Ducato-based vehicles and other van conversions.
Installation brackets come as standard with each awning, though vehicle-specific adapters ensure proper weight distribution across mounting points. The winch mechanism features Fiamma's Auto-Lock safety system for silent operation and Dual Security indicators at both ends to confirm the lead bar has closed correctly before travel. Presto Fix adjustment wheels inside the case allow fine-tuning to maintain perfect closing alignment over time. Optional motorisation adds approximately 130mm to case length, with LED lighting strips available that slot into the lower case housing rail. The F45S range suits wheelbase configurations from short-wheelbase campervans requiring 2.6-metre models through to extended Sprinter 170" vans needing 4-metre coverage.
The Fiamma F45S wind-out awning is the most popular box-style awning in Europe. It has a great heritage, is continually improved and have a huge range of accessories and features due to a years of innovation. The easy-to-use and simple to install awning which joins todays best technologies, service and quality. Constantly renewed, the Fiamma F45s awning is compact and functional, making it the best choice for your holidays.

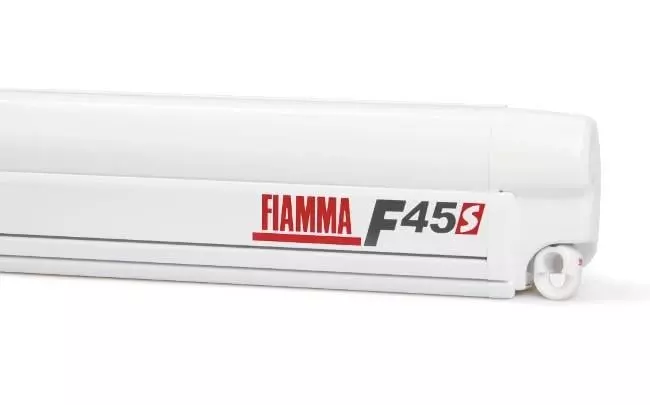

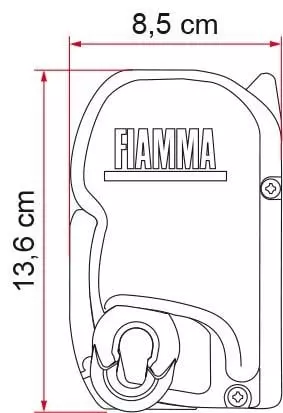

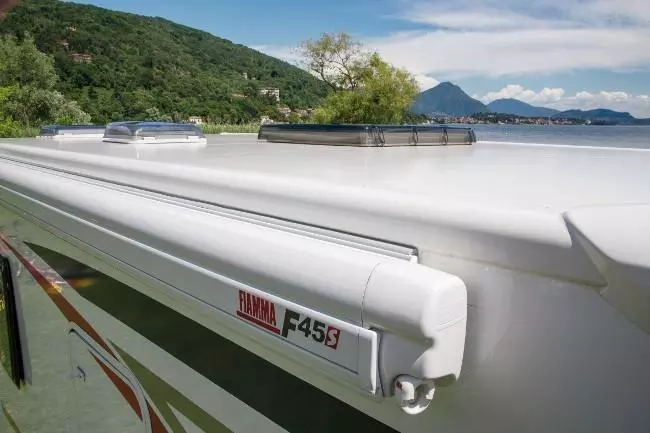

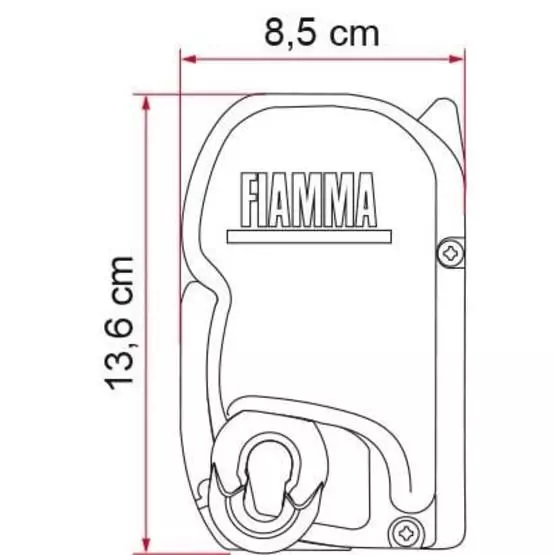

When not in use, the F45s takes up little space while snuggly enclosed in its aluminium case. It is sturdy and safe to operate, with an easy-to-hook winch loop. The F45S has automatically extending arms and all but the 190 have drop-down legs which all fold back into the strong aluminium case. F45S Awning box size 13.6 x 8.5cm and legs are thinner and the roller tube is smaller than the F45L which has awning Box size 16.1 x 9.7cm legs are wider and the roller tube is thicker.
What comes as standard with the Fiamma F45S?
- 1 x F45S awning

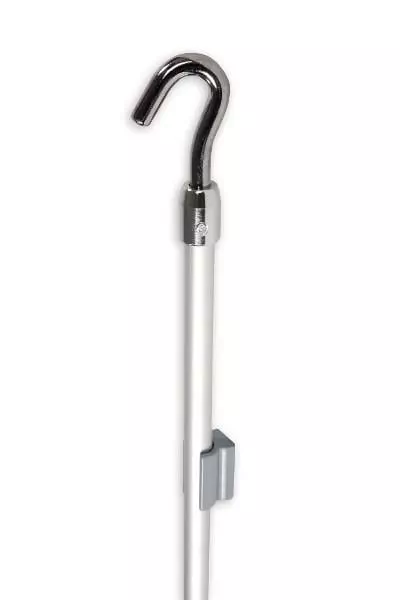

- 1 x Winding Handle
- 4 x ground pegs
- Awning Leg wall support kit
- Fiamma Rafter included with 400 and 450 lengths only
- Standard Installation Kit dependent on awning length
- Awning Length 190 to 230: 2 x 120mm brackets
- Awning Length 260 to 400: 2 x 120mm brackets, 1 x 80mm bracket
- Awning Length 450: 2 x 400mm brackets, 1 x 120mm bracket
To find the specific bracket for your vehicle:
ADVANTAGES & FEATURES
- Wide Choice: three finishes of case box and eight fabric colours to choose from, lengths from 190 to 450cm.
- Accessories: a wide range of accessories are available to further increase the comfort
- Installation Brackets: standard adapters (provided with the awning) and more than 90 personalized brackets enable the mounting on special profiles
- LED: many models and LED solutions to illuminate evenings under the awning
- Double Guide: double guide on the lead bar allowing the installation of two front panels

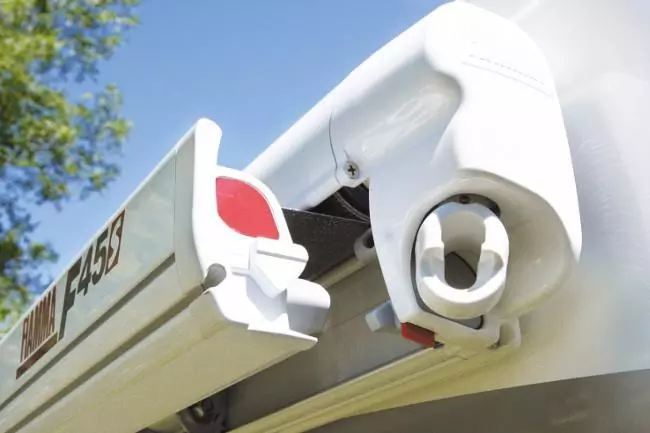

- Perfect Closing: fast and silent opening and closing thanks to the Auto-Lock safety system and perfect closing thanks to Dual Security device. The F45S Dual Security device has indicators at both ends of the casing to confirm that the awning has been closed properly before travelling.
- Presto Fix: this patented piece of innovation is an adjusting system that enables you to gauge the closing of the lead bar to guarantee a perfect closing over time. This is especially useful if the awning has been out for a long period and the tension in the fabric has changed slightly.
- One Way Roll: rolling the fabric only in the correct direction, thanks to Fiamma's patented system. Some competitors allow the fabric to be rolled both ways around the roller tube which can cause problems. This system prevents that happening to ensure exact closing every time.
- Dual Shock Absorber: patented shock absorbing bracket with dual bolt system to protect the awning and the vehicle during bad weather

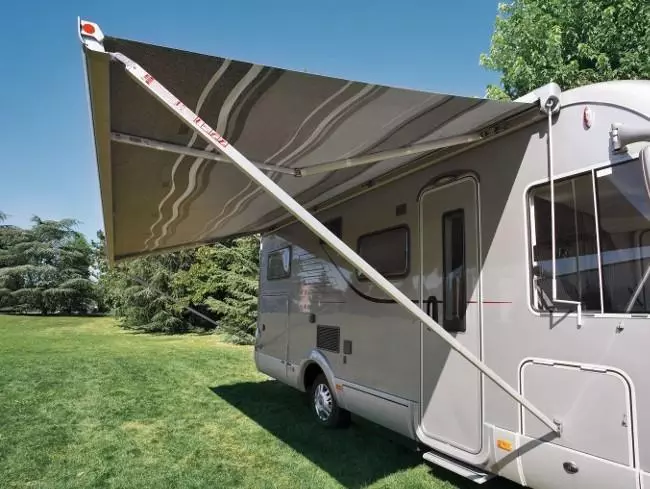

- Extra Strong Arms: strong reinforced articulated arms with double steel cable that allows you to maintain an optimal fabric tension

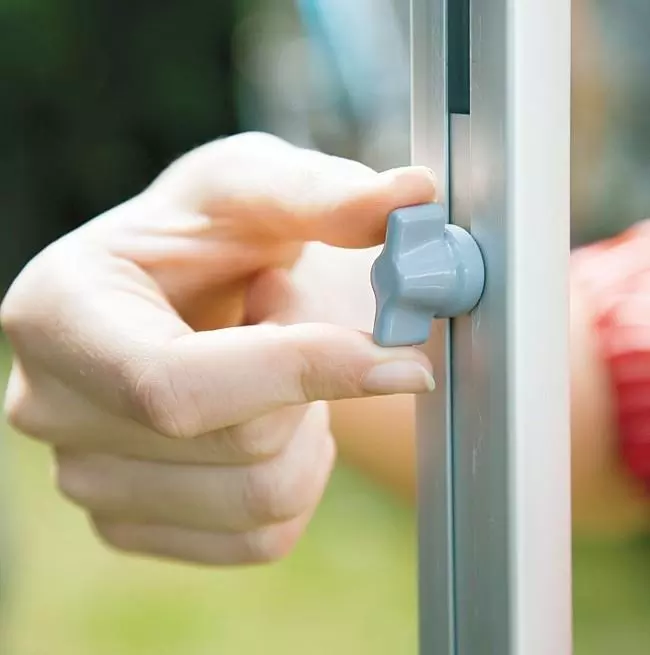

- Secure Lock: the legs can be fixed to the ground or to the wall and the height of the lead bar can be adjusted with a telescopic safe and practical system
- Manual winch opening and closing
- Optional electric motor
- Wall installation with standard brackets included
- Designed specificity for VW campervans

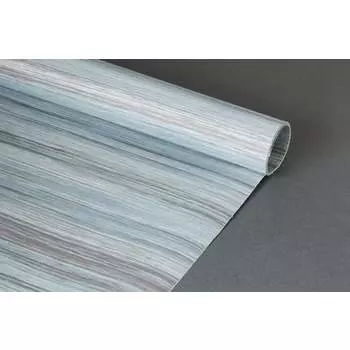

Multi-Layer Canopy FabricThe F45S features washable, multi-layered vinyl fabric with UV-resistant properties that reflect heat in warm climates whilst resisting colour fade. Flame-retardant construction with seamless design delivers enhanced tear resistance against sudden wind gusts. The rot-proof canopy allows temporary wet storage, though airing within 12 hours prevents moisture staining. Available in Royal Grey or Royal Blue finish.

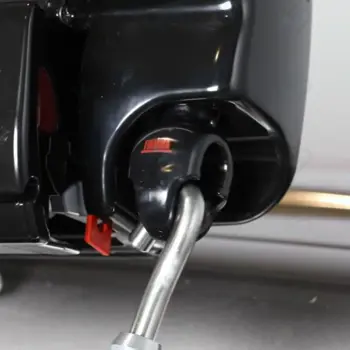

Auto-Lock Silent OperationSilent winch mechanism uses Auto-Lock self-locking system with aluminium mechanical components for smooth, quiet deployment. The system eliminates the noisy hook-and-release mechanisms found in competing awnings, delivering reliable operation over extended service life. Red security flags retract when properly closed, providing clear visual confirmation the awning is secured before travel.

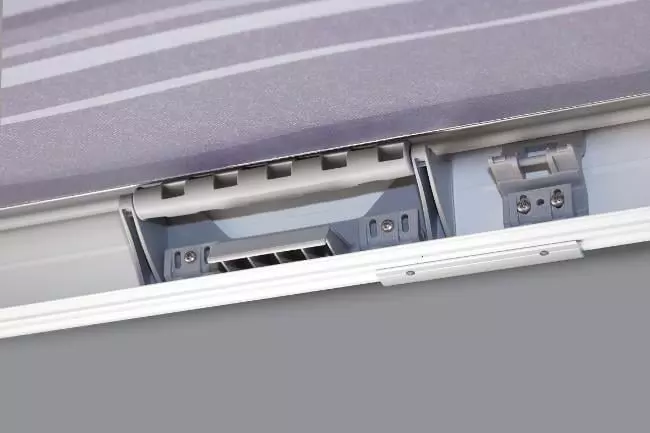

Presto Fix Adjustment SystemPatented adjustment wheels inside the awning case allow fine-tuning of lead bar closing alignment as fabric tension changes over time. The system compensates for natural settling in canopy material and arm cables, maintaining perfect closure throughout the awning's lifespan. Adjustment requires no tools and takes minutes to restore factory-fresh closing performance.

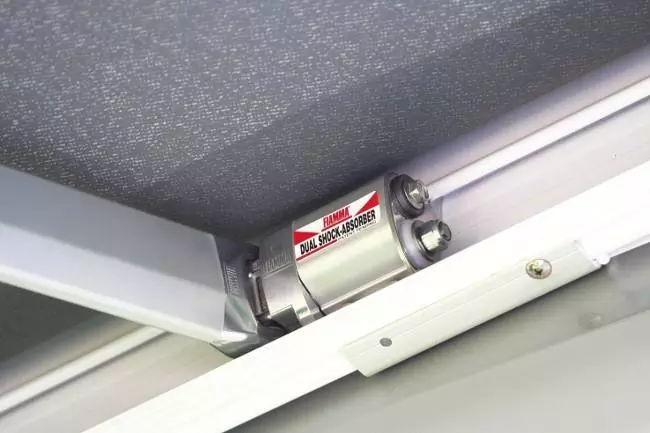

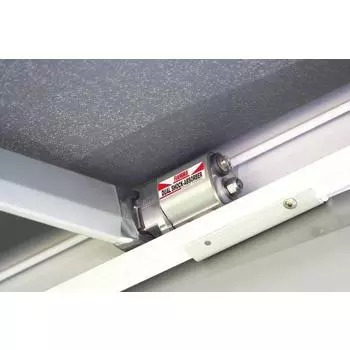

Dual Shock Absorber SystemPatented dual-bolt shock absorbing brackets protect both awning and vehicle by dissipating vibration and wind impact forces. The system prevents stress transfer to mounting points and vehicle walls during travel or adverse weather, extending component life whilst safeguarding bodywork integrity.

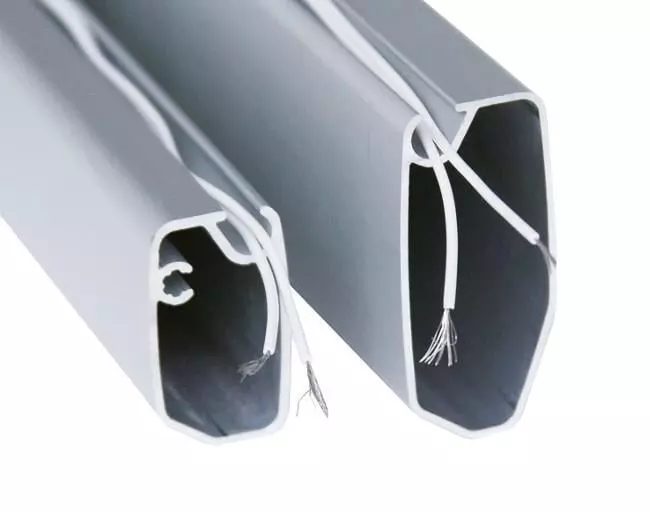

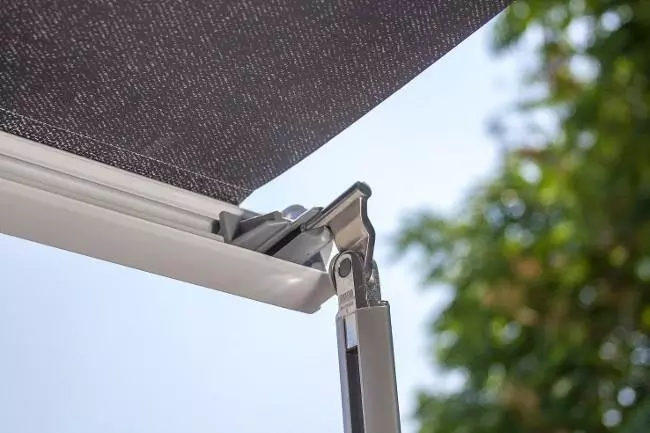

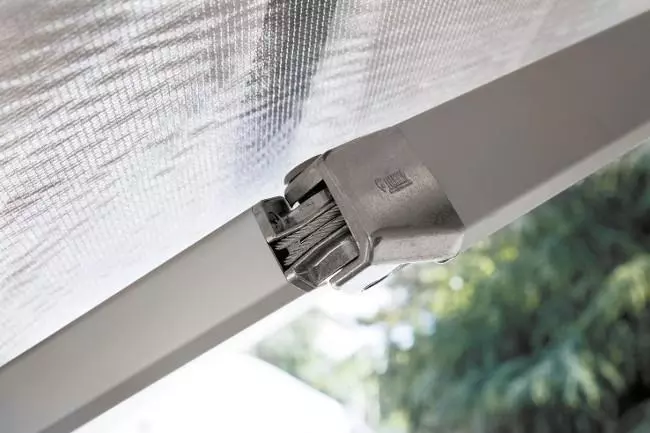

Reinforced Articulated ArmsHeavy-duty arms feature twin 3.5mm steel cables maintaining fabric tension up to 32kg. Proof-tested through 10,000+ opening and closing cycles, the reinforced articulation delivers long-term reliability under repeated use. Compact folding design stores arms within case profile when retracted.

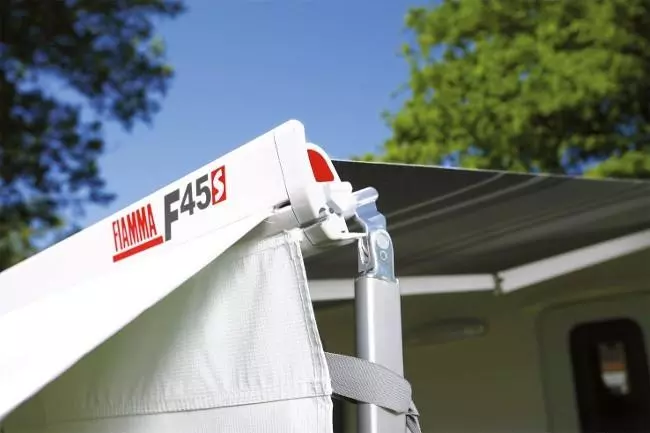

Double Guide Lead BarTwin guide channels on the lead bar accept two accessories simultaneously, allowing front panels and side screens to be fitted together. The dual-groove system provides versatility for mixing blocker panels with Privacy Room attachments or combining shade panels with LED lighting rafters.
Years of development has gone into the canopy used by all Fiamma F45s awnings. The latest fabric is washable, multi-layered abrasion resistant, flame retardant and has the same pattern on both sides. The UV properties of the fabric makes it resistant to fading caused by the sun and its reflective nature enables it to stay relatively cool even in warmer climates.
There are no seams on the fabric which makes it far stronger and more resistant to tears caused by strong sudden winds. The F45S canopy is also rot-proof so you can even pack it away when it is wet. We do however recommend that you air the fabric as soon as you can.
SELECTION GUIDE
- VEHICLE: Perfect for any vehicle from large motorhomes to camper vans.
- OPERATION: Winch opening and closing. Operation by handle. Electric motor optional.
- POSITION: Designed for wall installation. Delivered with standard installation brackets. Special adapters optional available.

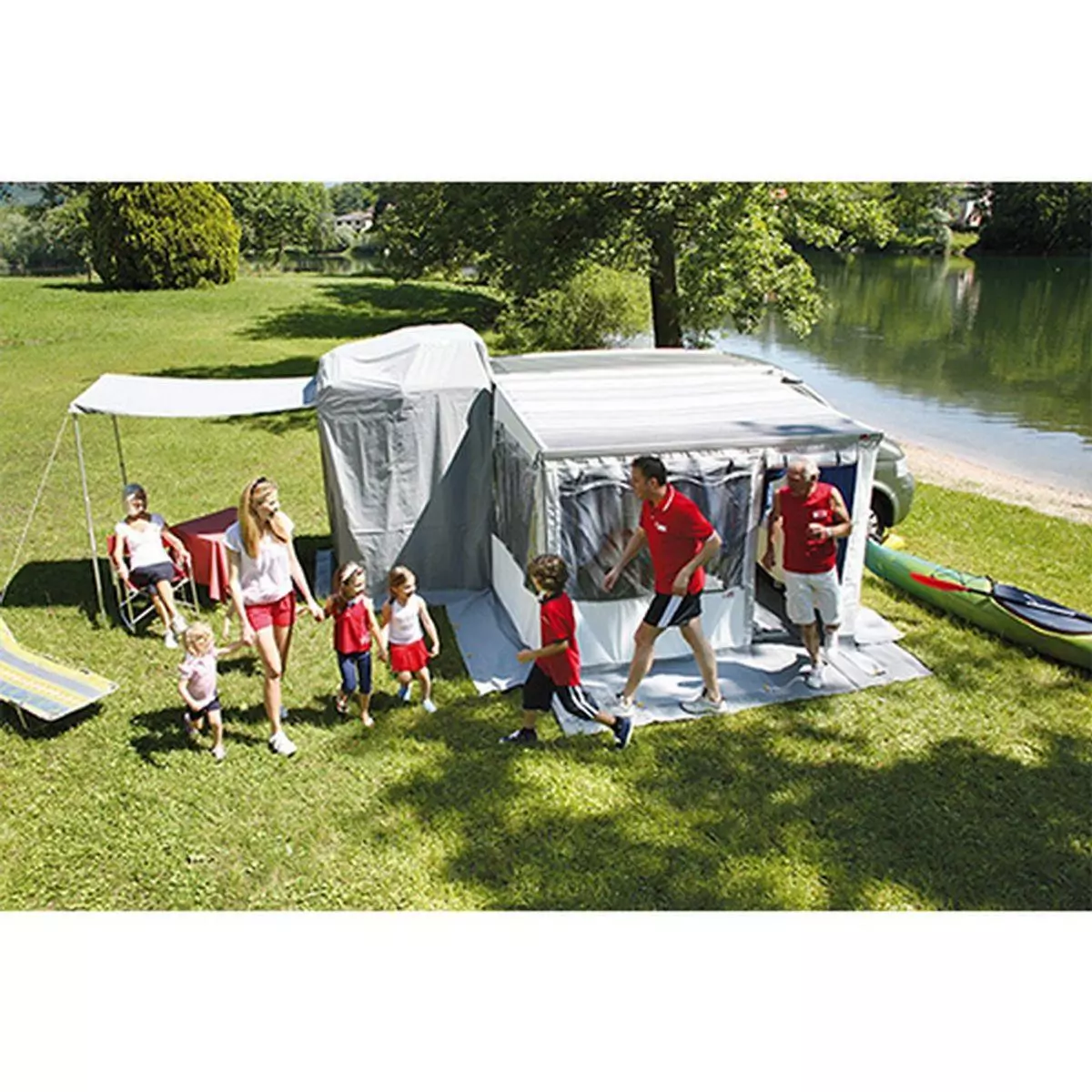

- AWNING ENCLOSURE: Optional Privacy Ultra-Light, Privacy Room, Privacy Room Light, Blocker and Side.

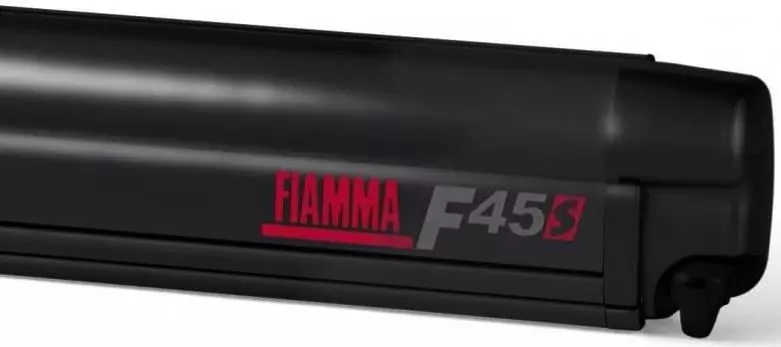

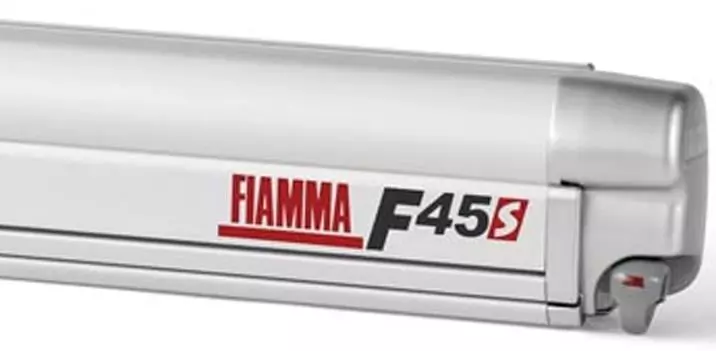

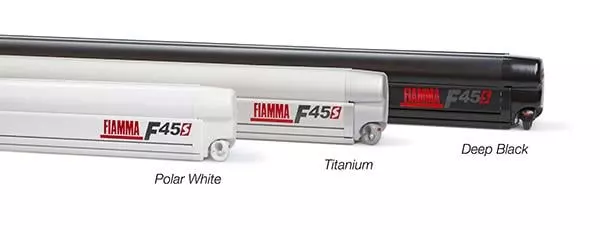

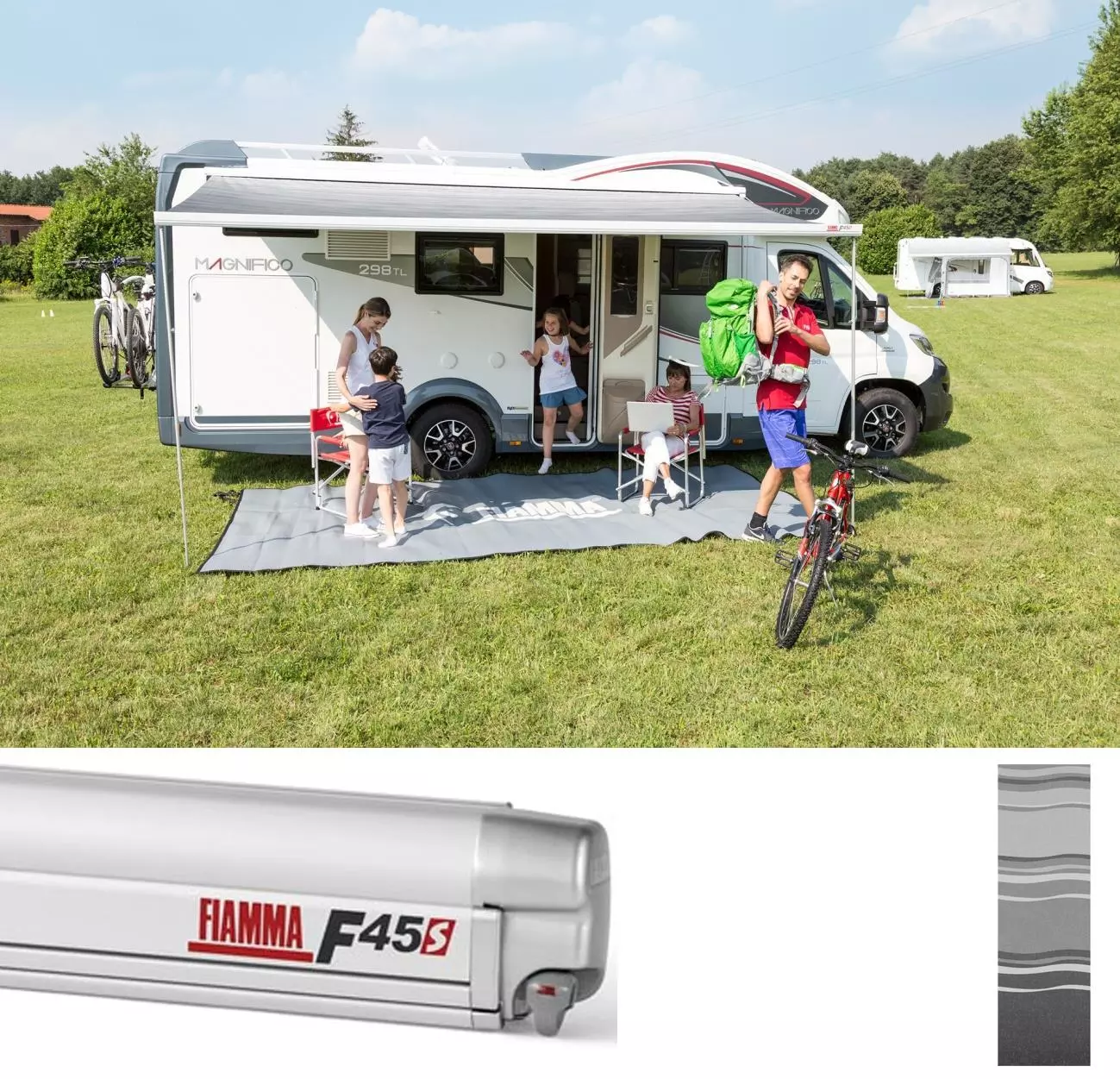

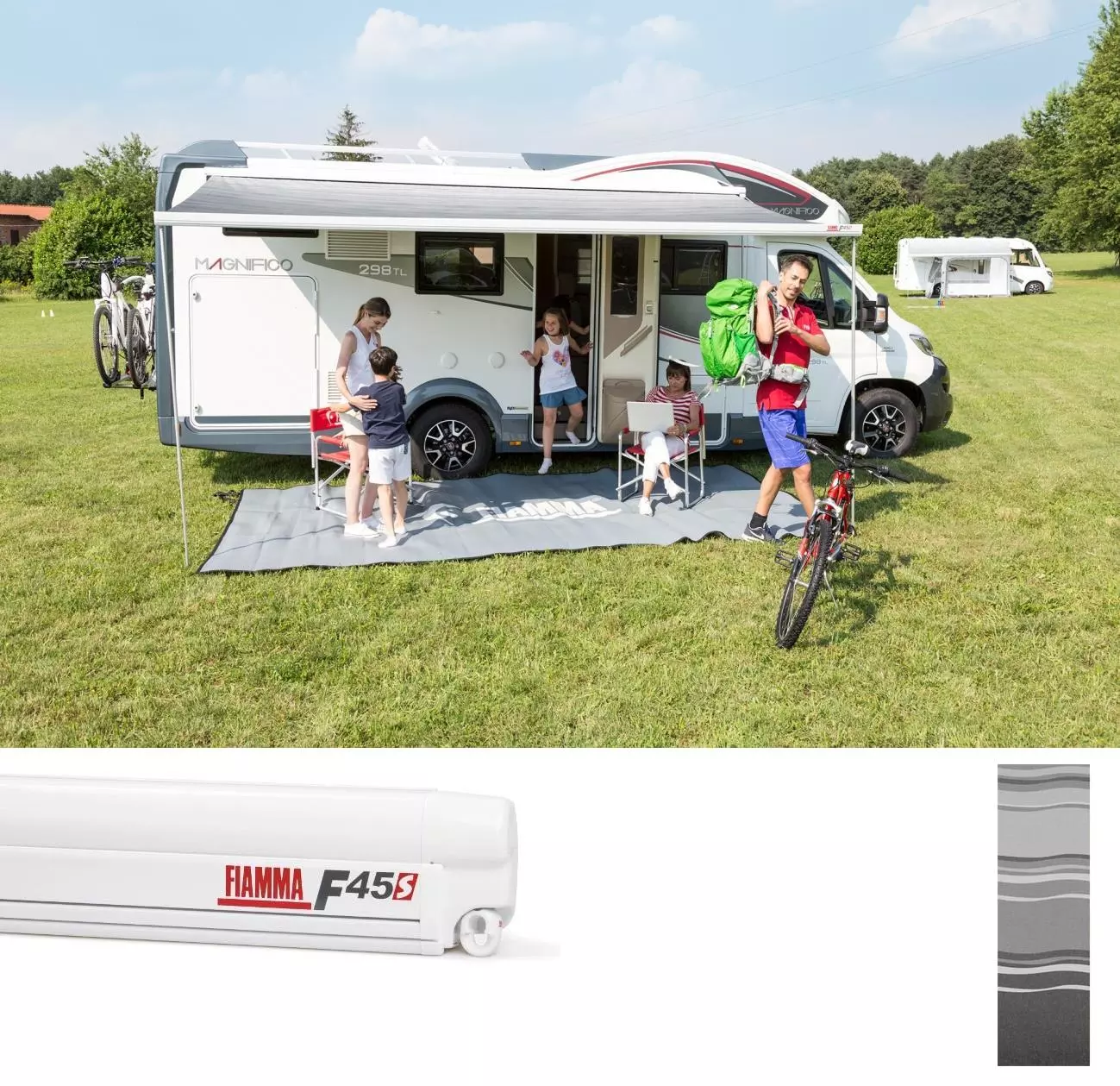

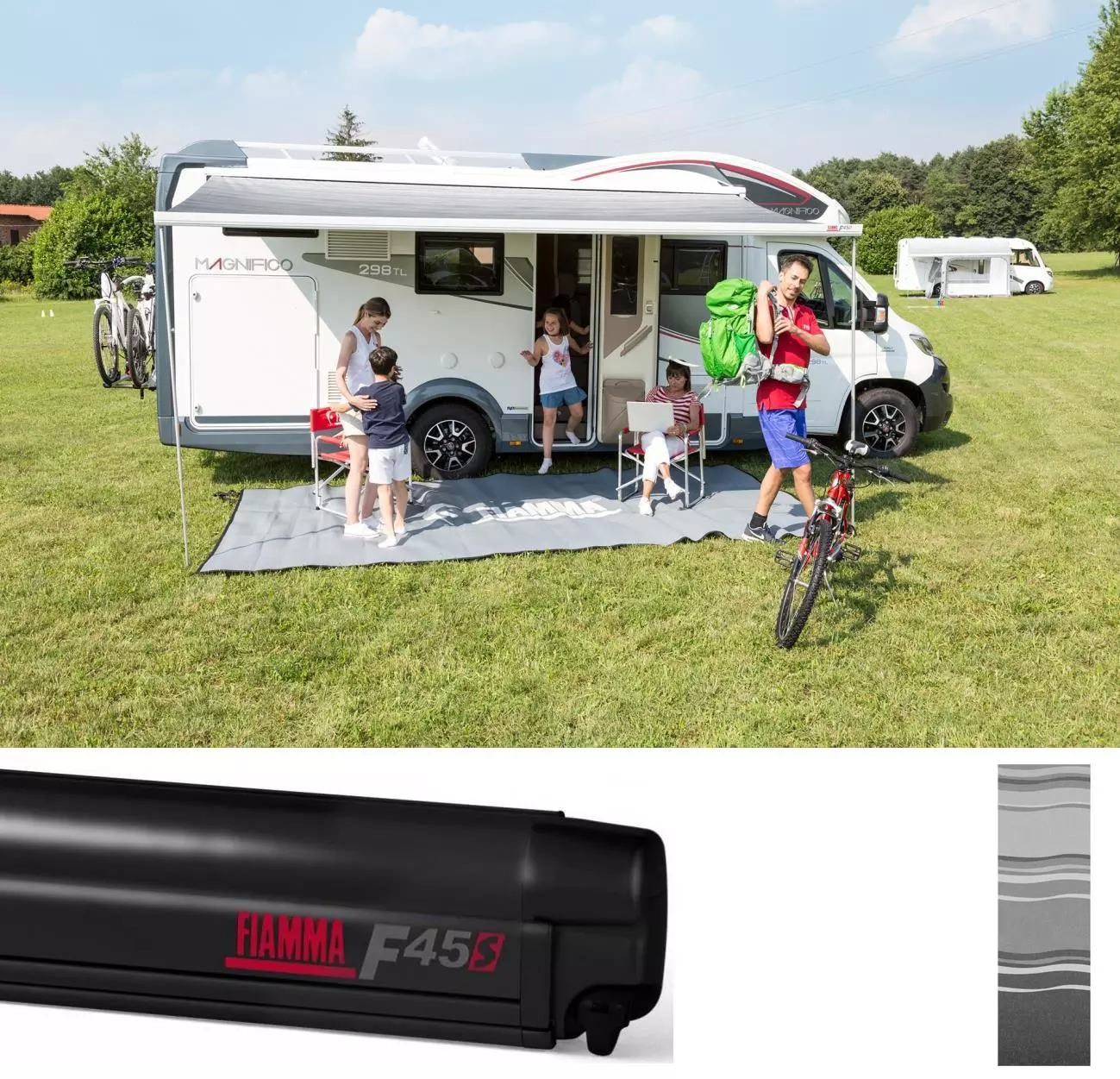

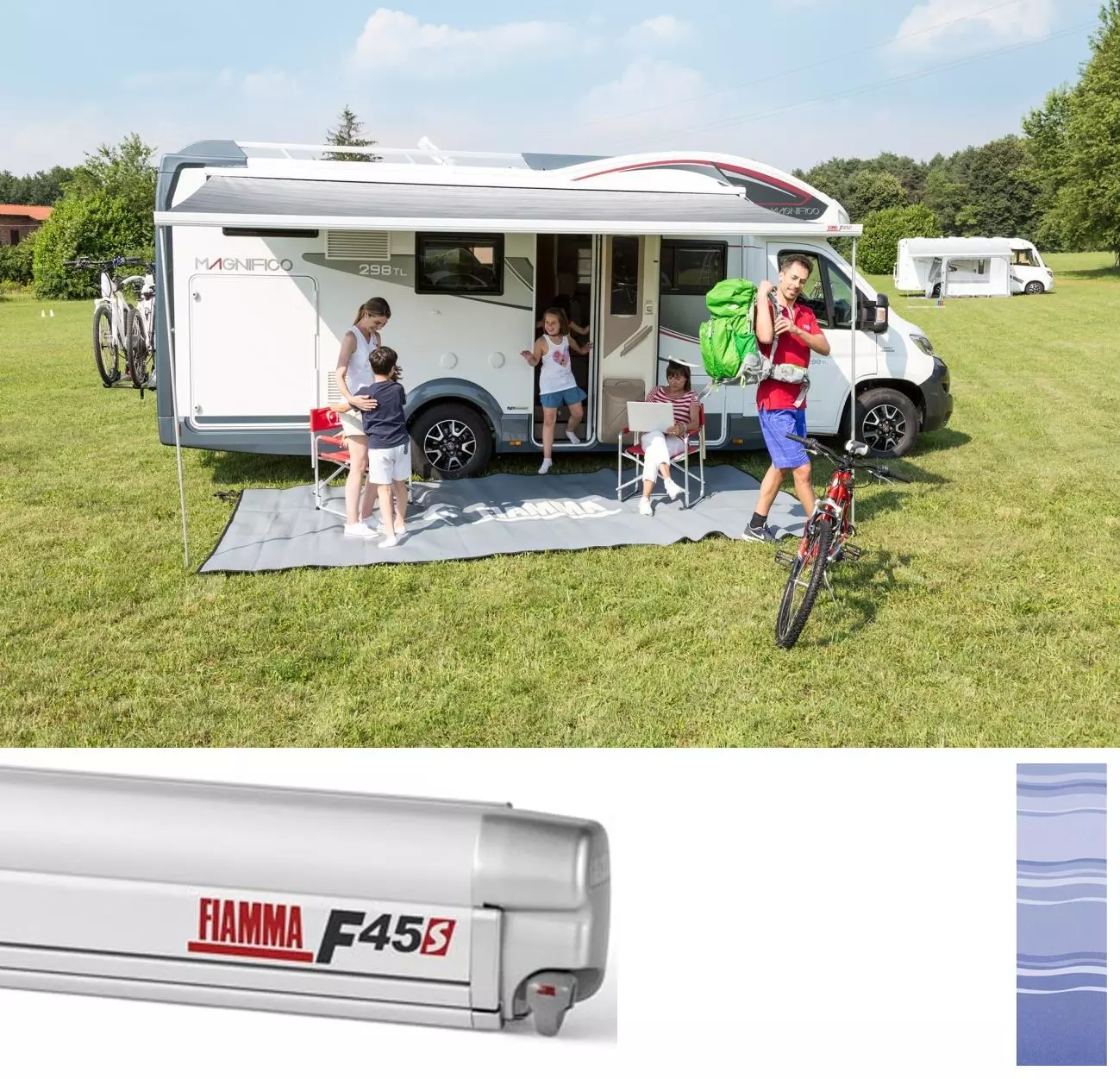

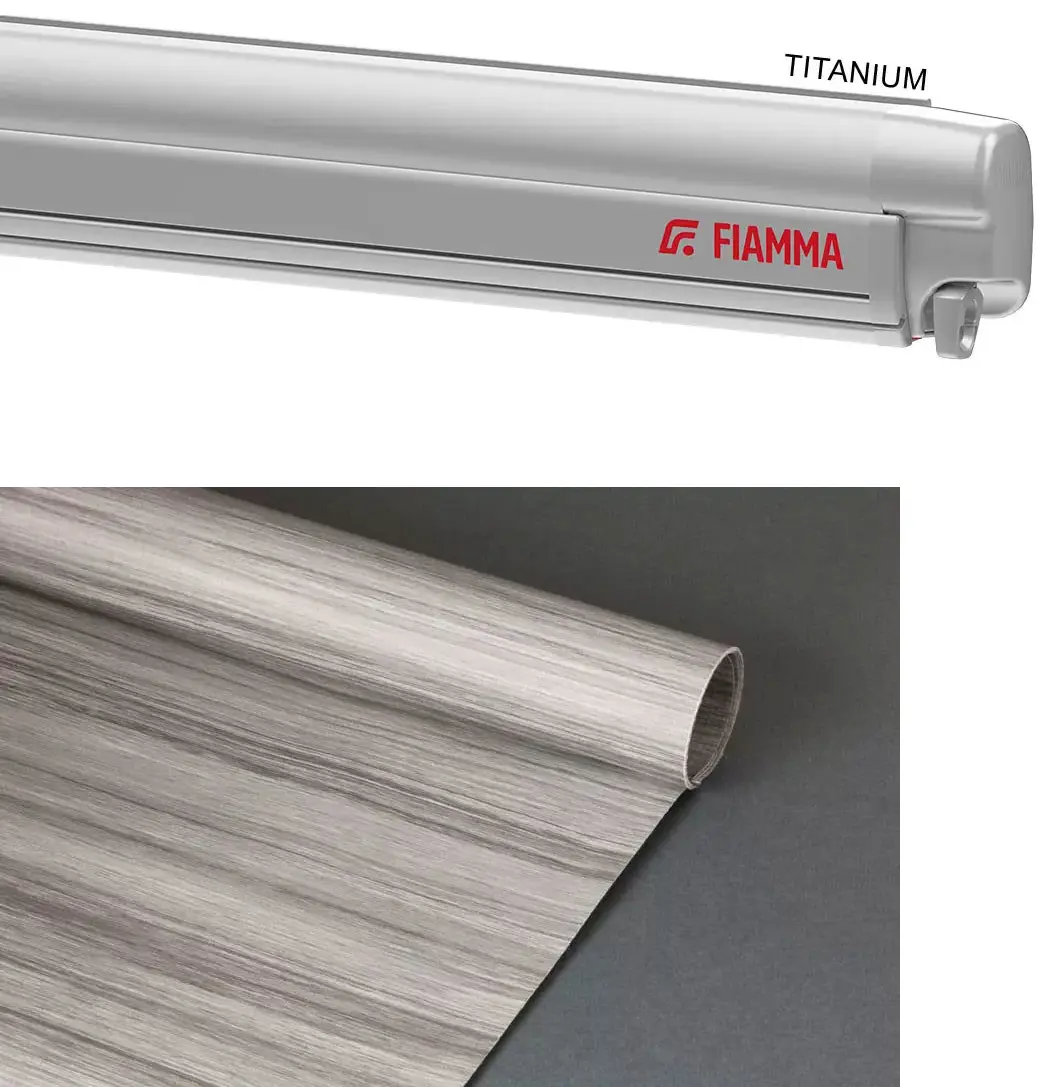

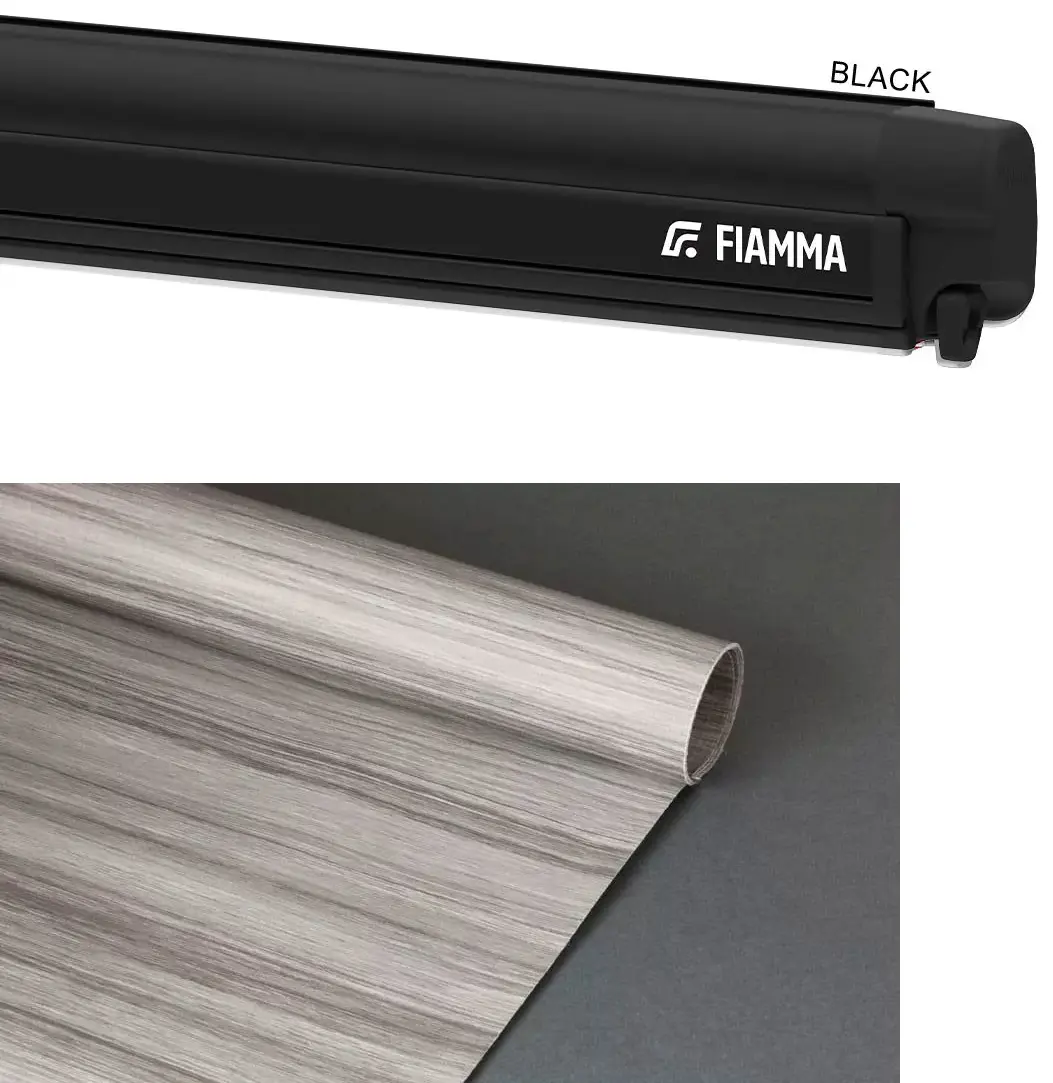

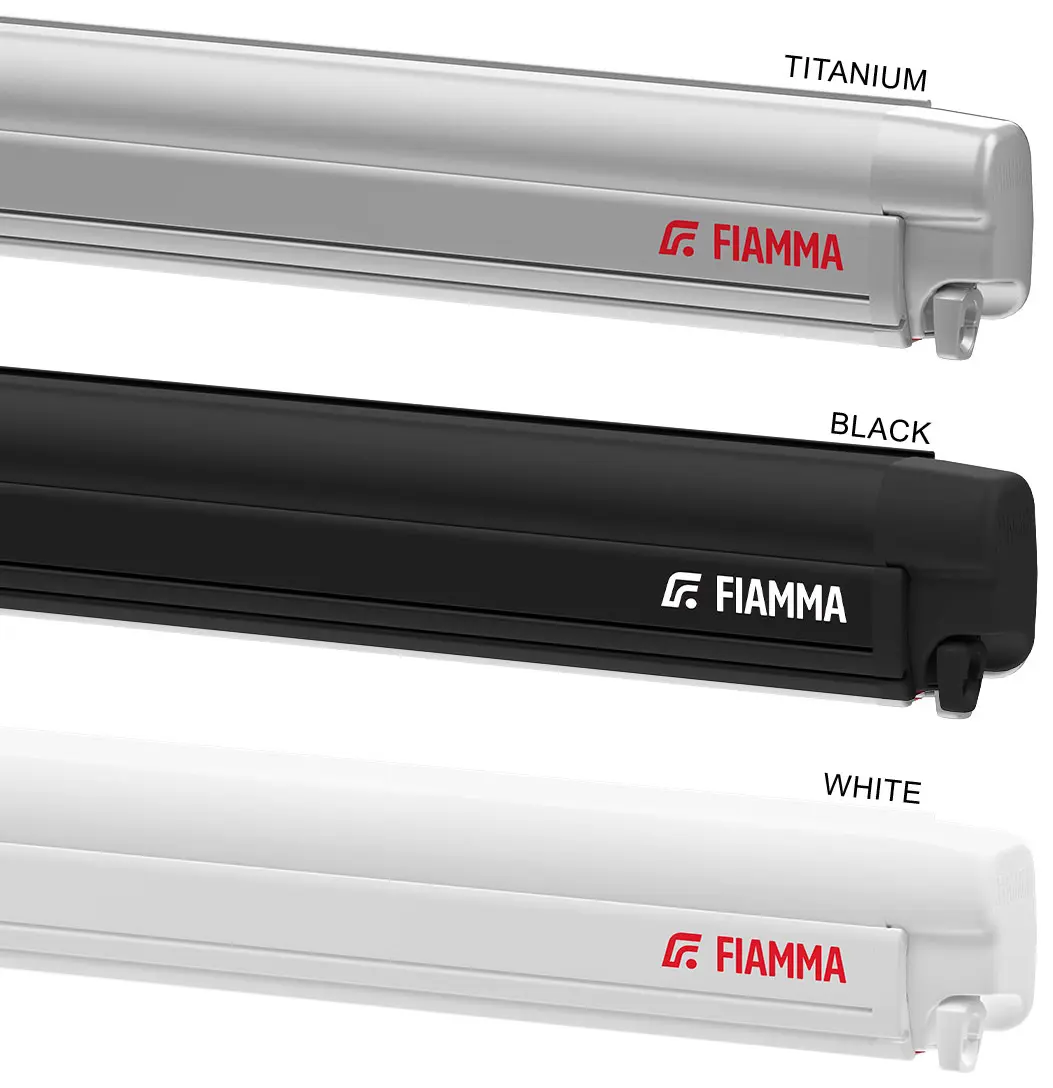

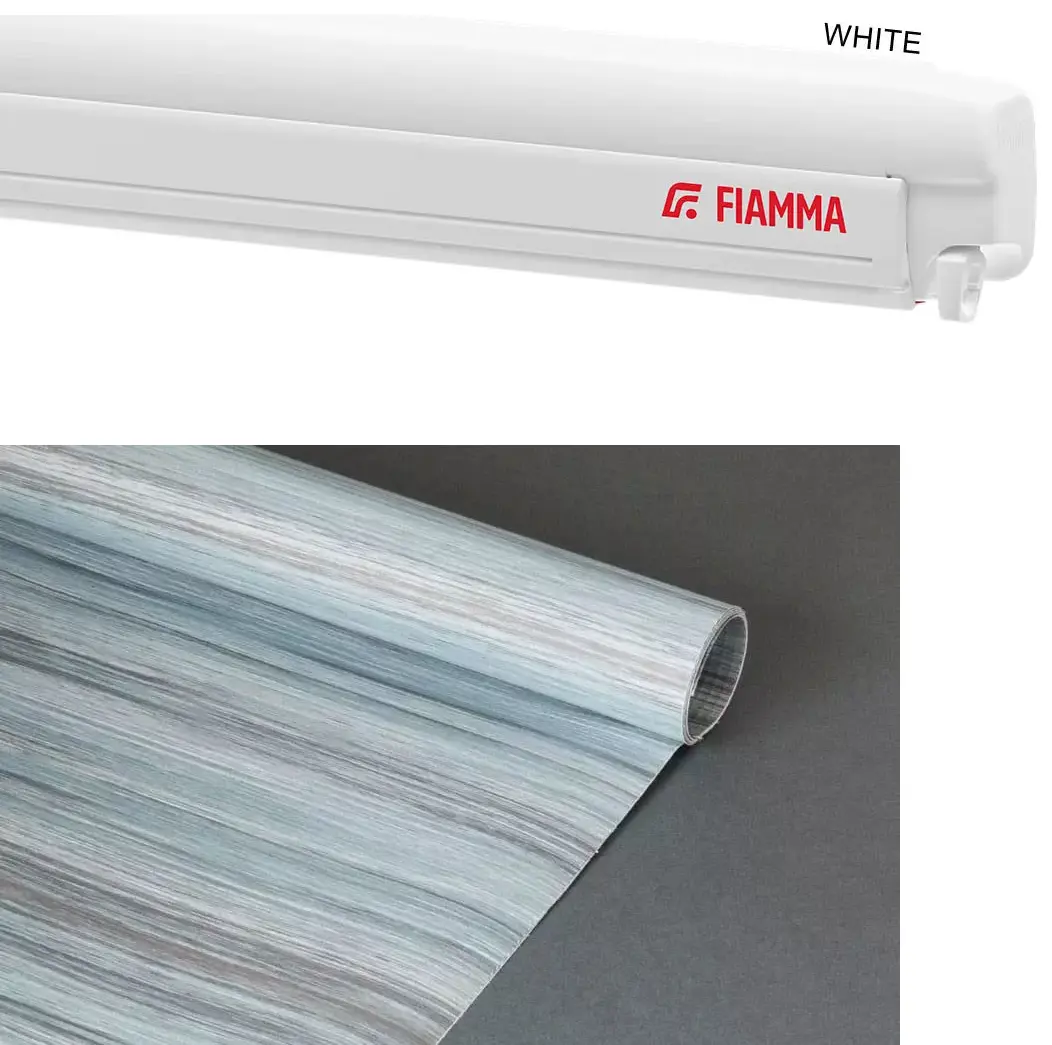

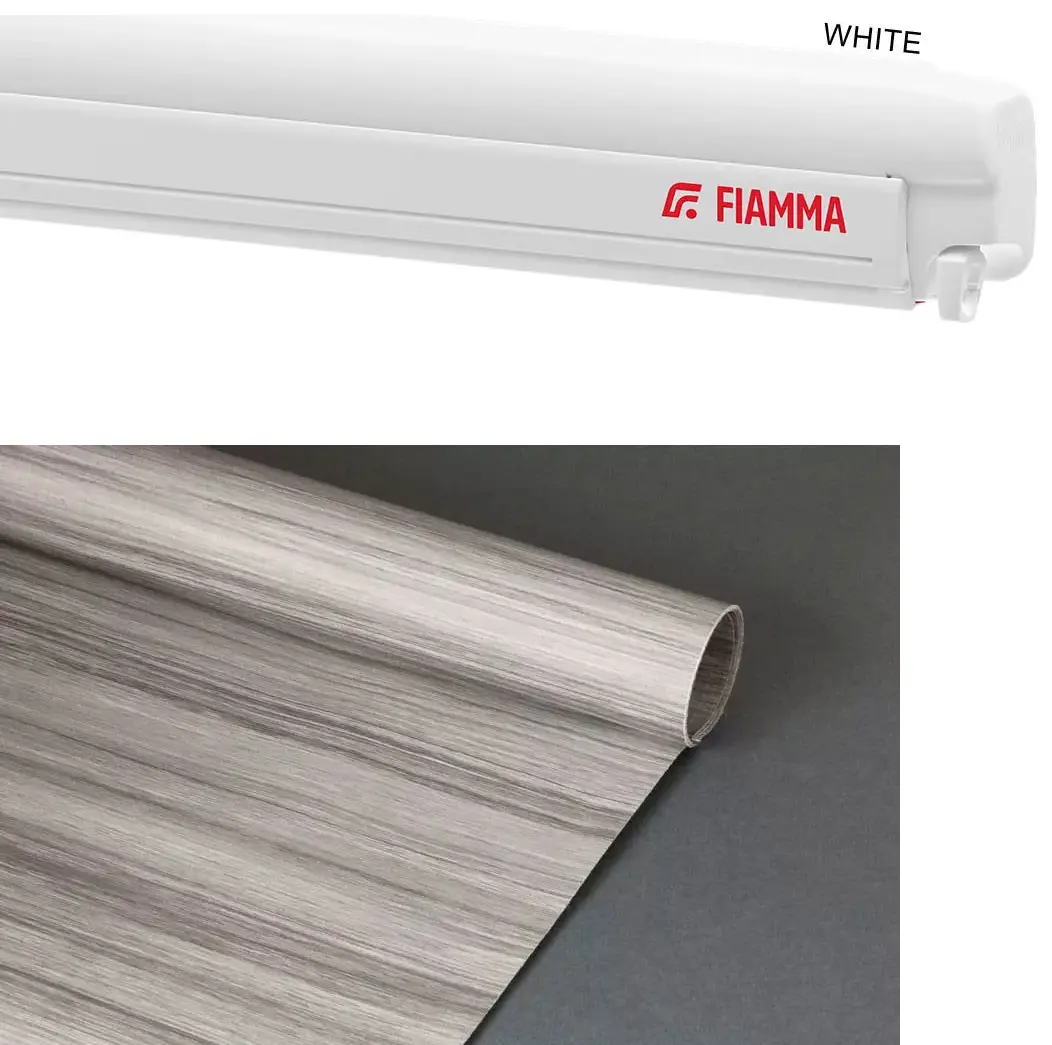

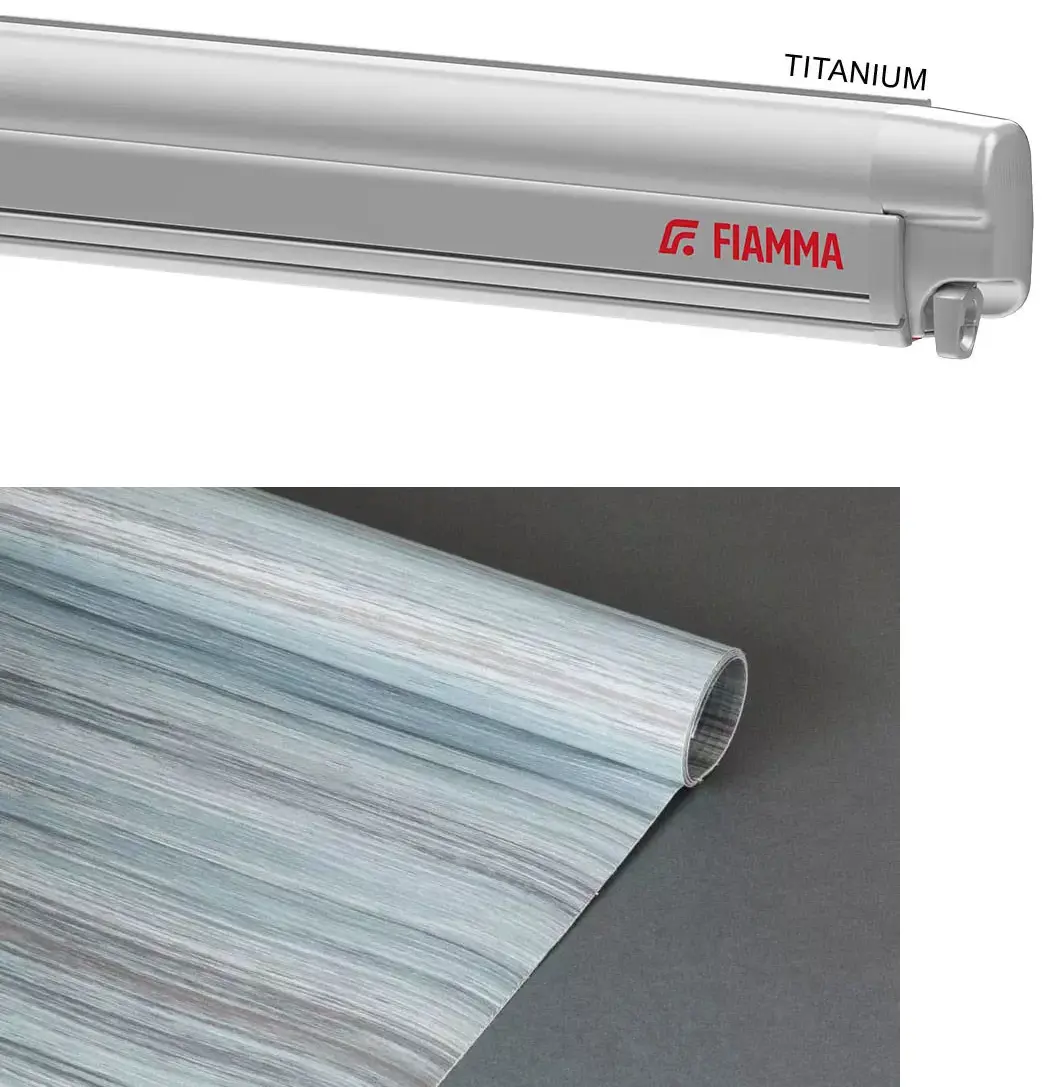

- COLOURS & MATERIALS: Case: in extra strong extruded aluminium. Very light yet highly resistant external coating in either Polar White, Titanium or Deep Black. Cool and cheerful vinyl canopy. UV resistant, waterproof and washable, with bright colours on both sides.

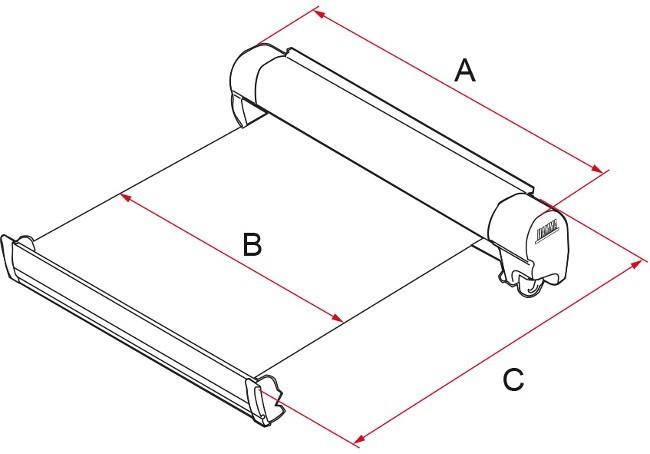

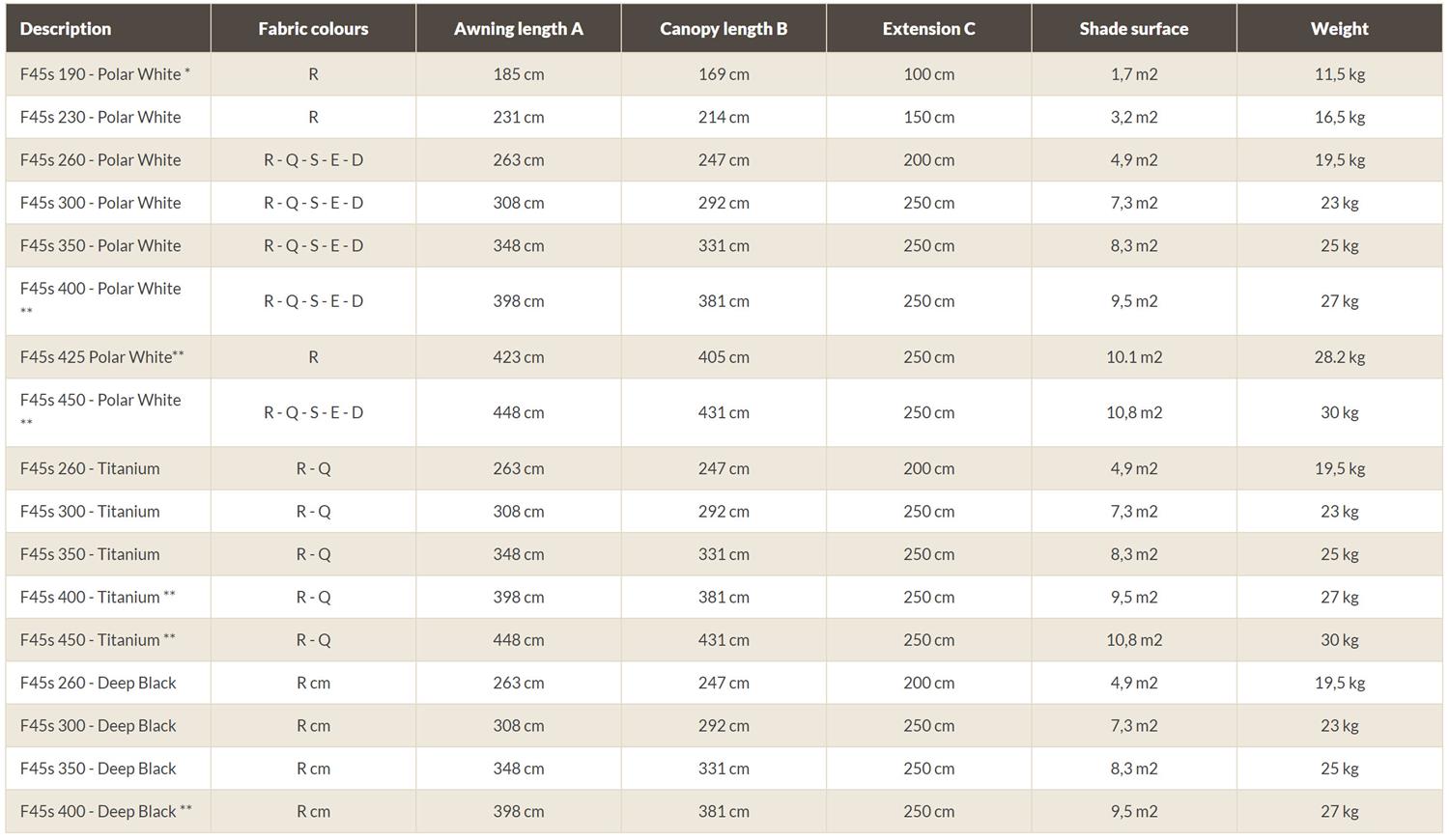

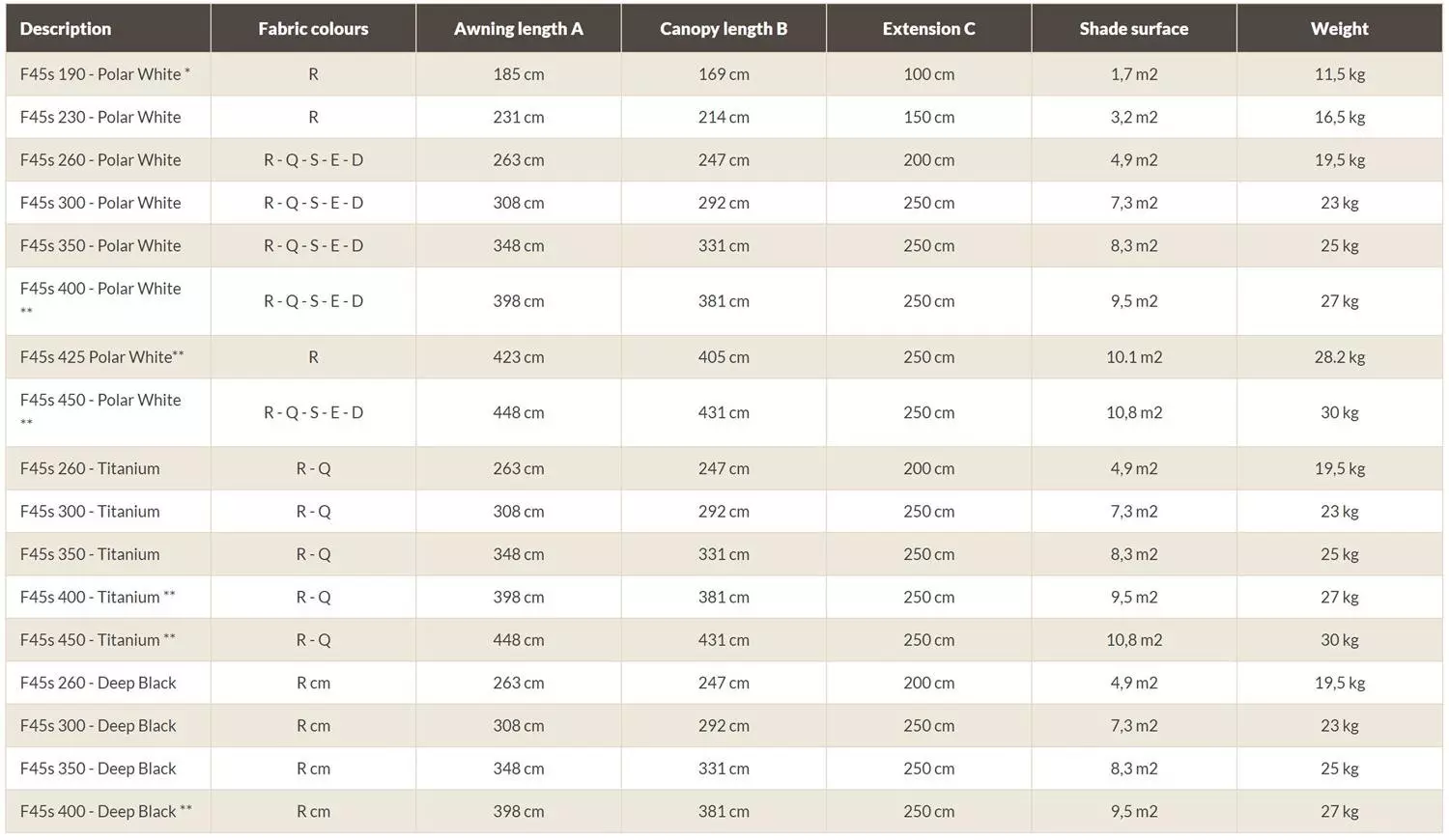

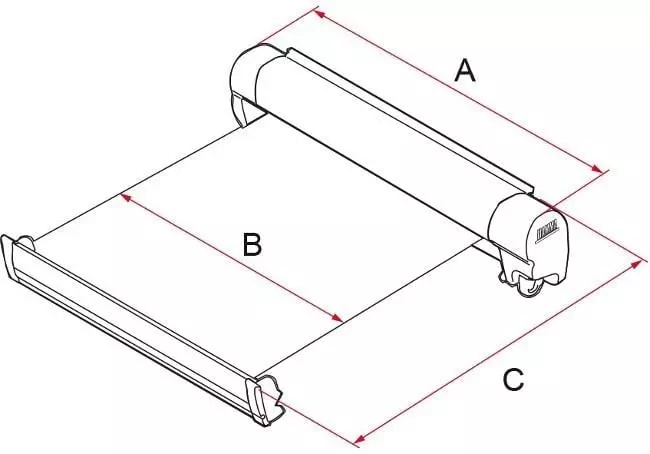

Dimensions of Each Fiamma F45s Awning
| Description |
Case Length A |
Fabric Length B |
Awning Extension C |
Shade Area |
Weight |
| F45S 190 |
185cm |
169cm |
100cm |
1.7m2 |
11.5 kg |
| F45S 230 |
231cm |
214cm |
150cm |
3.2m2 |
16.5 kg |
| F45S 260 |
263cm |
247cm |
200cm |
4.9m2 |
19.5 kg |
| F45S 300 |
308cm |
292cm |
250cm |
7.3m2 |
23 kg |
| F45S 350 |
348cm |
331cm |
250cm |
8.3m2 |
25 kg |
| F45S 375 |
375cm |
357cm |
250cm |
8.9m2 |
26 kg |
| F45S 400 |
398cm |
381cm |
250cm |
9.5m2 |
27 kg |
| F45S 425 |
423cm |
405cm |
250cm |
10.1m2 |
28.2 kg |
| F45S 450 |
448cm |
431cm |
250cm |
10.8m2 |
29.5 kg |
Associated Products Frequently Asked Questions
Awning size depends on your vehicle wheelbase and type. Mercedes Sprinter 144" wheelbase typically suits the F45S 300 (10'1" case length), whilst 170" extended models need F45S 400 (13'1"). Ford Transit 130" wheelbase pairs with F45S 300, Ram Promaster 136" works with F45S 300, and Promaster 159" extended requires F45S 400 or 450. VW Eurovans and Vanagons suit F45S 260 (8'8") or F45S 300 models. The case length differs from projection - most sizes extend 2.5 metres out from the vehicle, though the F45S 260 extends 2 metres. Match awning length to your vehicle length for proportional coverage without excessive overhang past rear doors.
The F45S includes standard three-piece mounting brackets (Kit AS 120 or AS 400) for bolt-through-wall installation on flat vertical surfaces of coach-built motorhomes. Installation requires the adapter brackets to be perfectly aligned horizontally - use spacers to shim uneven surfaces or curved panels. Two outer end brackets support the main arm weight and force, with an optional central bracket recommended for F45S 300-350 models. For Fiat Ducato, Peugeot Boxer and Citroën Relay panel vans, vehicle-specific adapter kits mount to factory roof attachment points. Ford Transit high roof vans require dedicated brackets, whilst mid-roof Transits need roof racks for side mounting. Sprinter vans install to roof rack vertical edges using the standard brackets. Always secure with three mounting points minimum to prevent stress on individual bolts. Incomplete closing typically results from fabric tension imbalance or lead bar misalignment. Open the awning fully and locate the adjustment wheels inside the case near each end - these Presto Fix wheels control fabric take-up. Turn the wheel on the loose end clockwise to increase tension incrementally, testing closure after each quarter-turn adjustment. Mark current positions before adjusting to track changes. If wheels alone don't resolve it, the lead bar may need shimming - with awning fully extended, add folded duct tape to the loose roller end before winding in to increase take-up diameter. Check red security flags at both ends retract fully when properly closed. Persistent gaps despite adjustment may indicate bent lead bar requiring replacement, or insufficient mounting points causing case flex during winding.
The F45S accepts retrofit motorisation through Fiamma's Motor Kit Compact or Motor Kit Advanced. The motor replaces the manual crank mechanism at the winch end, adding approximately 130mm to overall case length. Installation requires removing the existing crank housing end cap and fitting the motor unit with 12V electrical connection to your leisure battery. Motor kits include wall-mounted control switches for extending and retracting operation. Factory-fitted motors on new orders ship assembled, whilst retrofit kits require mechanical aptitude for end cap removal and electrical wiring. The Advanced motor kit includes integrated LED lighting in the motor housing. Motorised F45S models operate identically to manual versions when deployed - legs still fold out manually and height adjustments remain manual. Motors don't affect awning weight capacity or fabric tension systems. The F45S mounts to vertical surfaces (vehicle walls or roof rack sides) whilst the F80S mounts to horizontal surfaces (vehicle roofs or roof rack tops). F45S works on any van type with suitable mounting surface or roof rack, making it the universal choice for Transit, Sprinter and Promaster conversions. F80S mounts directly to Sprinter factory roof rails but won't fit Transit or Promaster vans due to their curved roof profiles. For installation, F45S requires roof racks on most panel vans for side mounting, whereas F80S eliminates roof rack need on Sprinters by using existing rails. Both awnings share identical fabric sizes, extension distances, arm mechanisms and accessory compatibility. Choose F45S for maximum vehicle compatibility and when roof space needs preserving for solar panels. Choose F80S only for Sprinter vans without roof racks when direct roof mounting is preferred. Both models accept the same Privacy Room, blocker panels and LED lighting accessories.

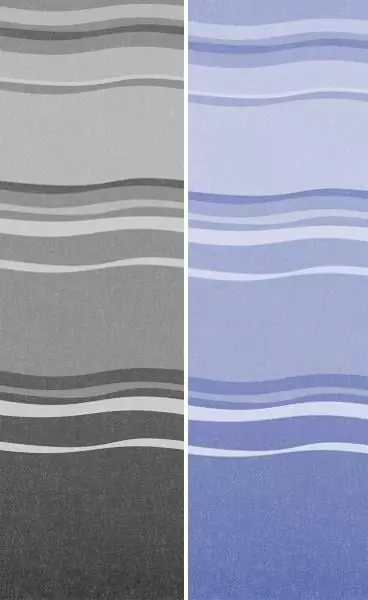

The Royal Grey and Royal Blue vinyl canopy resists UV fading and mildew but requires periodic cleaning. Remove surface dirt using water and soft brush or cloth whilst fabric is extended. For stubborn marks, add neutral soap like Marseille soap - never use aggressive chemicals or pressure washers that damage fabric coatings. The vinyl is rot-proof so closing when damp won't cause permanent damage, though opening within 12 hours prevents moisture staining. Avoid using the awning below 0°C as frozen fabric risks tearing during operation. The seamless canopy construction provides tear resistance but fabric replacement requires professional fitting. Clean the aluminium case exterior with non-abrasive products to preserve finishes. Inspect arm cables annually for fraying and check Dual Security closing indicators function correctly. Lubricate winch mechanism if operation becomes stiff.

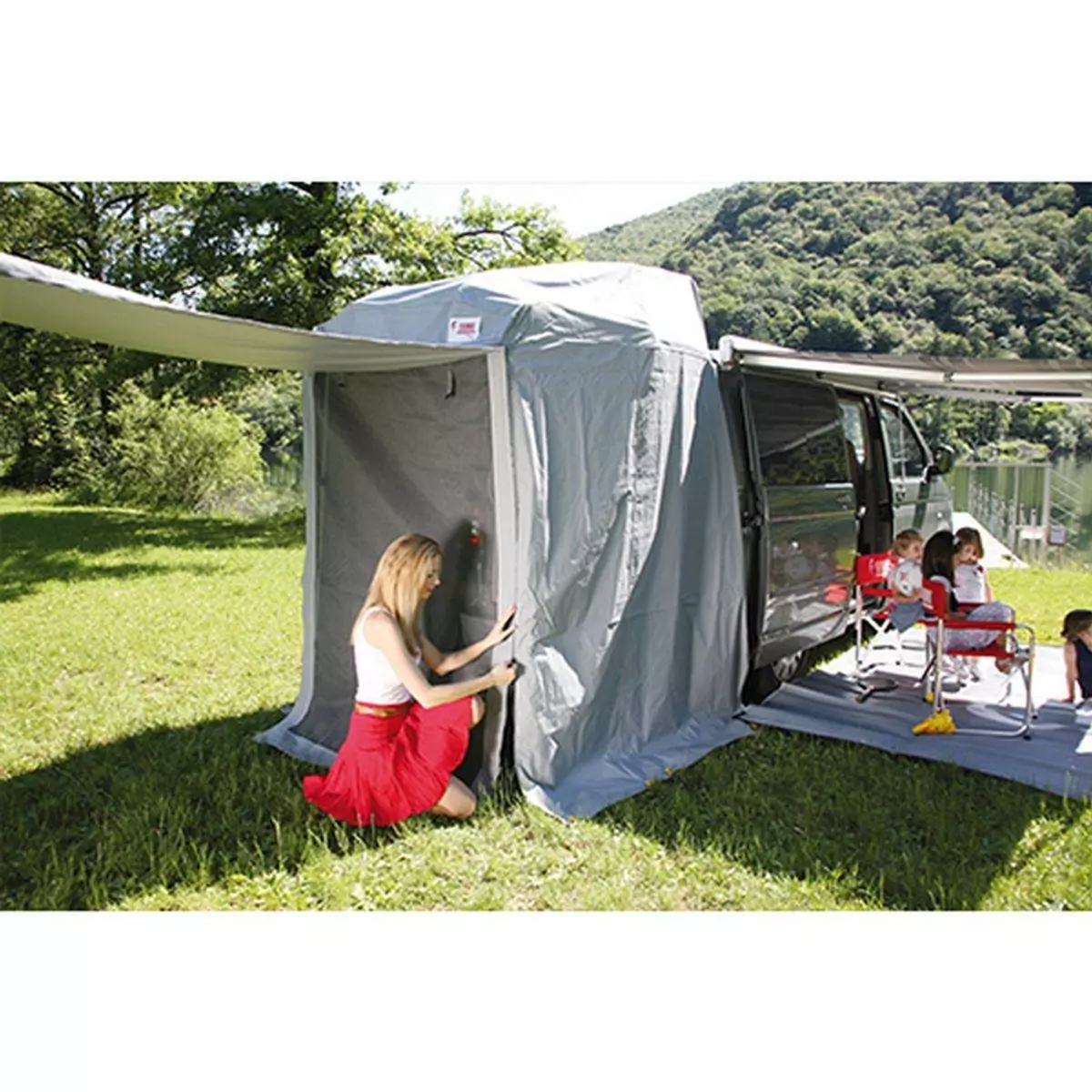

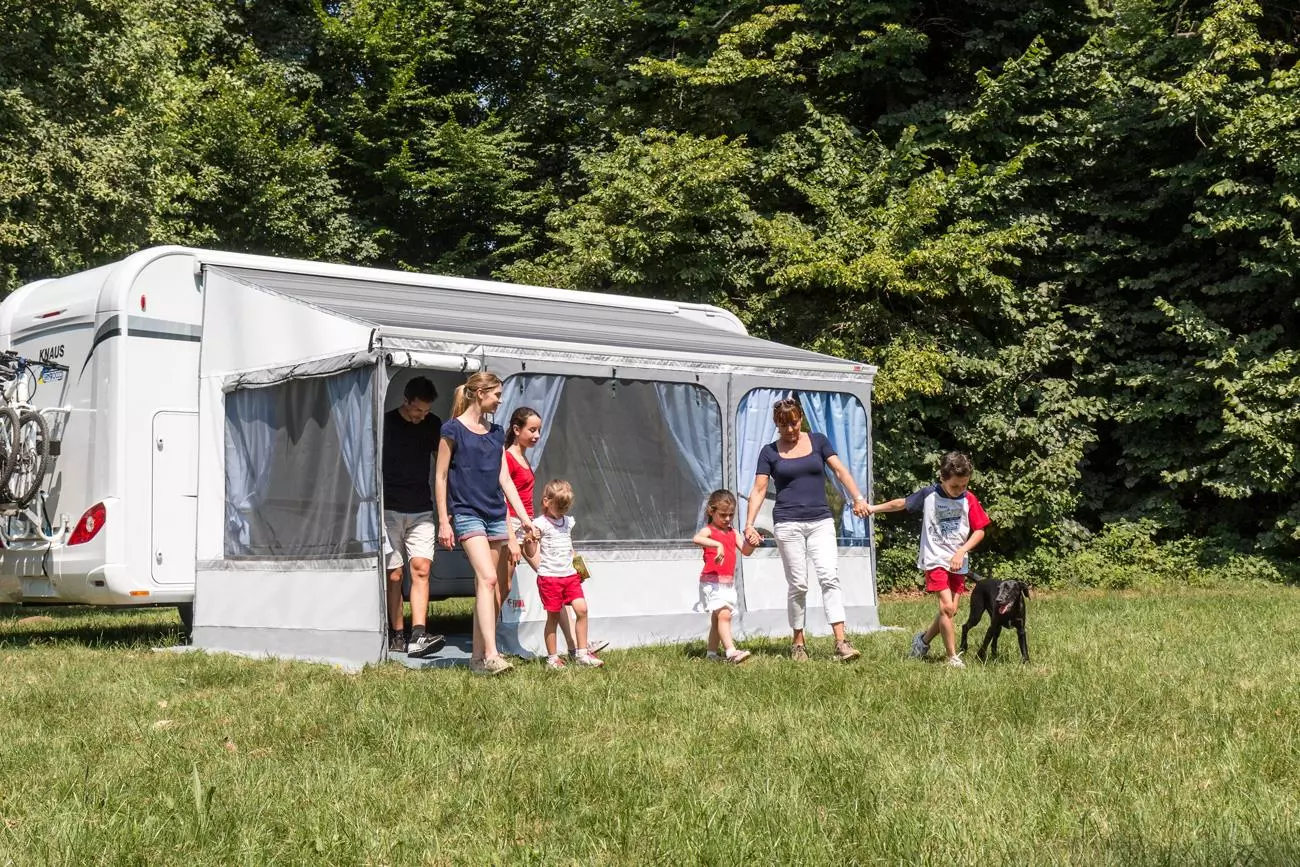

The F45S double guide rail on the lead bar accepts two accessories simultaneously. Privacy Room enclosures (standard, Light or Ultra-Light) attach via zips to create enclosed living space with groundsheet. Front Blocker panels (standard or Pro with window) provide wind and rain protection. Side W panels with crystal windows extend sidewall coverage. Sun View front panels in translucent material filter 80 percent of light whilst maintaining visibility. Rafter systems include standard tension rafters to eliminate fabric sag and water pooling, plus LED rafters with integrated lighting. The Rafter Pro provides temporary tensioning during poor weather. Tie Down kits with ground stakes secure awning in wind - plate kits fix telescopic legs to hard standing when pegs won't work. Patio mats in polypropylene weave fit beneath awning for grass-friendly flooring. LED light strips slot into lower case housing for 12V illumination. All F45S accessories work across case lengths 2.6 metres upwards, with specific sizing for longer models. Privacy Room and panels require awning-specific sizing to match projection distance.
