Isabella Bayonet Joint Grey 26mm CarbonX/Mega (1pcs)

Name: Isabella Bayonet Joint Grey 26mm CarbonX/Mega (1pcs)
Brand: Isabella
SKU: 235226
Price: 5.22 GBP
Availability: InStock
Rating: 4.97 (31 reviews)

Product Ref: 235226
Isabella Code : 900060243

£5.22(inc VAT) £6.99Product Ref: 235226
Isabella Code : 900060243

(4.97/5) Read Reviews - Click Here (37 reviews)

6 buyers of this product rated us 4 or 5 stars on Trustpilot

View delivery optionsView product description

Delivery from £4.99
Loading stock details...

Product Description

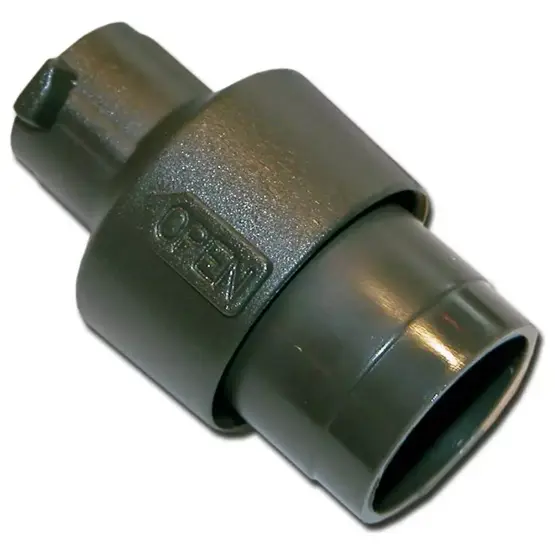

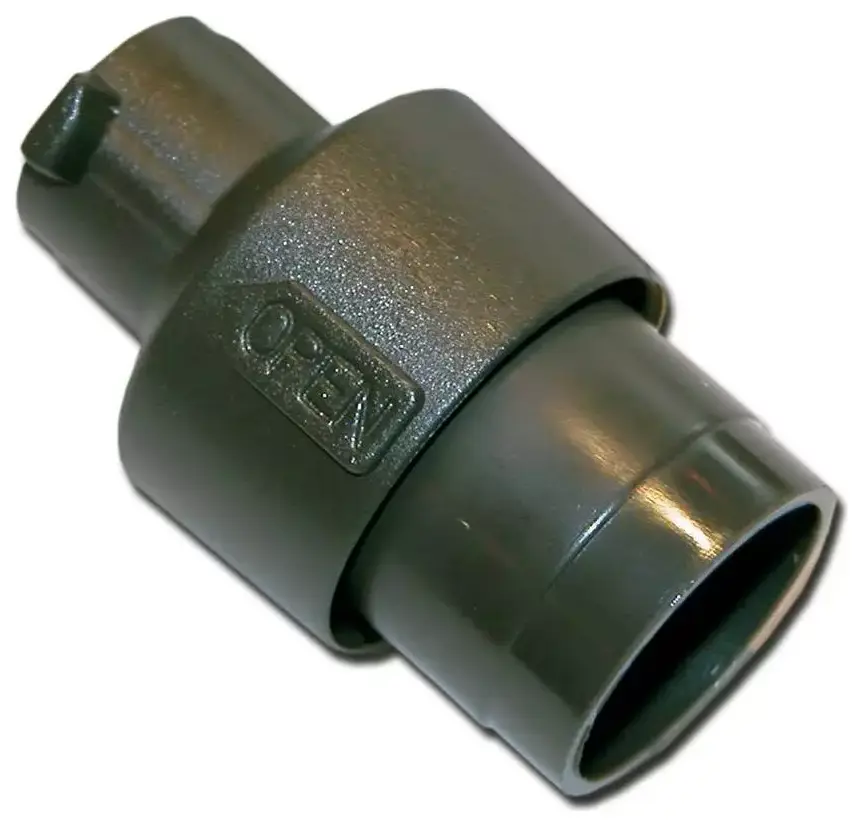

The Isabella Bayonet Joint in grey for 26mm CarbonX poles is a nylon replacement fitting that connects roof rafter poles to corner or central cross sections in Isabella awnings. This bayonet fits onto the end of 26mm diameter CarbonX roof poles (used in Isabella awnings from 2010 onwards and Magnum 340/400 porch awnings). The fitting has a clear "open" marking moulded into the side that shows which direction to twist the pole for disconnection, and it locks into position with a simple quarter-turn twist once inserted into the connector socket.

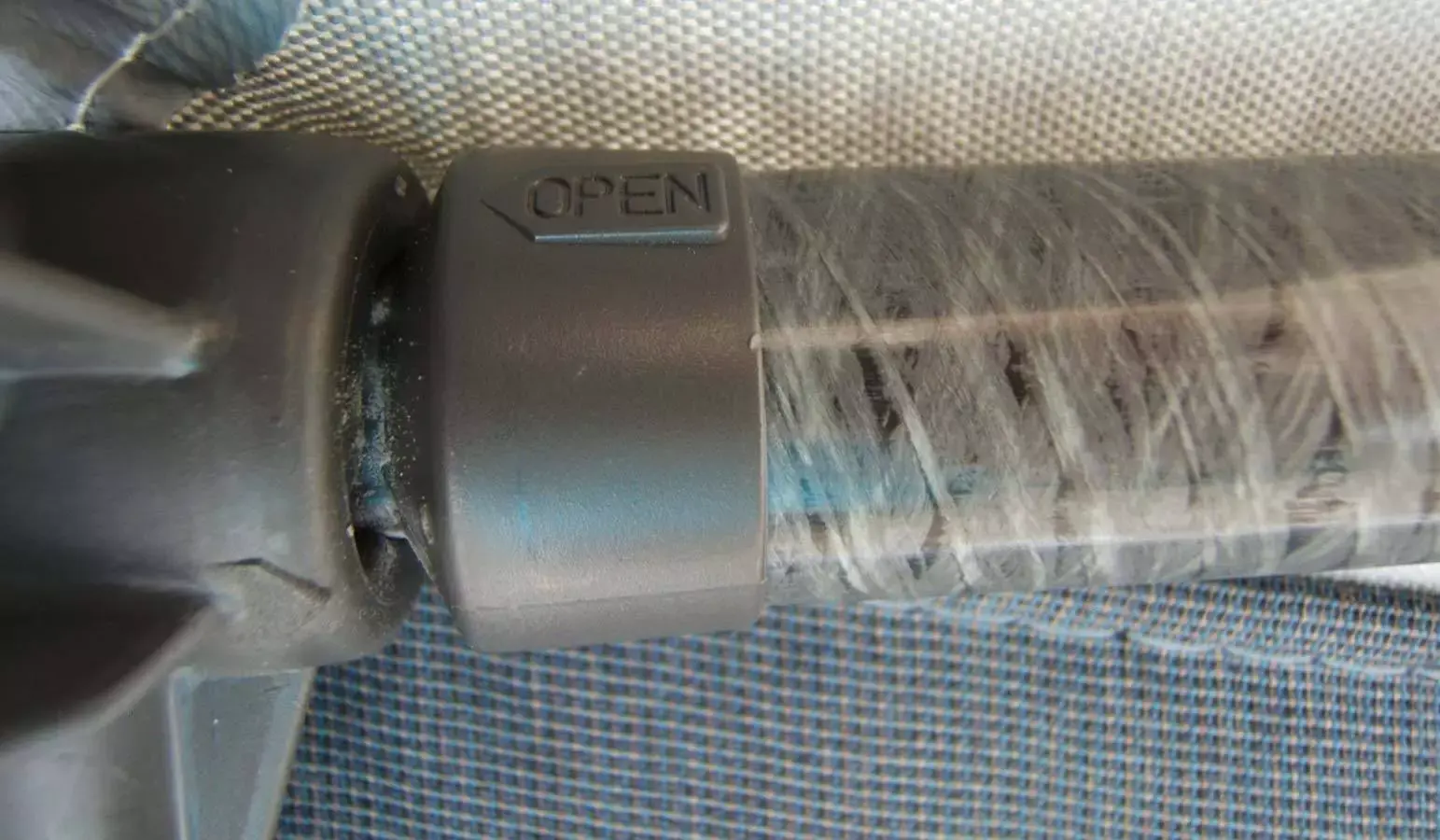

This 26mm Bayonet Joint fits on the end of a Carbon-X roof pole and connects into a left, right or center connection point. Once inserted into the connection point a simple twist of the pole locks the bayonet joint into the connector. A clear 'open' sign on the side of the bayonet fitting, allows you to twist the pole into the correct position to remove from the joint in which it is situated.

Why do Isabella bayonet joints break during setup?

Bayonet joints break when the fitting isn't aligned square to the connector socket during insertion or removal. This typically happens in windy conditions when poles are being moved quickly, or when lowering a roof pole without first disconnecting the bayonet properly. The nylon lugs can snap if the pole is twisted while under lateral stress rather than being inserted straight and then rotated. Keeping spare bayonets on hand is sensible because a single broken fitting will prevent you from using the awning.

Replacing a broken bayonet is straightforward. The old fitting can be pushed out by inserting a dowel rod or broom handle up through the pole tube (some people cut the pole end off with a hacksaw but this isn't necessary). The new bayonet taps onto the pole end with a rubber mallet until it sits flush. These fittings work with CarbonX reinforced fibreglass frames, IXL fibreglass poles, and Zinox galvanised steel poles, making them compatible across Isabella's frame range. Standard Isabella awnings use 26mm diameter leg poles, while roof poles are either 26mm or 30.5mm depending on the model. This 26mm version fits the leg and roof poles on 250cm and 300cm depth awnings, as well as Minor and Magnum porch awnings which use 26mm throughout.

EAN-13 : 5705886602434

Reviews

37 Customer Reviews on Isabella Bayonet Joint Grey 26mm CarbonX/Mega (1pcs)

Easy to identify component required

by Allan (11 Aug 2026)

(5/5)

Easy to identify component required. Good prompt communication to email query.

Bayonet Joint

by Alyn prince (01 Sep 2025)

(5/5)

They fit brilliant thank you very much

Simple and clever device shade and still able to have the car windows open.

by Victoria (23 Jul 2024)

(5/5)

Exactly what it says on the tin. Our Labrador now has shade and benefits from having the car window open enjoying the cool breeze.

Isabella

by Mrs S Clark (28 Apr 2024)

(5/5)

Ordered standard genuine Isabella parts for our very early Isabella pole awning. They are very well made, and reasonably priced. Packaged and delivered promptly. We have yet to use these parts, but will be doing so when we take our holiday in June. Without these replacements it would have been impossible to use our lovely old awning.

Isabbella

by nichola (20 Jan 2024)

(5/5)

Just wot we ordered

Perfect Fit

by B. Hutchinson (14 Jul 2023)

(5/5)

Good price, good delivery and made to measure. Used my loyalty bonus voucher too.

Extremely efficient service

by Jeff (12 Jul 2023)

(5/5)

Extremely efficient service. Easy website. Will definitely use again.

Review

by Mr Christopher Green (27 Sep 2022)

(5/5)

Items were Stock originally out of stock but I was kept informed of the delay..

Product arrived as described and in great condition

Would use the company again.

Caught By The Wind

by Peter L (02 Jun 2022)

(5/5)

Good quality awning bayonet, very fast delivery and well packaged. I broke the tips on 2 of mine when the wind caught my awning when errecting. Would use for spares again.

I have an Isabella awning

by Mrs Beverley Wylie (03 May 2022)

(5/5)

I have an Isabella awning and needed a few spare parts i had a quck delivery, my only complaint is i didnt get a confirmation e-mail but after a stort call i was told it was on its way.
Good customer service and would return to this site again.

Isabella Carbon X Bayonet Fitting Replacement

by RGT (02 Sep 2021)

(5/5)

Easier job than I thought. Awning restored.

I ordered 3 small items that were very…

by Mr Michael Lecomber (06 Jul 2021)

(5/5)

I ordered 3 small items that were very light in weight and cost £10 and in truth were delivered promptly and efficiently, the reason for only 2 stars is that the postage was half the cost of the items at £4.99!! Check the delivery cost before confirming the order.
Update
After posting my review I received a very concerned email from Craig at Leisure shop direct explaining about the cost of postage and he gave me a £3 refund so perhaps they are not so bad after all. Proves they read the reviews. On second thought I have upgraded their rating to 5 star because their service was very good regarding delivery etc and their response to my complaint was acceptable.

Easy To Fit

by Jon (28 May 2019)

(5/5)

Just push a broom handle down the middle of the pole and the old ones pop off...

Absolutely Delighted!

by Dan Kilkelly Palmerston North NewZealand (20 Feb 2019)

(5/5)

Absolutely delighted to finally source these parts..,there were none what so ever in New Zealand..,and they arrived in my box within 14 days....quicker than some items shipped within the country..I will be recommending your business to my fellow English caravan friends.

Prompt Service

by GeorgeNeil (11 Jun 2018)

(5/5)

Isabella Bayonet Joint grey 26mm

Isabella Bayonet Joint

by Martin Lamasz (14 Sep 2017)

(5/5)

It's great

Paddy

by Mr James (11 Jul 2017)

(5/5)

Excellentservice

Wanderer

by l moores (24 Oct 2016)

(5/5)

Original manufactures part excellent

Good Product

by C.Perry (02 Aug 2016)

(5/5)

Fast response after order. staff friendly sorted my password when it didn't work .good people to deal with .thanks for your help .

Good Quality Replacement Spare Part

by Mr Mallard (24 Jun 2016)

(5/5)

I bought these fittings as the ones on my awning poles were damaged by usage over the years. After cutting old fitting off awning pole by using a hacksaw replacement was easily fitted by tapping bayonet joint onto awning pole with a rubber mallet
