Roofstar 400x400mm Rooflight - with forced ventilation

Roofstar 400x400mm Rooflight Features

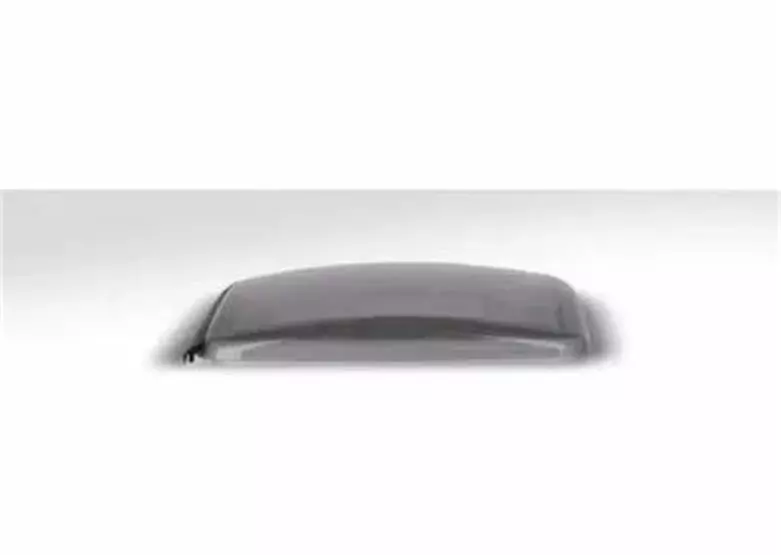

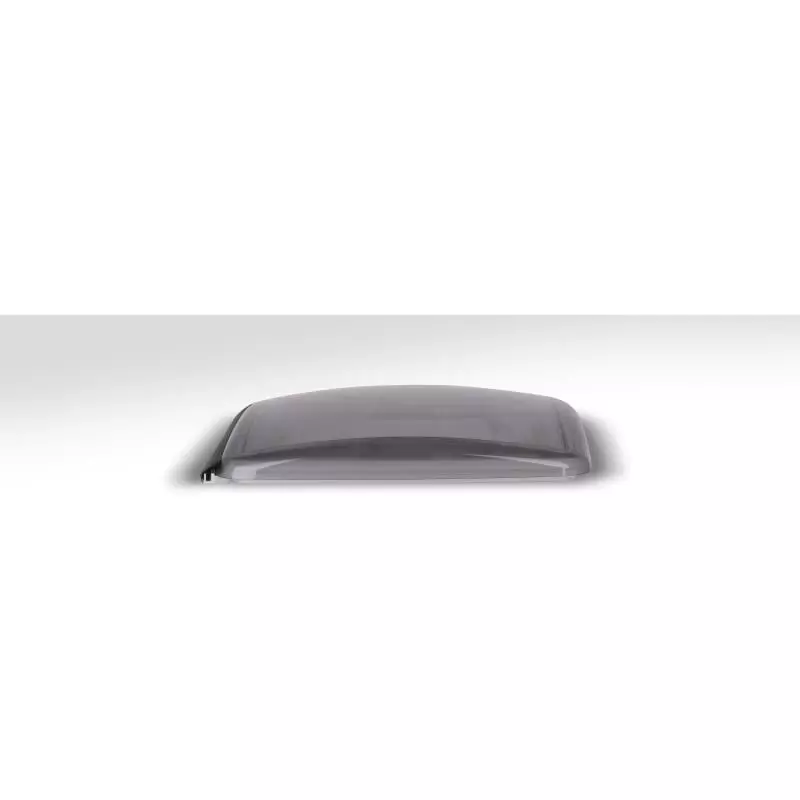

• Extremely flat: Aerodynamically shaped glazing-dome, which results in great height reduction by almost 50% to just 72 mm and reduce significantly the noise level.
• Particularly light: The weight of the roofSTAR-7 in particular has been reduced by up to 2.3 kg.
• Unique: For the first time, with our roofSTAR-4, a motorized version is available for the 400 x 400 mm dimension.
• Intelligent design: The motorized version is operated for both models via a switch, which is directly integrated in the frame. Alternatively, the switch can be placed at any position in the vehicle.
• With lighting: For both models roofSTAR-4 and roofSTAR-7 we offer
• homogenous, high-quality LED lighting.

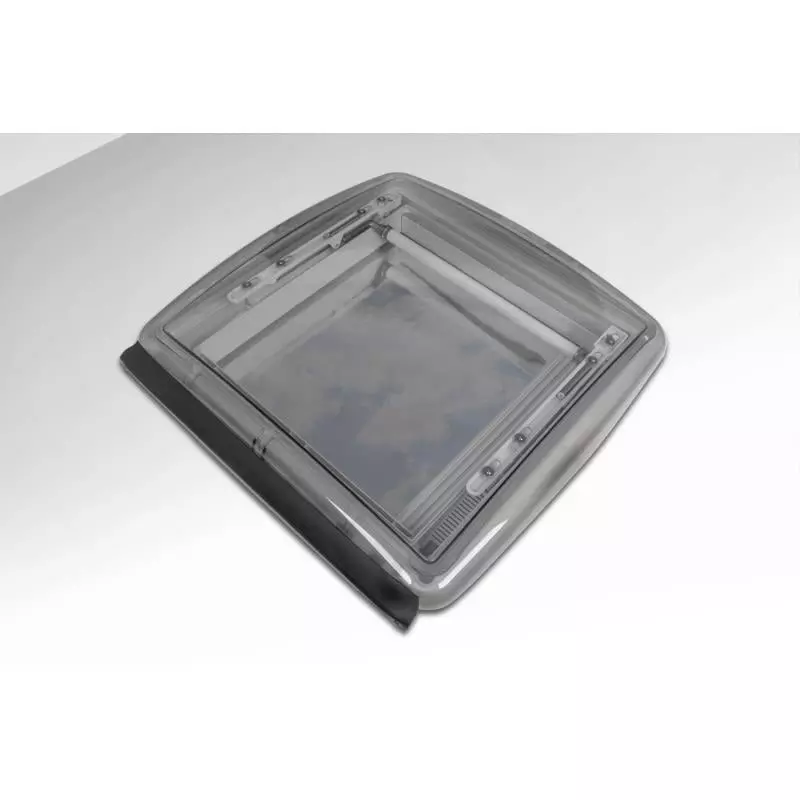

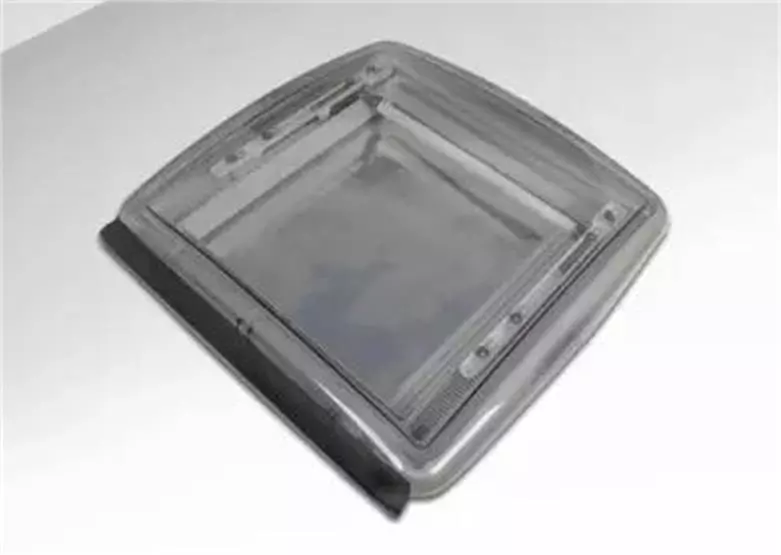

• Very stable: Both models are made of proven UV-resistant material and ASA- and PMMA-material.

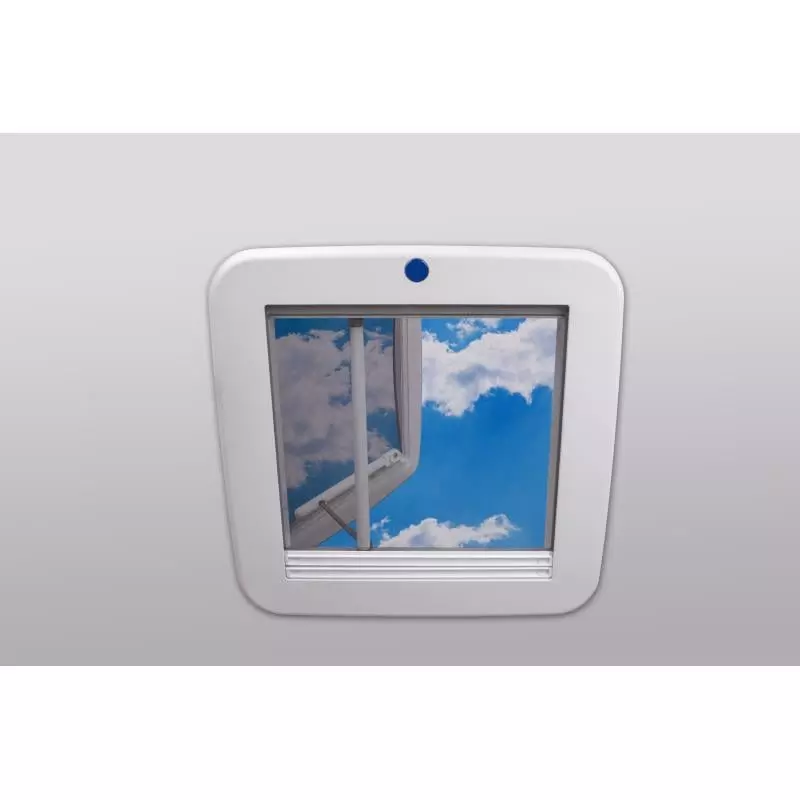

• Thoughtful: For the first time, the motorized version comes with an optional permanent integrated fly screen!

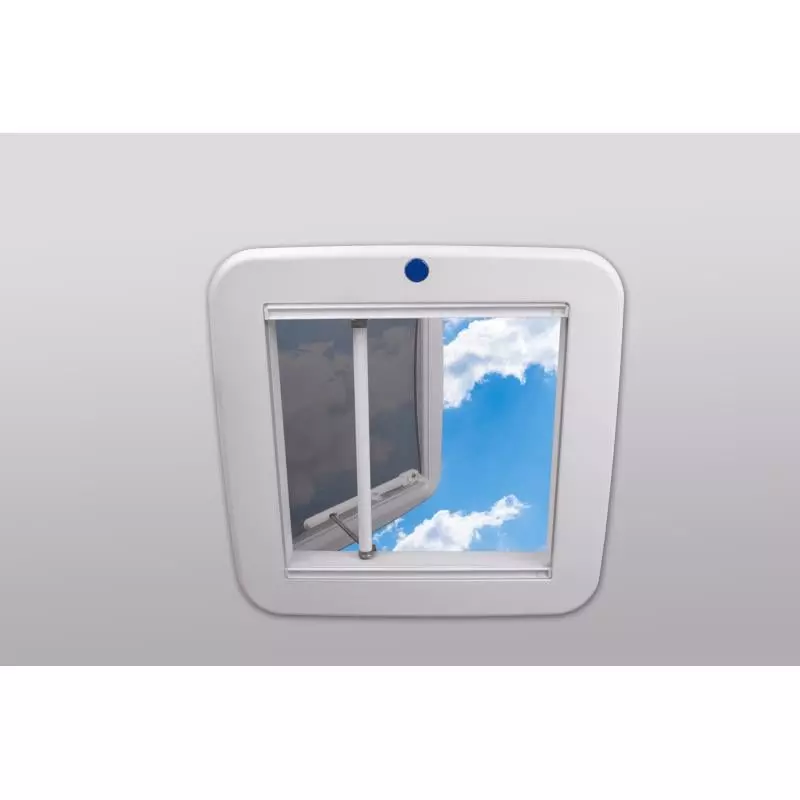

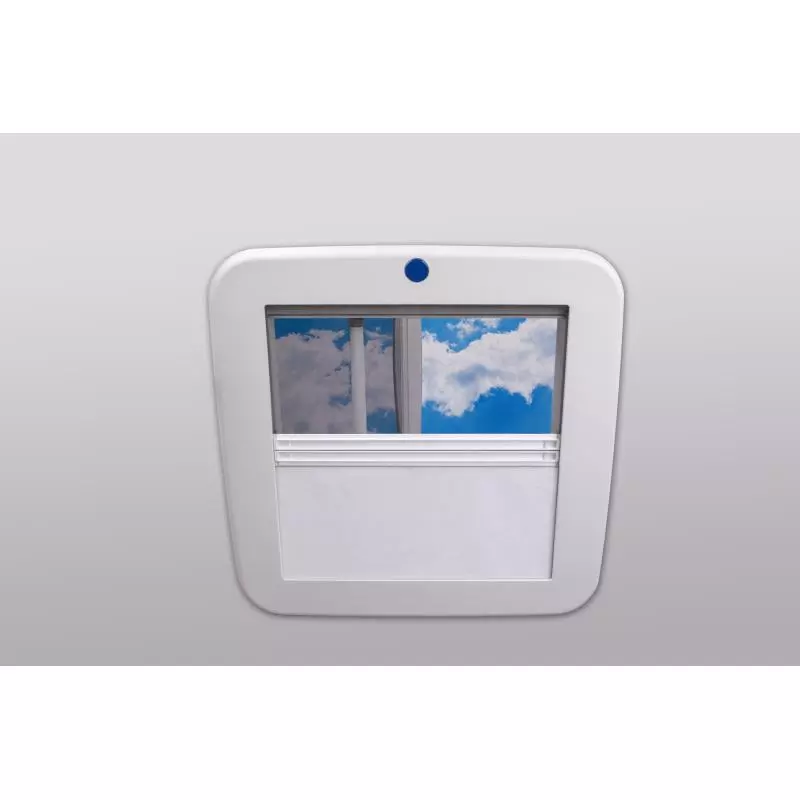

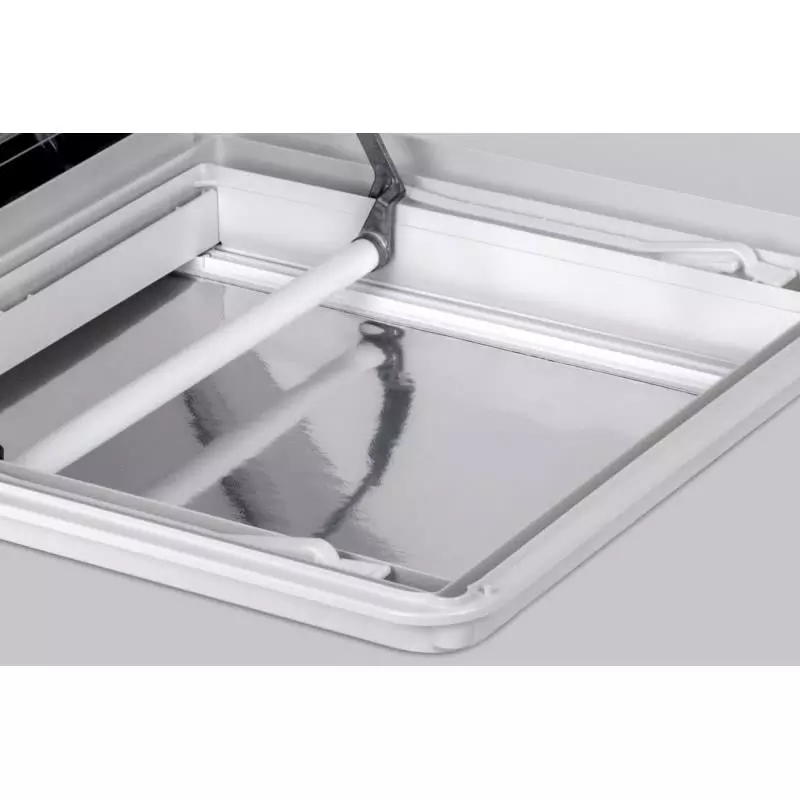

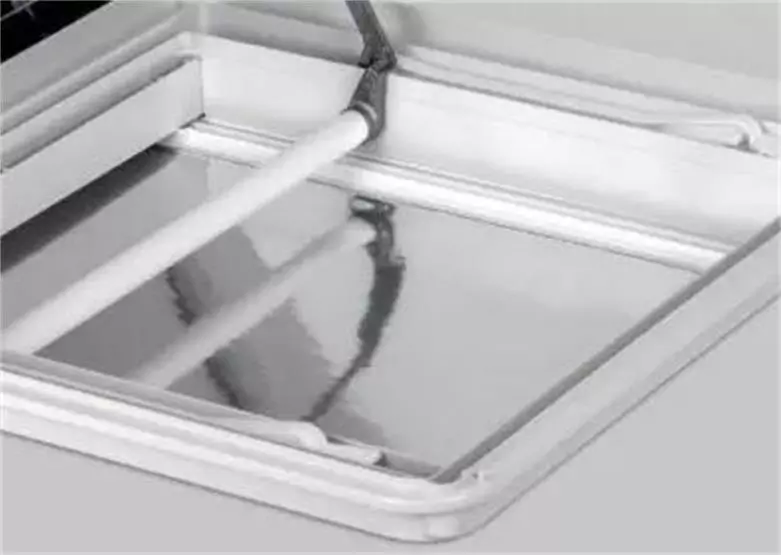

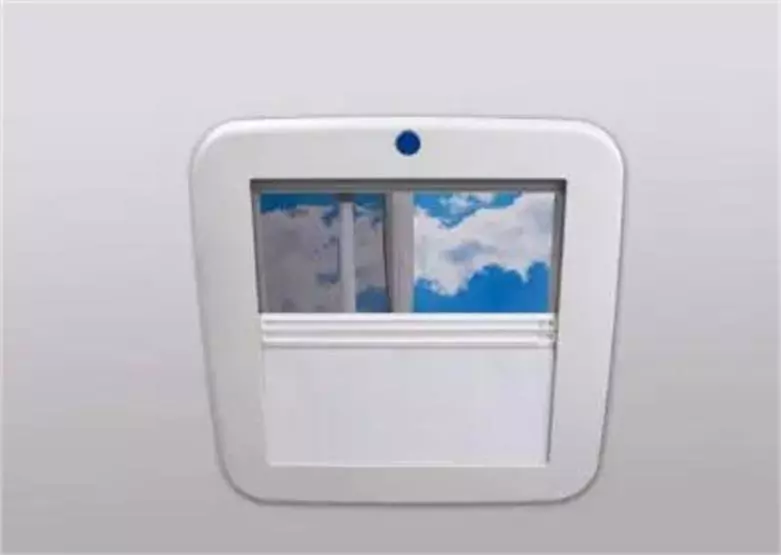

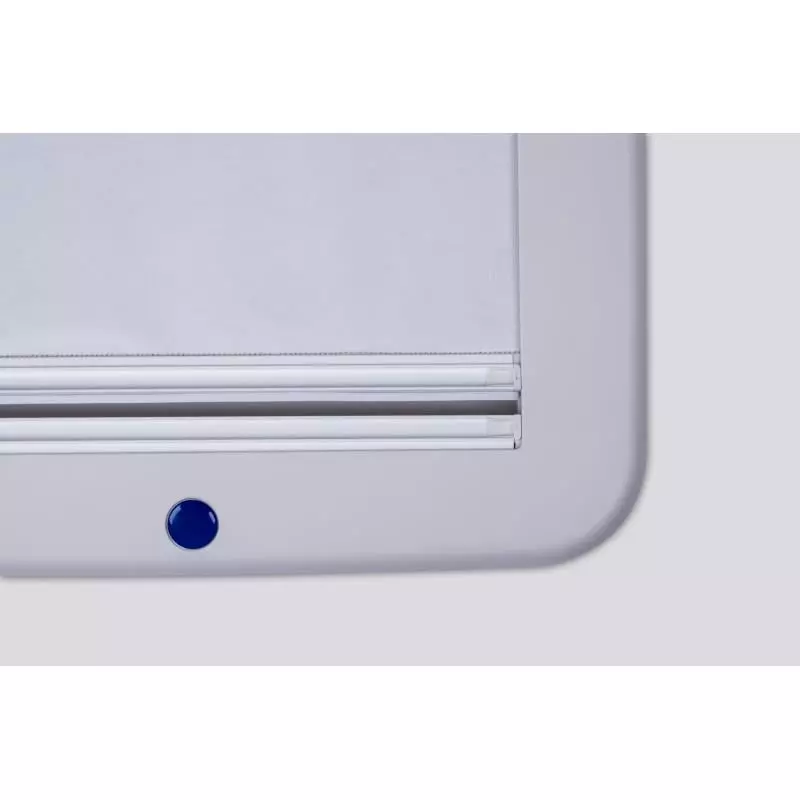

• Effective darkening: Both roofSTAR models have an integrated roller blind system, which offers effective darkening and guarantees easy handling.
• Easy installation: Generously dimensioned sealing channel to accommodate the sealant and thus prevent water ingress problems. 8 fastening brackets allow installation in a roof thickness of 25-45 mm.
• Flexible: The roofSTAR-4 and roofSTAR-7 can be easily retro-fitted and each can be supplied with or without forced ventilation.

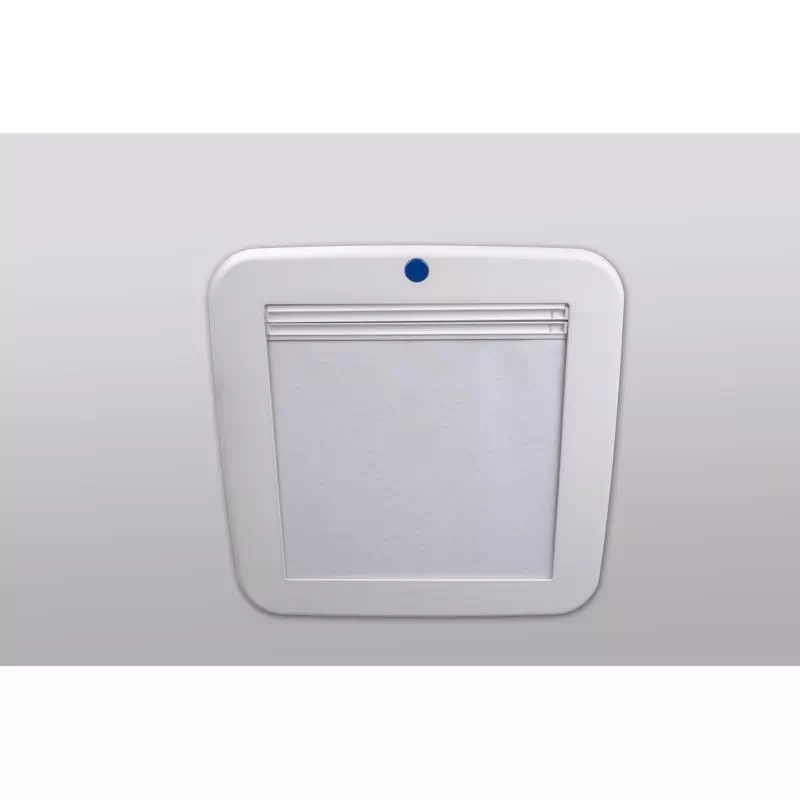

• User-friendly: The inner frame of the roofSTAR can be easily removed
• and re-attached for a quick cleaning.
• Water management: An effective water drainage system in combination with a rubber profile attached to the glazing dome gives a high security level.
• Spoiler effect:The same applies to the standard rubber sealing lip on the hinge side, which effectively minimizes noise („spoiler effect“).

• Cut-out dimension: 400x400 mm
• Opening positions: 3

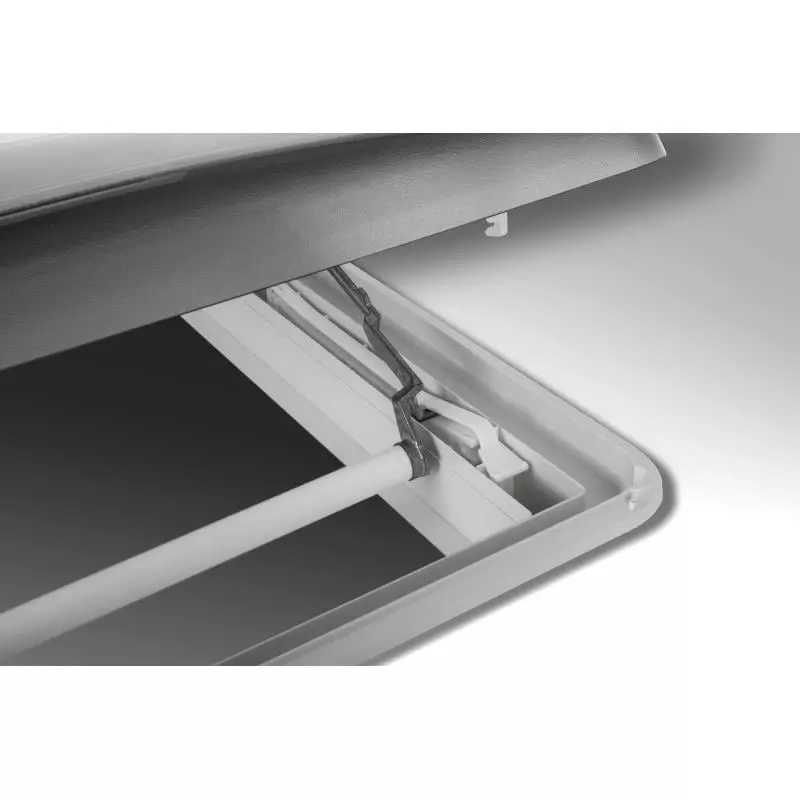

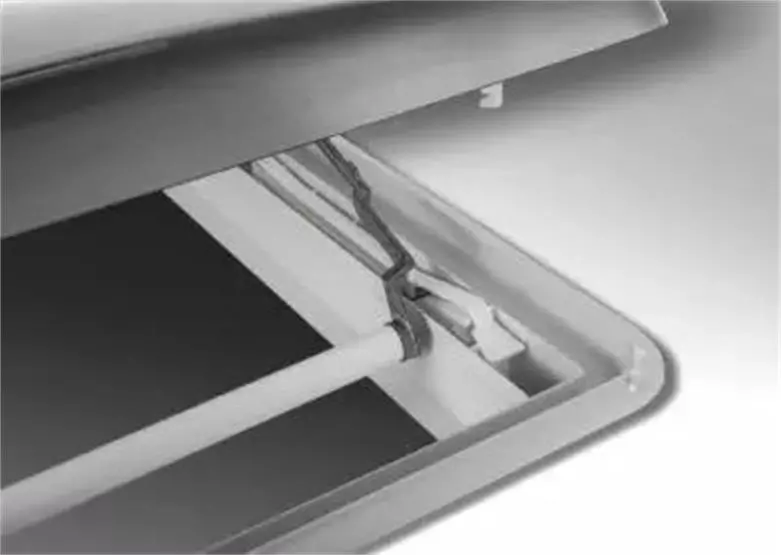

• Opening mechanism Operating handle

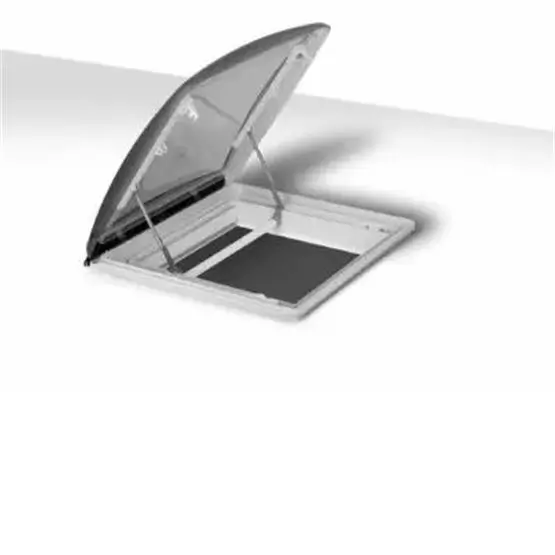

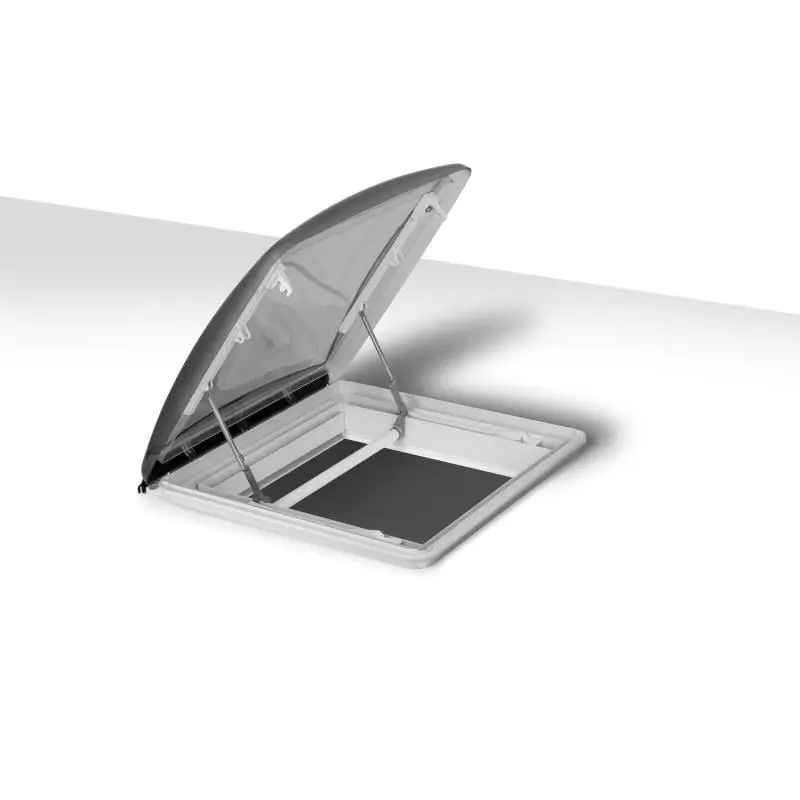

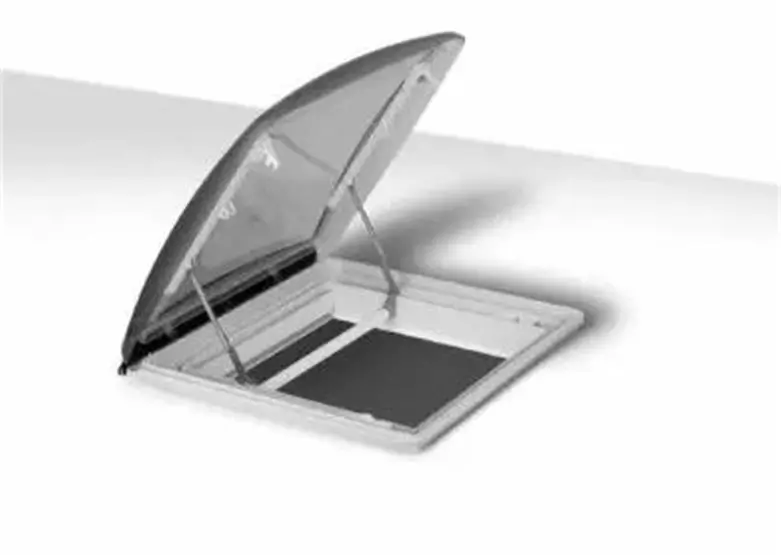

• Max. opening angle: 60°
• Installation methods: - Clamping system, sealed or glued in place
• Inner dimensions: 516x513x 26 mm
• Outside dimensions: 502x511 mm
• External height: 72 mm
• Clear dimensions: 342x362 mm (1.242 cm2 )
• Roof thickness range: 24-44 mm
• Forced ventilation: 0 or 150 cm2
• System: Blackout system Rollo
• Glazing material: PMMA
• Frame material: ASA
• Approval: ECE R 43
• Product weight: 3,6 kg
