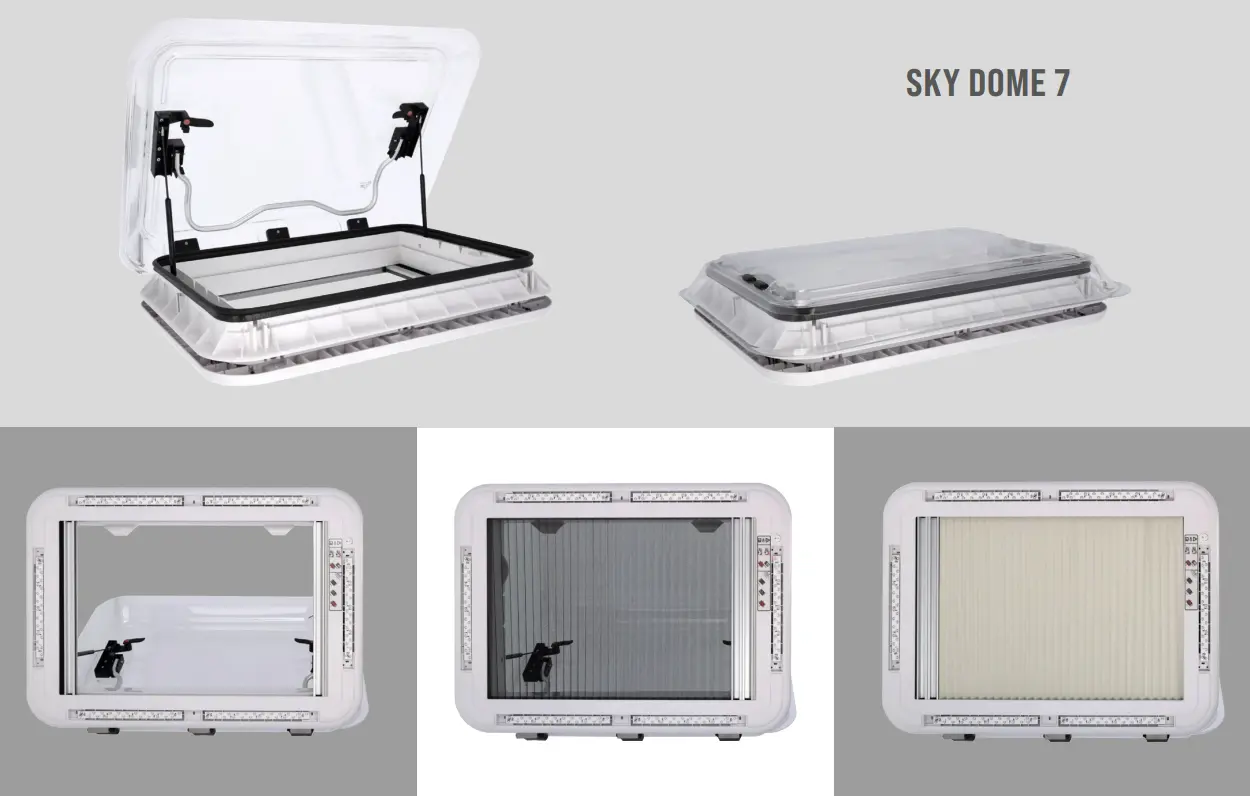

The Brunner RV Innotec Sky Dome 7 brings fresh air and natural light into your motorhome, caravan or campervan, offering a stylish and functional upgrade with CE and TÜV Rheinland certification. Designed to fit roof thicknesses from 25mm to 60mm with a 702 x 502mm cut-out, this 83.5 x 64.5 cm rooflight suits most leisure vehicles perfectly. The double-glazed smoky grey dome opens smoothly up to 80 degrees with the help of gas pressure springs, providing excellent airflow — including a secure night ventilation setting for peace of mind.
How does the Sky Dome 7 improve motorhome ventilation and comfort?
The Sky Dome 7 is built for comfort and convenience. Its removable internal seal allows continuous airflow even when the dome isn’t fully open. Both the fly screen and sunshade are crafted from high-quality single-pleated fabrics with magnetic closures and durable aluminium end bars for easy use. The polyester mesh fly screen adds strength and temperature stability, keeping insects out while letting the breeze in.
Weighing just 9.3kg, this lightweight rooflight is simple to install and made from UV-resistant materials that stand up to years of outdoor adventure. The sturdy aluminium handle connects directly to the gas pressure springs, ensuring effortless operation.
For added comfort, optional dimmable LED lighting turns the Sky Dome 7 into a cosy overhead feature, perfect for evenings inside your camper. Its ECE approval guarantees compliance with European vehicle standards, and with two adjustable opening positions—including a secure night mode—you can always find the ideal balance of ventilation and security.
RV Innotec Sky Dome 7 - 700x500mm Features

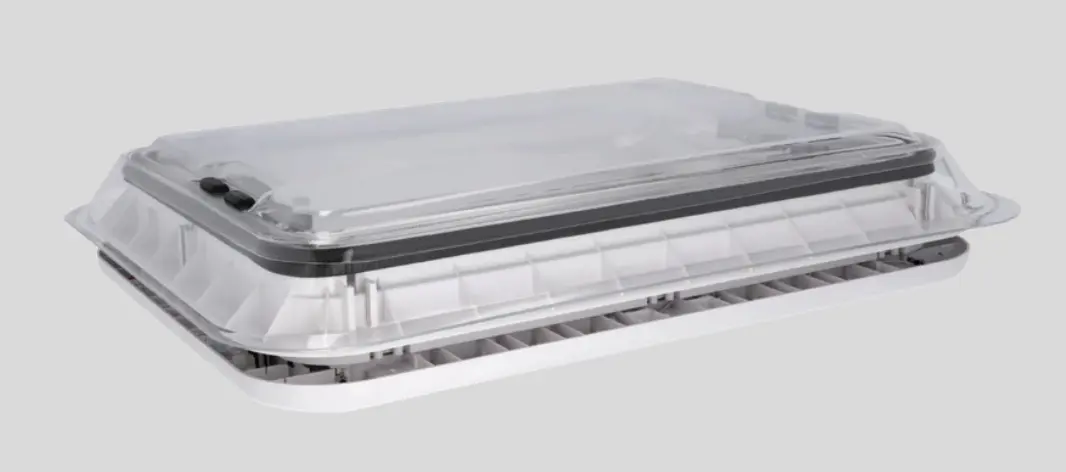

- Aerodynamic dome : Smoky grey, double-glazed dome designed to reduce wind noise and drag while driving
- Ventilation options : Two opening positions plus a secure night ventilation setting for controlled airflow
- Removable seal : Internal seal can be removed to provide permanent background ventilation when needed

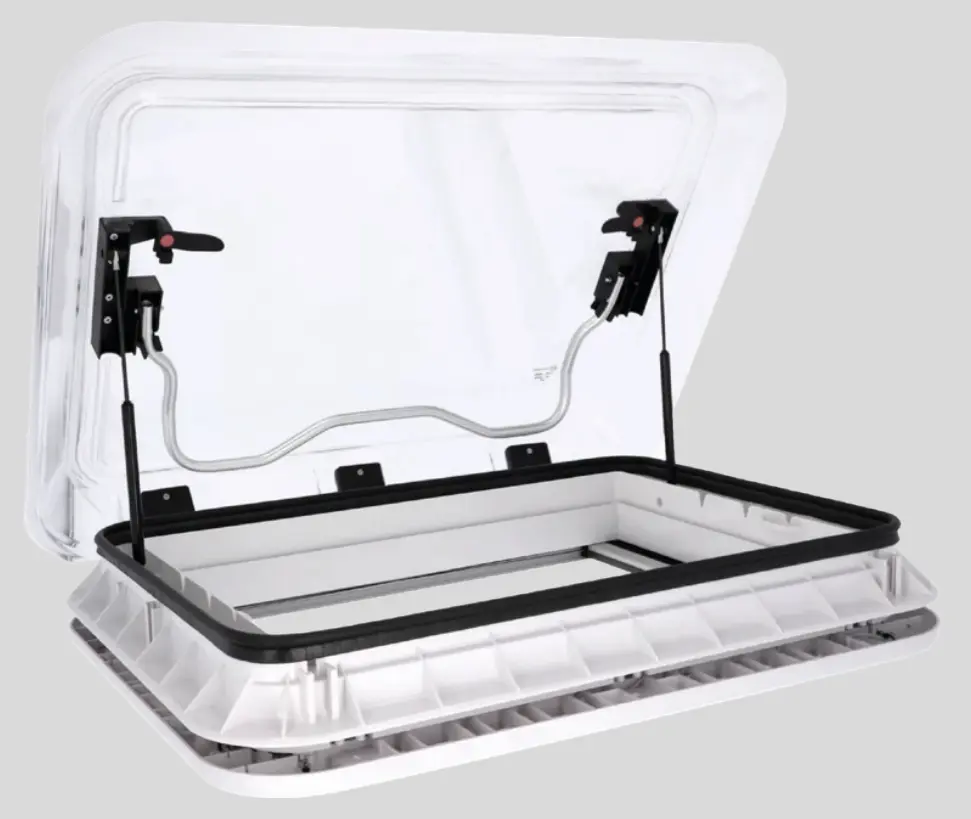

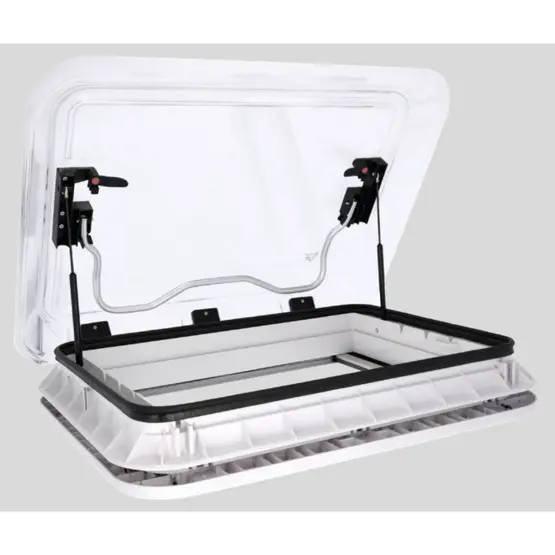

- Easy opening : Gas pressure springs and an aluminium operating handle give smooth, low-effort opening up to 80°
- Insect protection : Integrated fly screen made from single-pleated polyester mesh for rigidity and temperature stability

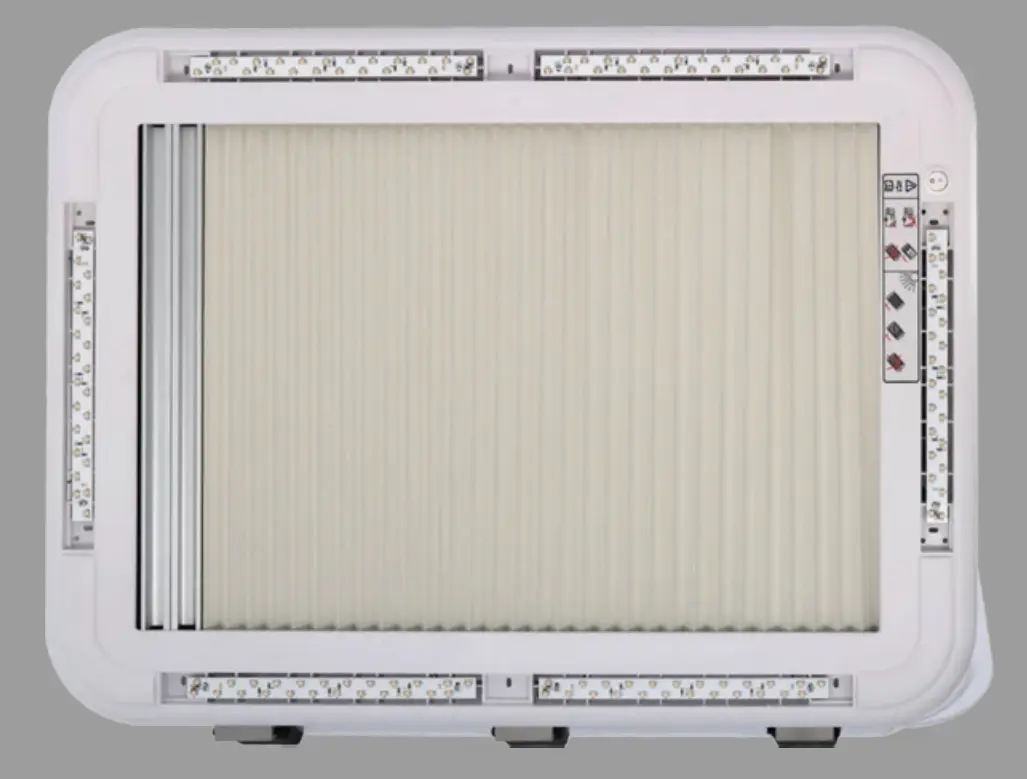

- Sun shading : Built-in sun protection blind in matching single-pleated fabric to reduce glare and heat build-up
- Magnetic closure : Fly screen and sunblind use magnetic closure on the aluminium end bars for intuitive operation
- LED lighting option : Optional dimmable LED lighting turns the rooflight into an overhead light source inside the vehicle
- Weather resistance : UV-resistant glazing and frame materials help protect against sun damage and ageing on the roof
- Certified safety : CE conformity, TÜV Rheinland certification and ECE approval for use on road-going leisure vehicles
Specifications
- External dimensions : 83.5 x 64.5 cm overall rooflight size
- Cut-out size : 702 x 502 mm required roof aperture for installation
- Roof thickness range : Suitable for roof thicknesses from 25 mm to 60 mm
- Weight : 9.3 kg total unit weight for handling and installation planning
- Maximum opening angle : 80° maximum dome opening for ventilation and access
- Forced ventilation range : 0 to 150 cm³ permanent ventilation capacity via the removable seal
- Glazing colour : Smoky grey tinted dome for privacy and reduced glare
- Glazing type : Double-glazed construction for better insulation and condensation control
Frequently Asked Questions
The Sky Dome 7 is ideal for caravans, motorhomes and campervans that use the popular 700 x 500mm rooflight aperture. It fits roof thicknesses between 25mm and 60mm, covering most UK and European coachbuilt motorhomes and many panel van conversions with framed roofs.
This model requires a 702 x 502mm roof cut-out and has external dimensions of 83.5 x 64.5cm. It’s designed as a straightforward upgrade or replacement for many 700 x 500mm rooflights, with the slightly wider frame neatly overlapping the aperture to allow secure sealing and fixing around the opening.
The Sky Dome 7 has an internal seal that you can remove to create a built-in ventilation path, providing 0 to 150cm³ of gentle background airflow. This fixed ventilation helps minimise condensation and supports gas appliance requirements by allowing a small amount of air movement even when the dome is closed against the weather.
Yes. The Sky Dome 7 carries CE conformity, TÜV Rheinland certification and ECE approval, showing it has been tested to meet European standards for road-going leisure vehicles. As long as it is correctly installed and fully closed while you’re on the move, it’s suitable for use during travel.
The Sky Dome 7 opens up to 80 degrees on smooth gas pressure springs and offers two main opening positions plus a dedicated night ventilation setting. The night position is mechanically secured, so you can enjoy controlled airflow without the dome being fully open, which is especially handy in changeable weather or while you sleep.
The Sky Dome 7 features a double-glazed smoky grey dome that boosts thermal performance compared with single-skin lids. This double glazing helps cut down heat loss and reduces condensation on the inner surface, which is important because rooflights can otherwise be a weak point in your van’s insulation.

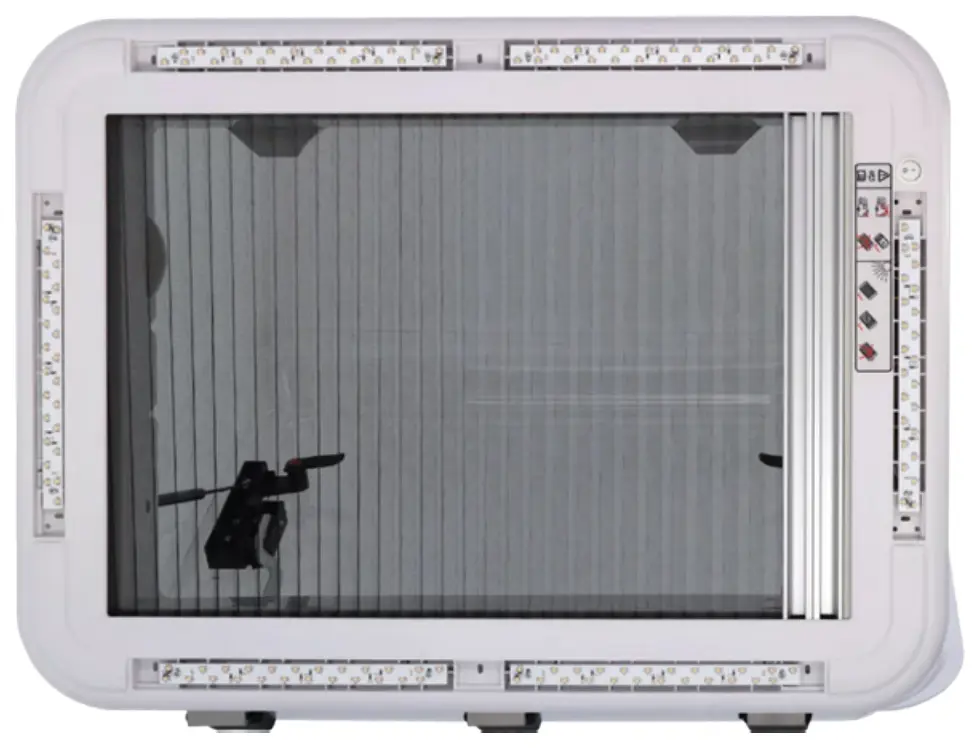

The inner frame combines a fly screen and sunblind made from neatly single-pleated fabrics that glide towards each other. The polyester fly mesh is chosen for rigidity and temperature stability, and both screens use aluminium end bars with magnetic closure, so you simply pull them into place and they locate themselves for quick, fuss-free adjustment.
LED lighting is available as an optional extra rather than included as standard. You can add a dimmable LED kit into the inner frame, giving you soft, even overhead lighting inside the vehicle and creating a cosy evening atmosphere from the same rooflight that brings in natural daylight.
Before fitting, check that your roof structure can comfortably support the 9.3kg rooflight and any additional load, and make sure there are no hidden cables, strengthening ribs or fixtures where you plan to cut. A flat, well-prepared surface and the correct adhesive sealant are essential to prevent leaks, so if you’re unsure, it’s worth considering a professional installation for complete peace of mind.
