Dometic NRX 90V Compressor Fridge 90L 12/24V

£1099.99(inc VAT) £1369.99
View delivery optionsView product description
  Product Description

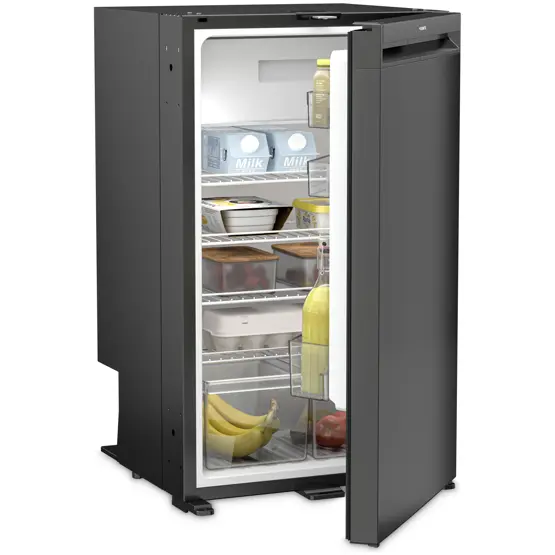

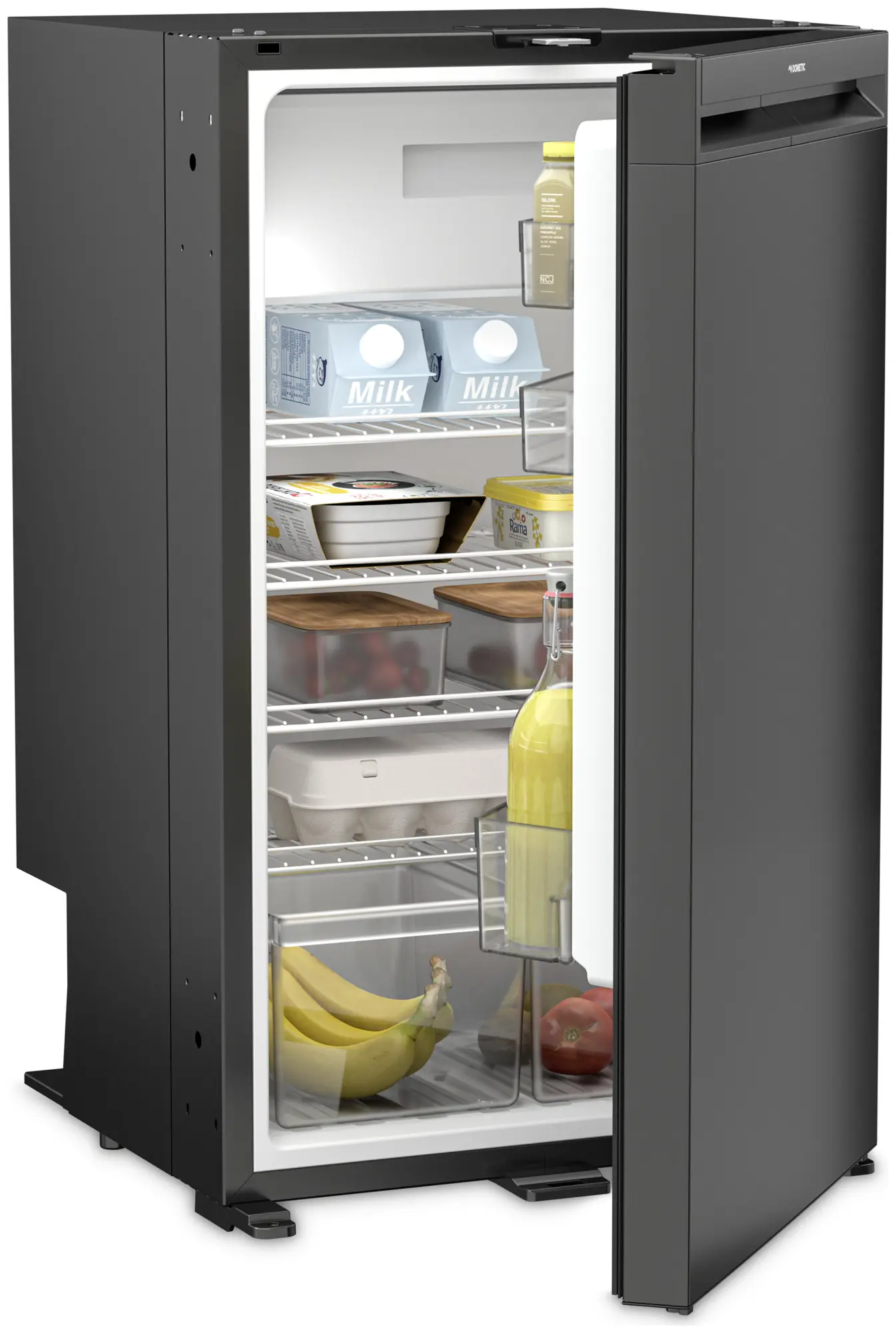

The Dometic NRX 90V is a 90-litre 12/24V DC compressor refrigerator designed for built-in installation in motorhomes, caravans, campervans and trucks. It features a black frameless door with a full-width integrated handle, and its 486 mm width is specifically engineered to fit directly into the cut-out left by older Dometic 5-series and 8-series absorption refrigerators. The swap requires no new cut-outs, no external ventilation grilles and no gas connections. Inside, the NRX 90V uses Dometic's patented removable freezer compartment, giving it a 3-in-1 configuration: run it as a combined fridge/freezer with the 8.4-litre frozen compartment in place, remove the compartment for full-capacity refrigeration, or switch the entire unit to freezer mode.

Why upgrade from an absorption fridge to the Dometic NRX 90V compressor refrigerator?


The NRX 90V uses approximately 0.4 kWh per 24 hours, representing an energy saving of around 84% compared to the absorption RM5380 it's designed to replace. It weighs 22 kg and runs on 12V or 24V DC with no gas bottle required, making it suitable for solar-powered setups and off-grid touring.

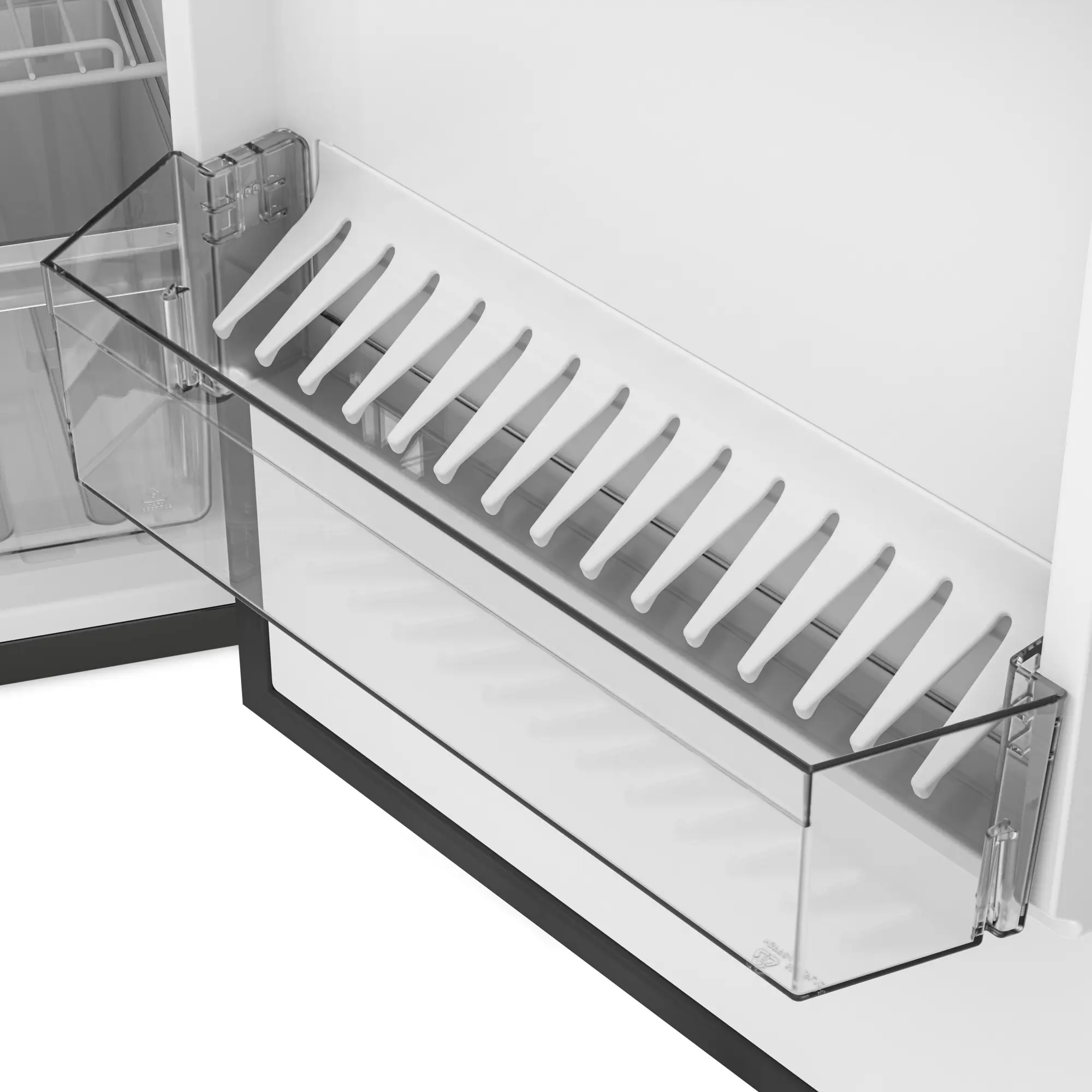

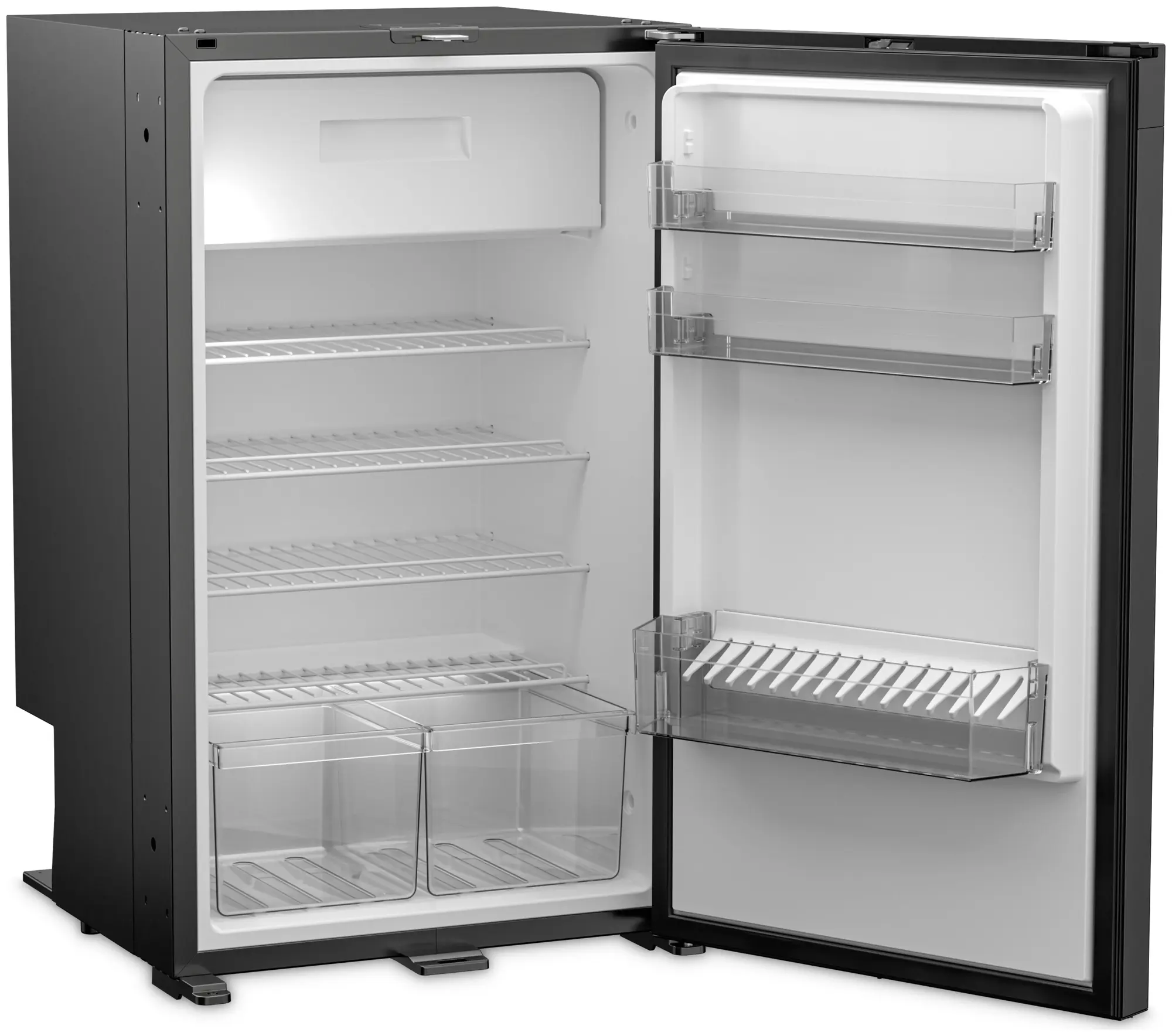

The compressor runs in three selectable modes via the interior touch control panel: Eco for maximum energy efficiency, Boost for rapid cool-down, and Silent for overnight use. Noise output is rated at 40 dB(A). The electronic thermostat offers five cooling levels, with a refrigerator range of 0°C to +15°C, a frozen compartment range of -12°C to -5°C, and a full freezer mode at approximately -5°C. It's rated to climate class T, meaning it operates reliably in ambient temperatures from 16°C up to 43°C at humidity levels up to 90%. The interior is well organised with four adjustable shelves, a large bottle holder, an egg compartment, two door trays, and two crisper drawers for fruit and vegetables. An integrated LED light bar is built into the control panel for clear visibility.

The door hinge is reversible, so it fits left or right-hand installations. Dual-function locks at the top and bottom of the door secure it during transit and double as ventilation positions for airing out the cabinet when the fridge isn't in use. Dometic also offers optional standard and flush-mount installation frames as separate accessories for a neat, built-in finish. The NRX 90V uses R600a (isobutane) refrigerant in a hermetically sealed system with polyurethane insulation, and it carries ECE R10, CB, CE and EMC certification. With a 30-degree tilt tolerance, it's also suitable for marine installations on boats and yachts.

Features


  • 90-litre total capacity with 8.4-litre removable freezer compartment

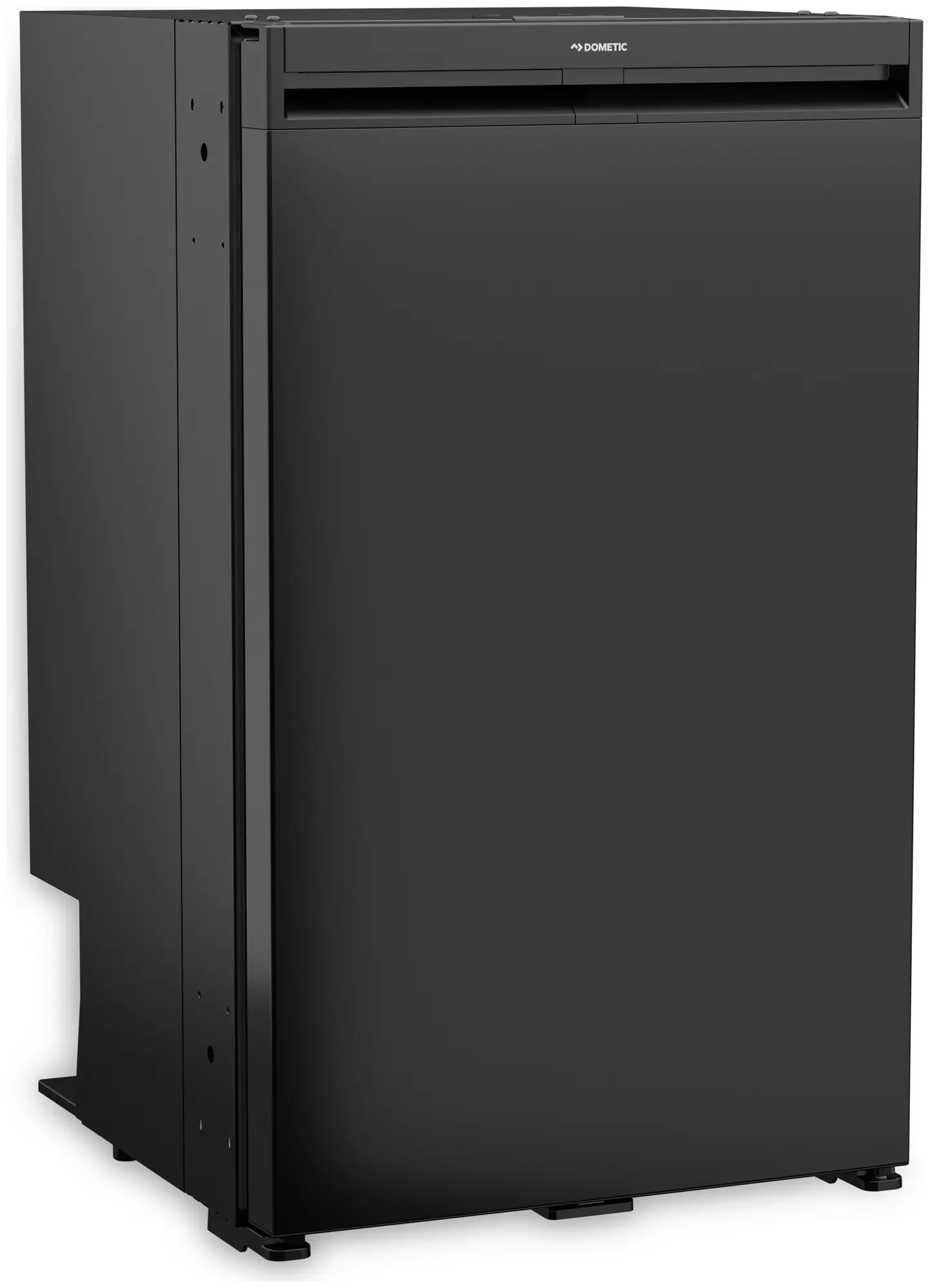

  • 12/24V DC compressor refrigerator with black frameless door and full-width handle
  • Patented 3-in-1 configuration: fridge/freezer, full fridge or full freezer
  • Three compressor modes: Eco, Boost and Silent
  • Electronic thermostat with five cooling levels

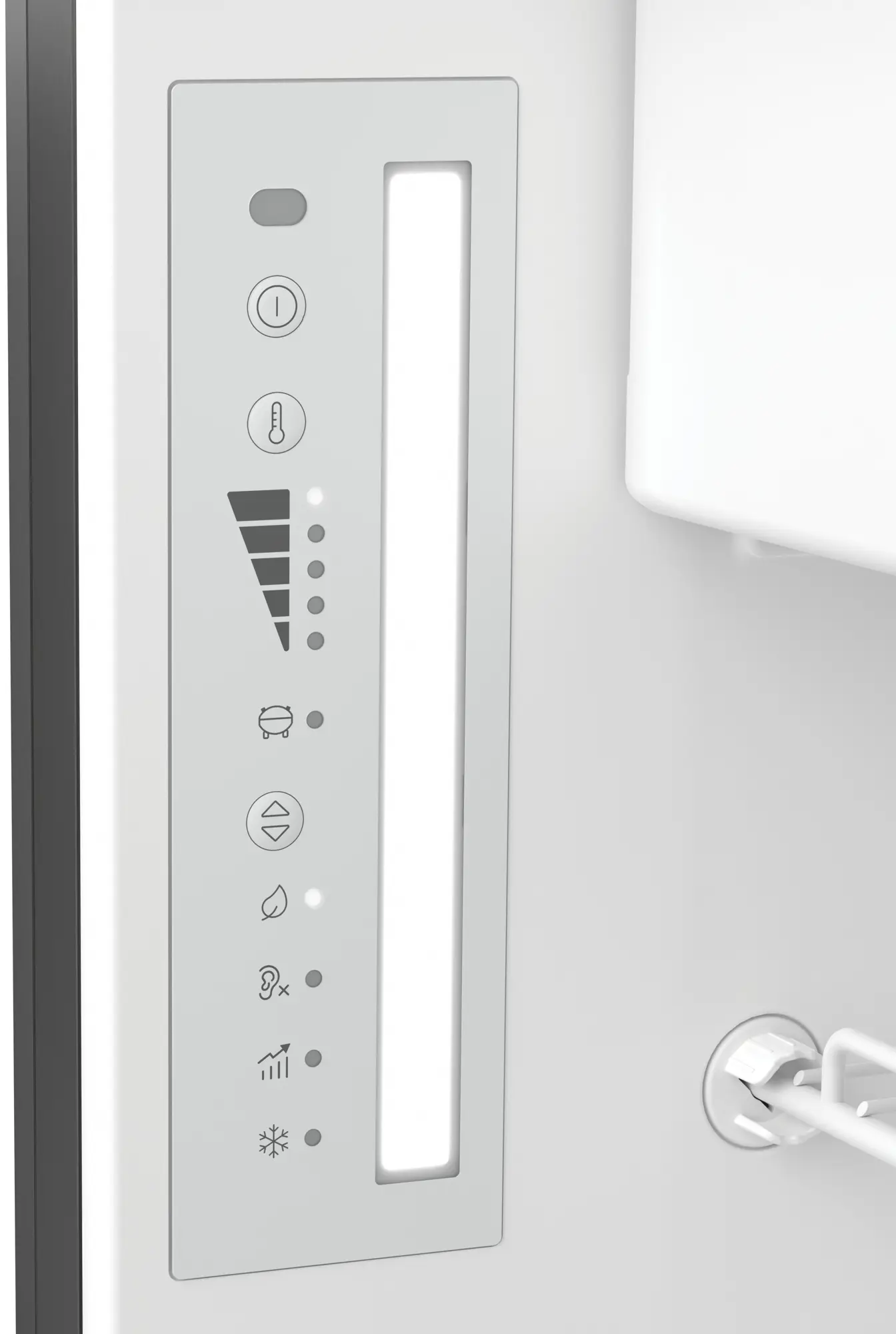

  • Integrated touch control panel with LED light bar
  • Reversible door hinge for left or right-hand installation
  • Dual-function door locks double as ventilation positions
  • Winter mode with smart closing mechanism for off-season storage
  • Direct drop-in replacement for Dometic 5-series and 8-series absorption fridges
  • No external ventilation grilles, cut-outs or gas connections required
  • Four adjustable shelves, bottle holder, egg compartment, two door trays and two crisper drawers
  • 30-degree tilt tolerance for marine installations
  • Optional standard or flush-mount installation frame (sold separately)
  • R600a (isobutane) refrigerant in hermetically sealed system
  • Suitable for solar-powered and off-grid setups

Specifications


  • Total volume (IEC 62552-3): 92 litres
  • Usable capacity: approximately 90 litres including 8.4-litre freezer compartment
  • Input voltage: 12/24V DC
  • Energy consumption: approximately 0.4 kWh/24h
  • Dimensions (W x H x D): 486 x 821 x 480 mm
  • Parcel dimensions (W x H x D): 555 x 855 x 560 mm
  • Net weight: 22 kg
  • Parcel weight: 25 kg
  • Refrigerator temperature range: 0°C to +15°C
  • Frozen compartment temperature range: -12°C to -5°C
  • Freezer mode: -5°C (± 2°C)
  • Ambient temperature range: 16°C to +43°C at up to 90% humidity
  • Climate class: T
  • Noise level: 40 dB(A)
  • Refrigerant: R600a (isobutane)
  • Insulation: Polyurethane (PU)
  • Thermostat: Electronic
  • Interior light: LED
  • Hinge: Right-hinged (reversible)
  • Hermetically sealed: Yes
  • Certifications: ECE R10, CB, CE, EMC
  • Colour: Black front
  • Dometic SKU: 9620006673

Frequently Asked Questions


Which Dometic absorption fridges does the NRX 90V replace?
The Dometic NRX 90V is specifically designed to fit the same cut-out as former Dometic 5-series and 8-series absorption refrigerators, including models like the RM5380. At 486 mm wide, 821 mm tall and 480 mm deep, it slots directly into the existing cavity without any modifications to the cabinetry, new cut-outs, ventilation grilles or gas connections.
What are the three operating modes on the Dometic NRX 90V?
The NRX 90V compressor operates in three modes selectable from the interior touch control panel. Eco mode maximises energy efficiency for extended off-grid use. Boost mode provides rapid cooling to bring the fridge down to temperature quickly after loading. Silent mode reduces compressor noise for overnight operation. These modes work across all five temperature levels available on the electronic thermostat.
How does the removable freezer compartment work on the Dometic NRX 90V?

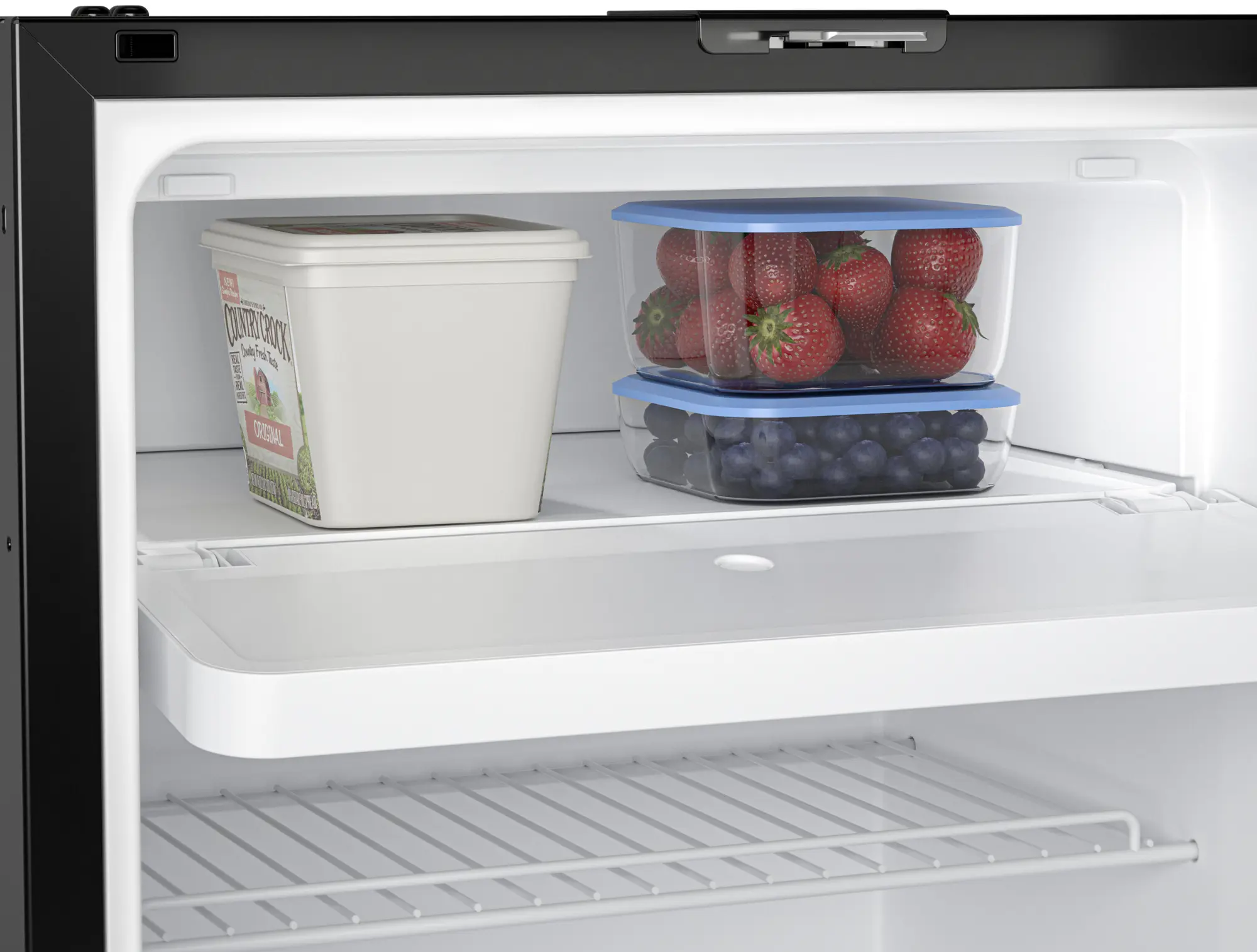

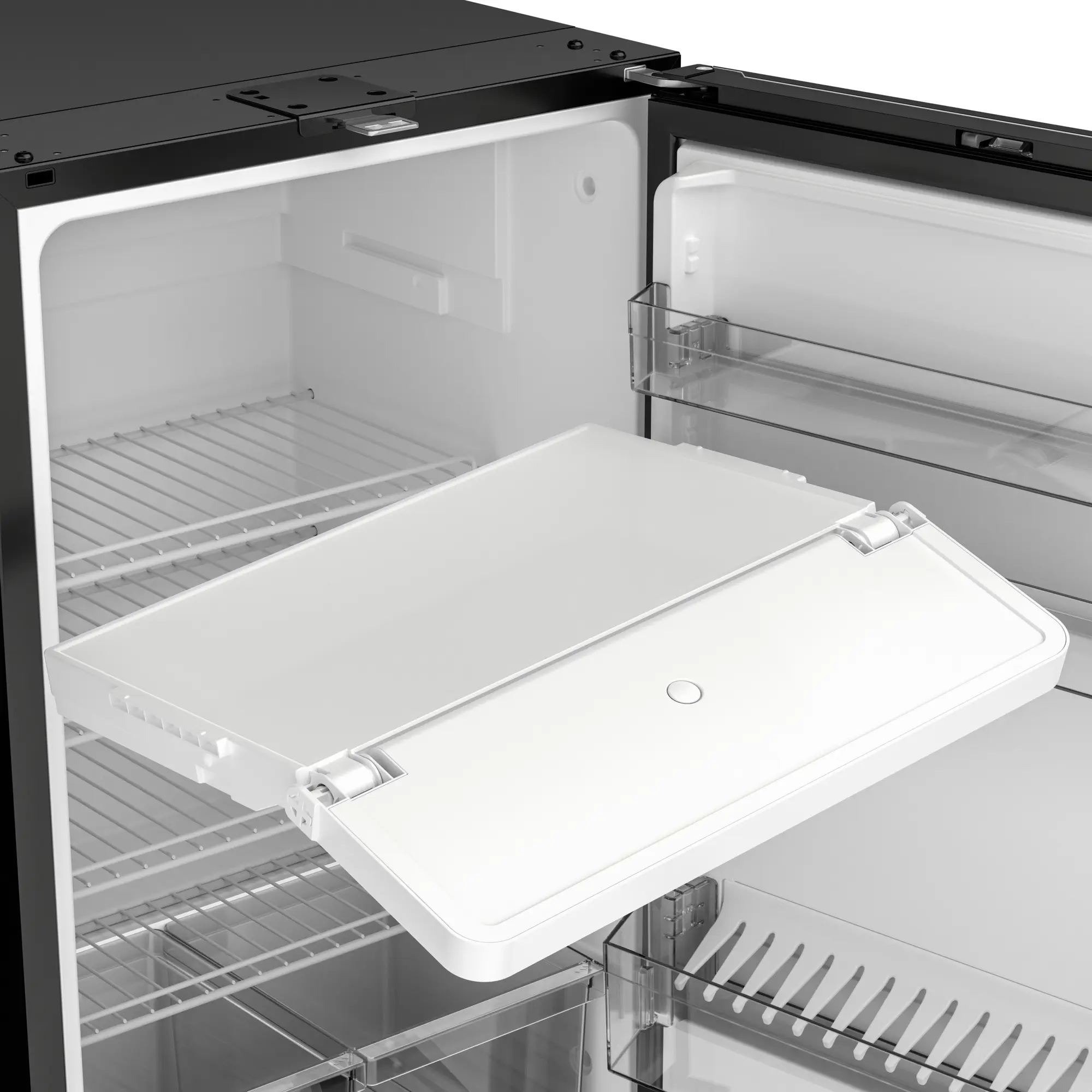

The NRX 90V uses a patented Dometic system where the 8.4-litre freezer compartment can be pulled out without tools. This creates three configurations: a combined fridge/freezer with the compartment installed, a full-capacity refrigerator with the compartment removed, or an all-freezer mode where the entire 90-litre volume operates at freezer temperature. The frozen compartment range is -12°C to -5°C, and full freezer mode operates at approximately -5°C.
Does the Dometic NRX 90V work with solar panels?
Yes. The NRX 90V operates on 12V or 24V DC power and consumes approximately 0.4 kWh per 24 hours, which makes it suitable for solar-powered setups. In Eco mode, the compressor draws minimal current, and the low energy consumption means a properly sized solar panel and leisure battery system will comfortably sustain the fridge during off-grid camping or extended touring.
What is the winter mode feature on the Dometic NRX 90V?
The winter mode uses a smart closing mechanism that holds the door slightly ajar, creating a gap between the fridge door and the cabinet. This allows air to circulate inside the fridge during periods when it's not in use, preventing mould and stale odours from developing. It's designed for off-season storage when the motorhome, caravan or boat is laid up for winter.
Is the Dometic NRX 90V suitable for use on boats?
Yes. The NRX 90V has a 30-degree tilt tolerance, making it suitable for marine installations on boats and yachts. It operates on 12V or 24V DC, which matches standard marine electrical systems. The hermetically sealed compressor system and dual-function door locks that secure the door during movement also make it well suited to use on the water.
Do I need a separate installation frame for the Dometic NRX 90V?
The NRX 90V is designed for built-in installation in a piece of cabinetry or an installation niche. Dometic offers optional standard and flush-mount installation frames as separate accessories. The standard frame provides a neat trim around the fridge opening, while the flush-mount frame allows the door to sit level with the surrounding cabinetry for a fully integrated look. The fridge itself does not require external ventilation, so it fits within the vehicle's living space without venting to the outside.
How much energy does the Dometic NRX 90V use compared to an absorption fridge?
The NRX 90V consumes approximately 0.4 kWh per 24 hours on 12/24V DC. A comparable absorption fridge of the same size, such as the Dometic RM5380, uses around 2.5 kWh per 24 hours. That represents an energy reduction of approximately 84%, which has a significant impact on leisure battery life and makes the NRX 90V far more practical for off-grid use and solar-powered systems.
