Fiamma Security 46 - Motorhome Door Barring Handle (White, 46cm)

£96.78(inc VAT) £115.99
View delivery optionsView product description
  Product Description

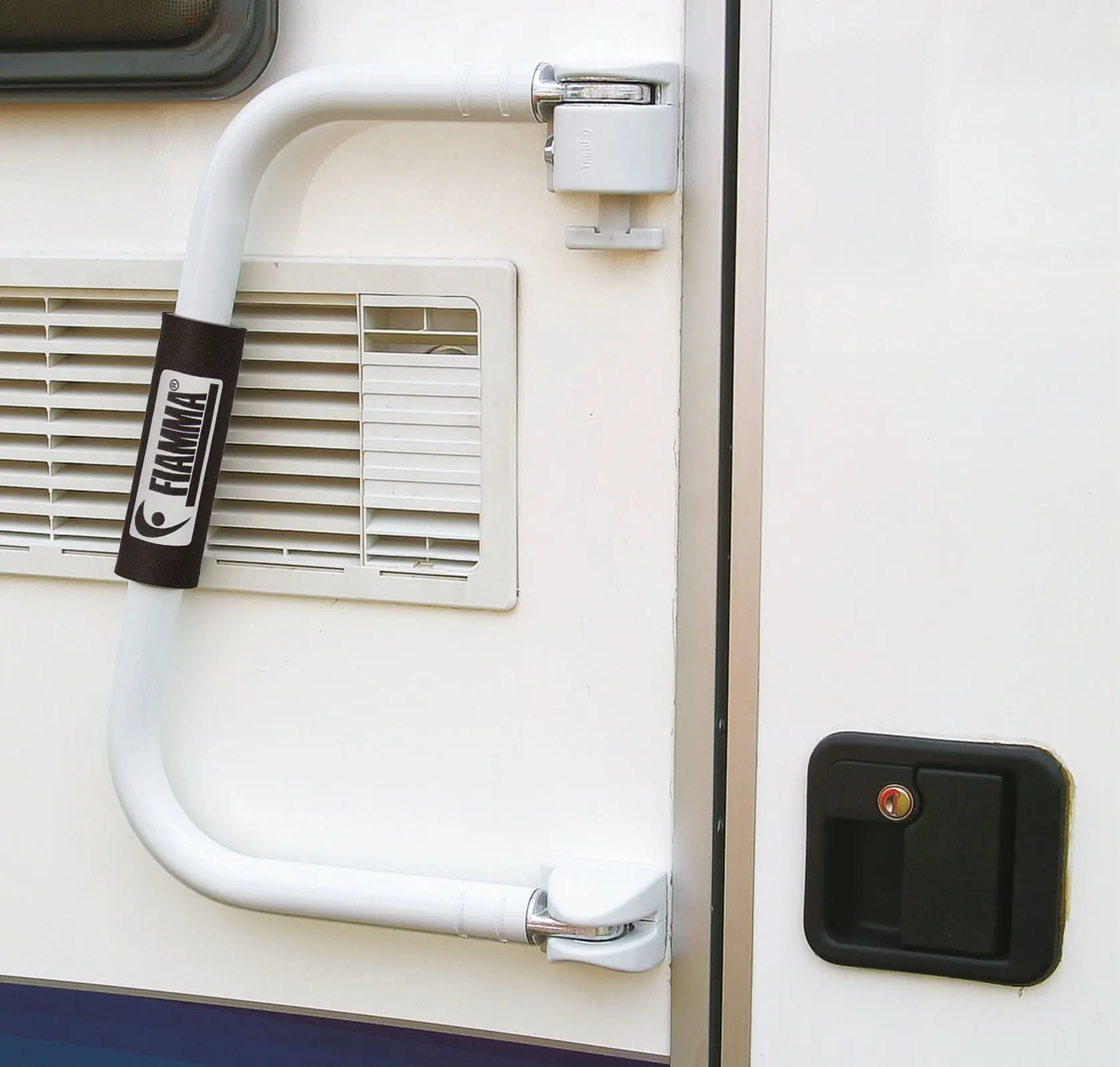

The Fiamma Security 46 is a dual-purpose U-shaped handle made from solid 30mm diameter anodized aluminium with 2mm wall thickness, designed to serve both as an entry assist handle and a door security device. The extended version features mounting points positioned 46cm apart, making it suitable for two-part doors commonly found on modern motorhomes and caravans. The handle bolts through the vehicle wall adjacent to the habitation door using internal counterbrackets and supplied screws, adapting to doors opening from either left or right side.

How does the Security 46 work as both a mobility aid and door lock?

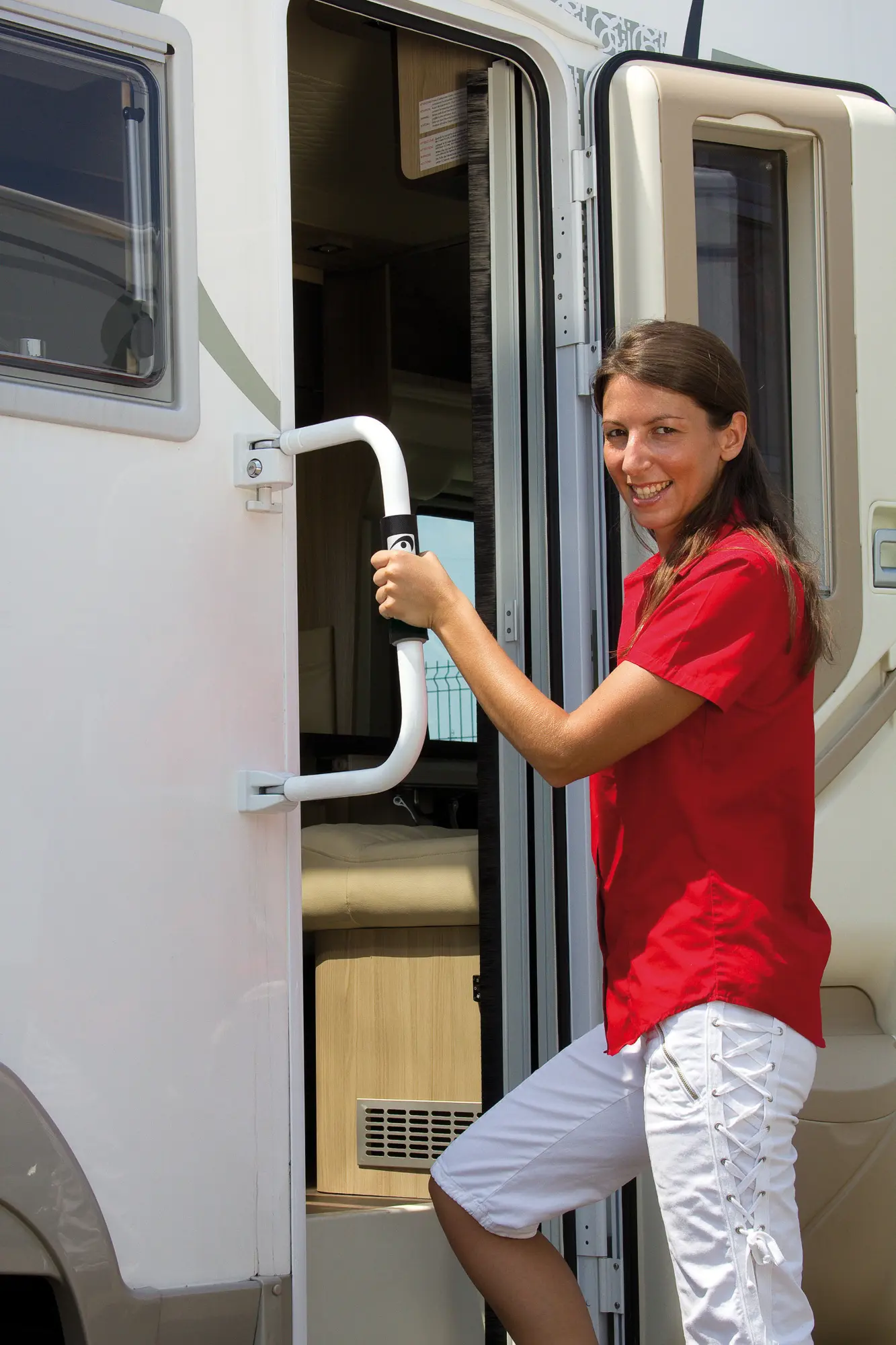

When unlocked, the handle pivots outward from the vehicle wall at 90 degrees, providing a sturdy grab rail to assist entry and exit. The 30mm diameter aluminium construction supports body weight whilst the anti-slip polyester grip offers a secure hold. Once inside, you can lock the handle in this open position using the safety pin provided. To secure the door, rotate the handle across the door opening and lock it in place with the key-operated barrel lock, physically preventing the door from opening outward.

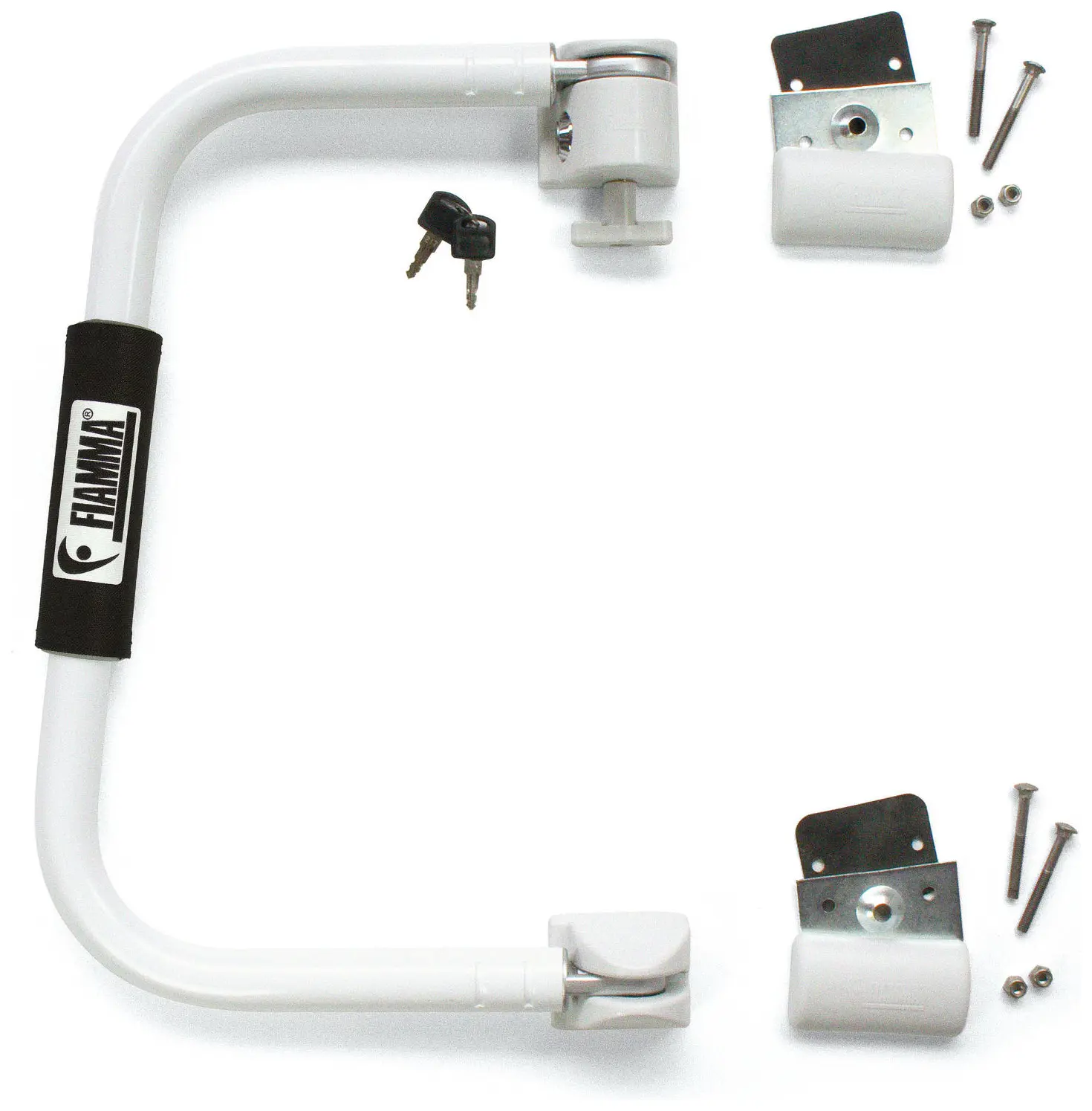

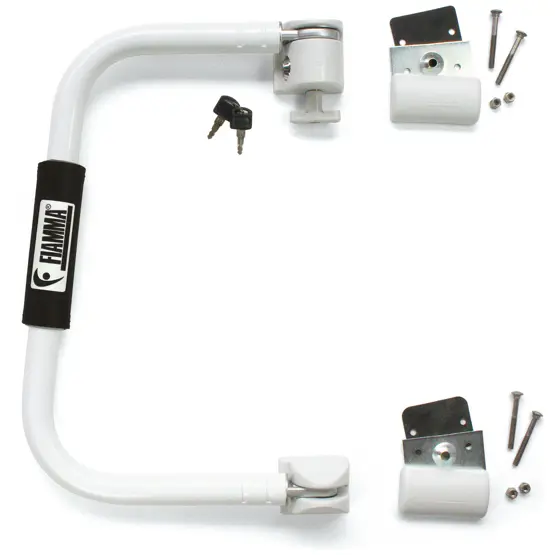

The complete kit includes the security handle with pre-attached hinges, one high-security barrel lock with two keys, a safety pin for locking the handle in open or closed position, all installation hardware (mounting brackets, screws, and bracket covers), and a soft anti-slip handle grip. This model is particularly suited for motorhomes with taller door configurations or where the standard Security 31 would be too short to adequately span the door opening. The painted aluminium finish in white complements most vehicle exteriors whilst resisting corrosion from outdoor exposure.

Fiamma Security 46 Features


  • The Security 46 is longer than the Security 31 and is for two part doors.
  • Security handle made of solid painted aluminium with 30mm diameter and 2mm thickness.

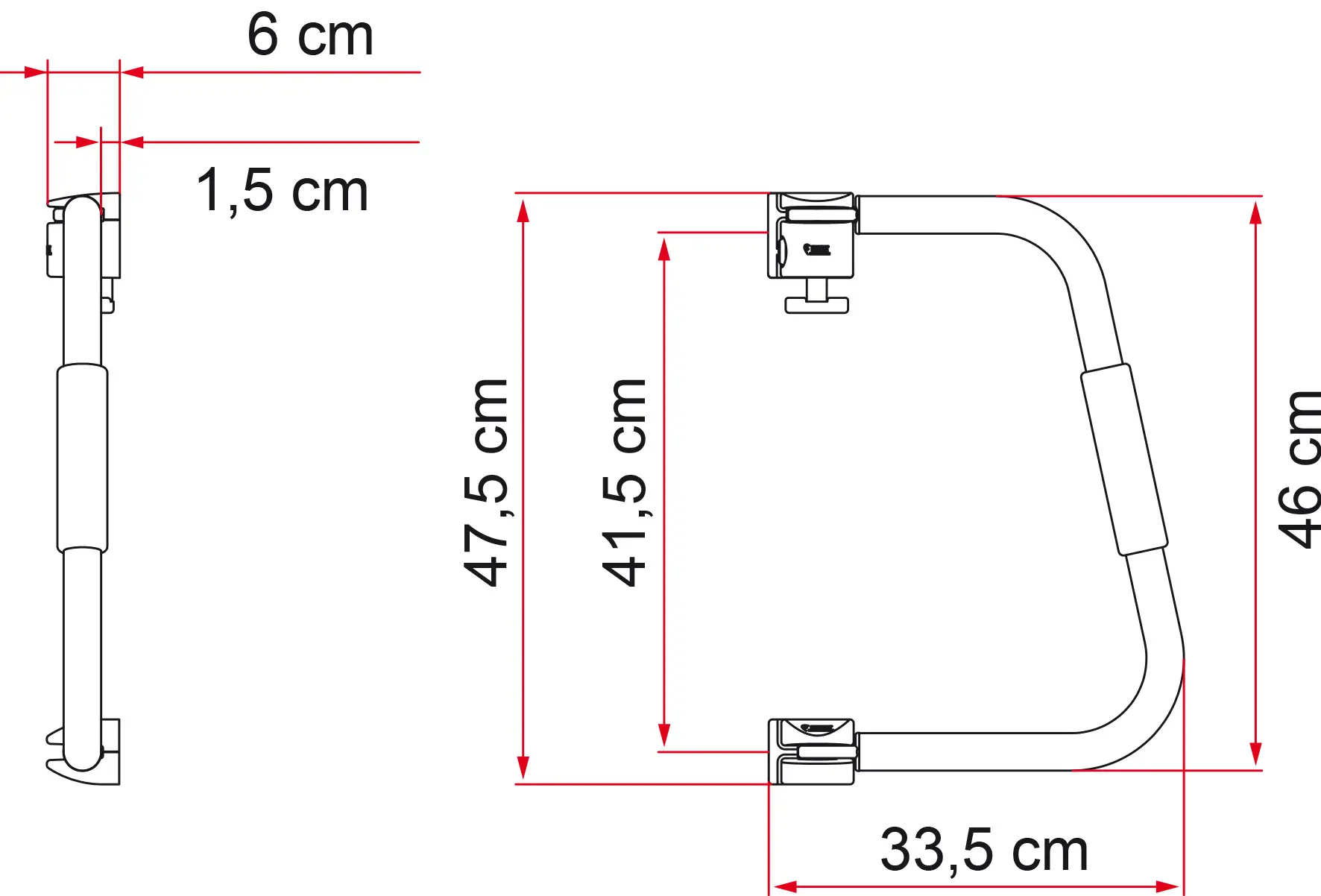

  • Height: 46 cm.
  • KIT SECURITY GRIP : Comfortable polyester anti-slip cover to protect the safety grip of the Security handles. Delivered as standard with the Security handles.

Frequently Asked Questions


What's the difference between the Security 31 and Security 46?
The Security 46 has mounting points positioned 46cm apart compared to the Security 31's 31cm spacing. The extended height makes the Security 46 suitable for two-part doors and taller door configurations commonly found on modern motorhomes. Both models share the same 30mm diameter aluminium construction and dual-purpose design, but you'll need to measure your door height to determine which version provides adequate coverage when locked across the door opening.
Does this handle require drilling through the motorhome wall?
Yes, the Security 46 requires drilling through the vehicle wall adjacent to your habitation door. Eight 6mm bolts secure the handle using internal counterbrackets, with clip-on covers hiding the bolt heads inside for a neat finish. Before drilling, check that there are no internal fixtures, electrical cables, or plumbing pipes in the mounting area. You'll need to ensure the wall construction is sufficiently solid to guarantee the resistance of the anchoring points.
Can this handle support someone's weight as a mobility aid?
The Security 46 is designed to assist with entry and exit by providing a sturdy handhold, and the solid aluminium construction with 30mm diameter and 2mm wall thickness offers substantial strength. The anti-slip polyester grip provides a secure hold. The handle's load-bearing capacity depends significantly on the wall construction where it's mounted - aluminium-faced walls with polystyrene cores require careful installation to ensure the mounting points can handle the forces applied during use.
How do I prevent the handle from corroding or seizing?
Regular maintenance is essential for Fiamma security handles to prevent the lock mechanism from seizing. Apply silicone-based lubricant to the lock barrel and pivot points twice yearly - avoid oil or grease-based products as these can attract dirt. The lock barrel can develop corrosion between the chrome bolt and aluminium body, particularly if the handle remains in one position for extended periods. Regular operation and lubrication during winter storage prevents seizure issues.
Does this handle work with doors that open from either side?
Yes, the Security 46 adapts to doors opening from both right and left sides. The handle mounts on the hinge side of the door opening, so when the door opens, the handle can swing across to secure it. You'll position the mounting brackets according to your door configuration during installation. The handle's pivot mechanism allows it to rotate 90 degrees outward as a grab rail or swing across the door opening for security, regardless of which direction your door opens.
Can I lock myself inside with this handle?
When using the Security 46 as a security device whilst you're inside the vehicle, you should consider your emergency exit routes. The handle locks across the habitation door, which could restrict emergency access. If you have a motorhome with lowering door windows, you can reach through to unlock the handle from outside if needed. Many users choose not to lock the handle when they're inside the vehicle, instead using it purely as a grab rail and only locking it across the door when away from the vehicle.
What's included with the optional Kit Security Lock?
The standard Security 46 comes with a safety pin that locks the handle in open or closed positions. However, the optional Kit Security Lock (part number 98656-433) provides an additional locking point that mounts directly onto the door itself, creating a third fastening point for enhanced security and strength. This door-mounted lock prevents the handle from being forced open by adding a secondary securing mechanism beyond the main pivot lock.
