Status 580 Directional Antenna (Long Mast) - Digital and Analogue reception

£149.99 (inc VAT) £169.99NewCondition
The Status 580 Directional Antenna (Long Mast) - Digital and Analogue reception is an efficient, wide-band, log periodic dipole array with an integral electronic booster. With the ...

...read more

    Loading... Loading stock details...

The Status 580 Directional Antenna (Long Mast) - Digital and Analogue reception is an efficient, wide-band, log periodic dipole array with an integral electronic booster. With the addition of specially designed telescopic antennas, the Status 580 produces exceptional performance across all UHF, VHF and FM signals. This is based on a LTE Protect dipole array with improved performance and efficiencies. It is manufactured in corrosion resistant materials, with high quality ABS plastics designed for external use.

One of the most significant features of the Status 580 is the setting up and positioning of your antenna when you arrive on site.

Tuning your caravan TV literally takes seconds to complete, thanks to the TV Signal Finder that is integrated into the Variable Signal Gain Amplifier. The LED light either shows red, yellow or green dependant on signal strength.

Firstly we had to overcome the problem of receiving horizontal and vertical signals with an antenna fixed to a mast mounted through the roof. Our solution is to incorporate an integral gearbox into the antenna dome, operated by a winder handle, which cants the antenna through 90 degrees. A clever and unique feature only offered by STATUS.

The greatest benefit of our design was to simplify locating a TV transmitter whenever you arrived at a new destination. Firstly, raising and lowering the antenna dome and adjusting its direction can all be performed in the warmth and comfort of indoors. Then simply turning the folding winder changes the antennas' polarity from horizontal to vertical.

Featuring Digital TV, DAB and FM radio reception, fixed FM radio antennas and a variable gain control with which to adjust transmission for strong and weak signal areas, the Status 580 Caravan TV Aerial is exceptional at finding and receiving signal easily and quickly and with the LED light power indicator, signal strength can furthermore be monitored with ease.

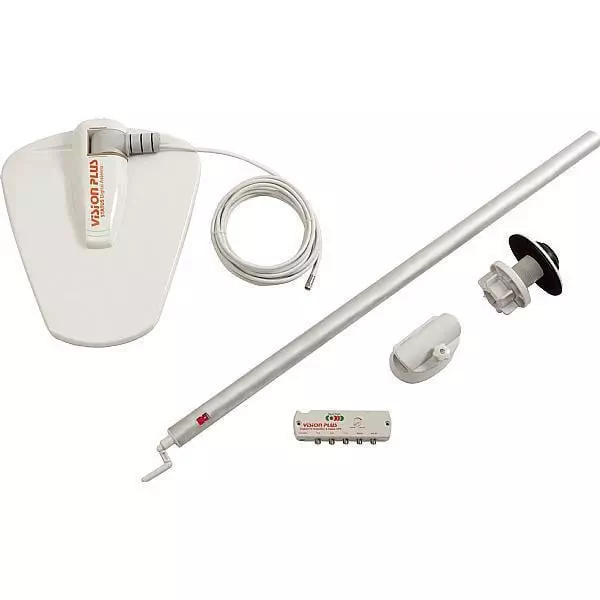

Includes VP5 Digital TV & Radio Amplifier (shown at the bottom)

Status 580 Directional Antenna Features
  • Horizontal & Vertical Polarisation Indicator
  • Includes 3 TV Connections and 1 dedicated Radio connection (VP5 Digital TV & Radio Amplifier)
  • 12 – 24V DC Power Input connection
  • Antenna IN connection
  • On / Off Power switch
  • 3 Year Warranty

Dimensions

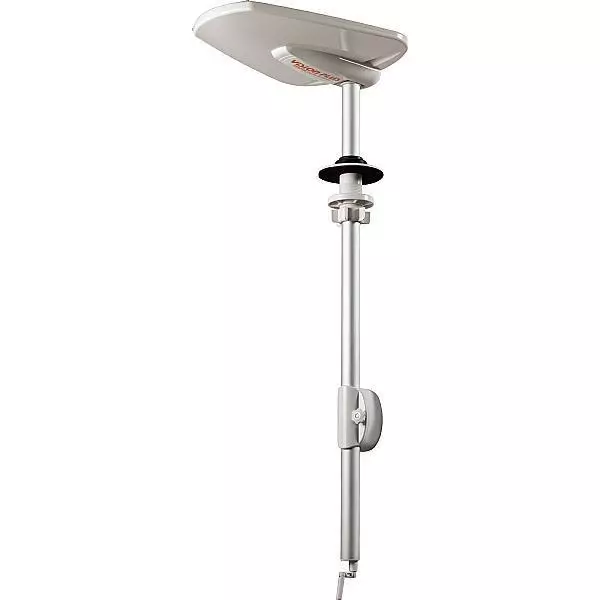

  • Mast Length 920mm

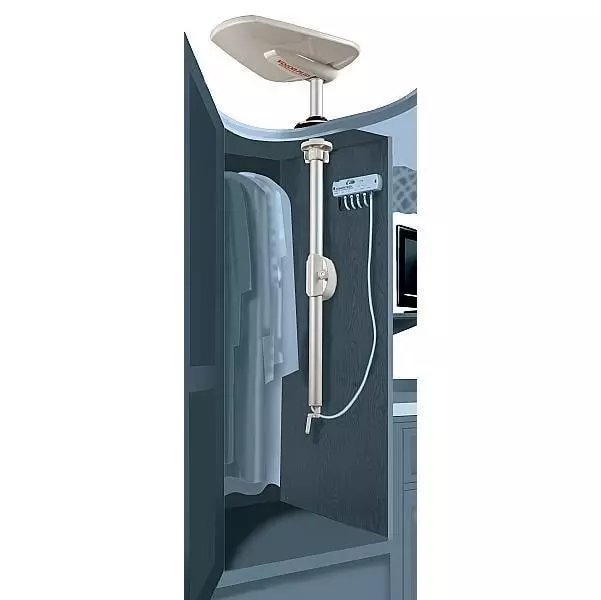

  • Mast intrusion into locker 875mm inc winding handle (Roof cavity being 3cm approx)
  • Antenna dome Installed - Length 412mm - Width 348mm - Height 108mm
  • Mounting Foot & Gaiter - Diameter 122mm - Height 35mm - Roof cavity range 25-50mm

Please note that the roof mounting assembly kit that is supplied with this product is not suitable for sloping roofs. You will need to purchase the Angle Adjustable Mounting Foot shown below.

Associated Products
Quick View     Vision Plus VP5 Digital TV & Radio Amplifier with Signal Finder

Quick View     Status 530/540/570/580 Angle Adjustable Mounting Foot

Quick View     Vision Plus Antenna Blanking Plate

9 Customer Reviews on Status 580 Directional Antenna (Long Mast) - Digital and Analogue reception

Status 580 Antenn

by Donald McCartan (28 Nov 2018)
5 star review(5/5)
This was my first purchase with this company and they dealt with all my questions and concerns with patience and Knowledge!
5 5

A Great Buy

by Peter Ritchie (08 Oct 2018)
5 star review(5/5)
A very swift and straightforward transaction. Bought Status 580 to replace a dead Status 530. A very simple switch of equipment. I live in a valley with very poor reception at ground level but after fitting the new equipment I thought I'd just give it a try. Wow.....delighted when I got 80+ channels with the vehicle parked in my drive! I must also praise the amplifier/signal finder. It is well designed and makes tuning a cinch. I would certainly recommend Leisureshop and the product.
5 5

Good Service, Good Product

by Chris Hamson (20 Jul 2018)
5 star review(5/5)
Received this Status antenna within 24hours of ordering, and got text with delivery time to within an hour. Very impressed. Product itself is what I expected, with good assembly instructions, some of it a bit fiddly, but I think that is down to my 70 year old fingers! Installed and working so very happy.
5 5

Royboy

by Roy Tudge (27 Oct 2017)
5 star review(5/5)
Bought one last year to replace 530 on my Bessacarr E410 and it was great, easy to tune, great reception. Sold me E410 for E560 and the the same problem the 530 just not good enough. New 580 fitted before I went touring. Also bought Status TV to go with the 580.
5 5

Status 580 Aerial

by Mr Cleverley. (18 Sep 2017)
5 star review(5/5)
Easy to install & operate ,but not near 240v at the moment to be able to try it out ,recon there should be no problems as most caravan's have the short version fitted as standard these days .
5 5

An Old Mans Dream

by Dave Pearc (17 May 2017)
5 star review(5/5)
I have not tried it yet but installing was simple and quick.The status 580 will make setting up so much than having to climb on the roof.
5 5

Status 560 (long Mast)

by Techno (26 Mar 2015)
5 star review(5/5)
Excellent reception indicator for direction-finding. Long mast is excellent, and necessary when the nearby obstructions or caravans are a little higher than yours, shorter mast would not work well in these situations. We use full extension more than 50% of the time. Set up is in 20-30 seconds, from inside the van. Good installation instructions, need to fit in a wardrobe or similar, and plan aerial route to TV! Never had a problem with Leisure Shop delivery.
5 5

Status Aerial

by yorkie (29 Jan 2014)
5 star review(5/5)
excellent product, price and delivery, will buy from this company again, first class.
5 5

Status 560

by Goldenwolf (27 Apr 2013)
5 star review(5/5)
Much better results than previous Status 530 since digital switchover. Good Value from Leisureshop Direct.Speedy Delivery.
5 5
