Maxview Crank Up Satellite System, 85cm

£529.99 (inc VAT) 599.99
BRAND : Maxview
...or see our finance option(s)   Pay later with Klarna. Now available to all our customers.'
Product Ref : 270252
View delivery optionsView product description

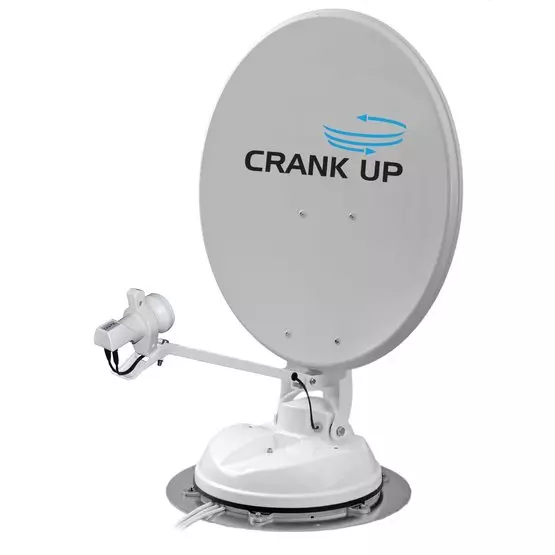

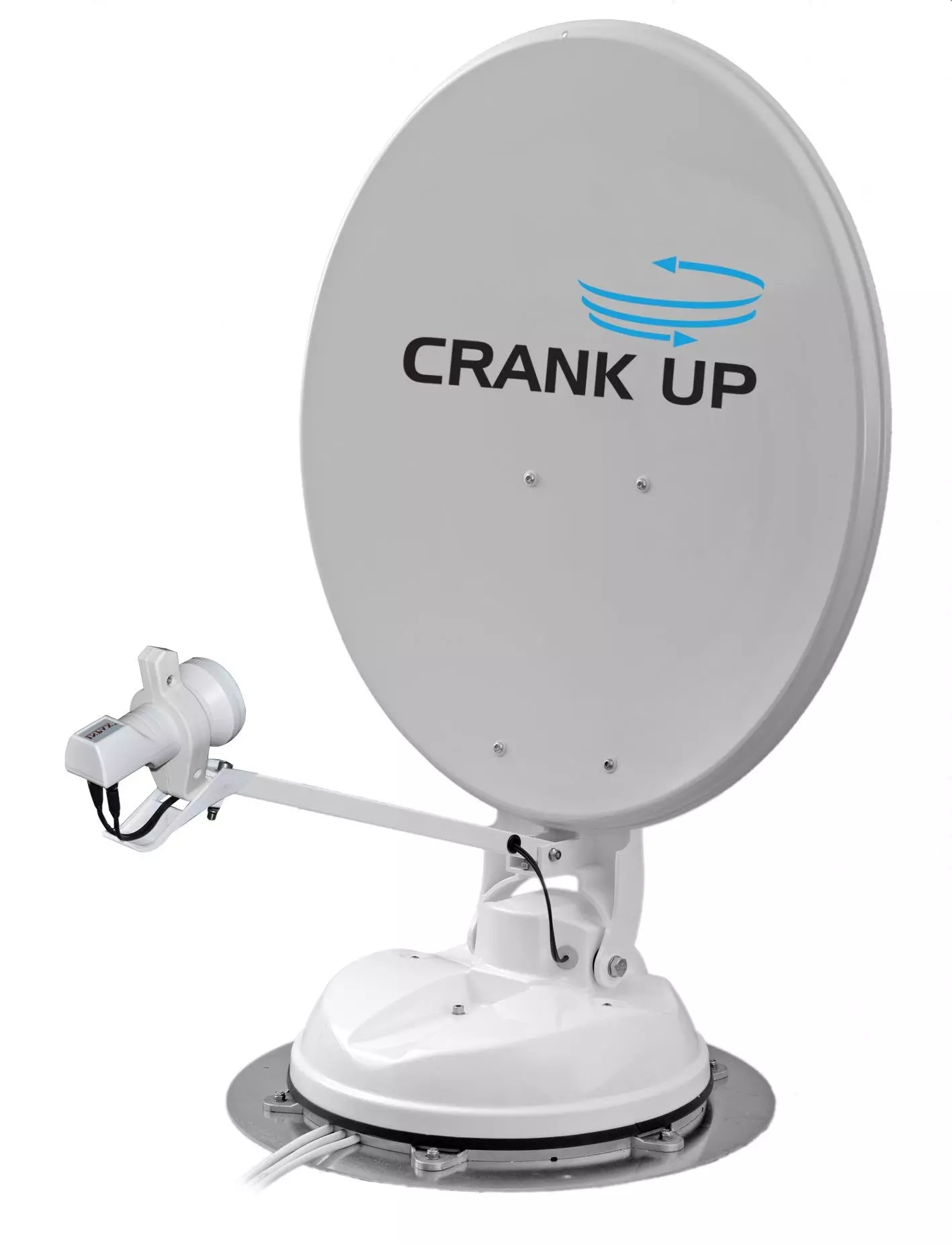

The Maxview Crank Up is a manually operated roof mounted satellite system designed to receive satellite TV and radio in the UK and Europe, operated using the internal handle.

The Crank Up is a manually operated roof mounted satellite system designed to receive satellite TV and radio in the UK and Europe, operated using the internal handle.

Features
- Signal coverage greater than Dome Satellite Systems
- Twin LNB as Standard. For use with PVR’s, SKY+™ or 2 receivers in different locations
- Enhanced gearbox design for increased positional accuracy and reliability
- Easy adjust manual skew system
- Includes satellite compass
- Designed and tested for outdoor use
- High quality, durable and robust construction
- Designed and manufactured in the UK
- 3 year guarantee

Specifications
Application: Mobile touring vehicles such as motorhomes and caravans
Compatibility: Transmissions from satellites worldwide (UK/European satellites as standard). Compatible with all SD/HD free-to-air satellite receivers including most SKY™ receivers
Operation: Manual
Mount Type: Roof mount
Skew Adjustment: Manual -30° to +30°
Power: Passive. LNB powered through Coaxial cable from satellite receiver. No separate power supply required.
Installation: DIY or professional
Coaxial Cable Length: 5m
Elevation Range: 10°to 50° (EU Variant)
Azimuth Range: 380°

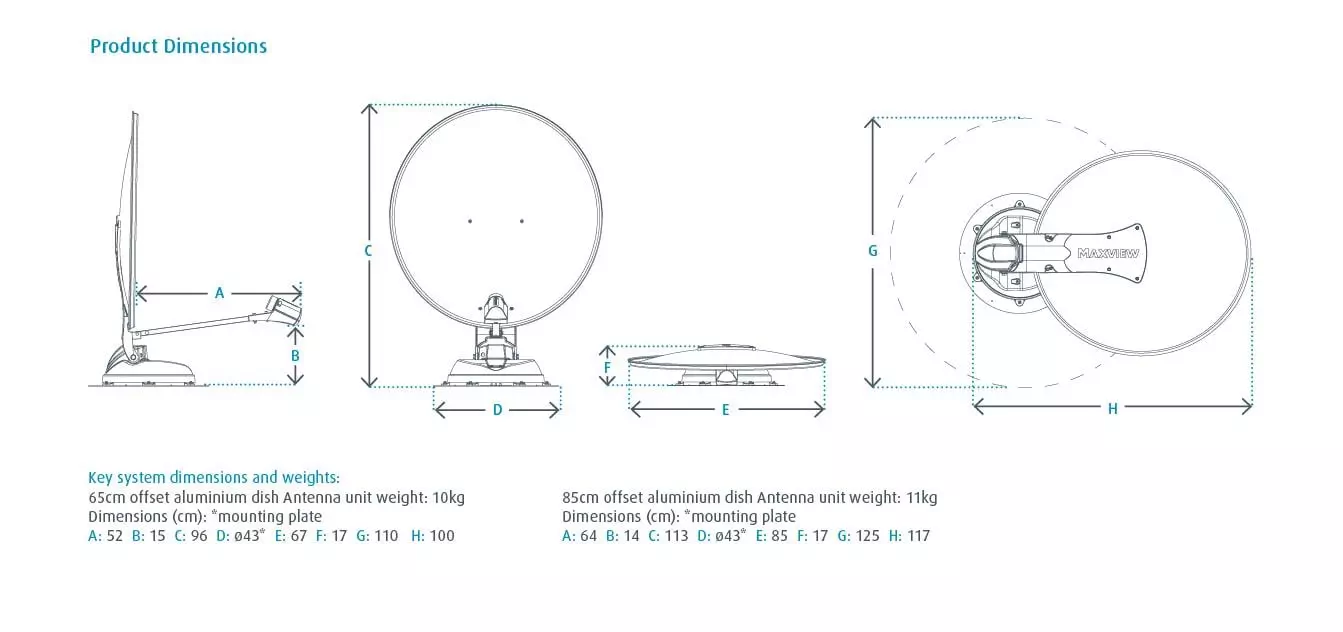

Weight:
- 65cm variants: 11 kg
- 85cm variants: 12 kg

What's in the box?
- 65 or 85cm Antenna Unit

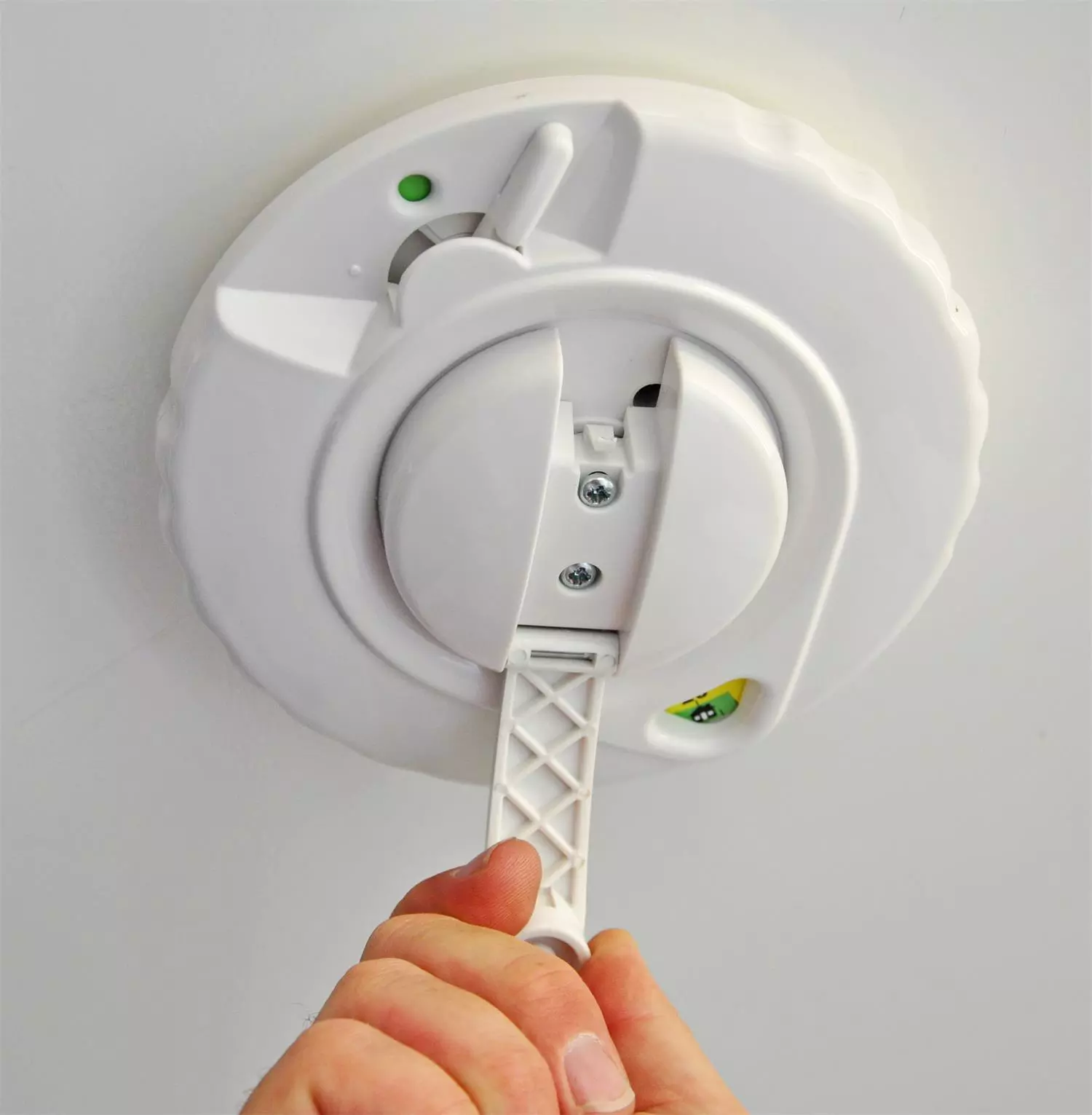

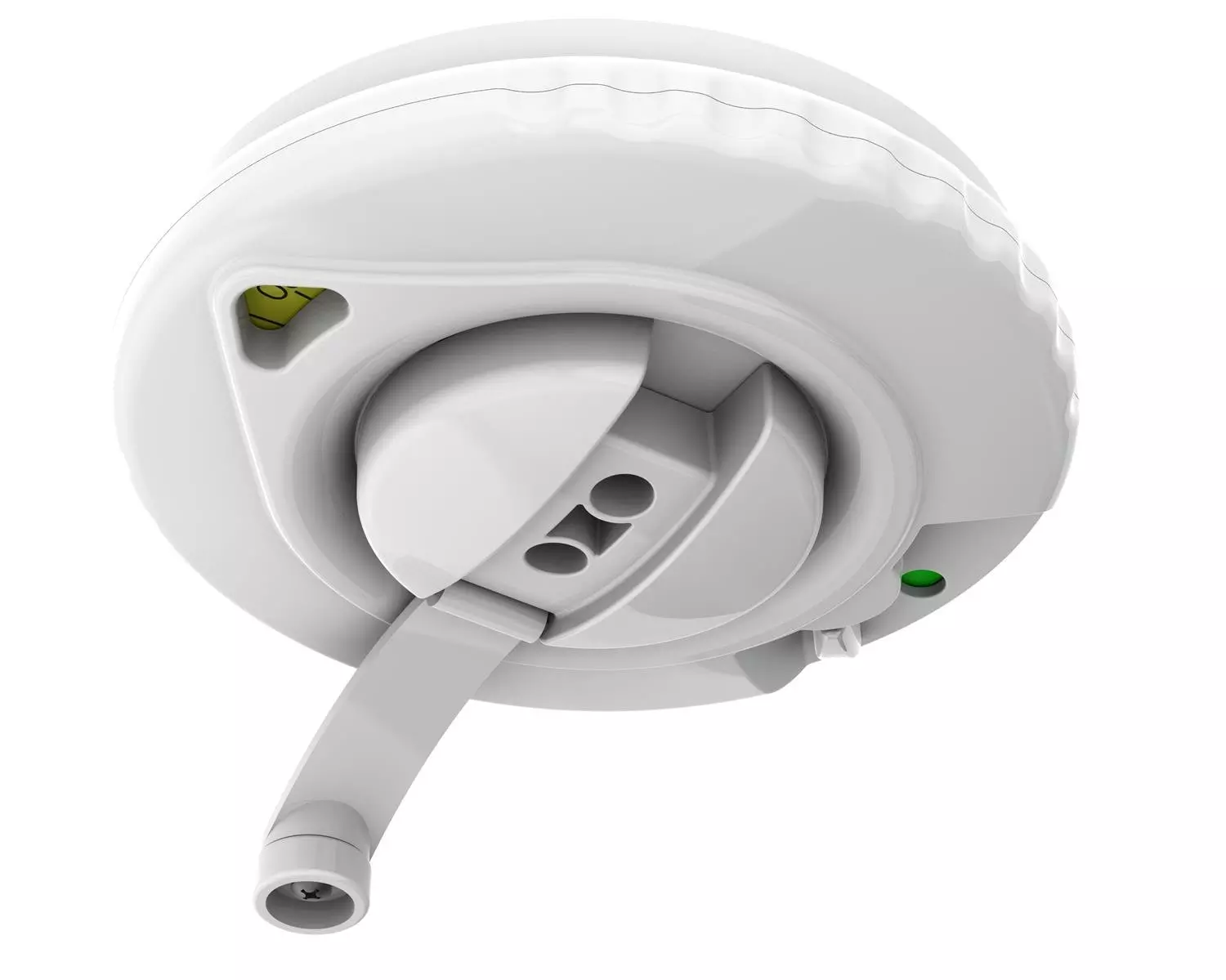

- Internal Handle Assembly
- 5m Coaxial Cable/s (fitted)
- Satellite Compass
- Cable Entry Cover
- LNB Park Plate
- Installation Fixings and Accessory Pack
- Self Adhesive Elevation Map
- Instructions


UNDERSTANDING SATELLITE TV
Introduction
Due to the geographic limitations of terrestrial TV, satellite TV is a popular choice for vehicles, as these transmissions serve a much larger geographic area. The below information outlines the various factors which must be considered when choosing your preferred satellite system.

Required Equipment
To receive and watch satellite TV, you will require a TV, a satellite receiver and a satellite system. Satellite receivers are available on subscription (such as Sky®) or with Free to Air functionality, requiring no subscription. More information on Maxview’s Free to Air Receiver can be found here.

Choosing Your Satellite System
It is necessary to adjust the position of the dish every time the vehicle is moved; the function of the satellite system is to position the dish in the correct position.

A range of systems have been developed to offer this functionality, from completely manual systems which have a simplified alignment process, through to fully automatic systems which are capable of locating a satellite at the press of a button. Satellite systems are available in both portable and roof mount applications.

Choosing Your Dish Size
All systems are available in a variety of dish sizes, ranging from 35cm up to 85cm. The dish size determines the geographic area from which you can receive your desired satellite, this area is known as the satellites ‘footprint’. For UK channels, we require the Astra 2 satellite.

Generally, the larger the dish, the greater the geographic area or ‘footprint’ from which you will receive satellite TV. Typically, to receive Astra 2 a 65 cm dish offers coverage into the centre of France, whilst an 85cm dish will offer coverage approaching the Spanish border.

The official Astra 2 footprint is displayed below, as well as our estimations for Maxview’s specific dish sizes. These maps are designed to help you make an informed decision on your required dish size, based on the areas you wish to travel.
