CBE 12V Battery Touch Test Panel image 1 CBE 12V Battery Touch Test Panel image 2
   Instructions

CBE 12V Battery Touch Test Panel

£80.99(inc VAT) £105.99
View delivery optionsView product description
  Product Description

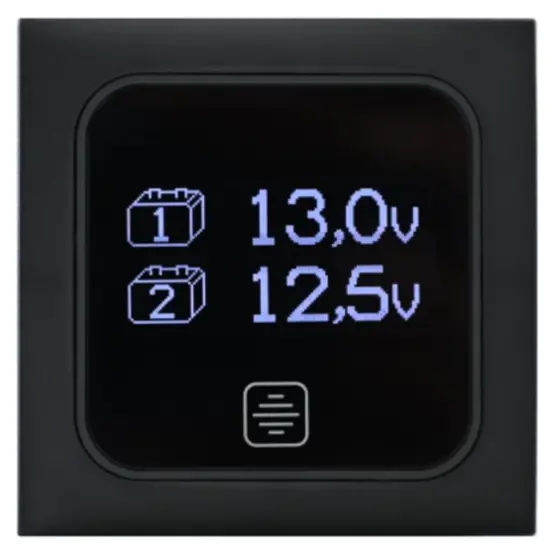

The CBE PT732 Battery Touch Test Panel gives you straightforward voltage monitoring for two 12V batteries in your motorhome, caravan, campervan or boat. It's got an OLED display that lets you easily check the voltage on two 12V batteries, whether that's your leisure and starter batteries or two separate leisure batteries. This simple battery monitor helps you avoid damaging your batteries through over-discharge by showing voltage levels at a glance. You can use these voltage readings as a reliable indication of how much charge remains in each battery.

The touch screen interface makes navigation straightforward, and the display brightness adjusts automatically for optimal viewing whether you're inside on a dark evening or checking readings in bright sunlight. The PT732 works seamlessly with CBE's PRS300, PBS90, and PRM350 solar charge regulators, displaying essential voltage information from your solar setup. The panel measures 60 x 60 mm and comes in anthracite grey, fitting perfectly into CBE's Modular Plates and Modular Plates Berker systems for a clean, integrated look. The kit includes the BMAC1C frame and a wall-fixing spacer, giving you the option to mount it flush or on the wall.

This digital panel integrates with CBE's established modular system, which many OEM converters already use in campervans, caravans and motorhomes across Europe. It's worth noting that CBE display modules aren't interchangeable between different control panel generations due to variations in connectors and pin configurations, so you'll need to ensure compatibility with your existing CBE setup. The PT732 monitors voltage for lead-acid battery types including GEL, AGM and conventional flooded batteries, providing real-time performance data that helps extend battery life through intelligent energy management.

CBE 12V Battery Touch Test Panel Features


  • OLED touch screen displays voltage for two 12V batteries
  • Works with CBE PRS300, PBS90 and PRM350 solar regulators
  • Auto-adjusting brightness for all lighting conditions
  • Fits CBE Modular Plates and Modular Plates Berker systems
  • Includes BMAC1C frame and wall-mounting spacer

Specifications
  • Power supply : 12V DC
  • Panel dimensions : 60mm x 60mm
  • Display type : OLED touch screen
  • Battery capacity : Monitors 2 x 12V batteries
  • Finish : Anthracite grey

Key Features


OLED Touch Screen Display
The PT732 features an OLED (Organic Light-Emitting Diode) touch screen that provides clear, high-contrast voltage readings for two separate 12V batteries. The display responds to touch commands for easy navigation and the brightness automatically adjusts based on ambient lighting conditions.

Solar Regulator Compatibility
Designed to work with CBE's solar charge regulator range, specifically the PRS300, PBS90, and PRM350 models. Some PRS350 models may also be compatible depending on the specific variant. The panel serves as the display interface whilst the regulators handle the charging and monitoring functions.

Modular Integration System
The 60 x 60 mm panel integrates with CBE's Modular Plates range and Modular Plates Berker systems. This modular approach allows for professional-looking electrical installations with multiple switches, sockets and monitors arranged in matching frames.

Dual Battery Monitoring
Tests and displays voltage for two separate 12V batteries simultaneously. This allows monitoring of both leisure and starter batteries, or two leisure batteries in a split-charge system. Compatible with GEL, AGM and conventional flooded lead-acid battery types.

Mounting Options

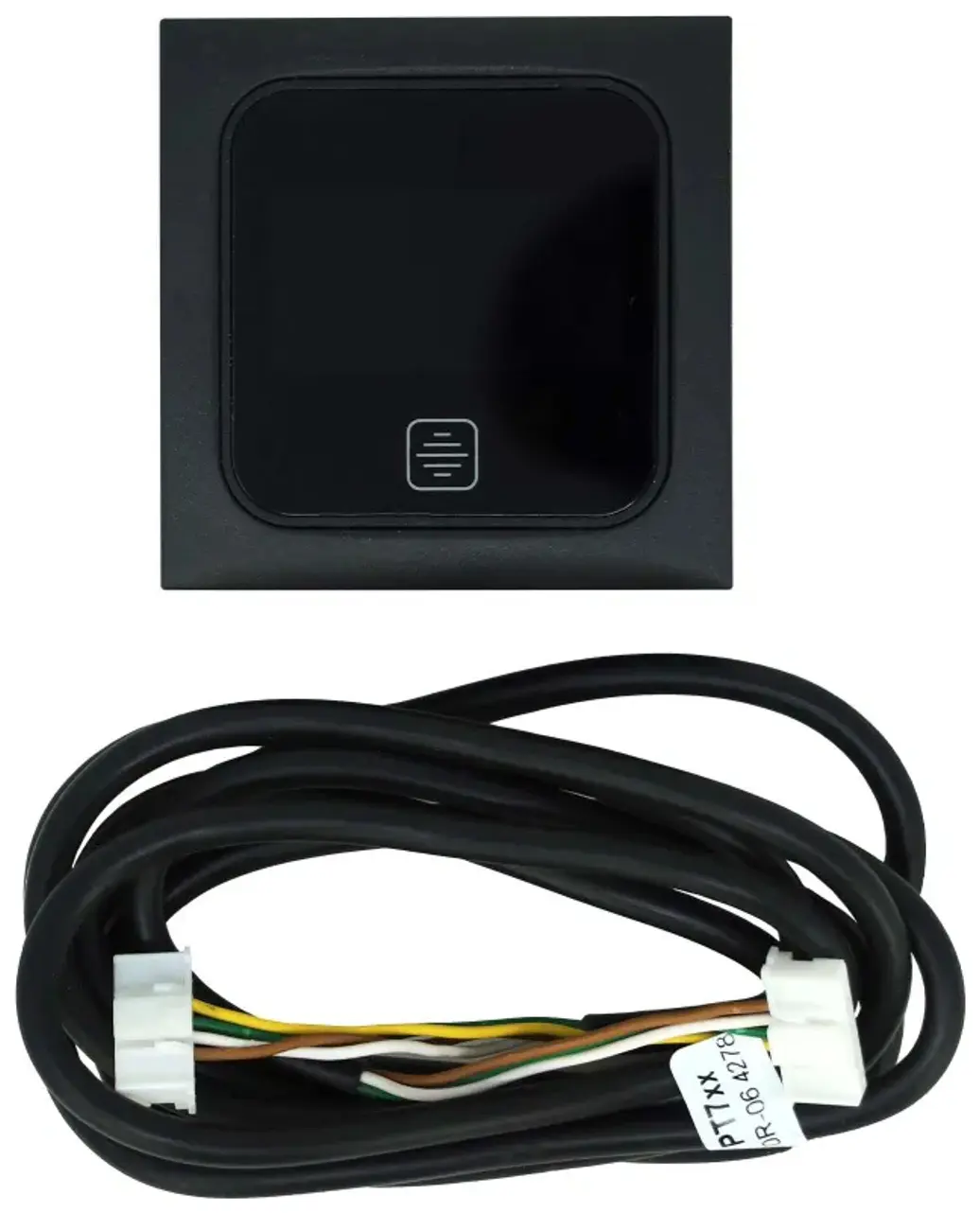

Comes complete with BMAC1C frame and wall-fixing spacer. The spacer allows the panel to be mounted flush within a panel cutout or surface-mounted on a wall, providing installation flexibility for different vehicle layouts.

Frequently Asked Questions

What batteries can the CBE PT732 monitor?
The PT732 monitors two 12V lead-acid batteries including GEL, AGM and conventional flooded types. It displays voltage readings for both batteries simultaneously, making it suitable for monitoring leisure and starter batteries, or dual leisure battery setups in motorhomes, caravans, campervans and boats. The panel is not designed for lithium batteries, which require different monitoring equipment.
Which CBE solar regulators work with the PT732?
The PT732 is compatible with CBE's PRS300, PBS90 and PRM350 solar charge regulators. Some models of the PRS350 may also work depending on the specific variant. The panel connects to these regulators to display voltage information from your solar power system. It serves as the display interface whilst the regulator handles the actual charging and battery monitoring functions.
Can the PT732 work with older CBE control panel systems?
Display modules are generally not interchangeable between different generations of CBE control panel systems such as PC100, PC200 and PC380 due to variations in connectors and pin configurations. The PT732 must be connected to one of its compatible solar charge regulators to function correctly. Check your existing CBE system compatibility before purchasing to ensure the PT732 will integrate with your setup.
What mounting options does the PT732 include?
The PT732 kit includes a BMAC1C frame and wall-fixing spacer. The spacer allows you to mount the 60 x 60 mm panel either flush within a panel cutout or surface-mounted on a wall. The panel also integrates with CBE's Modular Plates and Modular Plates Berker systems, which many OEM converters use for professional electrical installations in leisure vehicles.
How does voltage monitoring prevent battery damage?
The PT732 displays real-time voltage readings that indicate battery charge levels. Lead-acid batteries suffer permanent damage when discharged below certain voltage thresholds, typically around 11.8V to 12V depending on battery type. By monitoring voltage, you can stop using battery power before reaching damaging discharge levels. Regular voltage checks also reveal battery health issues, helping extend battery life through intelligent energy management in your motorhome, caravan or campervan.
Does the PT732 display show state of charge percentage?
The PT732 displays voltage readings only, not percentage state of charge. Voltage provides a reasonable indication of remaining charge in lead-acid batteries, though it varies based on battery type, age, temperature and whether loads or charging sources are active. For accurate percentage readings of lithium and conventional batteries, CBE offers the PT750 digital touch test panel which specifically displays charge status as a percentage.
What is the difference between the PT732 and standard LED battery test panels?
The PT732 uses an OLED touch screen display that shows precise voltage readings continuously, whilst standard LED battery test panels like CBE's MTB show approximate charge levels through coloured LEDs when a button is pressed. The PT732 monitors two batteries simultaneously and integrates with CBE solar regulators, providing real-time data from your solar charging system. LED panels offer simpler, button-activated voltage indication without continuous monitoring or solar system integration.
Can I use the PT732 without a solar regulator?
The PT732 is designed to work specifically with CBE solar charge regulators and displays voltage information received from these regulators. It functions as a display interface for CBE's solar system rather than as a standalone battery monitor. If you need battery voltage monitoring without a solar regulator setup, CBE's standard LED battery test panels or other standalone battery monitors would be more appropriate for your installation.
EAN-13 : 8033123267847
