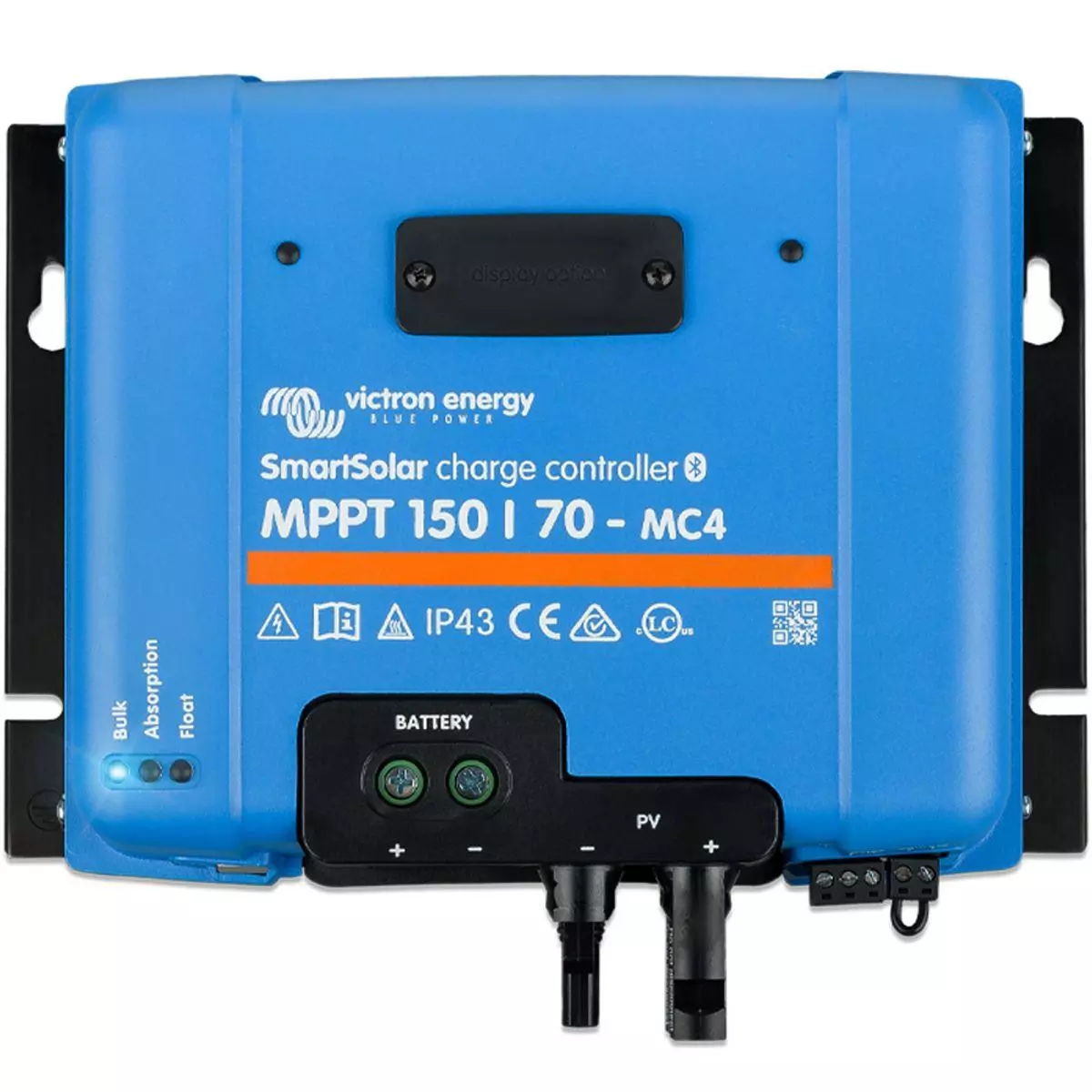

Victron 150/70-TR SmartSolar MPPT Charge Controller/Regulator (70A)

£688.41 (inc VAT) £825.99NewCondition
...or see our finance option(s)   Pay later with Klarna. Now available to all our customers.'
?
View delivery optionsView product description
A solar charger that gathers energy from solar panels and stores in batteries. Using the latest and fastest technology, SmartSolar maximises this energy harvest, driving it intelligently to achieve full battery charge in the shortest possible time. This charger maintains battery health, extending its life.

By constantly monitoring the voltage and current output of solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of the panels and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.

The features of SmartSolar MPPT charger can be remotely controlled and monitored on a smartphone or other device via Victron Connect, thanks to built-in Bluetooth. If the installation is connected to the internet Victron Remote Management Portal (VRM), the user is provided access to the full power of the MPPT, anytime and anywhere (both services are free to use). For remote installations - even when there is no internet connection or phone signal nearby.

This Smart Solar MPPT Regulator will handle a maximum of 150V and 70A PV input from your solar panels, and will automatically detect and charge your 12V, 24V, or 48V battery bank (36V with additional software tool).

Victron 150/70-TR SmartSolar MPPT Charge Controller/Regulator (70A) Features


  • Bluetooth Smart built-in
  • VE.Direct
  • Ultra-fast Maximum Power Point Tracking (MPPT)
  • Load output
  • Battery Life: intelligent battery management
  • Programmable battery charge algorithm
  • Day/night timing and light dimming option
  • Internal temperature sensor
  • Optional external battery voltage and temperature sensing via Bluetooth

Specifications
  • Nominal PV Power 1000W@12V, 2000W@24V, 3000W@36V, 4000W@48V
  • Brand Victron
  • Voltage Max. Input: 150V DC / 12/24/36/48V Auto-detected Output
  • Number of Outputs 1
  • Optional Remote Panel Yes, via bluetooth. Also optional pluggable display
  • Additonal Float Charge Output No
  • Cables Included No
  • Charge Characteristic Automatic, adaptive
  • Height 426mm
  • Width 239mm
  • Depth 135mm (5.3")
  • Weight 1.25 KG
  • Approvals EN/IEC 62109-1, UL 1741 & CSA C22.2
  • Application FLA, SLA, AGM, GEL, LiFePO4 Batteries
  • Charge Current 70A
