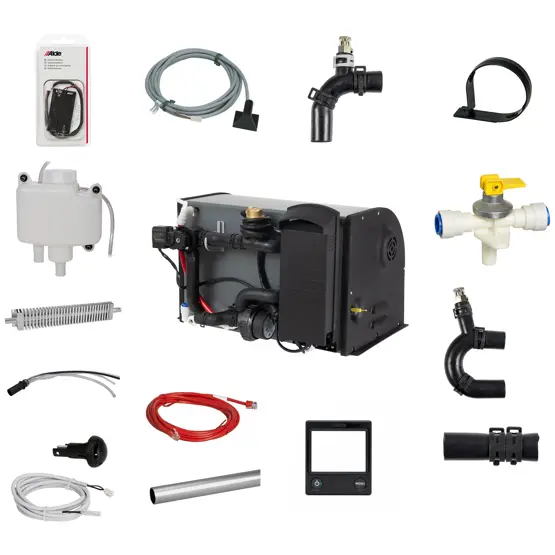

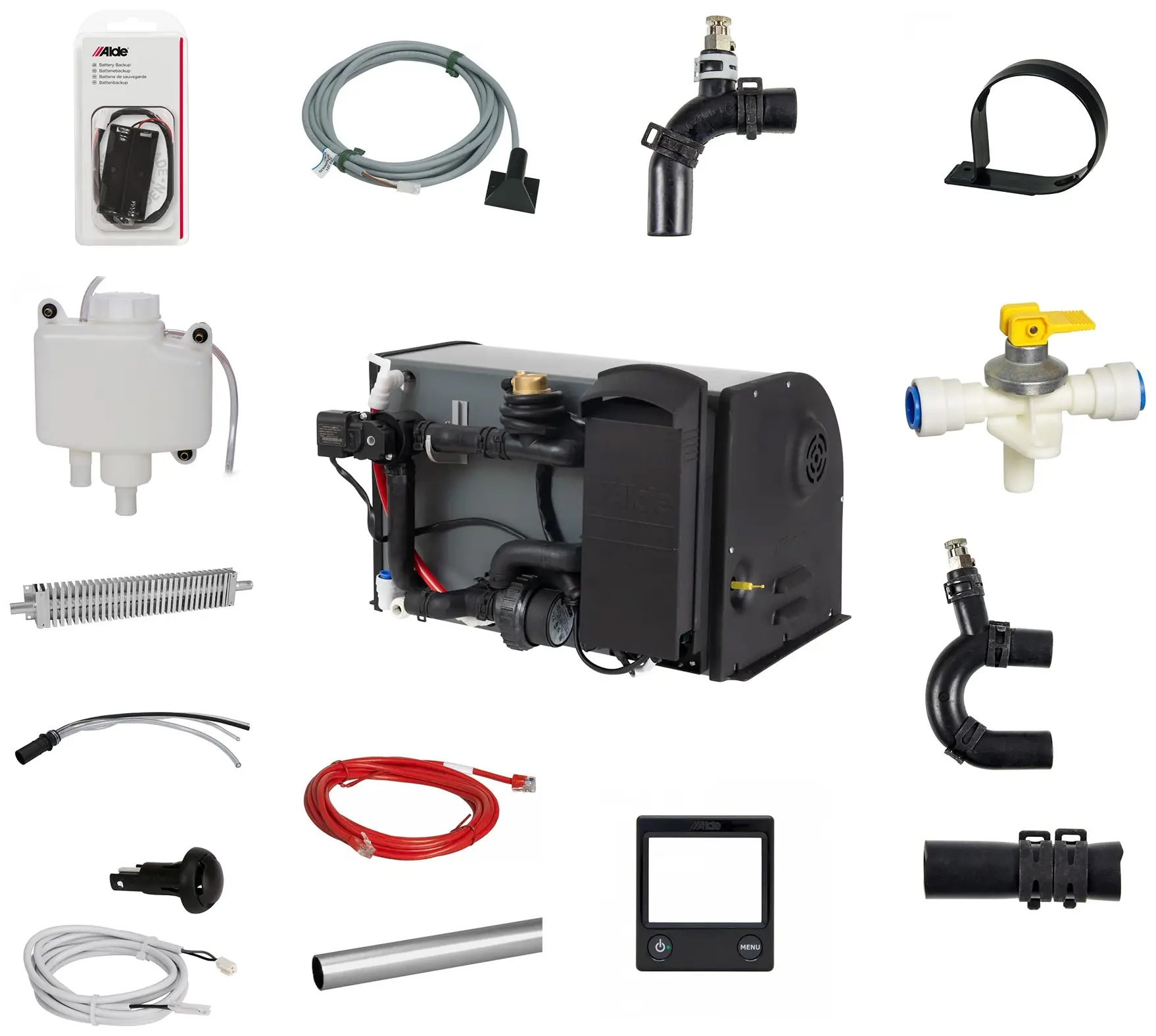

Alde Panel Van (Campervan) Heating Kit - Alde 4000D image 1

Alde Panel Van (Campervan) Heating Kit - Alde 4000D

£5495.00(inc VAT) £6000.00
View delivery optionsView product description
  Product Description
This Alde Panel Van Heating Kit centres around the Compact 4000D diesel boiler and includes every component needed for a complete hydronic heating installation in large campervan conversions. Alde has assembled this kit specifically for Ford Transit, VW Crafter, MAN TGE, Mercedes Sprinter and Fiat Ducato builds, taking the guesswork out of sourcing compatible parts. The 4000D operates on 1-6kW diesel power from your vehicle's main tank, 1-3kW mains electric, or both combined for up to 9kW total output. The kit includes the boiler with integrated 10-litre hot water tank, colour touchscreen control panel with fascia, circulation pump, aluminium convectors, all necessary pipes and fittings, flue terminal, expansion tank, and control cables.

The hydronic system works like home central heating, circulating heated glycol fluid through wall-mounted convectors to create silent, even warmth throughout your conversion without cold spots or noise. Hot air rises naturally from the convectors, forming a thermal barrier against cold walls and reducing condensation on windows. The system delivers continuous hot water at up to 4 litres per minute once running, heats the living space in around 10 minutes, and uses minimal 12V power during operation. You get dual-zone temperature control, compatibility with underfloor heating additions, and the ability to run on various diesel fuels including EN590 and HVO100.

This kit suits self-builders tackling large panel van projects who want professional-grade heating without piecing together individual components. The system requires a minimum number of radiators to operate properly, making it unsuitable for smaller van conversions where the output would overwhelm the space. Installation must be completed by someone with gas and heating system competence, as it involves diesel fuel connections, flue installation through the vehicle body, and glycol fluid filling. Once installed, the glycol fluid needs changing every two years with blue fluid or every five years with pink fluid to prevent internal corrosion.

  This kit was put together from the experts at Alde specifically for panel van / campervan conversions.

What is this suitable for?
This is designed for those building large van conversions using the Ford Transit, VW Crafter, MAN TGE, Mercedes Sprinter or Fiat Ducato models. It would not be suitable for small panel van conversions, as it requires a minimum amount of radiators to operate, and this minimum amount is too much kW output for a small van.

Alde Compact 4000D boiler Technical Data
  • Height x depth x width : 305 x 420 x 500 mm
  • Weight : 14 kg
  • Fluid volume, glycol tank : 3,5 litres
  • Fluid volume, water tank : 10 litres
  • Max. pressure glycol circuit : 0,05 MPa (0,5 bar open system)
  • Max. pressure water circuit : 0,3 MPa (3,0 bar)
  • System temperature : max 90 °C
  • Battery voltage : 12 V DC
  • 12 V power consumption : max. 20 A
  • Fuse 12 V : 2 x 15 A

Go barefoot with underfloor heating or utilise the power of your engine with these optional extras
Quick View     Alde Engine Heat Exchanger With Shut-off Cock, Angled Connections And Venting Nipple


Quick View     Alde Under Floor Spreader Plate


What is in the Alde Panel Van (Campervan) Heating Kit for the 4000D?
Quick View     Alde Compact 4000 D Hot Air and Water Heater

Quick View     Alde Touchscreen control panel for 4000D Boiler

Quick View     Alde Black Fascia for (Alde 3020/3030 Compact boiler) control panel

Quick View     Alde 3020/3030 Control Panel Cable 9M

Quick View     Alde Discrete Temperature Sensor with 2M Cable

Quick View     Alde AA Battery Backup

Quick View     Alde Outdoor Temperature Sensor - 2.5M

Quick View     Alde Side Flue Terminal Complete for 4000D (Black)

Quick View     Alde Balanced Flue Hose 1000mm for 4000D

Quick View     Alde P-Clip

Quick View     Alde Safety Drain Valve - 12mm Speedfit

Quick View     Alde Expansion Tank for Compact 3010 / 3020 / 3030 - Wall Mounted

Quick View     Alde Aluminium Thin Convector L=1000mm

Quick View     Alde 16mm Booster fan Convector

Quick View     Alde Formed Aluminium Tube 16mm

Quick View     Alde 16mm Rubber Vertical Elbow Valve CWClips

Quick View     Alde 16mm Rubber Drain T With Plug & 3 Clips

Quick View     Alde 16mm Rubber Elbow 90 Degree C/W Clips

Quick View     Alde 16mm Rubber Straight C/W Clips

Quick View     Alde 16mm Rubber S-Bend C/W Clips

Quick View     Alde 16mm Rubber U With Air Bleed C/W Clips

Quick View     Alde 16mm Rubber U-Bend C/W Clips

Quick View     Alde Primus Rubber Hose Reducer 16-21.4mm

Quick View     Alde Floor grommet for overflow pipes


Full list of parts (Alde part numbers) in the kit.
  • 40009051 – Alde Compact 4000 D diesel boiler (1 pcs)
  • 4000119 – Alde Capacitive touchscreen control panel for 4000 D diesel (1 pcs)
  • 3010618 – Alde Fascia trim black for touchscreen (1 pcs)
  • 3020017 – Alde Red control panel cable 9 m for 3020/3030/4000 D (1 pcs)
  • 3010346 – Alde Discrete temp sensor w/ cable (1 pcs)
  • 3010420 – Alde AA battery clock backup (1 pcs)
  • 3010299 – Alde Outdoor temp sensor complete 2.5 m (1 pcs)
  • 4000242 – Alde Side flue terminal black complete for 4000 D diesel (1 pcs)
  • 4000208 – Alde Balanced flue hose 1000 mm for 4000 D diesel (1 pcs)
  • 3000371 – Alde P-Clip for balanced flue hose (2 pcs)
  • 3000498 – Alde Safety/drain valve Truma 7014205 Speedfit 12 mm (1 pcs)
  • 3000420 – Alde Expansion tank 1.5 L (1 pcs)
  • 1936383 – Alde Ø16 mm aluminium thin convector L=1000 mm (6 pcs)
  • 1916730 – Alde Ø16 mm booster fan convector w/ 12 V lead (2 pcs)
  • 7833016 – Alde Ø16 mm aluminium tube /m (10.5 m)
  • 1916024 – Alde Ø16 mm rubber vertical elbow w/ bleed (8 pcs)
  • 1916028 – Alde Ø16 mm rubber drain (1 pcs)
  • 1916023 – Alde Ø16 mm rubber elbow 60×60 mm (22 pcs)
  • 1916021 – Alde Ø16 mm rubber straight 70 mm (4 pcs)
  • 1916026 – Alde Ø16 mm rubber S 100×100×100 mm (3 pcs)
  • 1916213 – Alde Ø16 mm rubber U w/ bleed (3 pcs)
  • 1916211 – Alde Ø16 mm rubber U (4 pcs)
  • 0714871 – Alde Ø22–16 mm Primus rubber reducer (4 pcs)
  • 1900565 – Alde EPDM floor grommet Ø32 mm (1 pcs)
  • 4000218 – Alde Flue exhaust clip for 4000 D diesel (1 pcs)
  • 4000214 – Alde Diesel fuel pump 12 VDC Truma 340200134 (1 pcs)
  • 4000222 – Alde Diesel fuel pump cable Truma 340200122 6 m (1 pcs)
  • 4000215 – Alde Diesel fuel pump holder kit Truma 3402001472 (1 pcs)
  • 4000216 – Alde Diesel fuel line braided NBR coupler 50 mm (2 pcs)
  • 4000217 – Alde Diesel fuel line clamp (2 pcs)
  • 4000220 – Alde Diesel fuel line plastic 8.1 m (1 pcs)
  • 4000224 – Alde Diesel fuel line foam sheath 8.1 m (1 pcs)
  • 4000171 – Alde Booster fan 2:1 lead 15 kO 50 cm for 4000 D diesel (1 pcs)
  • 4000200 – Alde Diesel tank connection kit 01 universal Truma 3460101 (1 pcs)
  • 2269022 – Alde RS Pro W4 stainless steel P-Clip 16 mm (15 pcs)
  • ARMAFLEXHTSP – Alde Armaflex self-seal 15×19 mm /m (4 m)
  • MANUALS4 – Alde 4000 D operating instructions (hard copy) (1 pcs)
  • MANUALS5 – Alde 4000 D installation instructions (hard copy) (1 pcs)
