Propex Malaga 5E Gas/Electric Water Heater

£505.99 (inc VAT) £599.00
?
View delivery optionsView product description
  Product Description

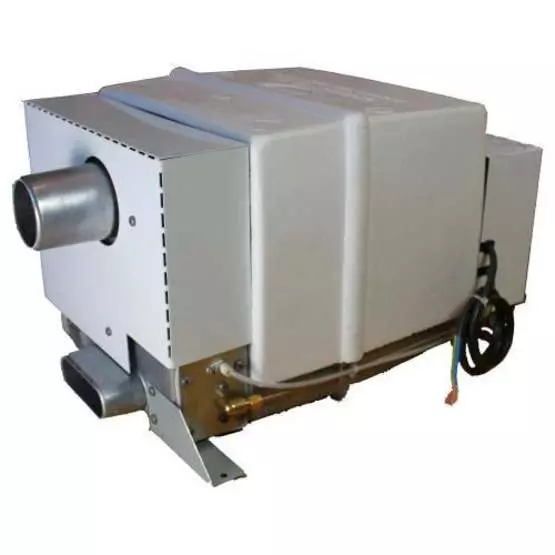

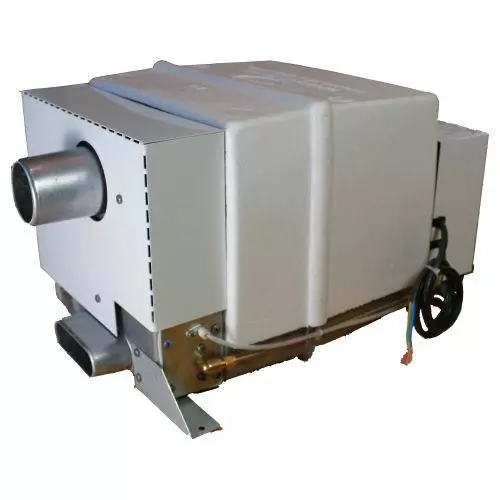

The Propex Malaga 5E water heater is equipped with the latest Propex electronics for accurate digital control of the heater's operation and safety functions. The Malaga has a large water capacity and runs on gas or electricity.

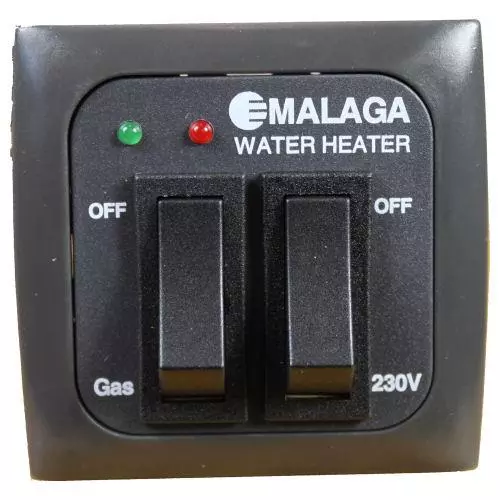

The switch panel features a 3-position switch for selecting either gas only or gas & 230V. The heater features and efficient gas burner for fast warming up, 750W element, small flue terminal for neat appearance, electrical control and automatic resettable overheat. It measures at H:25cm x W:32.5cm x D44.5cm, and has a large 13.5L capacity for longer washing and showering facilities.
The heater will operate satisfactorily on either a system where the pump is controlled by the tap microswitches or the one controlled by a pressure switch. It must not be connect to mains water supply. Water connections can be provided to suit a range of standard fittings. Reinforced or semi rigid pipe must be used.

This high capacity water storage heater is available in two versions, the standard Malaga, with an efficient gas burner, and the Malaga E, which has the additional benefit of a 750 watt electric heating element. Both heaters can provide a quick and efficient supply of hot water for showering and washing in touring and motor caravans. The heater may also be installed in boats used exclusively on inland waterways i.e. Class 1 & 2 and subject to finding a satisfactory mounting position. Being a room sealed appliance it conforms to the requirements of the Boat Safety Scheme.

Are you replacing a Carver / Henry Water heater?
This is an alternative to the Carver / Henry Water Heater but you will need the adaptor plate and is available separately:
Quick View     Propex Carver Cascade Flue adaptor

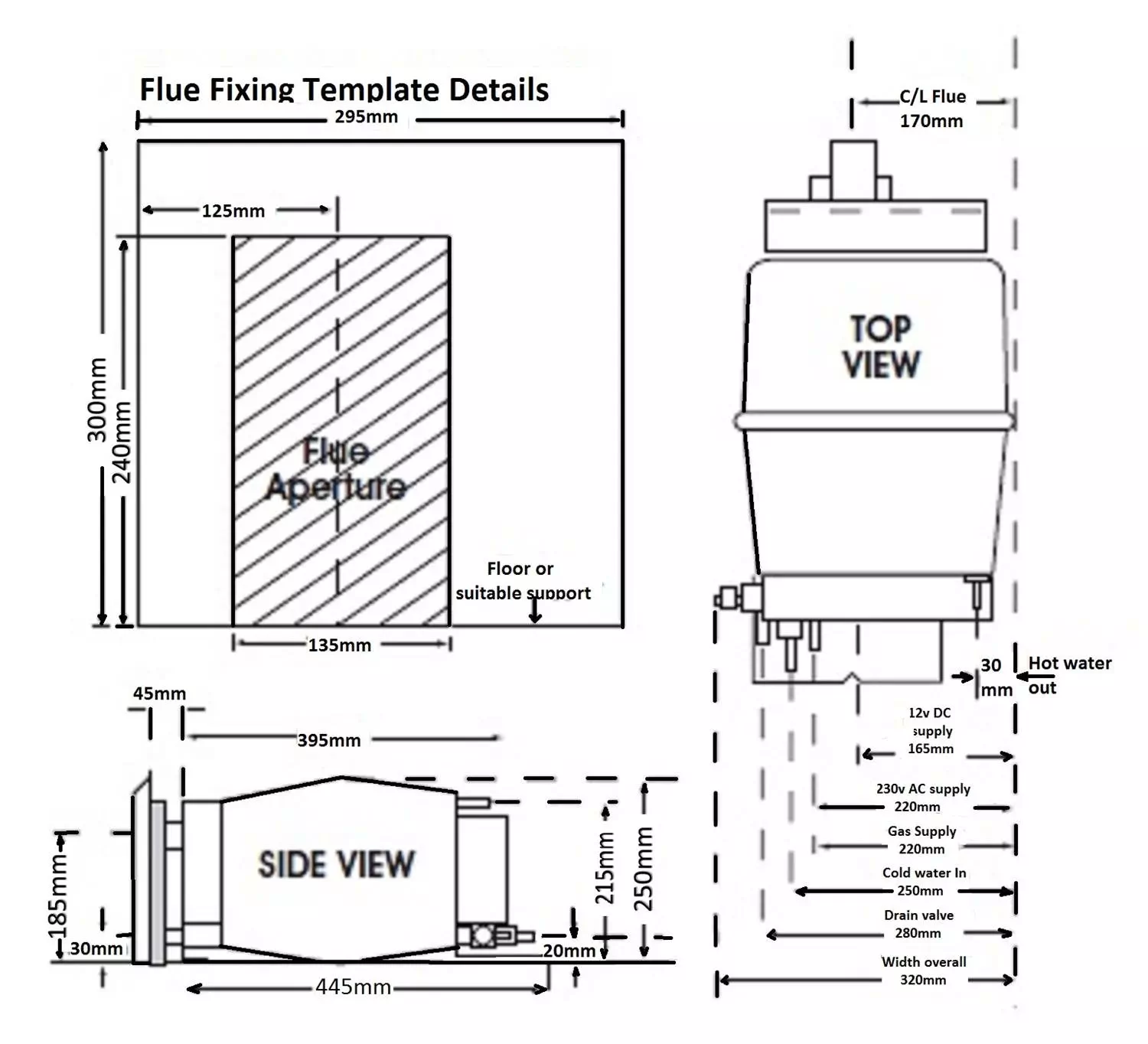

Installation Information
- The heater will operate satisfactorily on either a system where the pump is controlled by the tap micro switches or one controlled by a pressure switch.
- It must not be connected to a mains water supply.
- Water connections can be provided to suit a range of standard fittings.
- Reinforced or semi rigid pipe must be used.
- Heater should be floor mounted (or suitably supported) as normal in the bed box
- Flue terminal position shouldn’t be closer than 300mm below an opening window or 600mm from a vertical corner
- Clearances required for installation and servicing are as seen from inside the caravan

Specifications

SAFETY NOTICE:

All products and parts must be installed by engineers who hold a valid certificate of competence. The installation must comply with the manufacturers instructions and local regulations. We cannot be held responsible if these instructions are not followed.

Please note we are a camping, caravan and motorhome company and NO gas product that we sell is suitable for mains (domestic) gas supply.

  • Dimensions : H:25cm x W:32.5cm x D44.5cm
  • Capacity: : 13.5L
  • Water Temperature Thermostat Setting : 70 °C
  • Overheat Thermostat Setting : 90 °C
  • Weight empty : 9.3 kg
  • Pressure Relief Valve Settings : 3 bar
  • Maximum Working Pressure : 2 bar
  • Heat Input : 1.15kw 84g/h
  • Pressure settings : Porpane 37mbar - Butane 28mbar - Mixtures 30mbar
  • Injector : Bray 960/40
  • Electrical Supply : 12vDC
  • Gas Connection : 8mm O.D.

2 FAQs on the Propex Malaga 5E Gas/Electric Water Heater

I am completely revamping my Motor Home and would like to put in a water heater Gas/el I would like some advice please. At the moment I have a heater unit that only heats up when the engine is working. Works Ok but in the morning the water is cold. I have got good water pumps one for Hot and one for Cold to work the shower unit and one for the drinking water.
In your case we would normally fit a Malaga 4E water heater. This will heat up quickly with both gas and electric and should provide sufficient hot water for your needs.
Hello. I want to fit a water heater into living van. I have 12v leisure batteries and propane but no mains supply. Do you have a water heater that I could use this for a shower? If so what pump would I need to go with it? Thanks. Jon.
I would suggest Propex Malaga water heater with a Shurflo pump, probably our ref. 127893

3 Customer Reviews on Propex Malaga 5E Gas/Electric Water Heater

Replacing Water Heater

by Phil Coveney (21 Dec 2018)
4 star review(4/5)
I needed to replace an old Truma gas only water heater in our 1991 Burstner Camper as the parts were either not available due to age or hard to come by here in Spain. The cost to replace the parts I needed did not make sense what would I need to replace next and would it be available ? So a new unit then The Propex Malaga 5 offered all we needed gas and electric only 750 watts perfect as we run a small generator sometimes on sites that do not have electricity. The water capacity is higher than most other more expensive units another plus. The unit is easy to fit well within the average DIY capability, although gas connection should be done by a qualified person. The price was also a good plus. The only negative was that the front mounting bracket could be better designed so that the unit was supported on both sides not just one

PROPEX MALAGA 5E GAS/ELECTRIC WATER HEATER

by paulpd (10 Aug 2018)
5 star review(5/5)
Not yet fitted but looks good. service as usual excellent.

Excellent Service!

by kakph (21 Aug 2014)
5 star review(5/5)
Can't review product as not yet fitted, however, excellent service from the company. Item arrived 2 days after order. Unfortunately, the outer vent cover was damaged, despite the packaging showing no sign of damage. But after a phone call to the company, a new one arrived within 2 working days. Thank you very much. Excellent service. Just hope the unit works as well!
