Fiamma Side W Pro

£183.73 - £239.45 (inc VAT)

BRAND : Fiamma

View delivery options

View description

Loading shipping details...

Add to Wishlist

Seen this product cheaper? We will do our best to match it!

Click Here

Product Description

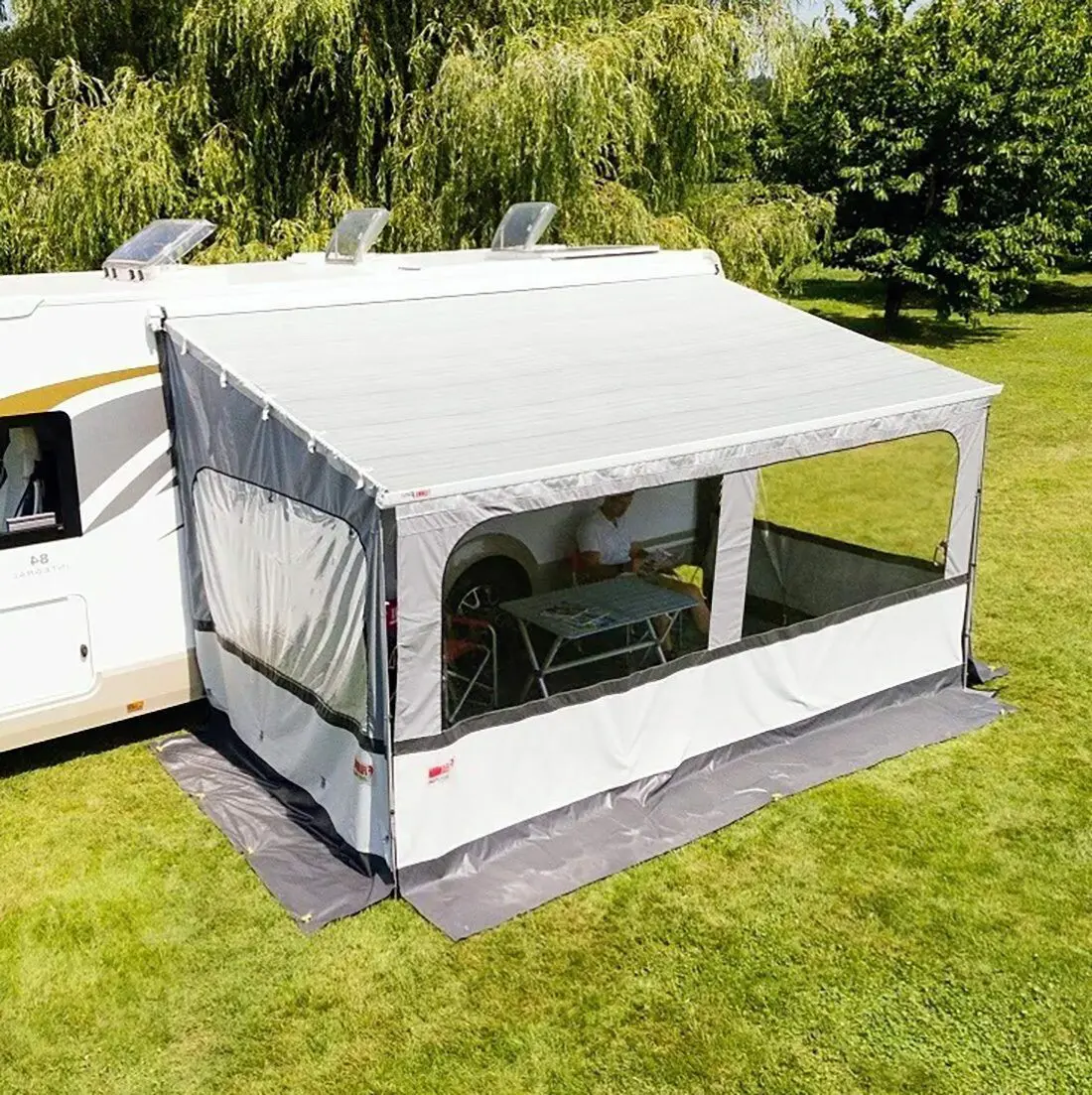

The Fiamma Side W Pro is a practical side panel designed to add protection and privacy to your awning setup. Made from rot-proof vinyl with UV protection, it features a large Crystal window with rounded edges in the updated multi-tone design and includes a grey floor extension to keep the elements out. Please use the table below when selecting your awning as dimensions will vary depending on your setup.

Installation is straightforward thanks to the included aluminium telescopic rafter, elastic hooks and ground pegs. The washable PVC construction means you can simply wipe it clean after use and pack it away when the weather clears. Weighing between 3.0-4.9kg depending on the model, it's light enough to handle on your own whilst still offering solid protection from wind and rain.

This side panel fits Fiamma awnings from 3.00m long in the F45s and F45L range, as well as F65/F65 S models from 3.20m onwards. It's also compatible with Thule Omnistor 5002/5003/4900 and Tristor/Tristor 2 awnings when used with the optional Kit Side accessory. You can attach it to either end of your awning, though bear in mind that logo and curtain track positions will flip depending on which side you choose.

Fiamma Side W Pro Features

Large Crystal window with modern rounded edges design
UV-resistant vinyl construction, washable and rot-proof
Includes telescopic rafter, elastic hooks and ground pegs
Grey floor extension for complete protection from elements
Fits either end of awning for flexible installation

Specifications Range

Height from Ground : 225-280cm
Length from Vehicle : 190-250cm
Weight : 3.0-4.9kg
Material : 90% PVC, 10% polyester with UV protection
Compatible Awnings : F45s/F45L (3m+), F65/F65 S (3.2m+)

Choosing your Awning

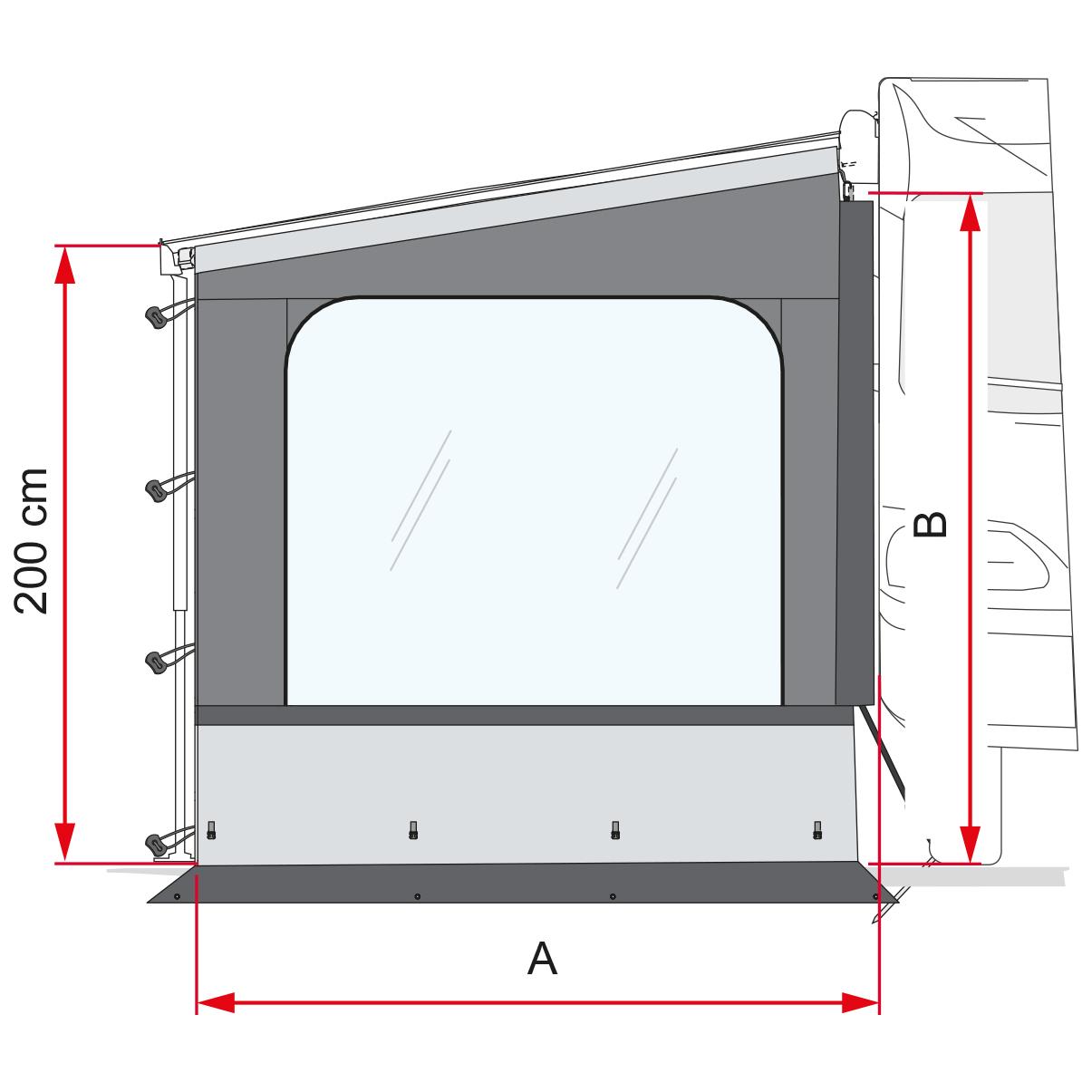

Description	F45s - F45L	F80s - F80L	F43van	F40van	CaravanStore / XL	F35 Pro	Length A	Height from ground B	Weight
Side W Pro F45 / F65 / F80	✓	✓	-	-	-	-	230 cm	225-280 cm	4.2 kg
Side W Pro F80L XL	-	✓	-	-	-	-	250 cm	245-280 cm	4.75 kg
Side W Pro XXL F45 / F65 / F80	✓	✓	-	-	-	-	230 cm	280-330 cm	4.5 kg
Side W Pro Van F45	✓	-	-	-	-	-	190 cm	180-200 cm	3.4 kg
Side W Pro F65 / F80 Ducato	-	✓	-	✓	-	-	230 cm	225-280 cm	4.2 kg
Side W Pro F40	-	-	-	✓	-	-	210 cm	180-210 cm	3.0 kg
Side W Pro Caravanstore / F35	-	-	-	-	✓	✓	210 cm	240-260 cm	4.5 kg
Side W Pro Caravanstore XL	-	-	-	-	✓	-	240 cm	240-260 cm	4.8 kg
Side W Pro F35 Van	-	-	-	-	-	✓	210 cm	180-220 cm	4.2 kg
Side W Pro Van F43 270 ext. 200	-	✓	-	-	-	-	180 cm	180-210 cm	4.3 kg
Side W Pro Van F43 300 ext. 250	-	✓	-	-	-	-	230 cm	180-210 cm	4.9 kg

Frequently Asked Questions

Which Fiamma awnings is the Side W Pro compatible with?

The Fiamma Side W Pro fits F45s and F45L awnings from 3.00m in length onwards. It's also compatible with F65 and F65 S models from 3.20m long. For Thule Omnistor 5002, 5003, 4900 and Tristor or Tristor 2 awnings, you'll need the optional Kit Side accessory to attach the panel to your awning rail.

How do I install the Fiamma Side W Pro side panel?

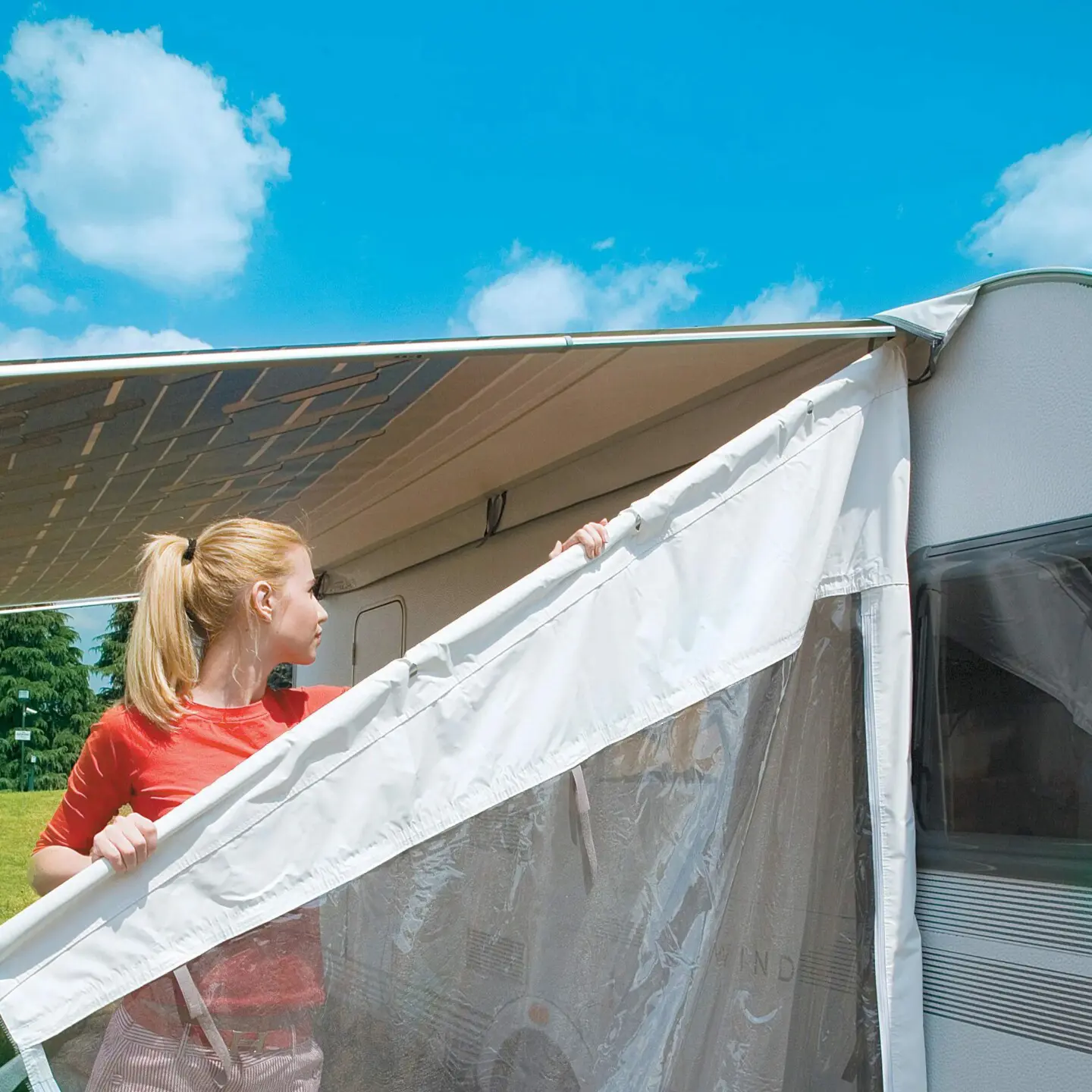

Installation involves attaching the panel to either end of your awning using the supplied elastic hooks that clip onto the awning canopy. The included aluminium telescopic rafter extends to support the outer edge and is secured to the ground with the provided pegs. The panel can be fitted at the left or right end of the awning, with the logo and curtain track positions reversing depending on which side you choose.

What are the dimensions of the Fiamma Side W Pro?

The Side W Pro extends 190-250cm outwards from your vehicle depending on the specific model variant. The height from ground level ranges from 225cm to 280cm for the standard version. There's also a Van version for lower vehicles like VW Transporter campervans which fits heights between 180-200cm, and an XXL version for taller installations between 280-330cm.

Is the Fiamma Side W Pro waterproof and how do I clean it?

The Side W Pro is made from rot-proof vinyl material that's water-repellent and designed to protect against rain and wind. The fabric composition is 90% polyvinyl chloride and 10% polyester with UV protection built in. Cleaning is straightforward as the PVC surface wipes clean with a damp cloth and dries off fast, making it low-maintenance between trips.

Does the Fiamma Side W Pro window have a curtain or cover?

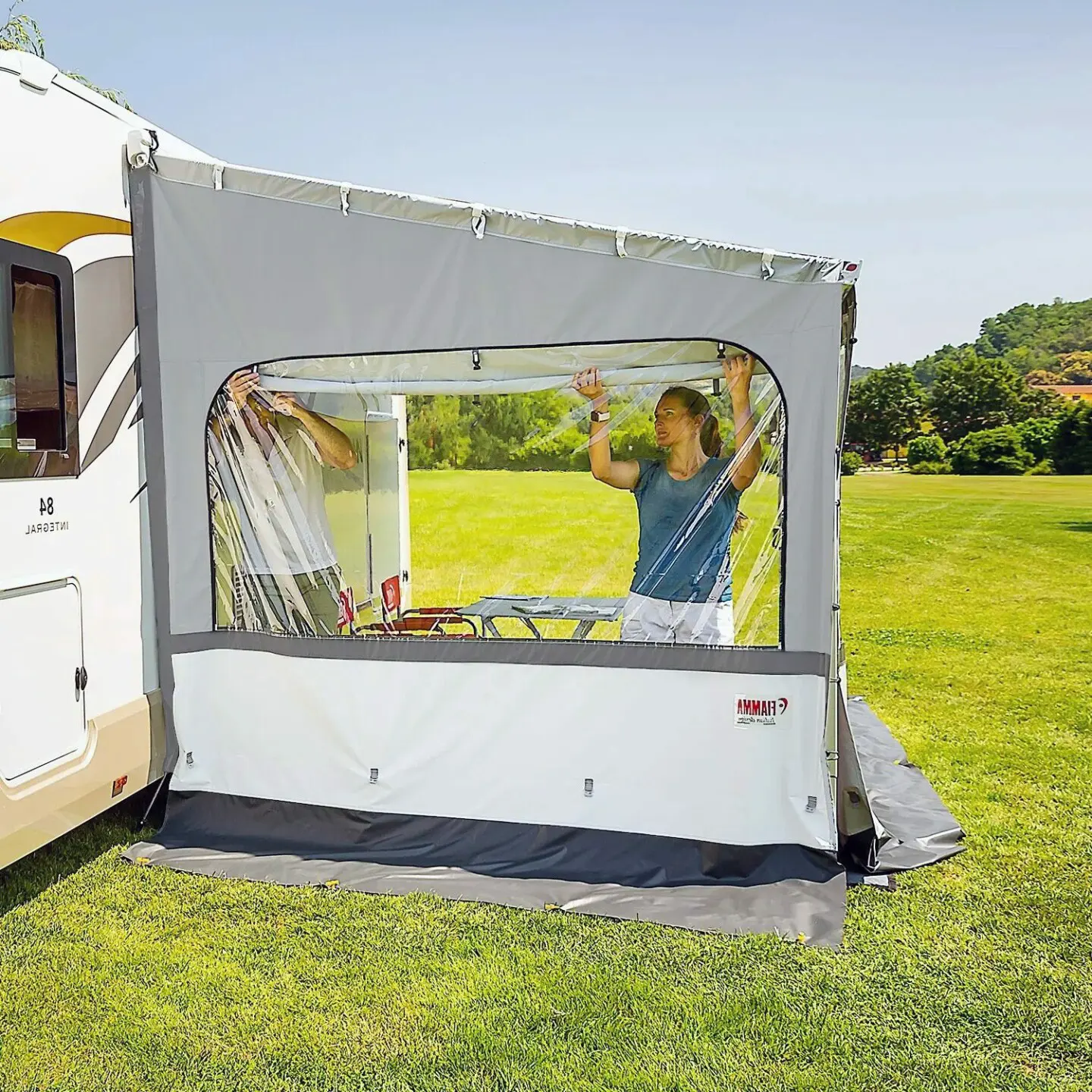

The Side W Pro features a large transparent Crystal window with rounded edges in the updated design, providing natural light and visibility. The panel does include a curtain track on the inside when fitted to the left end or on the outside when fitted to the right end, allowing you to add a curtain if needed. The panel itself provides privacy through its solid vinyl construction whilst the window maintains visibility and light.

Can I use the Fiamma Side W Pro with front panels like the Blocker?

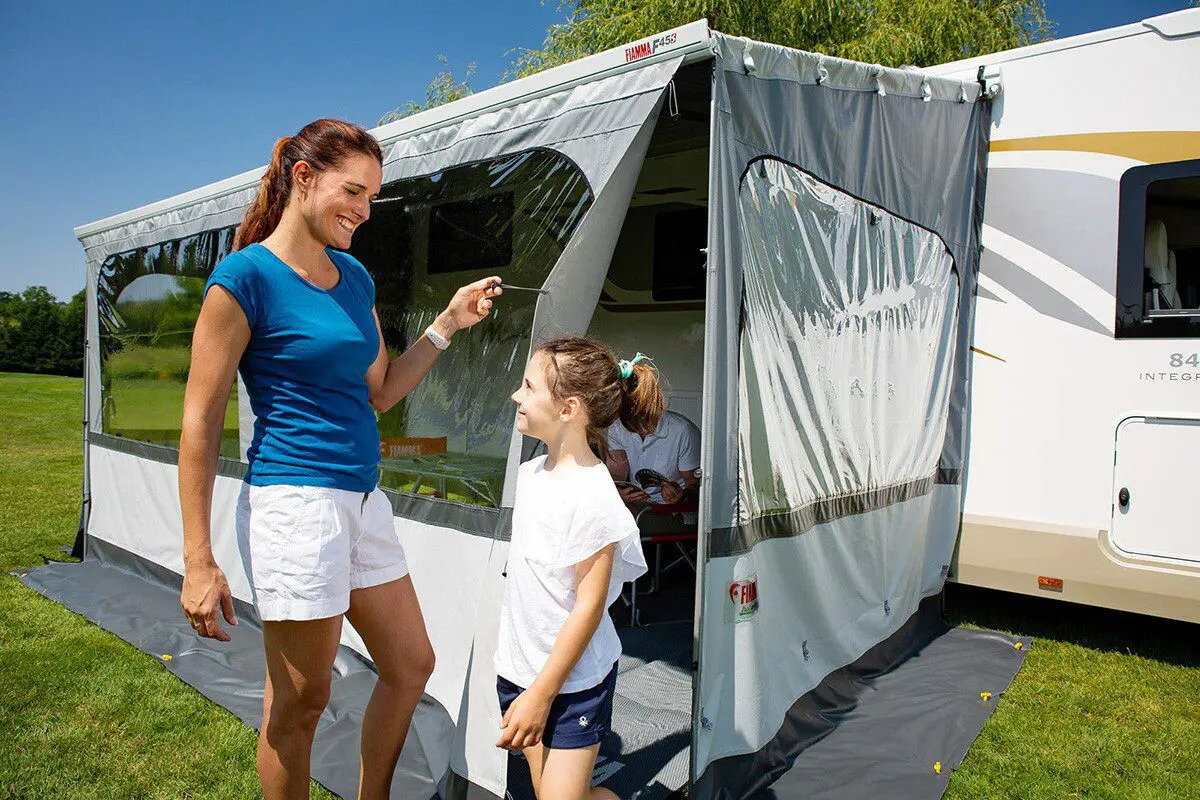

Yes, the Side W Pro is designed to work alongside Fiamma's Blocker and Blocker Pro front panels. You can create a fully enclosed space by combining the Side W Pro with a front panel, giving you complete protection from wind, rain and sun on three sides whilst maintaining easy access through your awning. This modular approach lets you adapt your setup based on the weather conditions and privacy needs at your pitch.
