Vango C-Pinnacle 40L Cool Box

Name: Vango C-Pinnacle 40L Cool Box
Brand: Vango
SKU: 296263
Price: 349.95 GBP
Availability: InStock

Product Ref: 296263
Vango Code : ACWCPINNA000002

£349.95(inc VAT) £450.00Product Ref: 296263
Vango Code : ACWCPINNA000002

View delivery optionsView product description

Delivery : Free Delivery
Loading stock details...

Only £430.48
Save £21.45

+Add Bundle

Free Shipping

Only £392.28
Save £20.65

+Add Bundle

Free Shipping

Only £419.83
Save £22.10

+Add Bundle

Free Shipping

Discount Bundles Available

Product Description

The Vango C-Pinnacle 40L compressor cool box brings proper refrigeration technology to your pitch. This isn't your standard cool box that relies on ice packs - it uses a compressor system with R600a refrigerant to actively maintain temperatures from -22°C right through to +20°C. That range means you're not limited to keeping drinks cold. You can genuinely freeze food for longer trips or dial it back to chill mode for everyday use. The 40-litre capacity holds around 50 cans, though most people find the two removable storage baskets more useful for organising food shopping or separating frozen items from chilled ones. The LED display panel sits on top with soft-touch buttons that let you switch between ECO mode for quieter operation and MAX mode when you need faster cooling.

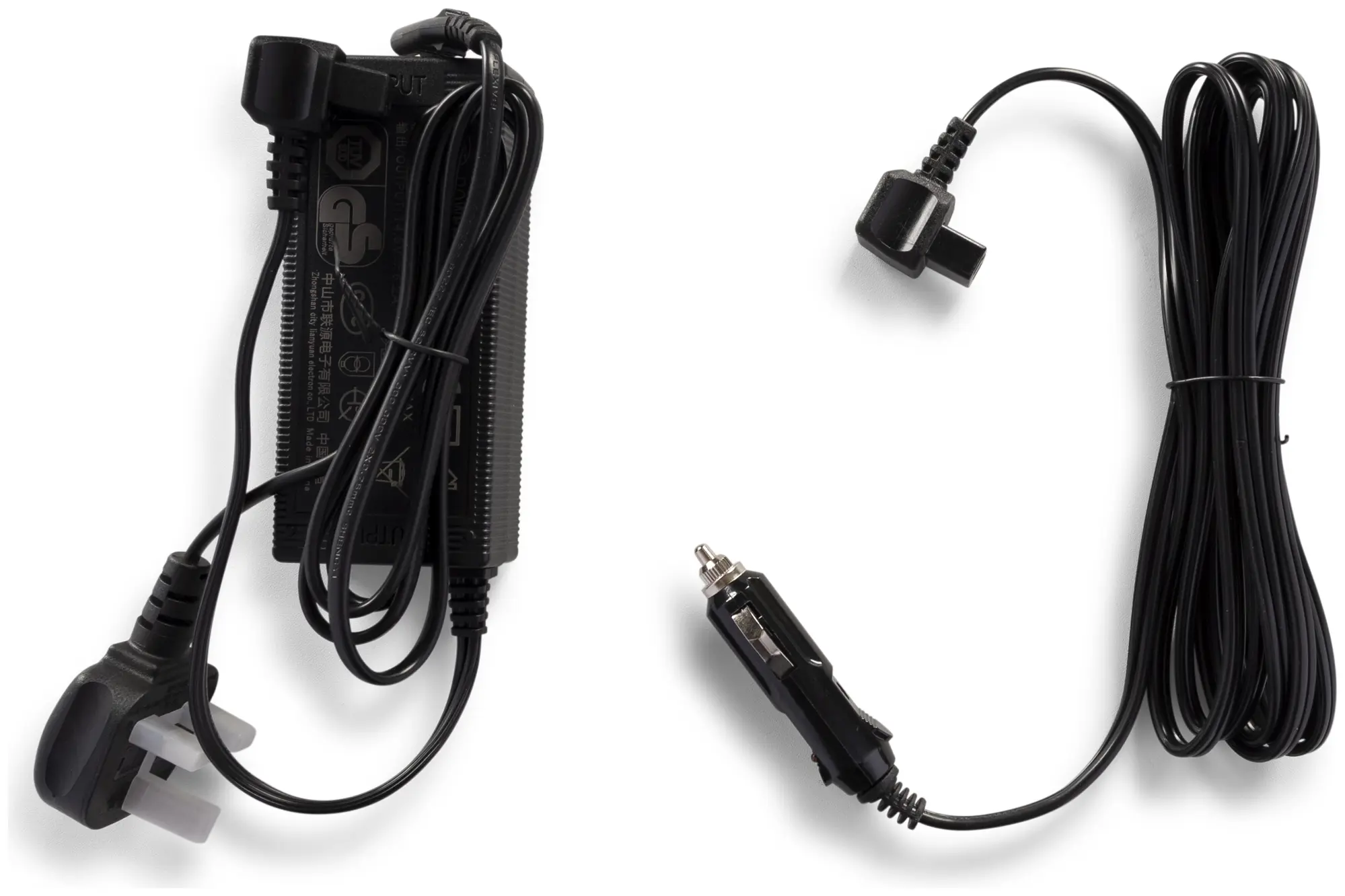

Power options cover most camping setups. You can run it from a 230V mains hookup at site, from your vehicle's 12V socket whilst travelling, or even from 24V systems in larger motorhomes and commercial vehicles. The polyurethane insulation does a decent job of maintaining temperature once reached, and the unit can handle being tilted up to 30 degrees without losing cooling performance - useful when you're parked on anything other than flat ground. The internal light helps you find what you're after without emptying half the contents at night. Strong handles on each side take the weight when you're moving it between car and awning, though at this capacity you'll want to load it sensibly. A drain plug at the base lets you clear any condensation that builds up during longer trips.

This high-performance compressor cool box operates at a quiet 46 decibels and uses just 35 watts of power, making it highly energy-efficient for its cooling capacity. The eco-friendly R600a refrigerant offers a low global warming potential, helping reduce your environmental impact while keeping contents perfectly chilled. Ideal for off-grid adventures, it can be powered from a leisure battery with smart energy management—pairing it with solar panels or periodic mains charging ensures reliable, long-lasting cooling wherever you travel. Thanks to its advanced compressor system, this cool box delivers superior cooling even in hot weather, outperforming thermoelectric or passive models for dependable, consistent results.

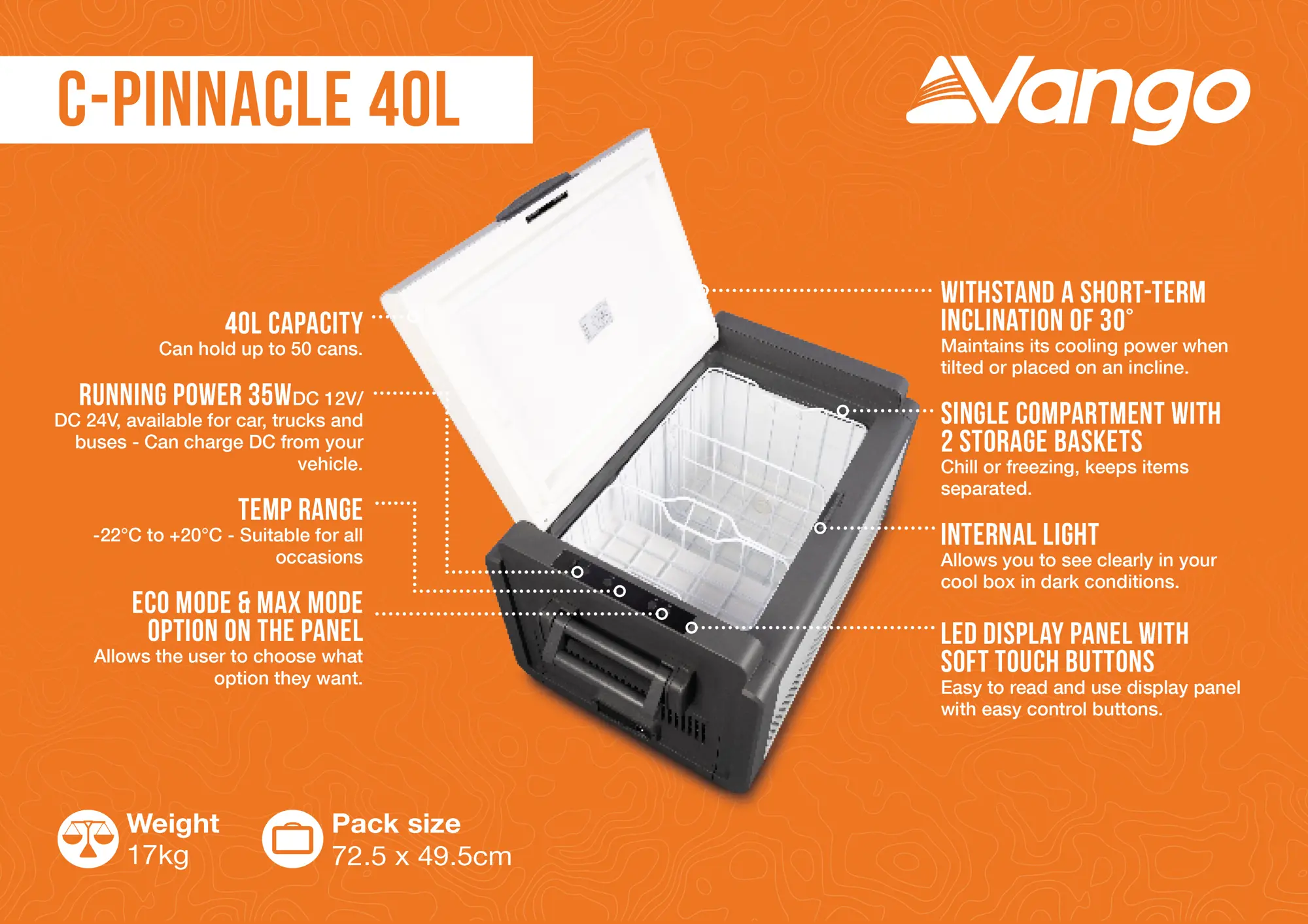

Vango C-Pinnacle 40L Cool Box Features

40L Capacity - Can hold up to 50 cans.
Temp Range -22°C to +20°C - Suitable for all occasions

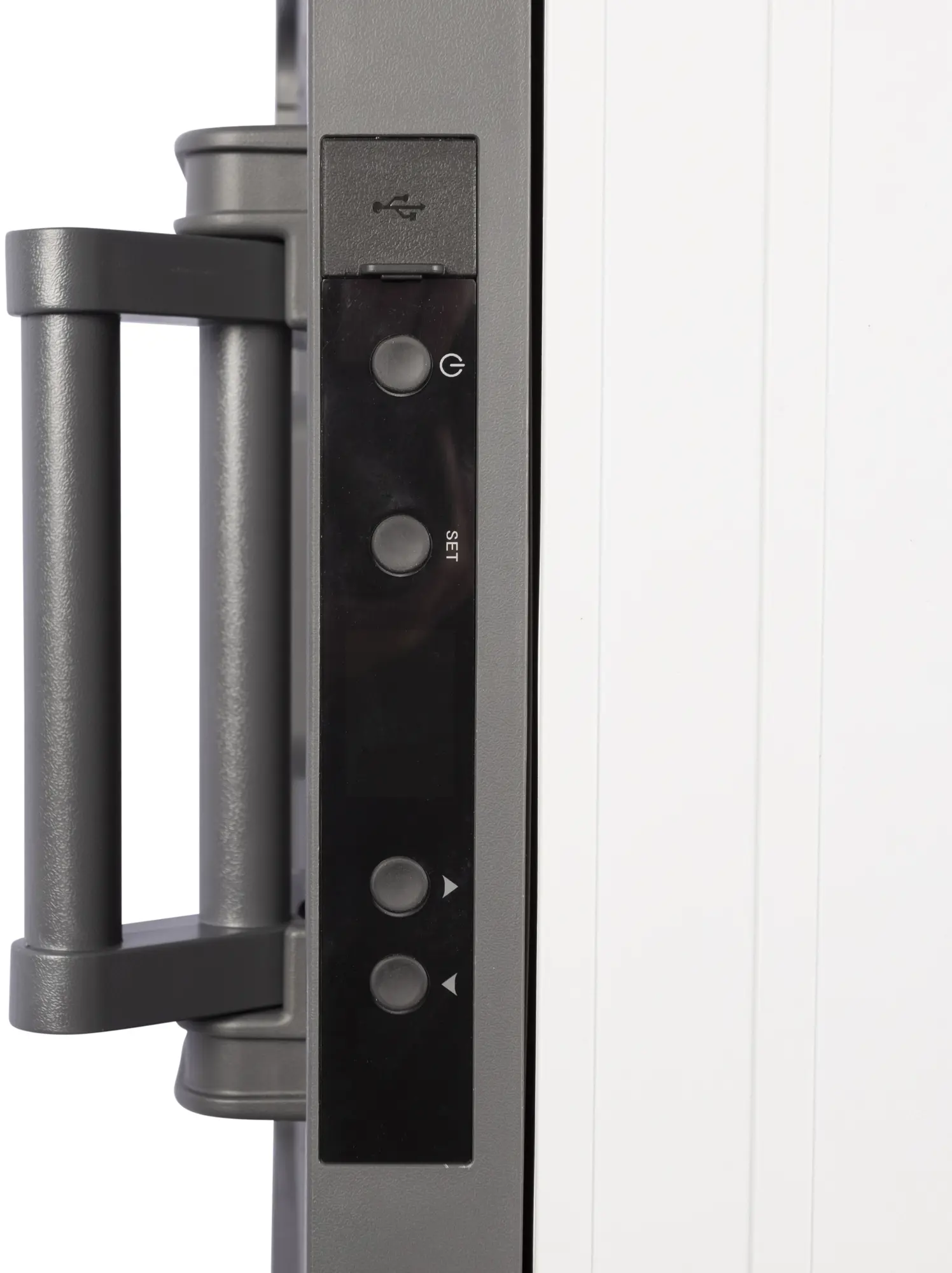

LED Display panel with soft touch buttons - Easy to read and use display panel with easy control buttons.
ECO Mode & MAX Mode option on the panel - Allows the user to choose what option they want.
Insulation PU Polyurethane.
Withstand a short-term inclination of 30° - Maintains its cooling power when tilted or placed on an incline.
Internal Light - Allows you to see clearly in your cool box in dark conditions.

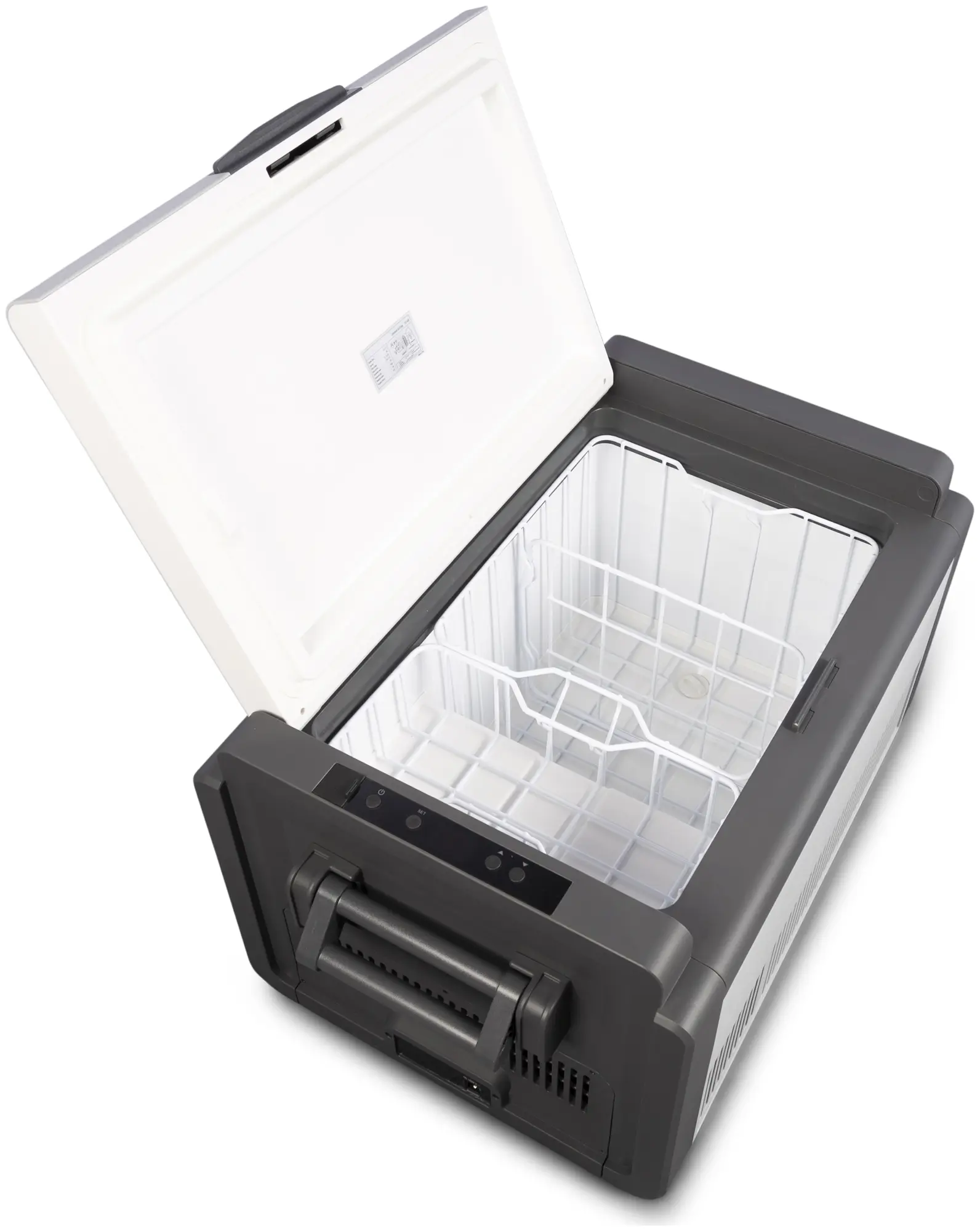

Single Compartment With 2 Storage Baskets - Chill or freezing, keeps items separated.

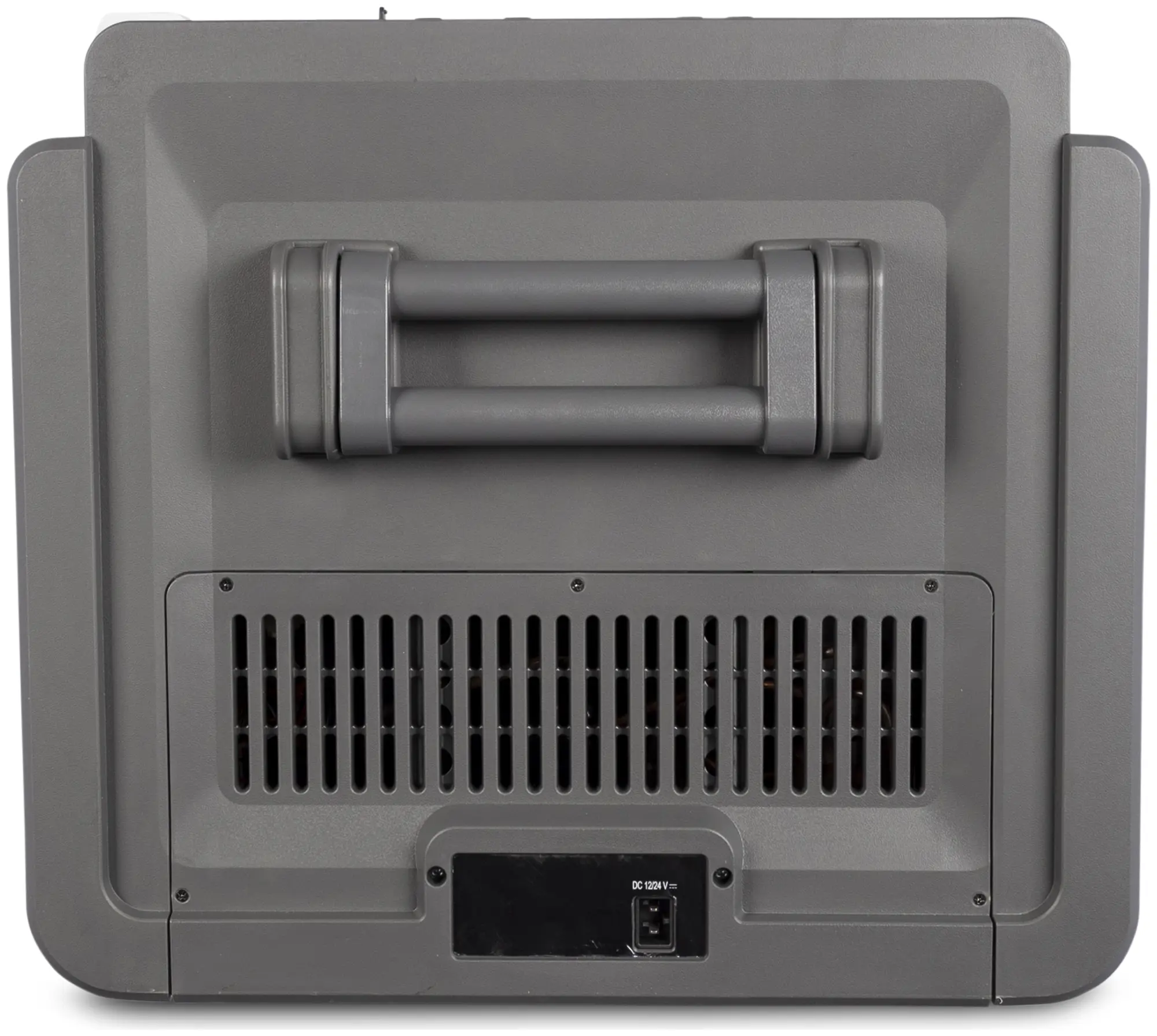

Strong Carry Handles - Allows support and ease carrying the cool box where you're going.
Drain Plug.
DC 12V/DC 24V, available for car, trucks and buses - Can charge DC from your vehicle.
46 Decibels.
Running Power 35W.
Refrigeration type R600a - Low Global Warming Potential (GWP).

Specifications

Weight : 17 kg
Length : 69 cm
Width : 45 cm
Height : 41 cm
EAN : 5059474017057
Colourway : Deep Grey

Frequently Asked Questions

What's the difference between a compressor cool box and a thermoelectric cool box?

Compressor cool boxes like the Vango C-Pinnacle use the same refrigeration technology as your fridge at home. They actively cool to a set temperature regardless of outside conditions and can freeze items. Thermoelectric cool boxes only cool to a certain number of degrees below ambient temperature, typically around 20°C below the outside air. In hot weather a thermoelectric unit struggles, whilst a compressor system maintains its set temperature. Compressor models use more power and cost more but deliver genuine refrigeration performance.

How long will the C-Pinnacle 40L run from a 110Ah leisure battery?

Running at 35 watts on 12V draws roughly 3 amps. A 110Ah leisure battery at 50% depth of discharge gives you about 55Ah usable capacity. The compressor doesn't run continuously - it cycles on and off to maintain temperature. In moderate conditions with the box already cold you might see a 30-40% duty cycle, giving you around 40-50 hours runtime. Hot weather increases cycling and reduces this figure. Always factor in other 12V equipment you're running and consider solar panels or regular charging for trips longer than a couple of days.

Can the Vango C-Pinnacle cool box freeze food solid?

Yes, the temperature range goes down to -22°C which is cold enough to freeze food and keep it frozen. You can use it as a proper freezer for longer trips or pre-freeze items at home then maintain them frozen on site. The MAX mode helps get the temperature down faster when you first load warm items. Bear in mind that frequently opening the lid and ambient temperature both affect how quickly it reaches freezing temperature and how hard the compressor has to work to maintain it.

What does ECO mode do on the C-Pinnacle?

ECO mode reduces the compressor speed to save power and run more quietly. It's useful overnight when you're sleeping nearby or when power supply is limited. The trade-off is slower cooling and slightly less precise temperature maintenance. MAX mode runs the compressor harder for faster cooling and tighter temperature control but uses more power and makes more noise. Most users run ECO mode overnight and MAX mode during the day or when initially cooling down.

Will this cool box work whilst driving?

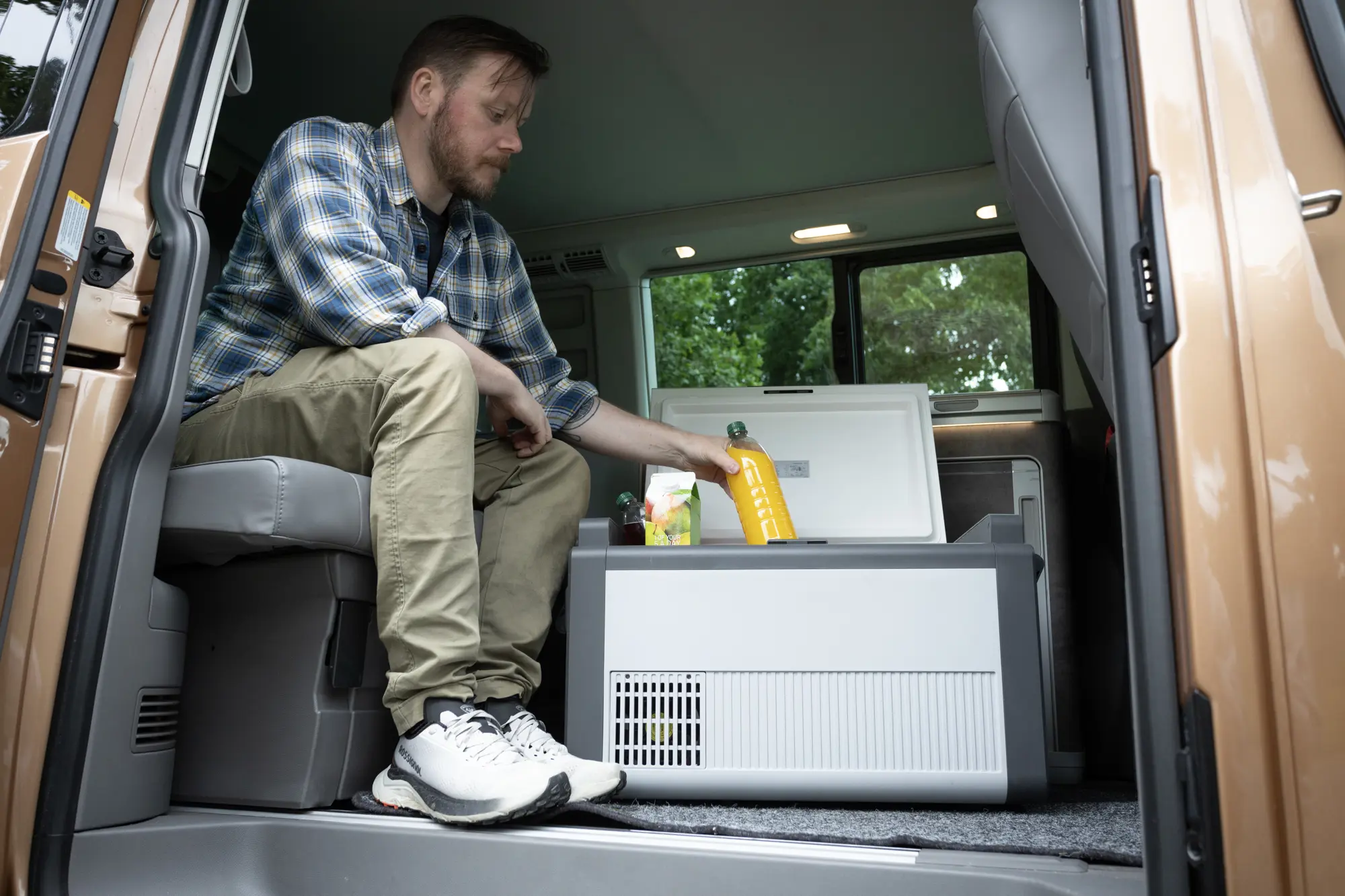

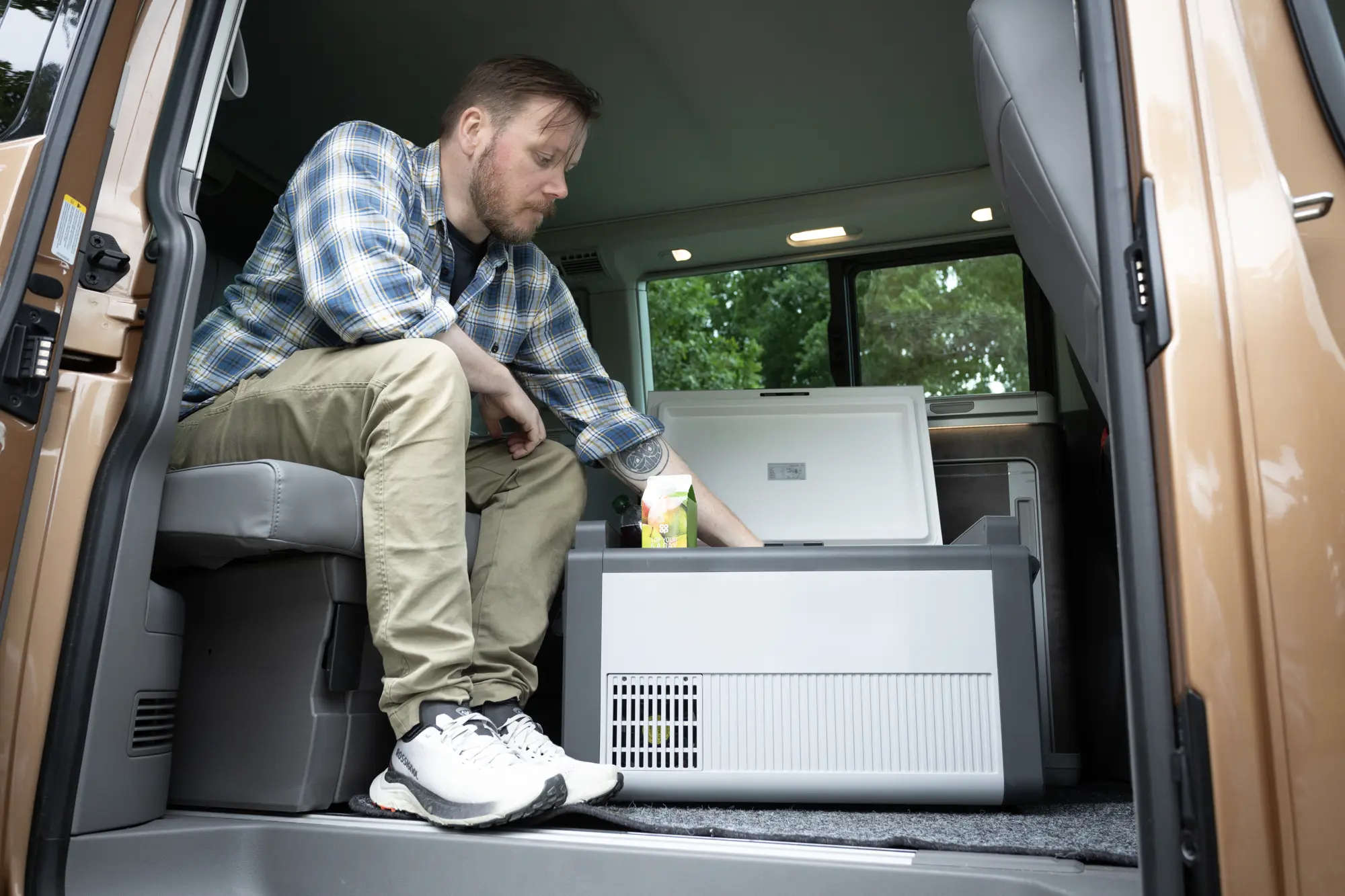

Yes, you can power it from your vehicle's 12V socket whilst driving. The 30-degree tilt tolerance means it continues cooling even when the vehicle is on an incline or going round corners. Make sure it's secured properly so it doesn't slide around. Many people pre-cool the box on mains power before setting off, then switch to 12V for the journey. Your vehicle alternator will supply the power whilst the engine runs, so there's no drain on your starter battery.

How noisy is the Vango C-Pinnacle at 46 decibels?

46 decibels is roughly equivalent to a quiet conversation or light rainfall. You'll hear it when the compressor is running, particularly at night in a quiet awning or tent, but it's not loud enough to be intrusive for most people. The compressor cycles on and off rather than running continuously, so it's not constant noise. ECO mode reduces the noise level further. If you're particularly sensitive to noise whilst sleeping, position it away from your sleeping area or outside under the awning if security and weather allow.

What's R600a refrigerant and why does it matter?

R600a is isobutane, a hydrocarbon refrigerant with very low global warming potential. It's the same refrigerant used in modern domestic fridges. Older refrigerants like R134a have much higher GWP values, contributing more to climate change if released. R600a is flammable in large quantities but the amount used in a cool box is minimal and contained within a sealed system. It's an environmentally better choice compared to older refrigerant types and performs efficiently at the temperatures this cool box operates.

Do you need to leave ventilation space around the C-Pinnacle?

Yes, compressor cool boxes need airflow around them to dissipate heat. The compressor generates heat as part of the cooling process and this heat needs to escape. Leave at least 10cm clearance around the sides and back. Don't push it tight against a wall or pack gear right up against it. Poor ventilation makes the compressor work harder, uses more power, and can lead to the unit shutting down on overheating protection. In hot weather give it extra space and keep it out of direct sunlight if you can.
