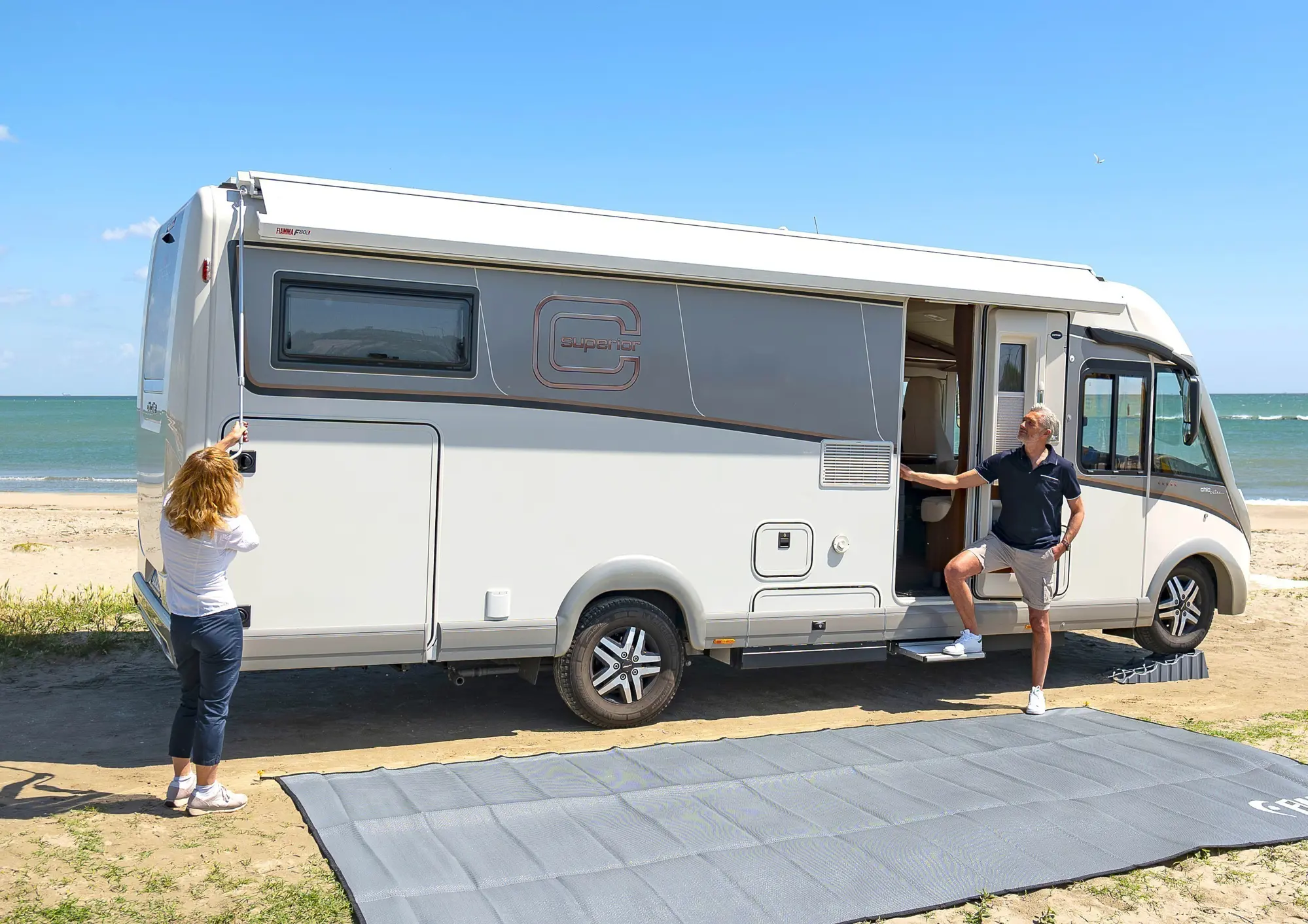

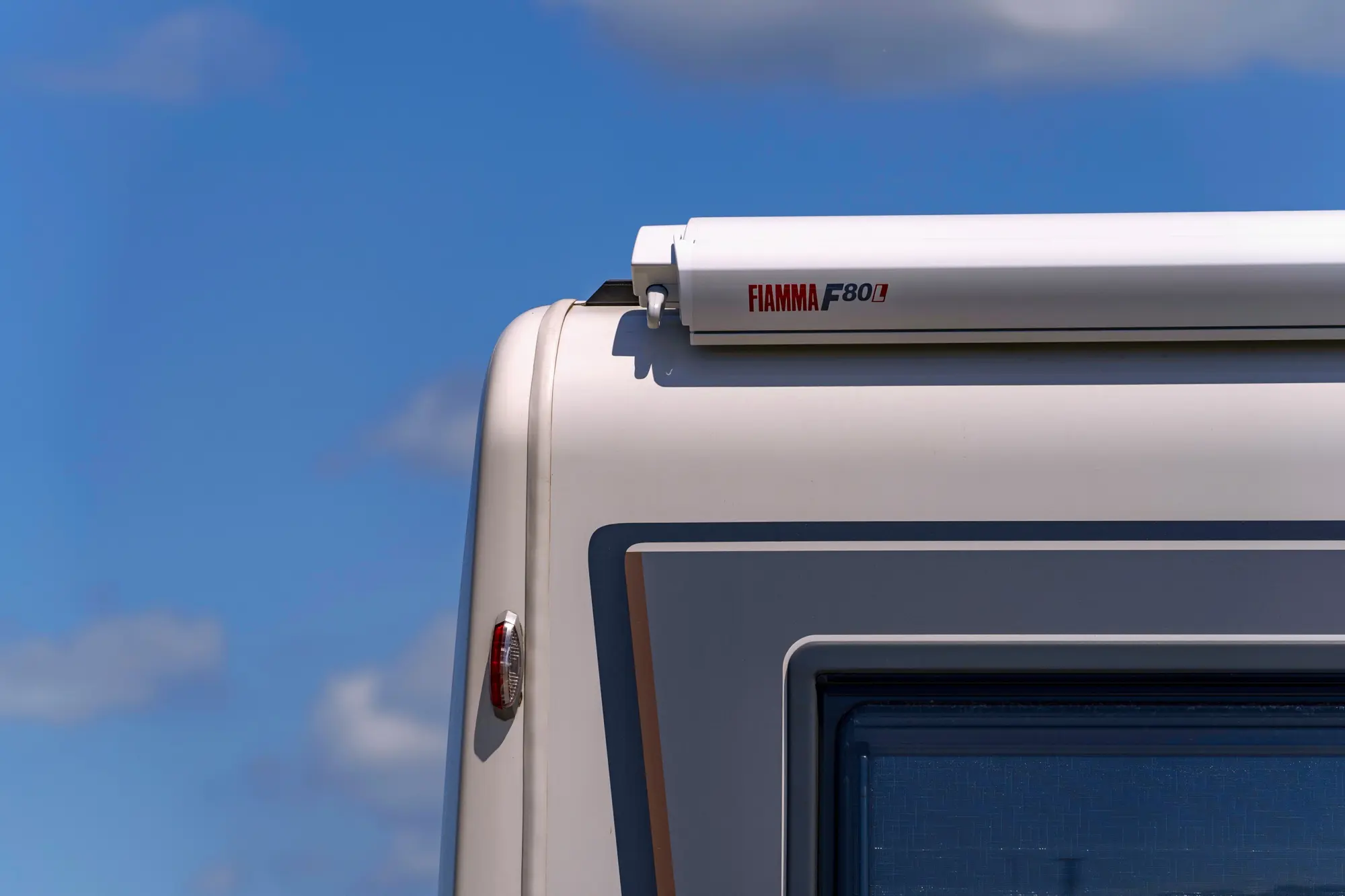

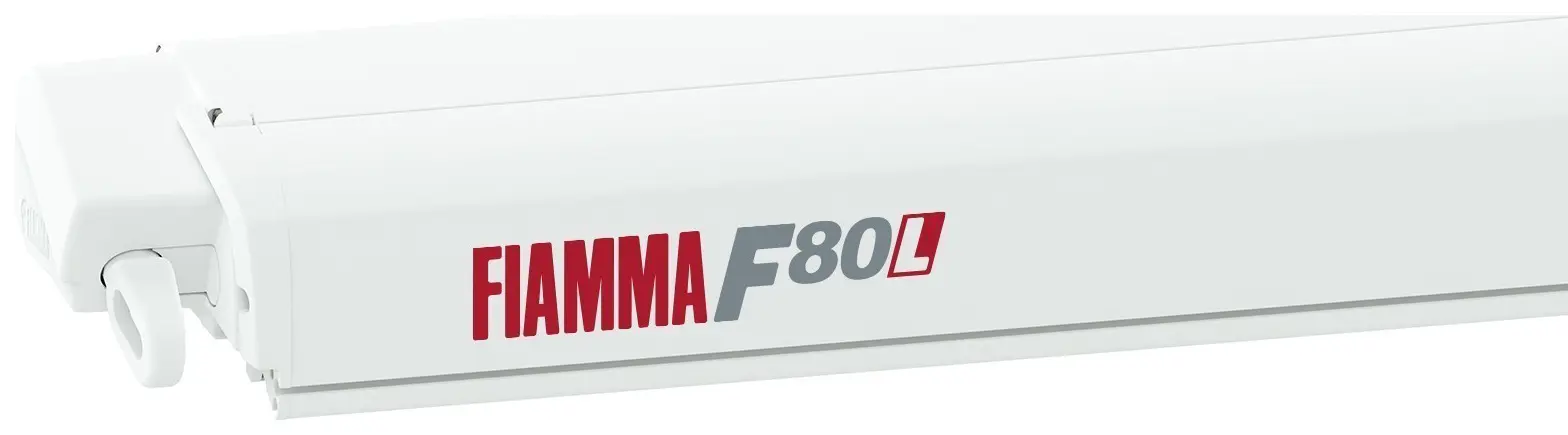

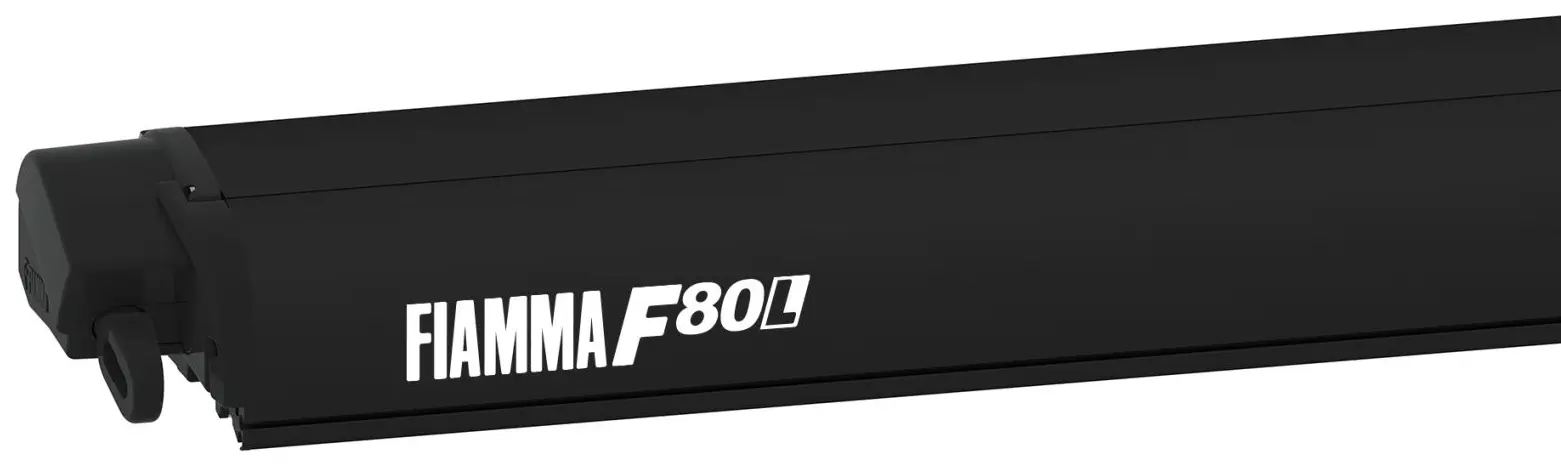

The Fiamma F80L is a roof-mounted, winch-operated awning designed specifically for larger motorhomes and caravans. Available in lengths from 450cm to 600cm, it extends out to 275cm to provide substantial shade coverage. The winch operation features a visible loop for easy manual control, and the awning comes with a telescopic crank handle, storage clips, and bump wraps to protect your vehicle's paintwork during operation. This model has a low-profile design that sits neatly on the roof without compromising your motorhome's appearance.
The F80L features strengthened arms with an enlarged cross-section specifically engineered to support the extended 275cm wind-out safely. Roller supports built into the system guide the vinyl fabric as it rolls, preventing wrinkles and keeping the canopy taut. The triple guide channel in the front lead bar accepts two optional front panels simultaneously, along with other Fiamma accessories like the Privacy Room. An LED preparation channel runs along both the front lead bar and the awning casing, allowing you to integrate optional LED light strips that remain visible even when the awning is closed.

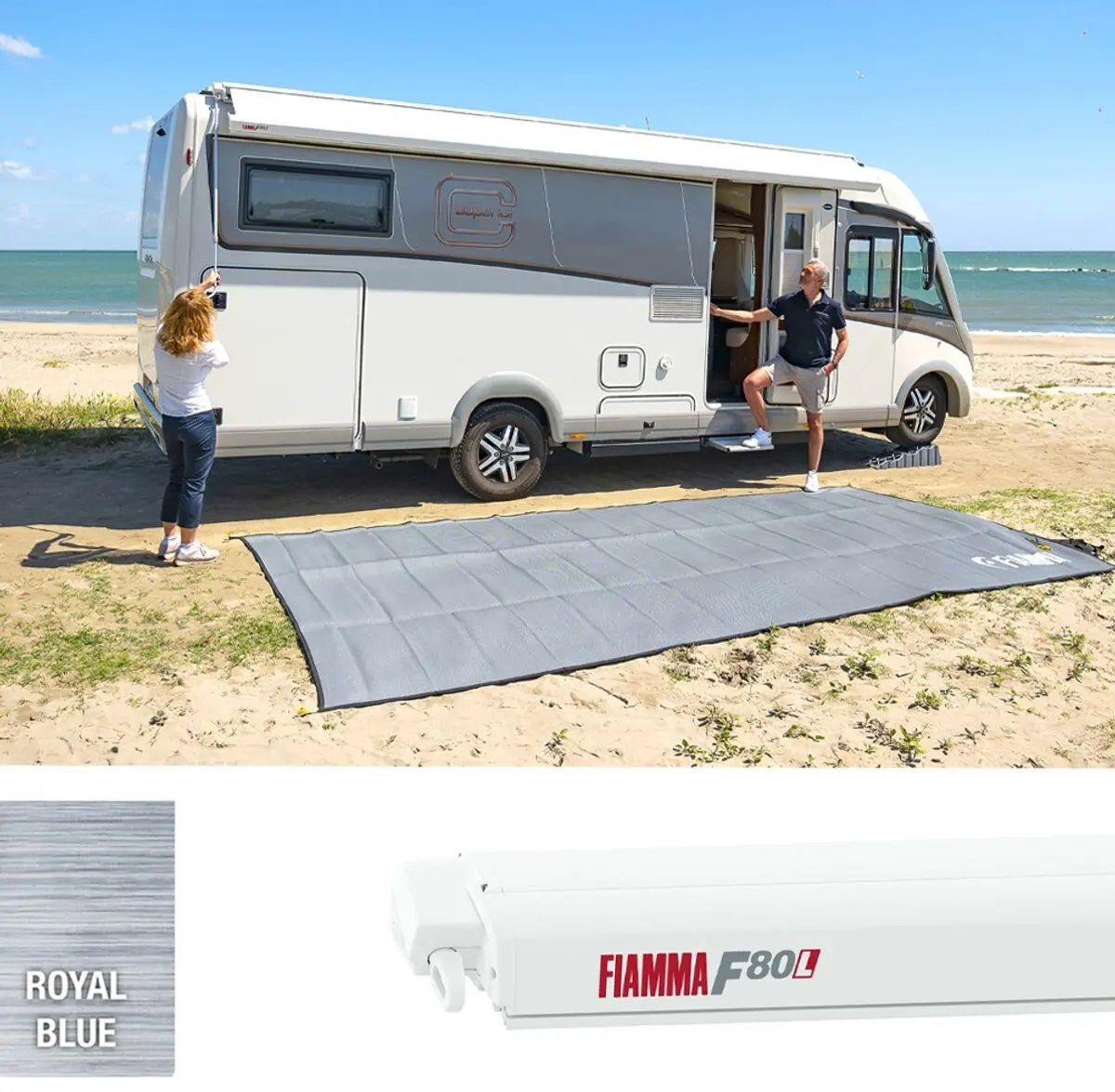

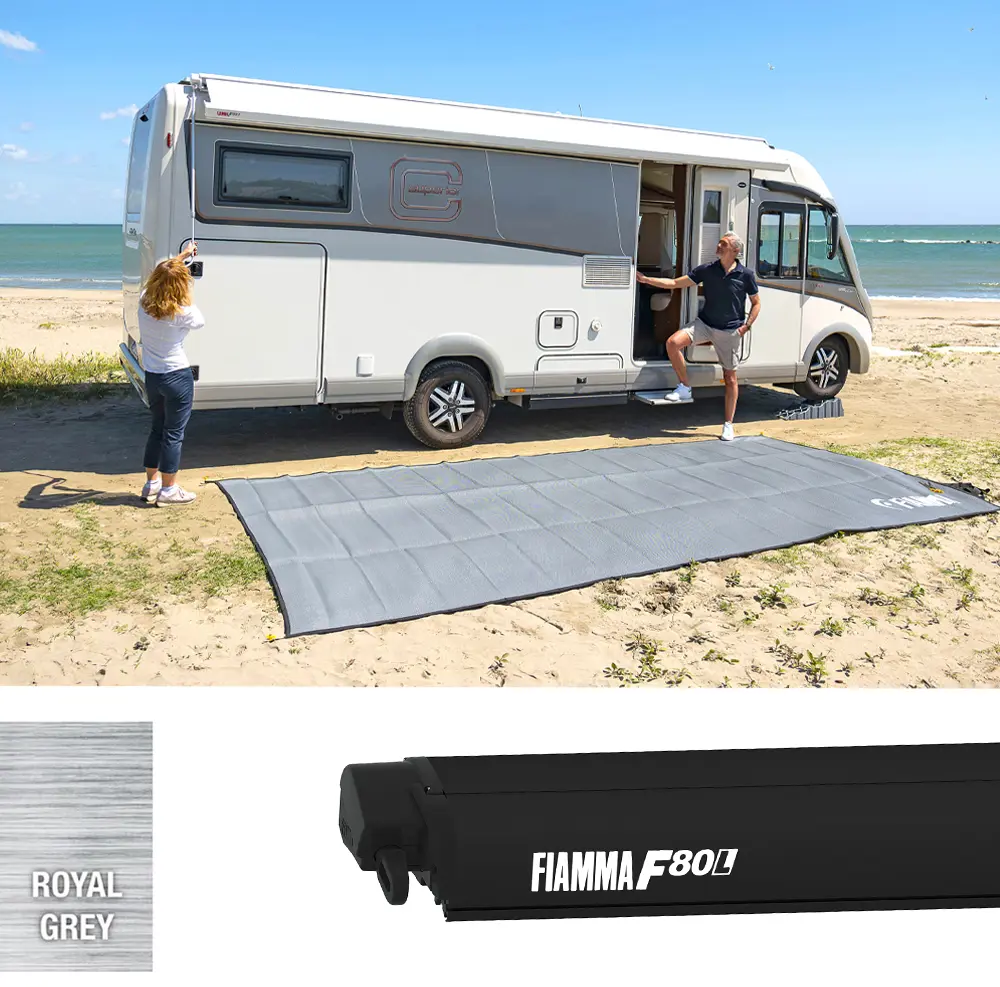

The structure includes dual shock absorbers to handle stress from wind gusts, and a Secure Lock system lets you adjust the lead bar height to create the right angle for rain runoff. The UV-resistant, waterproof vinyl canopy is washable and comes in either Royal Grey or Royal Blue. Standard equipment includes roof tension rafters (one rafter for 450-500cm lengths, two rafters for 550-600cm lengths), awning leg wall brackets, and four pegs. Vehicle-specific mounting brackets are sold separately and must be purchased to match your motorhome model.
Fiamma F80L Features
- Winch Operation with Visible Loop : Easy manual operation using the included telescopic crank handle with visible loop for quick deployment
- Extended 275cm Wind-Out : Strengthened arms with enlarged cross-section provide extra shade coverage beyond standard awnings
- Triple Accessory Guide System : Front lead bar accommodates two front panels simultaneously plus other Fiamma accessories

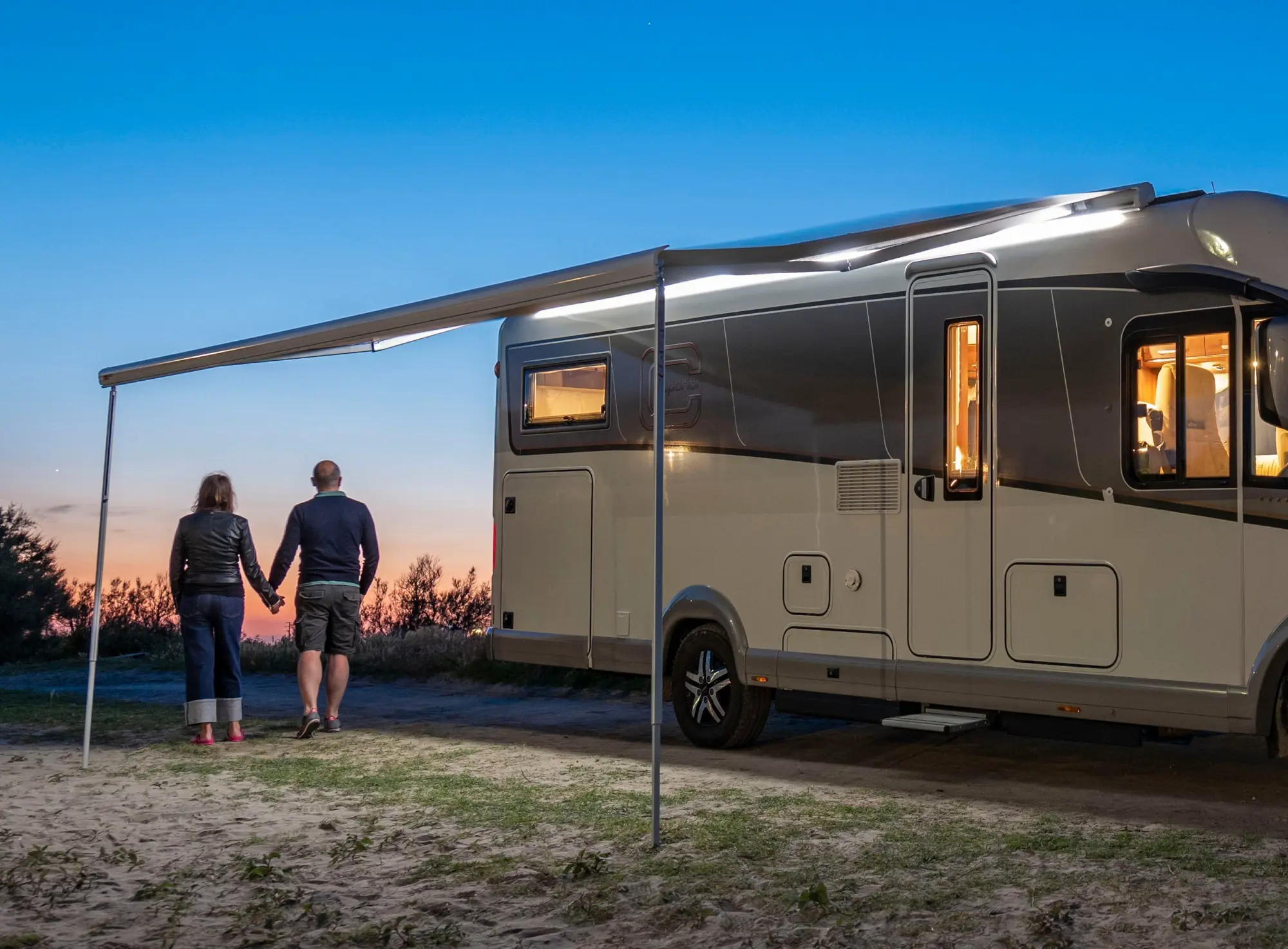

- Dual LED Preparation Channels : Integrated LED channels in both front bar and casing allow optional lighting strips visible when closed
- Roller Support Technology : Built-in roller supports guide fabric during retraction to prevent wrinkles and maintain tension
- Dual Shock Absorber Protection : Absorbs stress from wind gusts to protect the awning mechanism and extending arms
- Adjustable Secure Lock System : Height-adjustable lead bar creates optimal rain runoff angle and customised coverage
Specifications
- Available Lengths: 450cm, 500cm, 550cm, 600cm
- Extension Depth: 275cm wind-out
- Canopy Material: UV-resistant, waterproof, washable vinyl
- Operation Method: Manual winch with telescopic crank handle
- Installation Type: Roof-mounted (requires vehicle-specific brackets sold separately)
- Included Equipment: Telescopic crank handle, storage clips, bump wraps, awning pegs, leg wall brackets, tension rafters (1x for 450-500cm, 2x for 550-600cm)

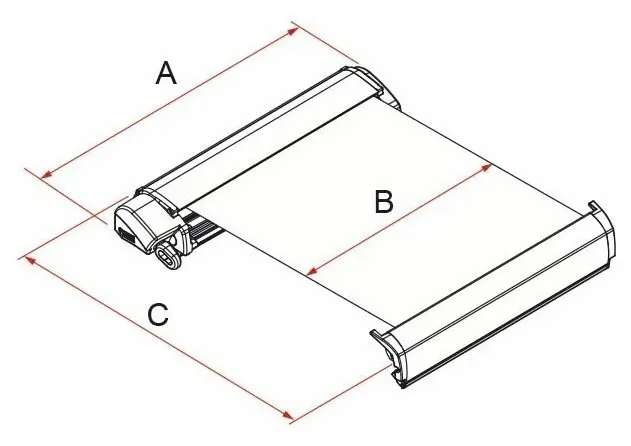

Choosing your awning
| Description |
Awning length A |
Sheet length B |
Extension (C) |
Shade surface |
| F80L 450 - Polar White* |
454 cm |
438 cm |
275 cm |
12 m² |
| F80L 500 - Polar White* |
497 cm |
480 cm |
275 cm |
13.2 m² |
| F80L 550 - Polar White** |
547 cm |
530 cm |
275 cm |
14.6 m² |
| F80L 600 - Polar White** |
597 cm |
580 cm |
275 cm |
16 m² |
| F80L 450 - Titanium* |
454 cm |
438 cm |
275 cm |
12 m² |
| F80L 500 - Titanium* |
497 cm |
480 cm |
275 cm |
13.2 m² |
| F80L 550 - Titanium** |
547 cm |
530 cm |
275 cm |
14.6 m² |
| F80L 600 - Titanium** |
597 cm |
580 cm |
275 cm |
16 m² |
| F80L 450 - Deep Black* |
454 cm |
438 cm |
275 cm |
12 m² |
| F80L 500 - Deep Black* |
497 cm |
480 cm |
275 cm |
13.2 m² |
| F80L 550 - Deep Black** |
547 cm |
530 cm |
275 cm |
14.6 m² |
| F80L 600 - Deep Black** |
597 cm |
580 cm |
275 cm |
16 m² |
* 1 Rafter included.
** 2 Rafters included.Associated Products
Frequently Asked Questions
Measure the length of your motorhome's roof from the point where you want the awning to start to where it should end, leaving clearance for doors, windows, and roof vents. The F80L is available in 450cm, 500cm, 550cm, and 600cm lengths. Choose a length that fits your available roof space while ensuring the awning won't obstruct access points or interfere with roof equipment. The 275cm extension depth is the same across all F80L lengths.
Yes, vehicle-specific mounting brackets are sold separately and are required for installation. Fiamma produces dedicated brackets designed for different motorhome makes and models to guarantee secure roof mounting. You'll need to identify your vehicle's make, model, and year to purchase the correct bracket set. The brackets account for roof curvature, gutter profiles, and mounting points specific to your motorhome.
Yes, the F80L has LED preparation channels built into both the front lead bar and the awning casing. These channels accept Fiamma LED light strip kits, which are sold separately. The LED strips remain visible even when the awning is fully retracted because the channel in the casing keeps them exposed. This dual-channel system provides lighting along the entire length of the awning when extended and ambient lighting when closed.
The F80L's triple guide channel in the front lead bar accommodates up to two front panels simultaneously, plus Fiamma's Privacy Room enclosure and other F80L-specific accessories. The system also accepts Fiamma side panels, draught skirts, and tie-down kits designed for the F80 series. LED light strips fit into the dedicated preparation channels. All accessories are sold separately and must be compatible with the F80L model specifically, as dimensions differ from the standard F80S.
The F80L is designed for larger motorhomes with lengths from 450cm to 600cm, while the F80S covers 290cm to 450cm lengths. The F80L extends 275cm compared to the F80S's 250cm extension. To support this extra extension, the F80L has strengthened arms with an enlarged cross-section and a reinforced case structure. Both models are roof-mounted and winch-operated, but the F80L includes additional roller supports and comes with more tension rafters for the longer lengths.
Yes, the F80L is suitable for large caravans with sufficient roof space and structural strength to support a roof-mounted awning. You'll need caravan-specific mounting brackets that account for the caravan's roof construction and profile. The F80L is particularly suited to larger touring caravans where the extended 275cm projection provides shade over wider seating and dining areas. Check your caravan's roof load capacity and consult the manufacturer's guidelines before installation.
Clean the vinyl canopy regularly with mild soap and water, allowing it to dry completely before retracting to prevent mould growth. Lubricate the awning arms and winding mechanism annually with silicone-based lubricant. Check the tension of the canopy fabric periodically and inspect the roller supports for debris. The crank handle mechanism should be checked for smooth operation, and the Rain Guard seal should be inspected for damage. Store the awning fully retracted during winter months or when the vehicle is not in use for extended periods.
The 450cm and 500cm length F80L awnings include one roof tension rafter as standard equipment. The 550cm and 600cm lengths include two roof tension rafters to provide additional support across the extended width. These tension rafters run from the vehicle's roof to the awning's lead bar, creating extra stability and helping to maintain the correct canopy tension. Additional rafters are available separately if you want extra support in windy conditions.
